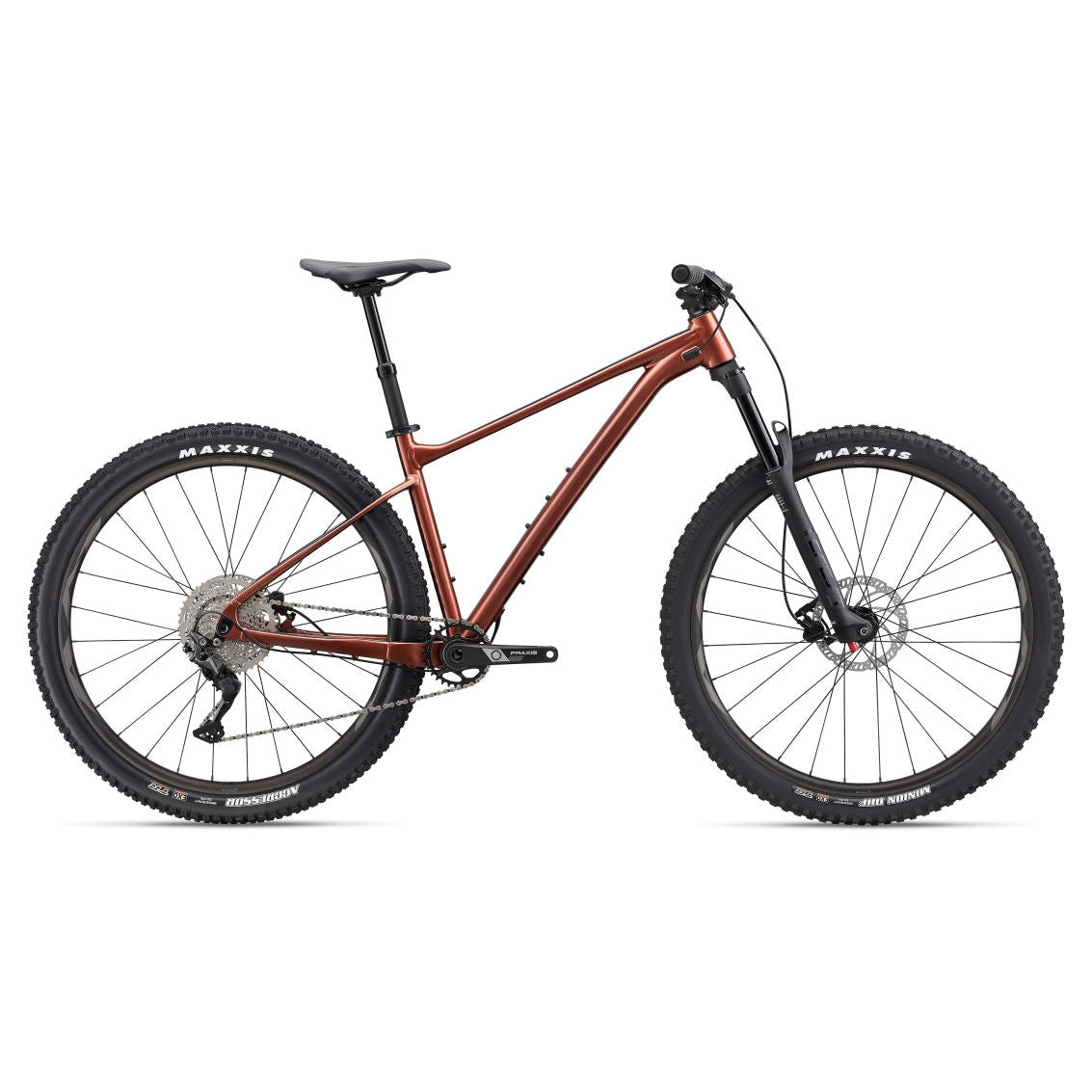

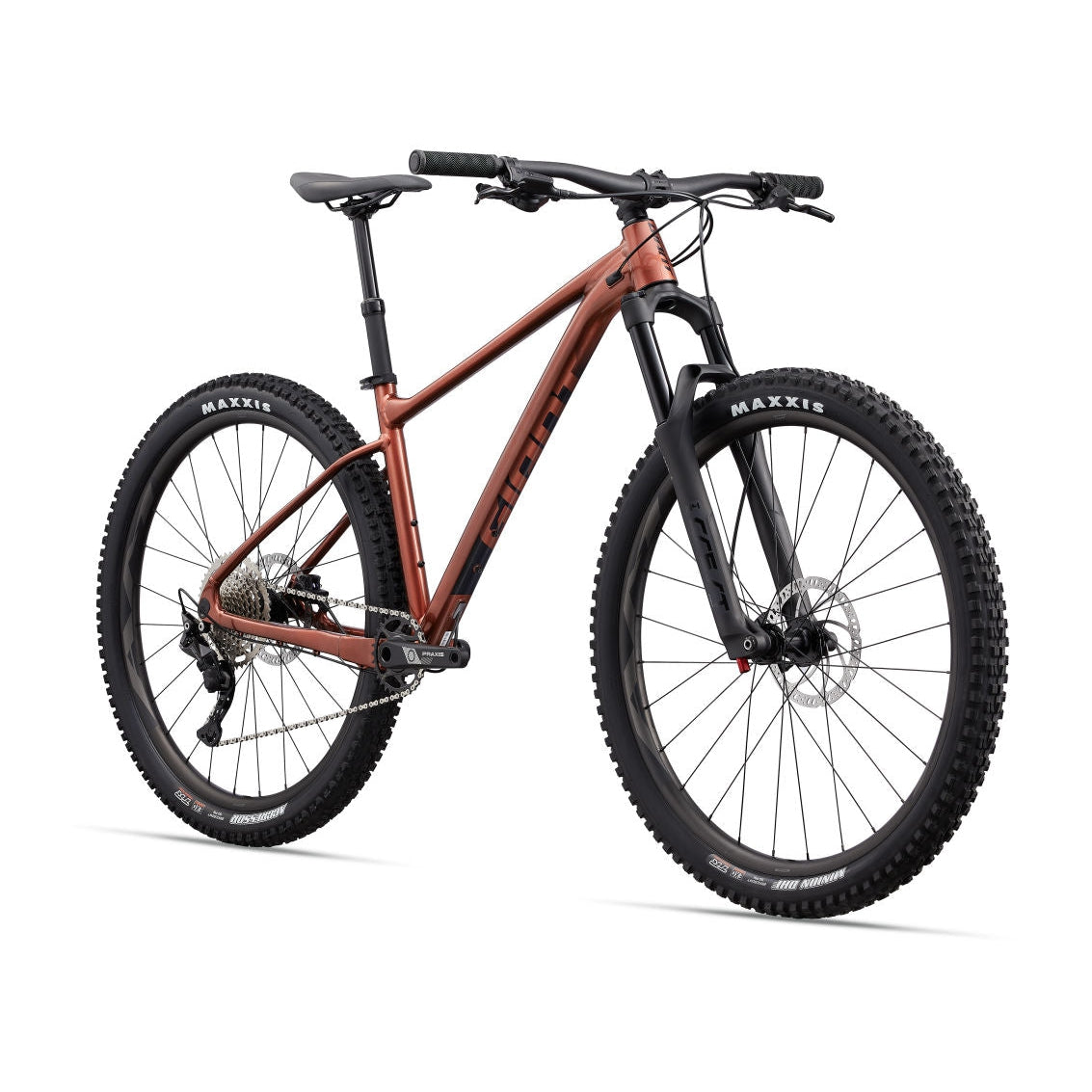

Looking to dominate the trails and leave your buddies in the dust? The Fathom 2 29er Mountain Bike has got you covered! This bad boy is designed to crank up steep climbs with smooth efficiency and swoop down singletrack descents with speed and confidence. With its trail-tuned design and balanced geometry, you'll feel like a superhero on XC terrain.
The 75-degree seattube angle puts you in a powerful pedaling position on climbs, while the slacker 66-degree head angle boosts your confidence and control on technical descents.
The lightweight ALUXX SL aluminum hardtail frame offers agile acceleration and maneuverability, making it a breeze to climb, corner and hammer the flats with efficiency and speed. The Giant Crest 34 suspension fork with 130mm of travel absorbs roots, rocks, and ruts, while the grippy, high-volume tires boost traction on rugged terrain. Plus, the dropper seatpost with handlebar remote lets you adjust saddle height on the fly, giving you confident positioning on changing terrain.
So, what are you waiting for? Get ready to hit the trails and unleash your inner mountain biking beast with the Fathom 2 29er Mountain Bike!
Trail tuned design
Balanced geometry with a 75-degree seattube angle puts the rider in a powerful pedaling position on climbs, while a slacker 66-degree head angle boosts confidence and control on technical descents.
Responsive handling
Lightweight ALUXX SL aluminum hardtail frame offers agile acceleration and maneuverability to help riders climb, corner and hammer the flats with efficiency and speed.
Smooth control
Giant Crest 34 suspension fork with 130mm of travel absorbs roots, rocks and ruts. Grippy, high-volume tires boost traction on rugged terrain. And a dropper seatpost with handlebar remote lets you adjust saddle height on the fly for confident positioning on changing terrain.
| Sizes S, M, L, XL |

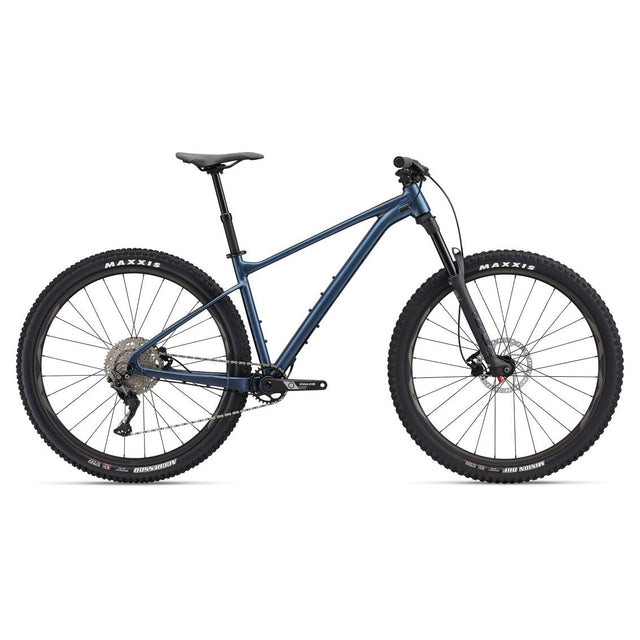

| Colors Terracotta, Blue Ashes |
| Frame ALUXX SL-Grade Aluminum |
| Fork Giant Crest 34 RCL, 130mm, 44mm offset, Boost 15x110 |
| Shock N/A |
| Handlebar Giant Contact TR35, 780x35mm |
| Grips Giant Sole-O |
| Stem Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm |
| Seatpost Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 125mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 440mm XL: 170mm travel / 30.9 x 450mm |
| Saddle Giant Romero |
| Pedals platform [GC,GT] |
| Shifters Shimano Deore M-4100, 1x10 |
| Front Derailleur N/A |
| Rear Derailleur Shimano Deore M-5120 |
| Brakes Tektro HDM 275, hydraulic, Tektro rotors [F]180mm, [R]180mm |
| Brake Levers Tektro HDM 275 |
| Cassette Shimano Deore M4100, 11x46 |
| ChainK MC X10 |
| Crankset Praxis Cadet M24, 30t S:165mm, M:170mm, L:170mm, XL:170mm |
| Bottom Bracket Praxis, press fit |
| Rims Giant AM 29, tubeless ready sleeve-joint rim, 30mm inner width |
| Hubs alloy, sealed |
| Spokes stainless |
| Tires [F] Maxxis Minion DHF, 29x2.5 WT, EXO/TR [R] Maxxis Aggressor, 29x2.5 WT, foldable, EXO/T |
| Extras tubeless prepared, 2.5" max tire size, 32t max chainring size |
| Weight The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
| |
S |
M |
L |
XL |
| SEAT TUBE LENGTH(inch) |
15 |
16.9 |
18.3 |
19.5 |
| SEAT TUBE ANGLE |
75.0° |
75.0° |
75.0° |
75.0° |
| TOP TUBE LENGTH(inch) |
23.3 |
24.1 |
25.2 |
26.1 |
| HEAD TUBE LENGTH(inch) |
3.7 |
3.7 |
4.1 |
4.5 |
| HEAD TUBE ANGLE |
66.0° |
66.0° |
66.0° |
66.0° |
| FORK RAKE(inch) |
1.7 |
1.7 |
1.7 |
1.7 |
| TRAIL(inch) |
4.8 |
4.8 |
4.8 |
4.8 |
| WHEELBASE(inch) |
45.4 |
46.2 |
47.4 |
48.3 |
| CHAIN STAY LENGTH(inch) |
17.1 |
17.1 |
17.1 |
17.1 |
| BOTTOM BRACKET DROP(inch) |
2.4 |
2.4 |
2.4 |
2.4 |
| STACK(inch) |
24.5 |
24.5 |
24.8 |
25.2 |
| REACH(inch) |
16.7 |
17.5 |
18.5 |
19.3 |
| STAND OVER HEIGHT(inch) |
28.7 |
29.3 |
30.1 |
31.1 |
| HANDLEBAR WIDTH(inch) |
30.7 |
30.7 |
30.7 |
30.7 |
| STEM LENGTH(inch) |
1.6 |
1.6 |
2 |
2 |
| CRANK LENGTH(inch) |
6.5 |
6.7 |
6.7 |
6.7 |
| WHEEL SIZE
|
29" |
29" |
29" |
29" |
