Giant

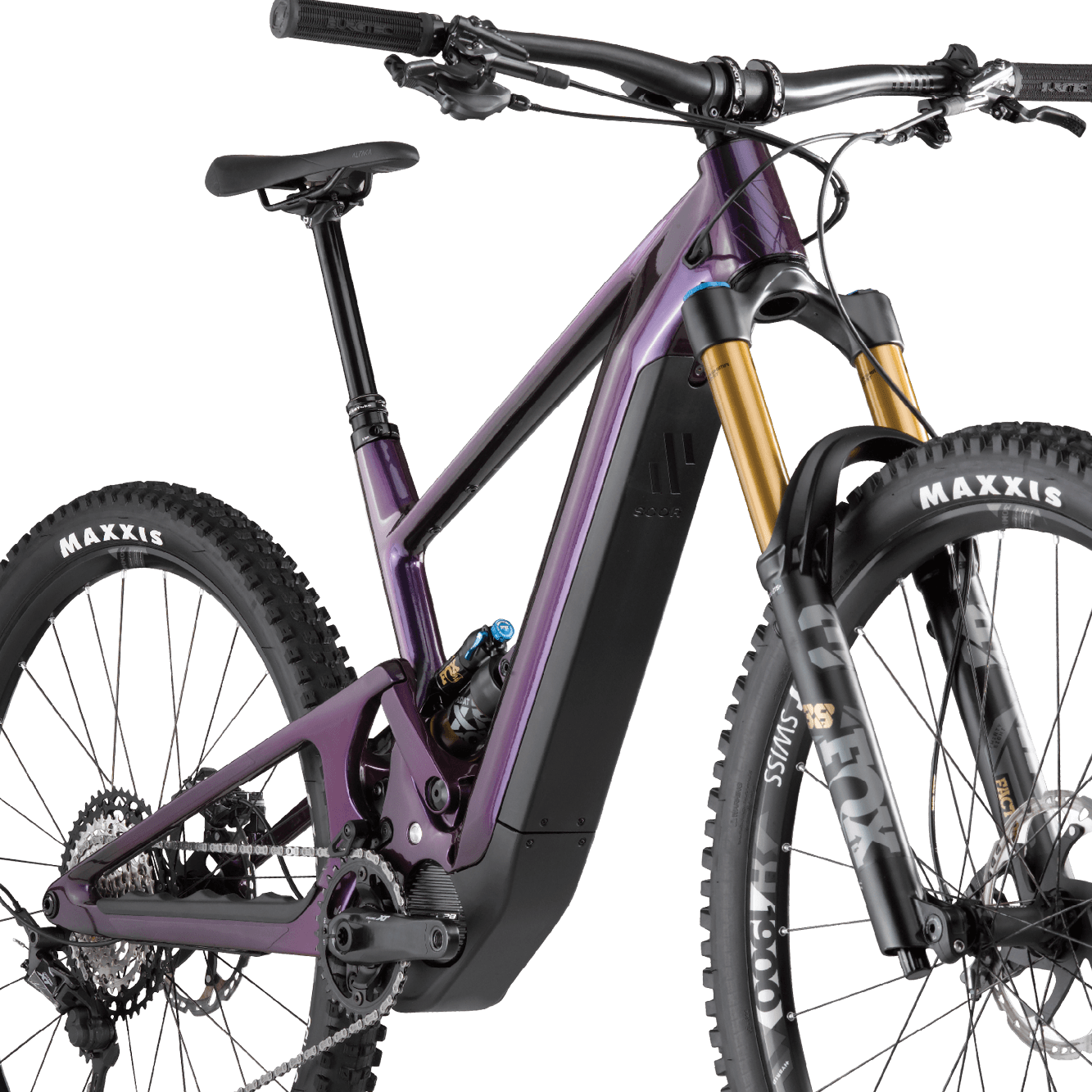

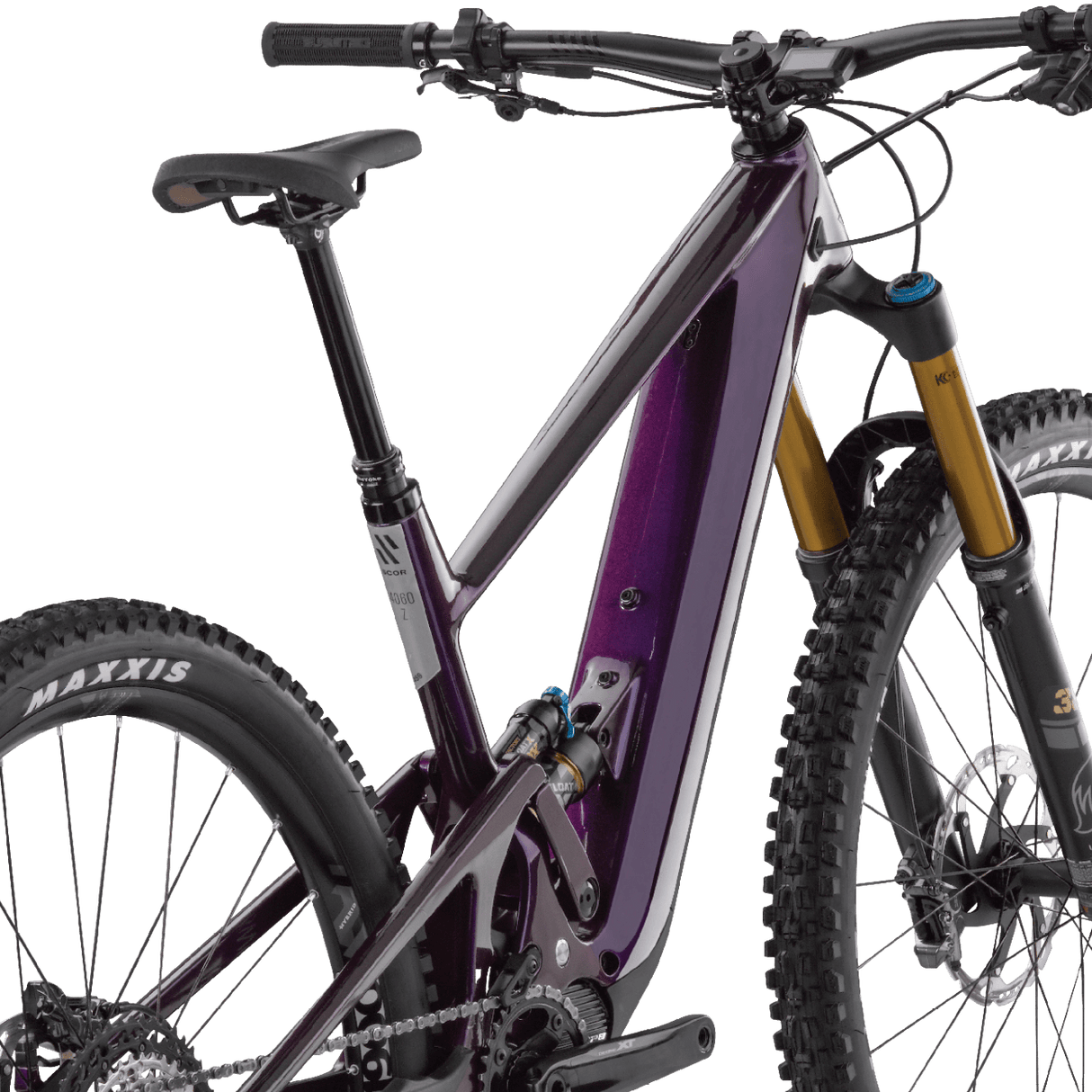

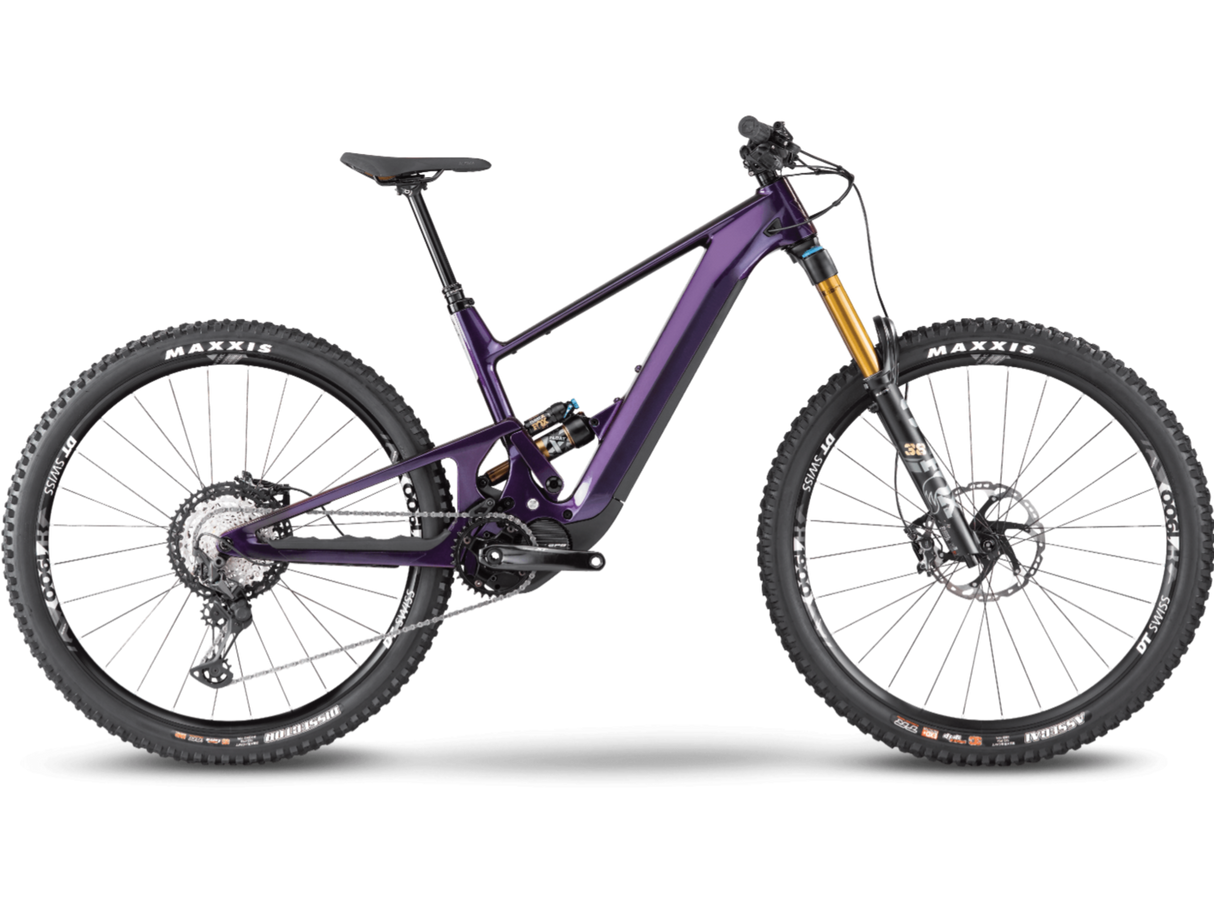

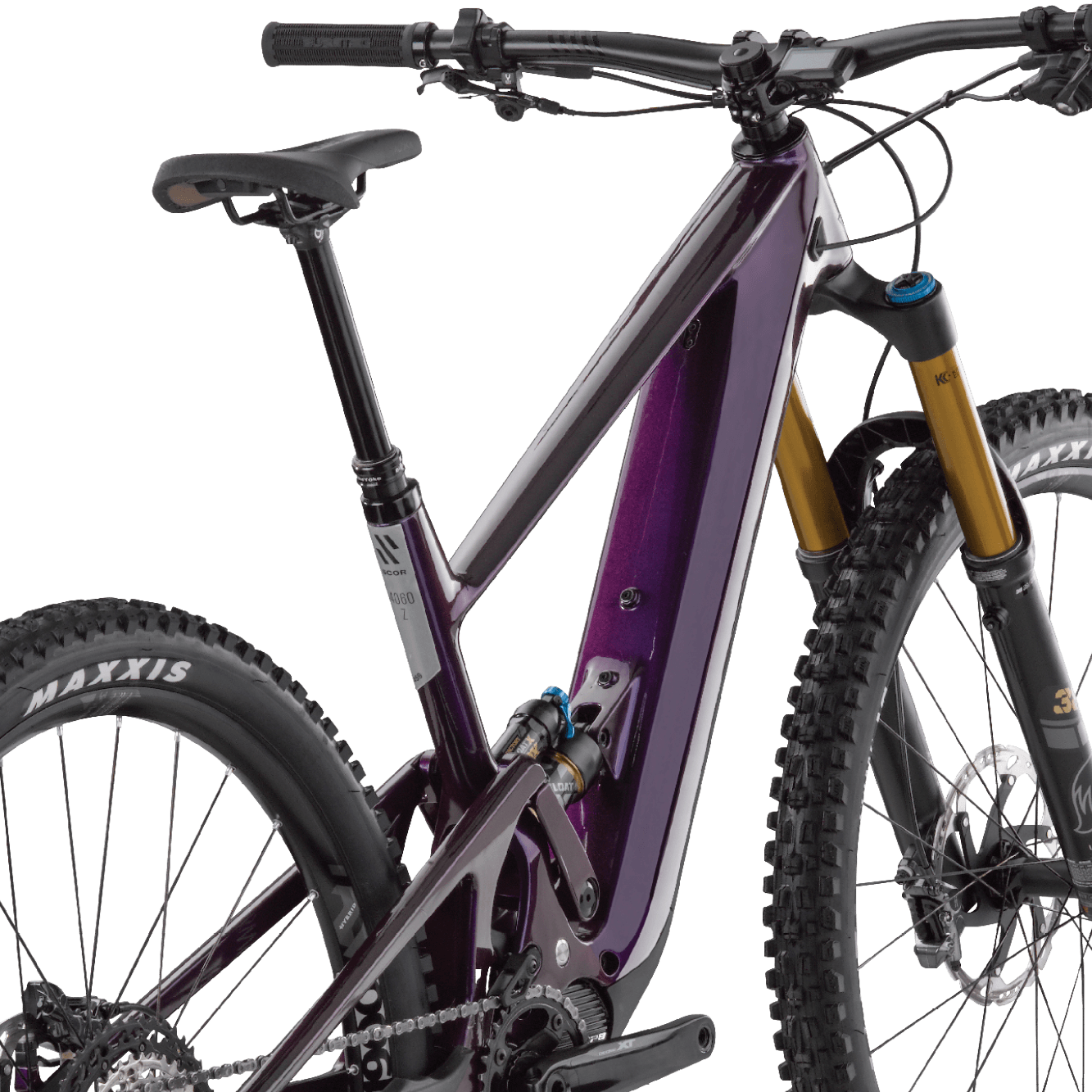

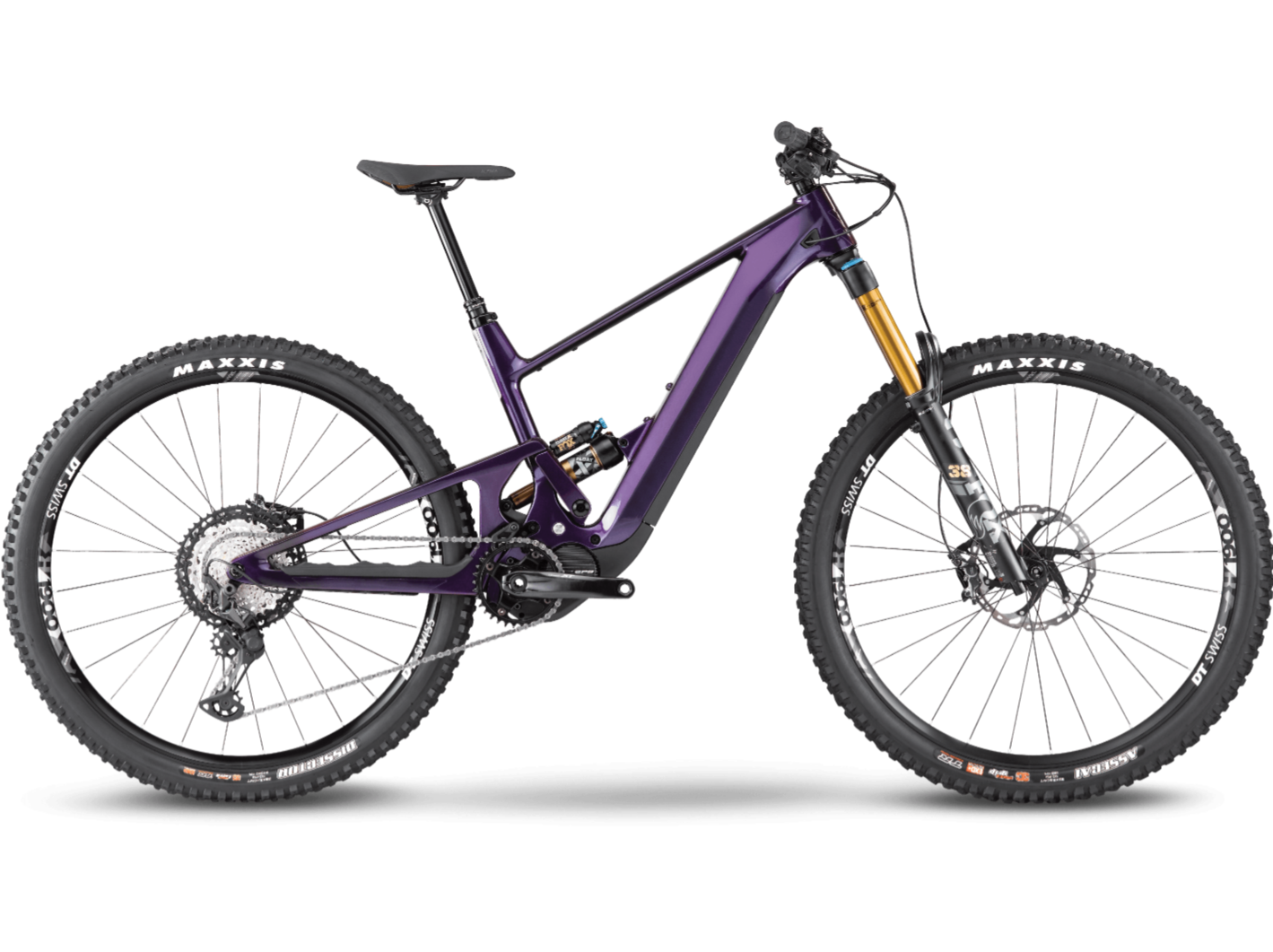

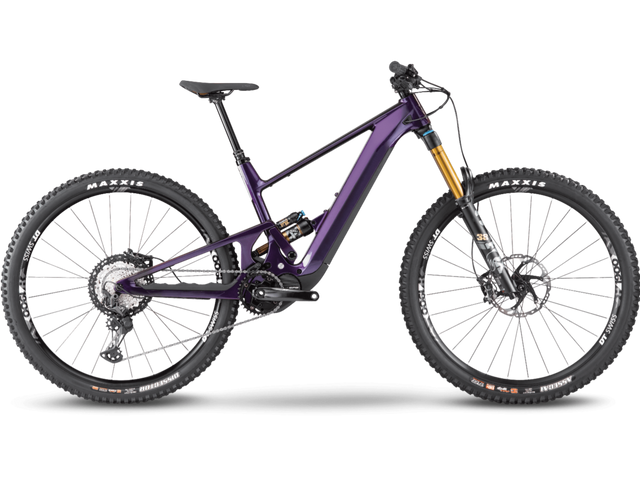

4060 Z LT XT

From $116.38

Play On Repeat

We’ve all got tracks we love to play again and again. Whether you’re into double-black rock anthems or rhythm-section blues, the 4060 Z LT lets you keep hitting repeat thanks to the Shimano EP8 motor and long-lasting 720Wh battery. Riff off old favorites, create something new, hit play and repeat.

FEATURES:

  • No-Compromise Geometry: Adding a motor and battery shouldn't overwhelm the ride experience, it should enhance it. Using the exact same geometry as our unassisted bikes we've kept the same playful feel and dynamic ability but given it an electric boost.

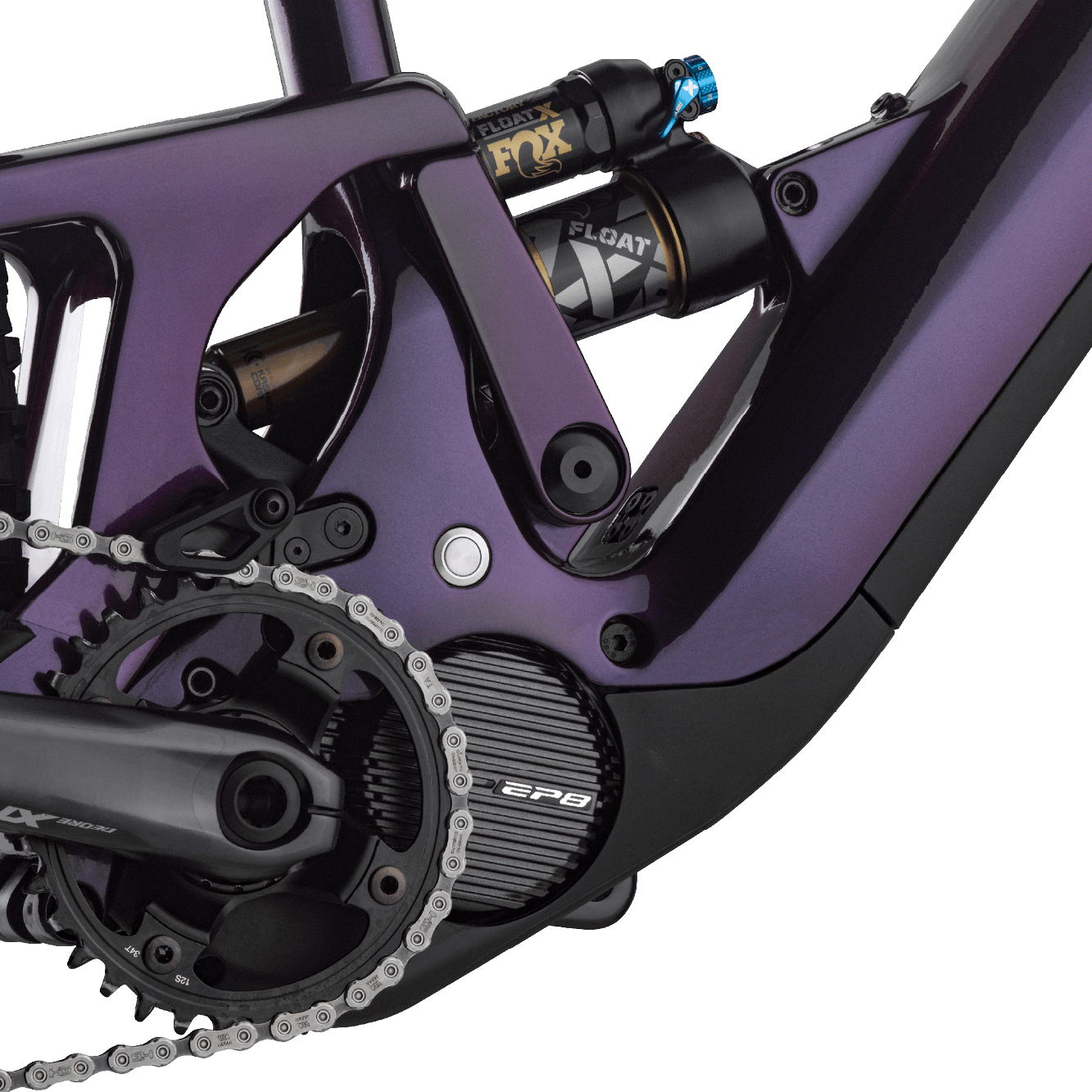

  • Power Play: Shimano's latest EP8 motor pack a mighty 85Nm of torque into a svelte 2.6kg package. Compact dimensions and clever packaging keep the center of gravity down low, exactly where it should be.
  • Battery: The slimline, Shimano approved, 720Wh battery is powerful enough to give-day stamina. Ride further and play harder for longer.
  • Full Carbon Frame: Designed for feel, engineered with precision. Expertly laid up high-quality composites make for a frame that is light, stiff, and strong enough to shrug off drops, bails, and fails. Guided internal cable routing means its beauty is more than skin deep.

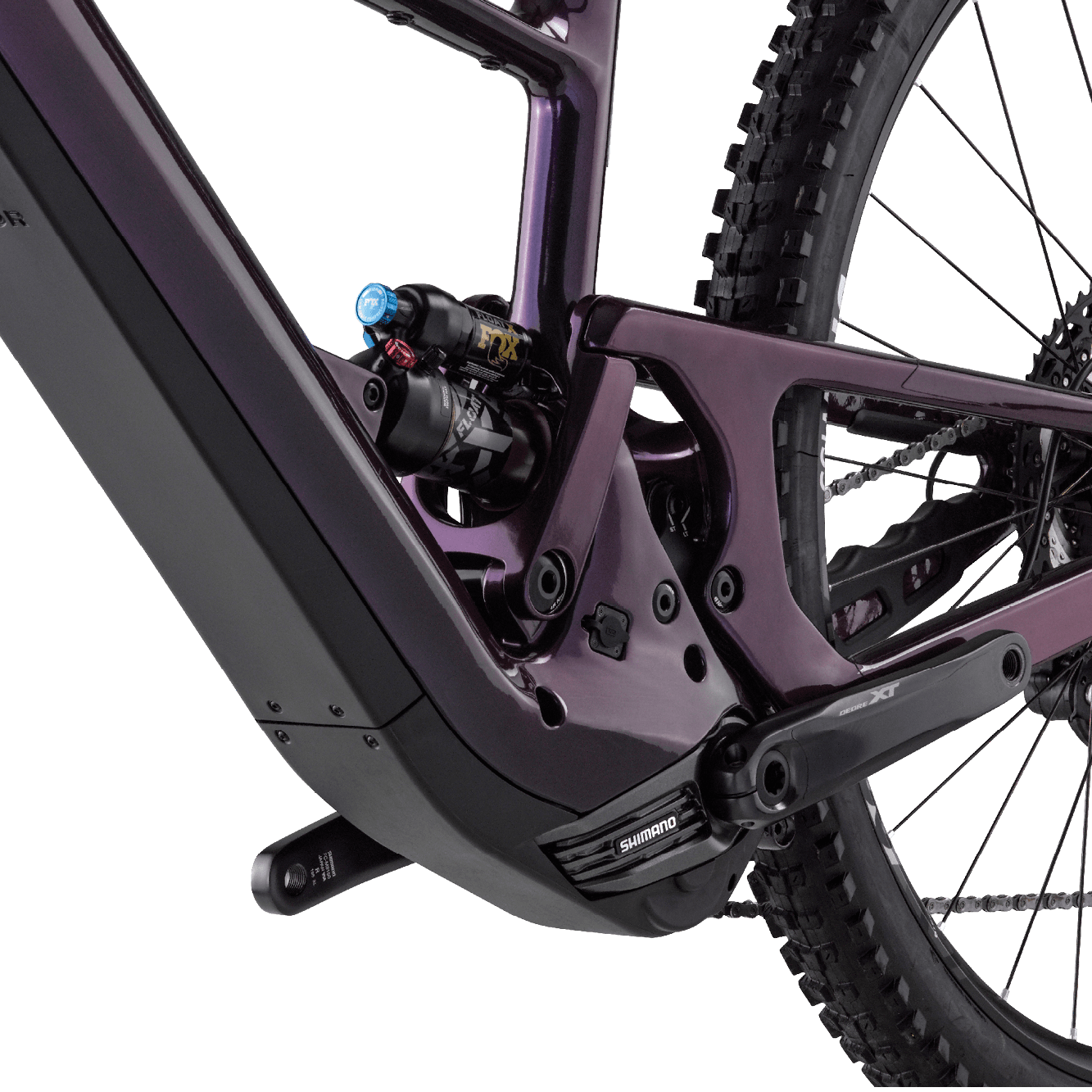

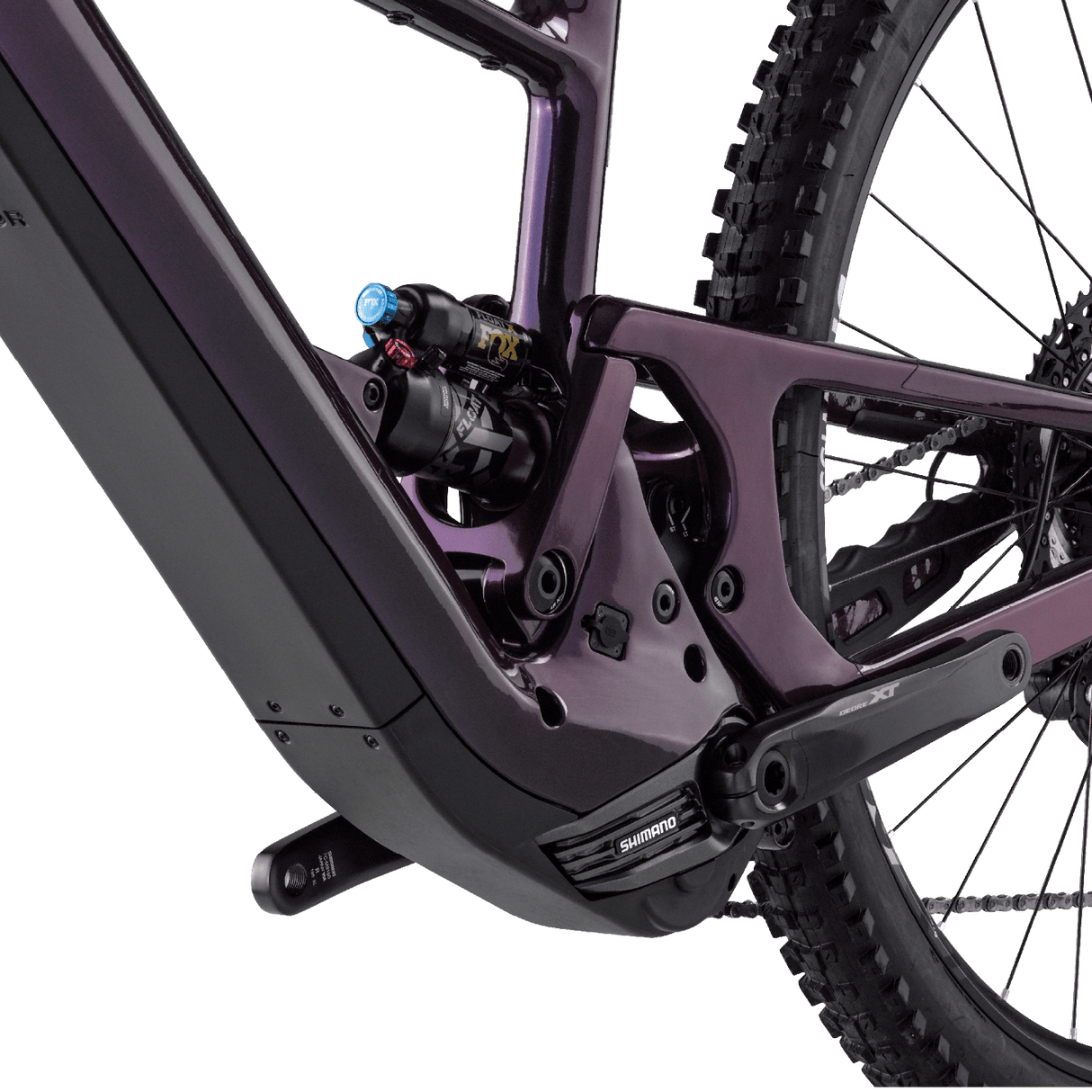

  • Superior Suspension: Our lower-link activated virtual pivot suspension design, coupled with durable Enduro Max bearings, is supple off the top for all time grip with progressive support for when you go too deep. Smart design keeps things stiff, low, and air or coil shock compatible.
  • Mount Up: Performance shouldn't compromise practicality. With room for a water bottle and mounts for bolt-on storage you're always good to go further.

SPECS:

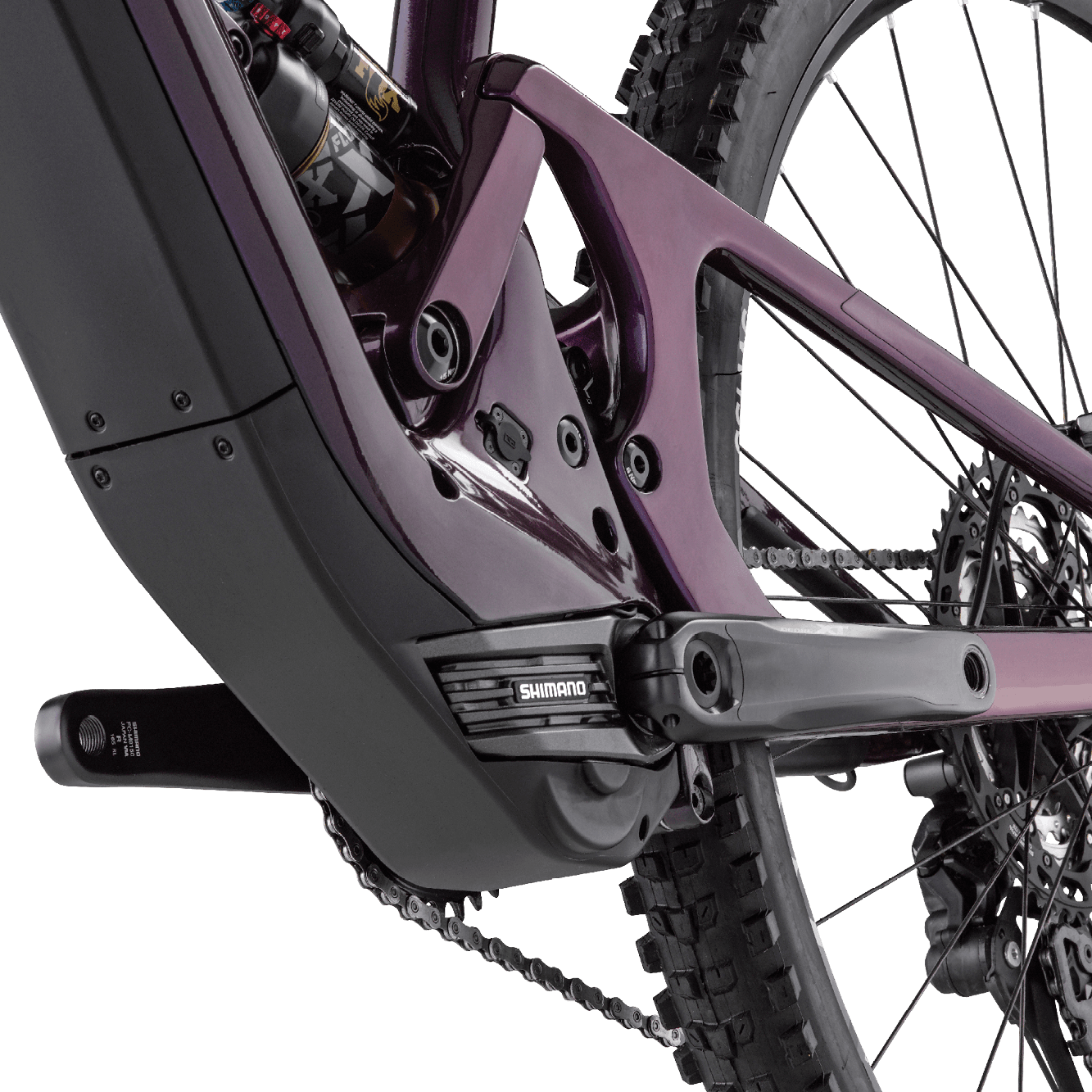

Motor Shimano Steps EP8 (DU-EP800), 85nm of Torque
Battery Darfon 36V 720Wh
Display Shimano Steps EP8 Wireless Cycle Computer (SC-EM800)
Controller Shimano Steps EP8 Left Switch Unit(SW-EM800-L)
Max Assisted Speed
 20 MPH (Class 1)
Charger Darfon Smart Plus 100-240V 4A EU
Frame SCOR 4060 Z full carbon frame
Lower-Link Driven Instant Center Linkage
160mm rear wheel travel
Fully guided internal cable routing
Boost 148
SRAM Universal Derailleur Hanger
Lower ISCG 05 mount / Chainguide
Fork Fox Float 38 Factory Series E-Bike
170mm travel
Grip2 damper
Low & high speed compression adjust
Low & high speed rebound adjust
44mm rake
E-MTB rated

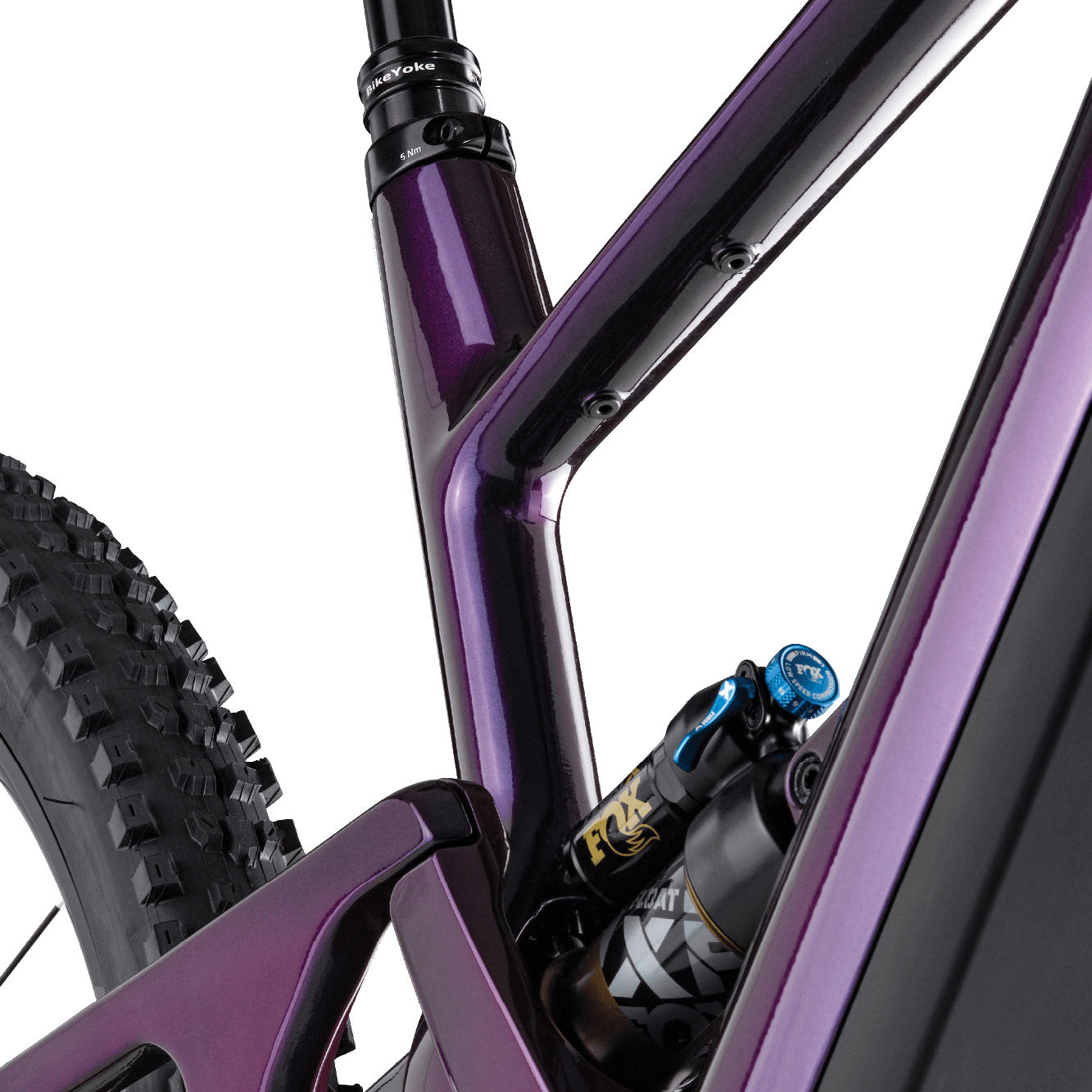

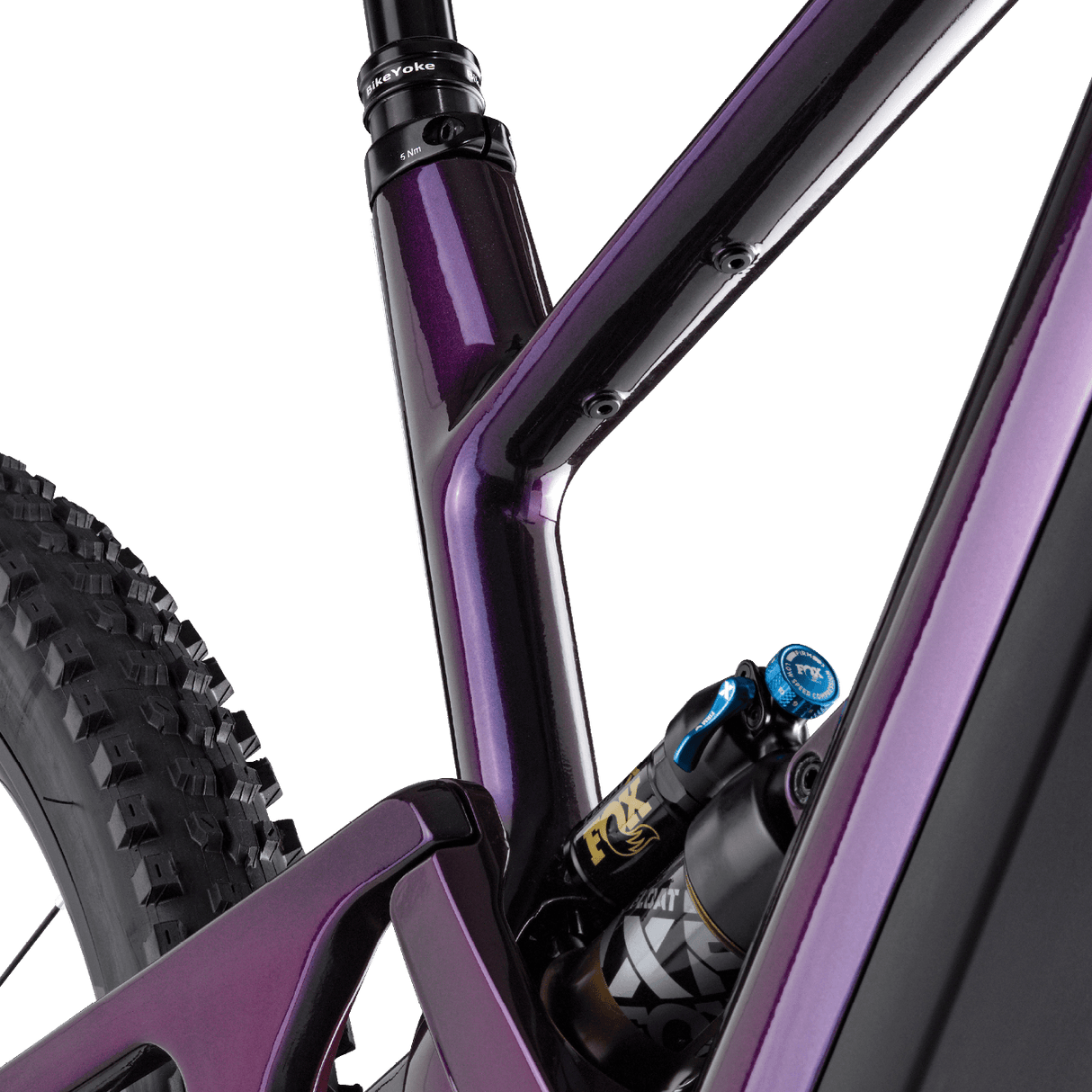

Rear Shock Fox Float X Factory Series
Compression adjust
Rebound adjust
2 position adjust
Rims/Wheels DT Swiss H 1900 Spline
30mm internal width
Tubeless ready
Hubs DT Swiss 370
Ratchet LN freehub
Straightpull spoke interface
Boost Spacing
Spokes N/A
Tires Maxxis Assegai 29 x 2.5" (F) / Maxxis Dissector 29 x 2.4" (R)
Compound: 3C Maxx Grip (F) / 3C Maxx Terra (R)
Casing: EXO+ (F) / Double Down (R)
Tubeless ready
Crankset Shimano Deore XT (FC-M8150)
165mm length
34T chainring (SM-CRE80-12-B)
Chain Shimano Deore XT (CN-M8100)
Front Derailleur N/A
Rear Derailleur Shimano Deore XT (RD-M8100)
12 speed
Cassette/Rear Cogs
 Shimano Deore XT (CS-M8100-12)
10-51T
Shifters Shimano Deore XT (SL-M7100-R)
Handlebars SCOR Carbon Bar
31.8mm clamp
800mm wide
20mm rise
5° up sweep - 7.5° back sweep
Stem Burgtec Enduro MK3
3D forged and fully CNC machined
31.6mm bar bore
35mm length
0° angle
Brake Levers BL-M8100 levers
Brakes Shimano Deore XT (BR-M8120)
SM-RT86 rotors; 203mm
Pedals N/A
Saddle Fizik Terra Alpaca
Seat Post Bikeyoke Divine
S 125mm, M/L 160mm, XL 185mm travel
Triggy Alpha lever
Accessories & Extras
 SCOR 4060 Z X Slicy MySublimistick Frame Protector

Color

Size

  • Small
  • Medium
  • Large
  • X-Large
