Looking for a versatile, comfortable, and stylish bike that will make your daily commute or weekend rides a breeze? Look no further than the Alight 3 Disc Hybrid Bike! With its easy on and off frame design, shock-absorbing grips, pressure-relieving saddle, and suspension seatpost, this bike is built for maximum comfort.
Plus, it comes equipped with fenders, a rear rack, and a kickstand (select models), so you can easily run errands or carry your essentials with you on the go. And with powerful disc brakes that work in any weather conditions, you'll always feel in control, whether you're cruising down the bike path or navigating city streets. So why settle for an ordinary bike when you can have the Alight 3 Disc Hybrid Bike? Step through and let the adventure begin!
Versatility
Run errands easily with the Alight’s included fenders, rear rack and kickstand (select models).
Comfort
Staying comfortable on your rides around town is a non-negotiable, so the Alight has an easy on and off frame, and comes with shock-absorbing grips, a pressure-relieving saddle, and a suspension seatpost.
Control
The Alight’s powerful disc brakes work in dry or wet conditions, and with the increased fork clearance, you can install up to a 40c tire which allows for greater traction.
Specifications
|
Sizes
|
XS, S, M, L
|
|
Colors
|
Metallic Black
|
|

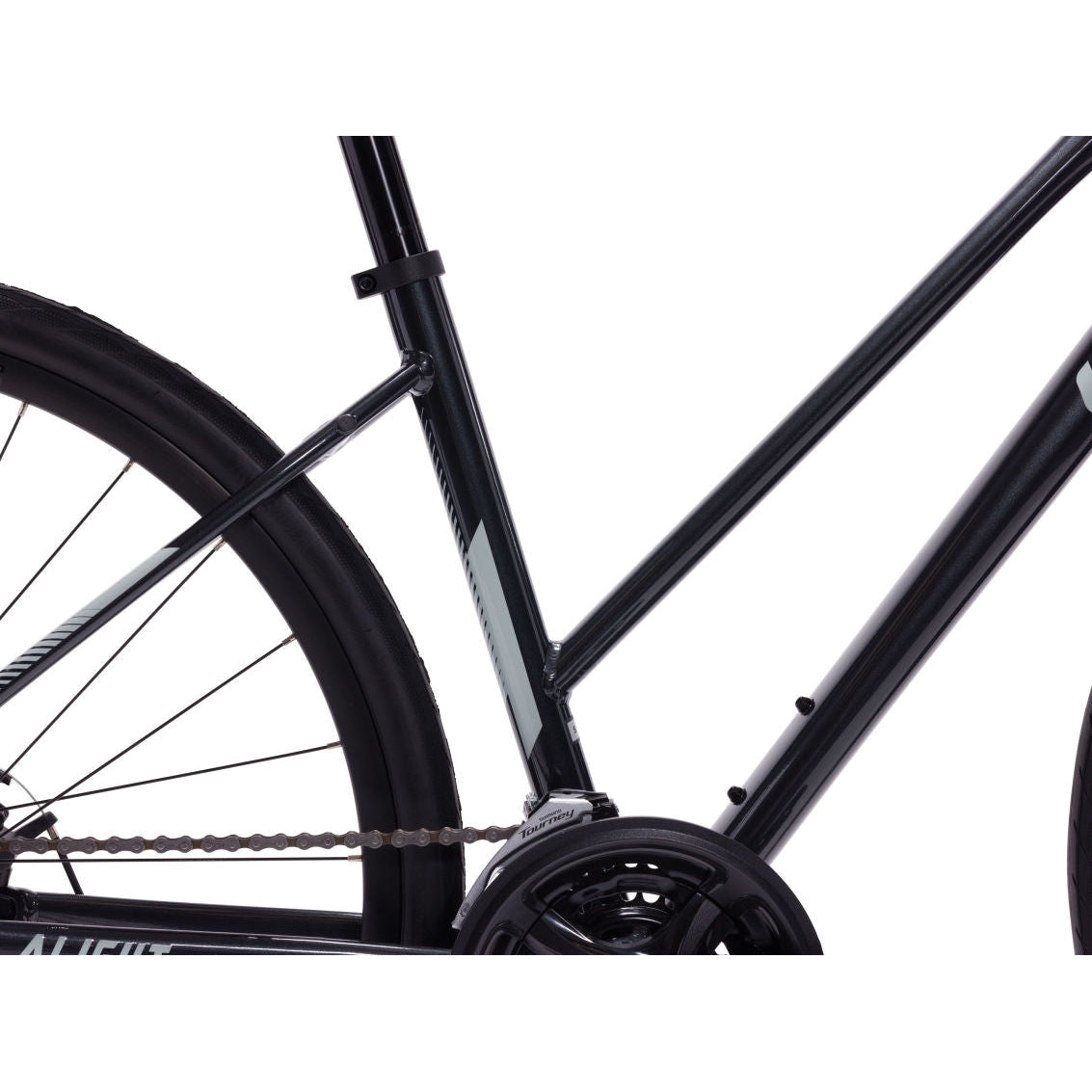

Frame
|
ALUXX-Grade Aluminum, disc
|
|

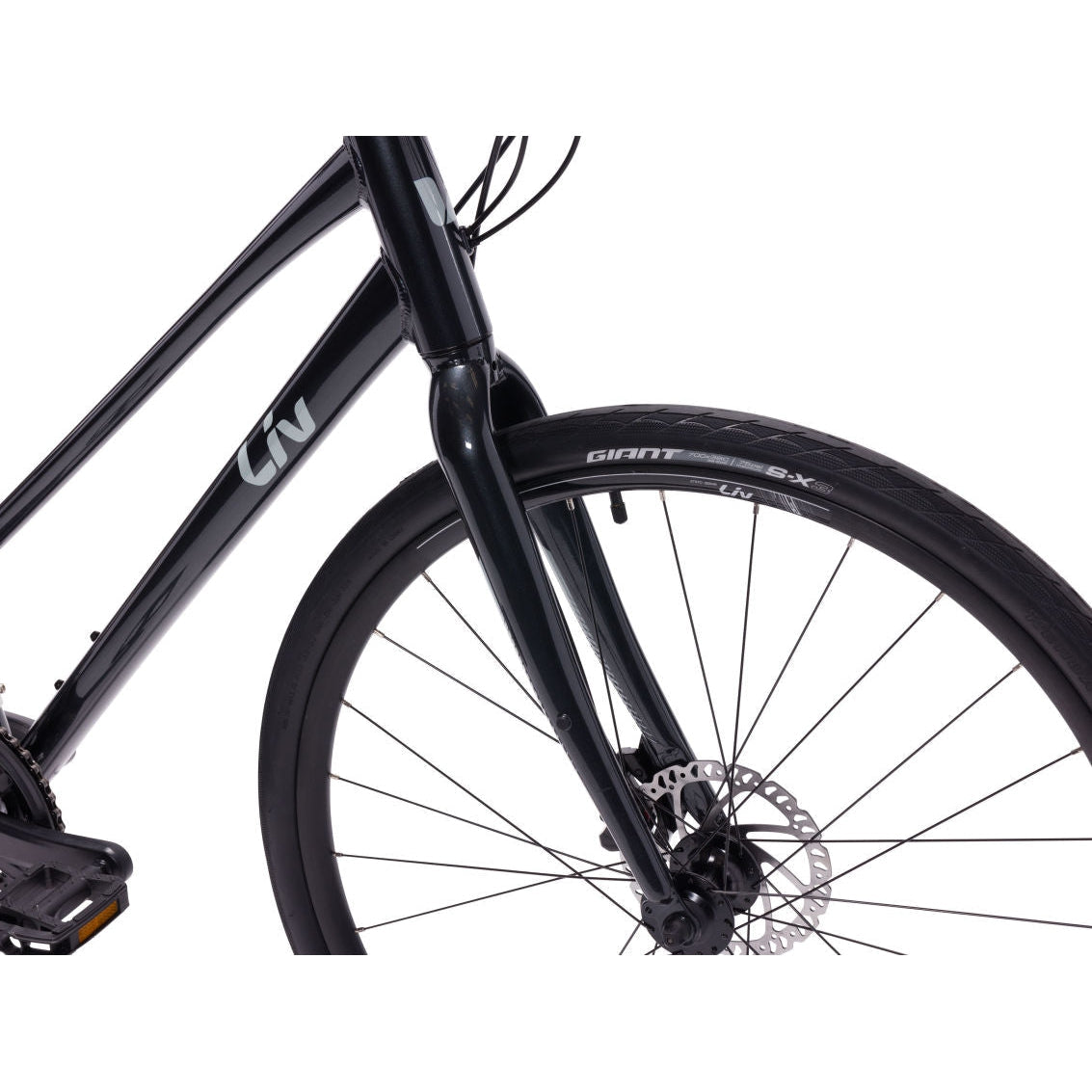

Fork
|
steel/alloy, disc
|
|
Shock
|
N/A
|
|

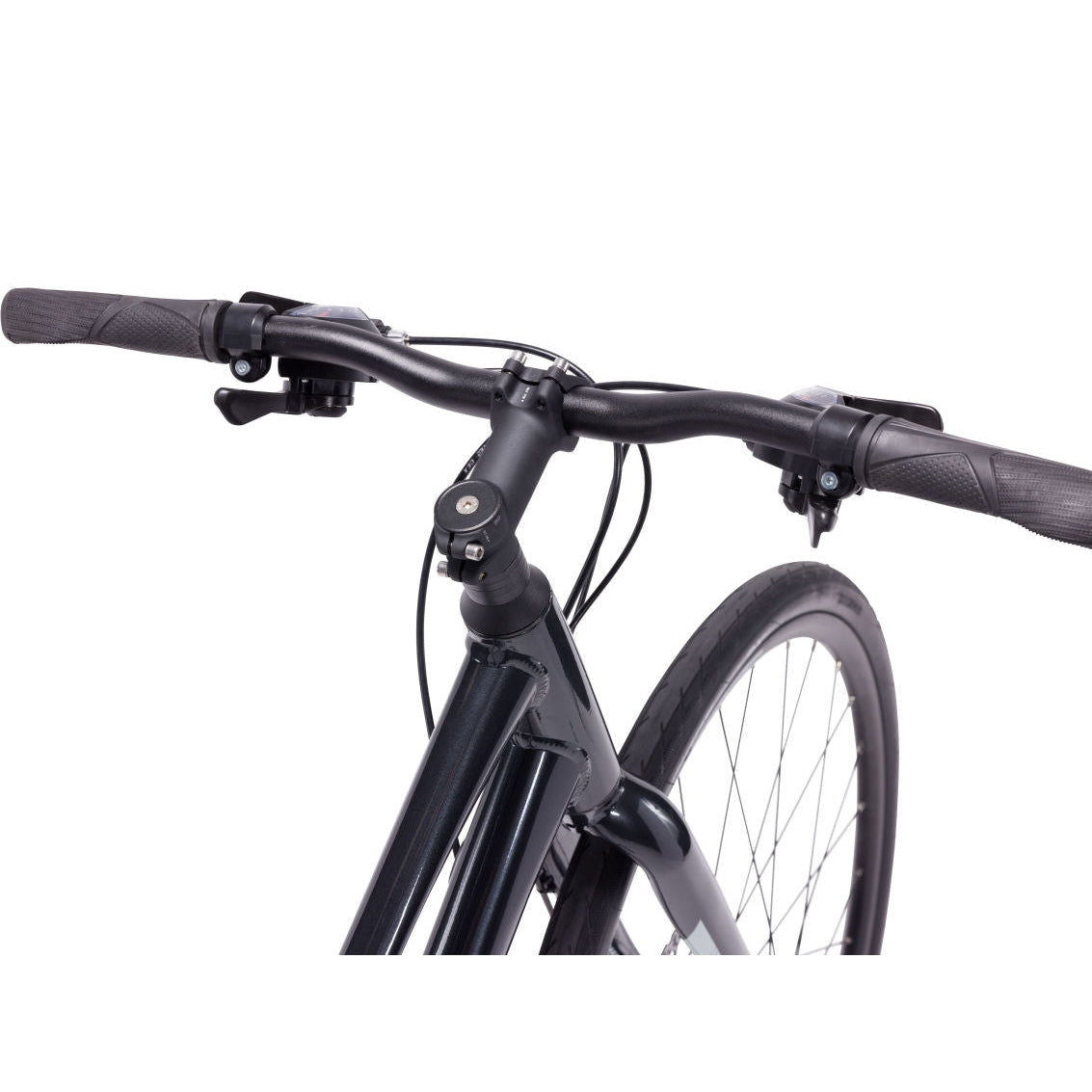

Handlebar
|
Sport, 25.4mm XS:60cm, S:60cm, M:64cm, L:64cm
|
|
Grips
|
Dynamic Comfort XS: 31mm, S:31mm, M:31mm, L:34mm
|
|
Stem
|
Giant Sport, 25.4mm XS:80mm, S:80mm, M:90mm, L:100mm
|
|
Seatpost
|
alloy, suspension, 30.9mm XS:350mm, S:350mm, M:350mm, L:350mm
|
|
Saddle
|
Liv Sport Comfort
|
|
Pedals
|
platform
|
|
Shifters
|
Shimano Tourney, 3x7
|
|
Front Derailleur
|
Shimano Altus
|
|

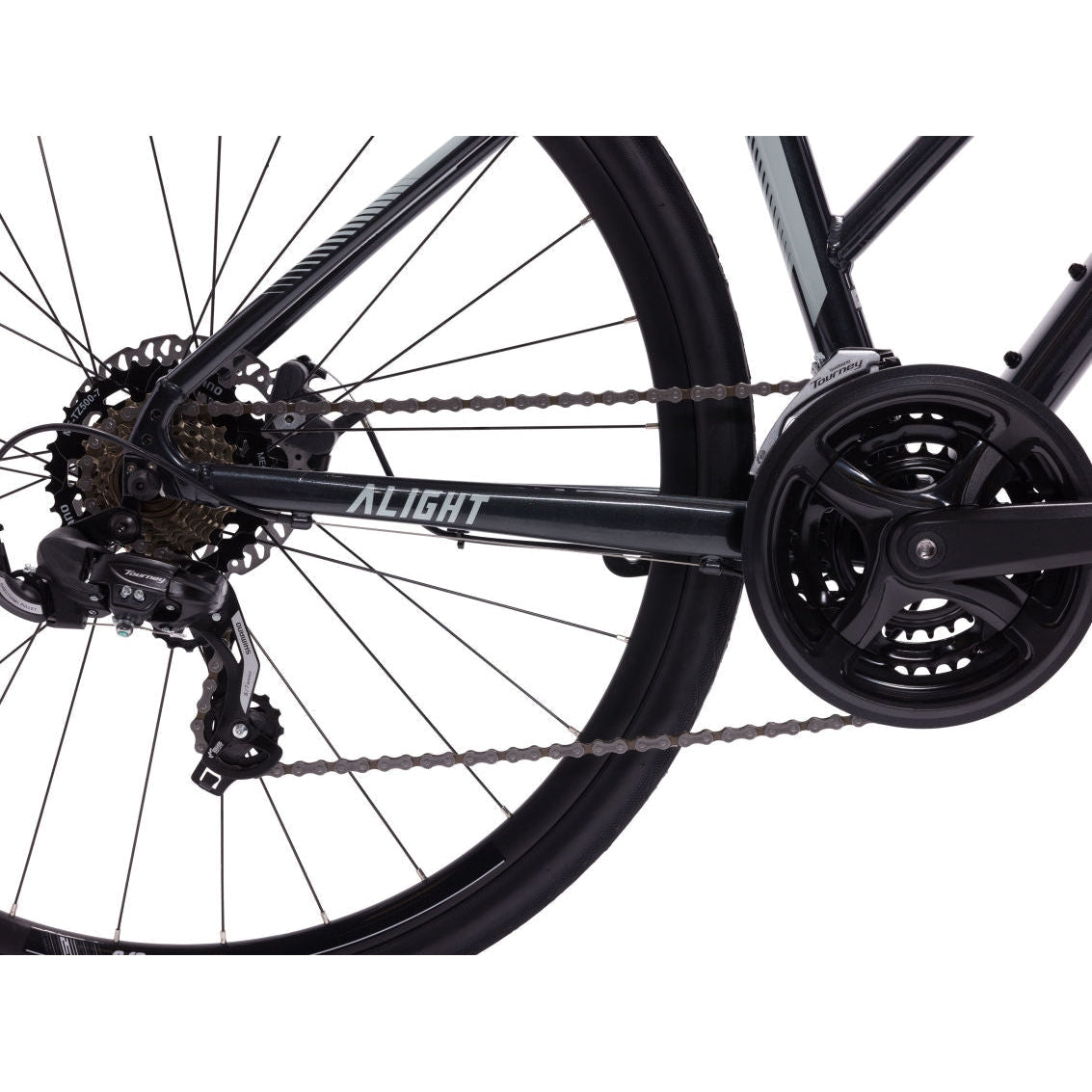

Rear Derailleur
|
Shimano Tourney
|
|
Brakes
|
Tektro TKB-172 mechanical [F]160mm, [R]160mm
|
|
Brake Levers
|
Tektro mechanical
|
|
Cassette
|
Shimano MF-TZ500, 14x34
|
|
Chain
|
KMC Z7
|
|
Crankset
|
ProWheel TY-CQ99, 28/38/48 XS:165mm, S:165mm, M:170mm, L:172.5mm
|
|
Bottom Bracket
|
cartridge
|
|
Rims
|
Giant GX Disc wheelset
|
|
Hubs
|
Giant GX Disc wheelset
|
|
Spokes
|
Giant GX Disc wheelset
|
|
Tires
|
Giant S-X3, puncture protect, 700x38c
|
|
Extras
|
42mm max tire size, handlebar water bottle carrier
|
|
Weight
|
The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
|
Geometry
| |
|
XS |
S |
M |
L |
| A |
SEAT TUBE LENGTH (inch)
|
14.6 |
16.5 |
18.1 |
19.7 |
| B |
SEAT TUBE ANGLE |
73.5° |
73.5° |
73.0° |
73.0° |
| C |
TOP TUBE LENGTH (inch)
|
21.1 |
21.7 |
22.4 |
23.2 |
| D |
HEAD TUBE LENGTH (inch)
|
5.1 |
5.9 |
6.3 |
6.9 |
| E |
HEAD TUBE ANGLE |
70.0° |
70.5° |
71.0° |
71.0° |
| F |
FORK RAKE (inch)
|
2 |
2 |
2 |
2 |
| G |
TRAIL (inch)
|
3.1 |
2.9 |
2.8 |
2.8 |
| H |
WHEELBASE (inch)
|
41.1 |
41.5 |
41.9 |
42.7 |
| I |
CHAIN STAY LENGTH (inch)
|
17.5 |
17.5 |
17.5 |
17.5 |
| J |
BOTTOM BRACKET DROP (inch)
|
2.4 |
2.4 |
2.4 |
2.4 |
| K |
STACK (inch)
|
21.8 |
22.6 |
23.1 |
23.7 |
| L |
REACH (inch)
|
14.6 |
15 |
15.4 |
16 |
| M |
STAND OVER HEIGHT (inch)
|
23.3 |
23.2 |
23.3 |
23.1 |
| N |
HANDLEBAR WIDTH (inch)
|
23.6 |
23.6 |
25.2 |
25.2 |
| O |
STEM LENGTH (inch)
|
3.1 |
3.1 |
3.5 |
3.9 |
| P |
CRANK LENGTH (inch)
|
6.5 |
6.5 |
6.7 |
6.7 |
| Q |
WHEEL SIZE
|
700C |
700C |
700C |
700C |
