Ready to take on any adventure you throw its way, the Amiti E+ 1 28mph E-Bike is the perfect companion for all your wild excursions. From cruising down smooth urban roads to tackling lumpy, bumpy gravel tracks, this bike has got your back and your comfort covered.
But don't let its versatility fool you, the Amiti E+ 1 is adventure-ready and built to last. With a maximum range of 180km and 75Nm of torque, this bike delivers the power and endurance you need to stay on the move for hours of outdoor, smile-inducing fun. Plus, the Mounting Is Key HD rack and sleek fender make it easy to bring along all your gear and protect against dirt, dust, and rain.
And let's not forget about the next-gen technology packed into this beauty. The color control unit displays all your ride data at a glance and can even be paired with the RideControl App for optional phone notifications. Plus, with a convenient USB port, you can keep all your devices charged while you ride.
So bring along your adventurous spirit and get ready to turn heads with this premium E-bike. The sleek internal cable routing and head-turning design make the Amiti E+ 1 a must-have for any outdoor enthusiast looking for a fun and comfortable ride.
Versatile and capable
The versatile design and technology of the Amiti E+ make every adventure possible. From a cruisy ride into town for a coffee to smoothly trekking along gravel trails for the day – this reliable E-bike takes you wherever you want to go, in style and comfort.
Adventure-ready

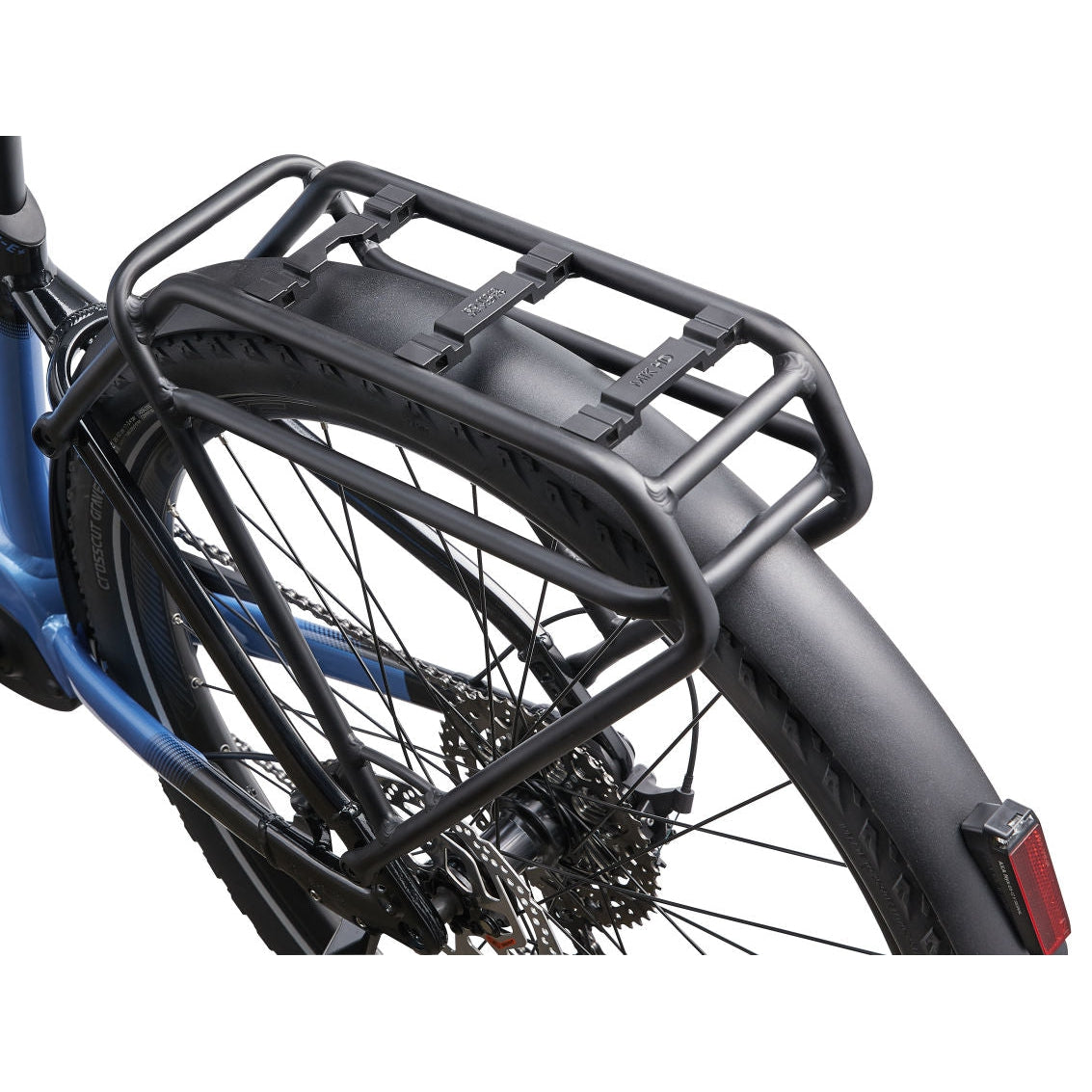

With a maximum range of 180km and 75Nm of torque, the Amiti E+ delivers distance, power, and hours of outdoor, smile-inducing fun. The Mounting Is Key HD rack provides 30kg of luggage-carrying capability, and the sleek fender protects against dirt, dust, and rain.
Next-gen technology

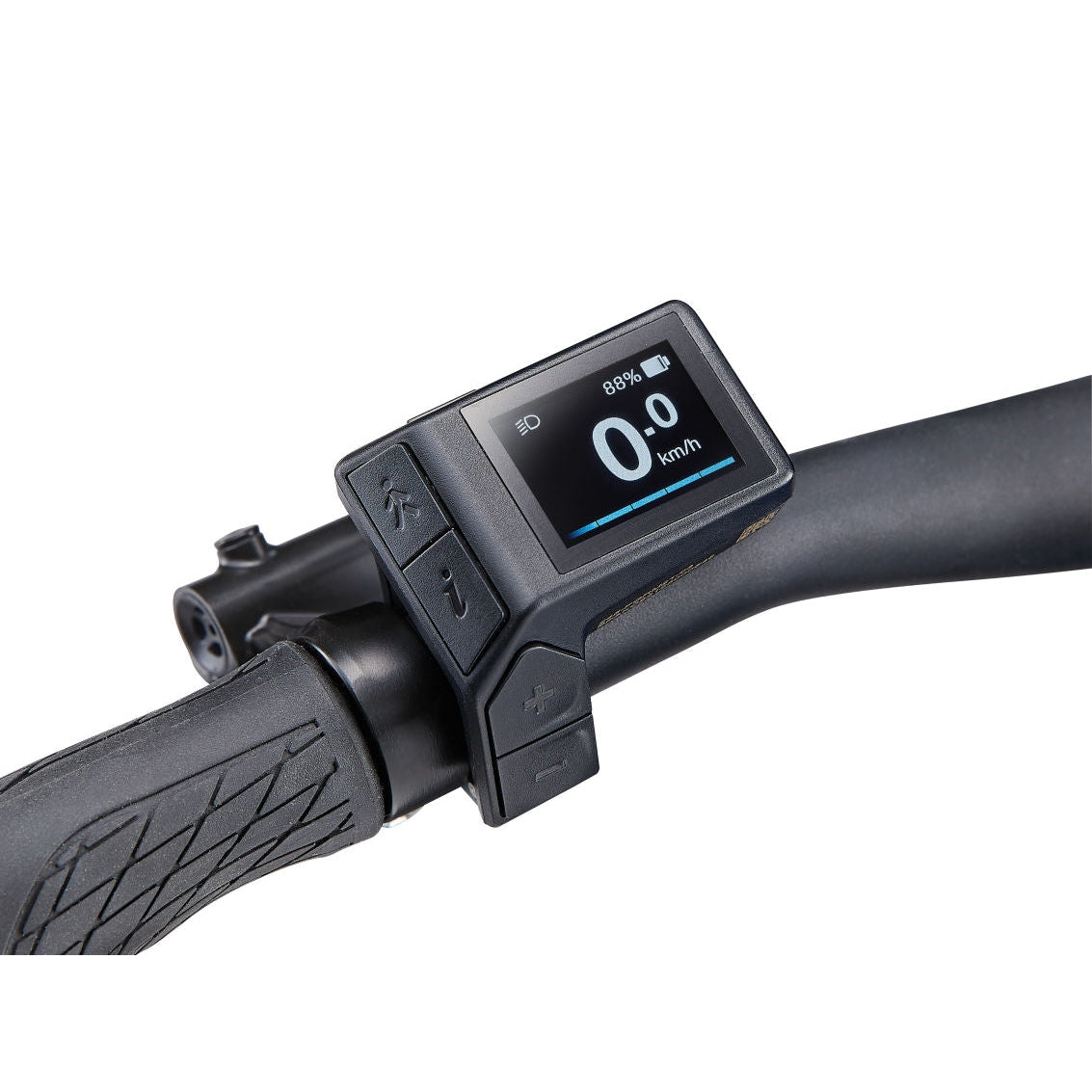

The color control unit shows all your ride data at a glance. And you can pair it with the RideControl App for optional phone notifications. It also features a convenient USB port to keep your devices charged. This next-gen technology and sleek internal cable routing result in a premium, head-turning E-bike.
RANGE
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The bar below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
ENERGYPAK SMART 625 / SYNCDRIVE SPORT Range
-
Extreme: 37 miles
-
Good: 68 miles
-
Ideal: 118 miles
Specifications
|

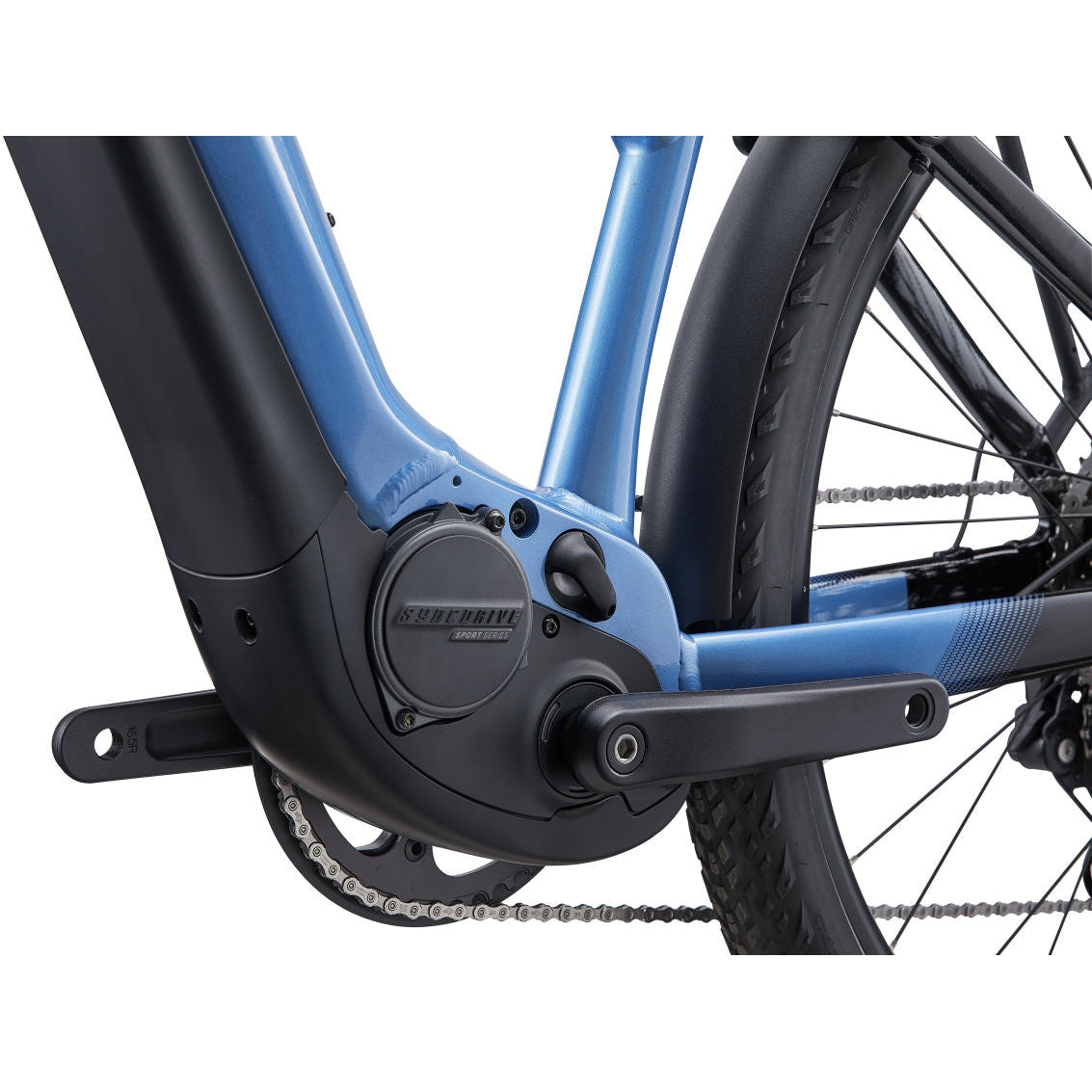

Motor
|
SyncDrive Sport 2, 75Nm, powered by Yamaha
|
|
Controller
|
RideControl Dash
|
|
Display
|
RideControl Dash, full color lcd screen
|
|
Battery
|
EnergyPak Smart 625, EnergyPak Plus 250 range extender compatible (exclude XS size)
|
|
Sizes
|
XS, S, M, L
|
|
Frame
|
ALUXX aluminum, Overdrive 1.8" - 1.5" head tube, integrated battery, integrated KSA40 kickstand mount
|
|

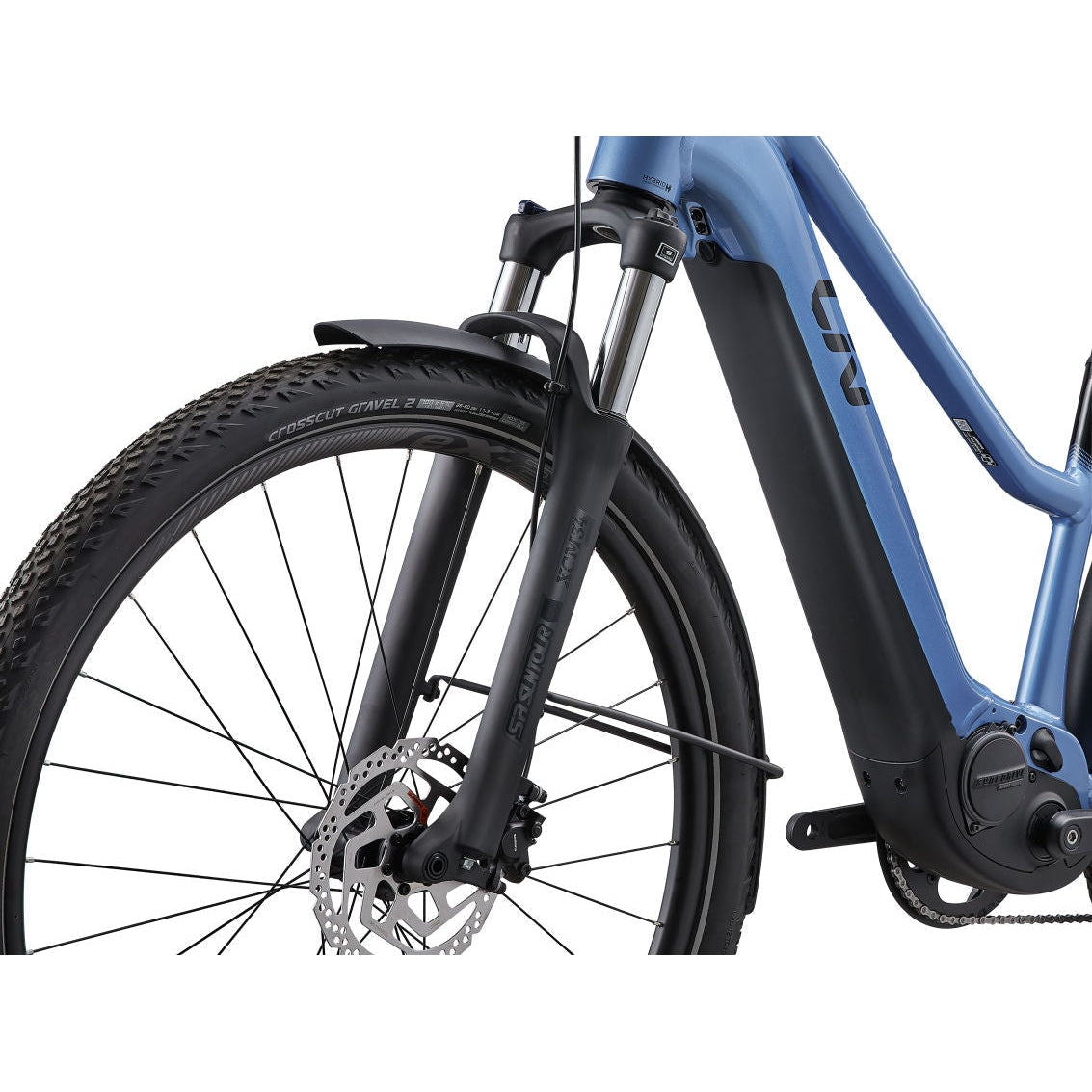

Fork
|
SR Suntour XCM34 LO, 100mm travel, Hydraulic Lockout, 15x110mm AH Axle
|
|
Shock
|
n/a
|
|
Handlebar
|
Giant Connect Riser 31.8x620mm (XS/S), 690mm(M/L)
|
|
Grips
|
Liv Contact Ergo Max Plus
|
|
Stem
|
Giant Contact (XS/S/M: 80mm, L:100mm)
|
|
Seatpost
|
Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
|
|
Saddle
|
Liv Sport Comfort
|
|
Pedals
|
Aluminum Platform
|
|
Shifters
|
Shimano Deore LinkGlide
|
|
Front Derailleur
|
n/a
|
|
Rear Derailleur
|
Shimano Deore LinkGlide, 10-speed, Shadow+
|
|
Brakes
|
Shimano BR-MT200, hydraulic disc, 180mm
|
|
Brake Levers
|
Shimano BL-MT201
|
|
Cassette
|
Shimano LinkGlide, CS-LG400-10, 11-43T, 10-speed
|
|
Chain
|
Shimano, LinkGlide, CN-LG500
|
|
Crankset
|
Forged Alloy Direct spider/chainguard 46T Steel narrow/wide chainring
|
|
Bottom Bracket
|
n/a
|
|
Rims
|
eX25, Tubeless Ready, 622x25 Aluminium
|
|
Hubs
|
Giant eTracker, [F] 110x15 [R] 1142x12
|
|
Spokes
|
Stainless steel, e-bike optimized
|
|
Tires
|
Crosscut Gravel 2, 700x57, Wire Bead, Tubeless Ready
|
|

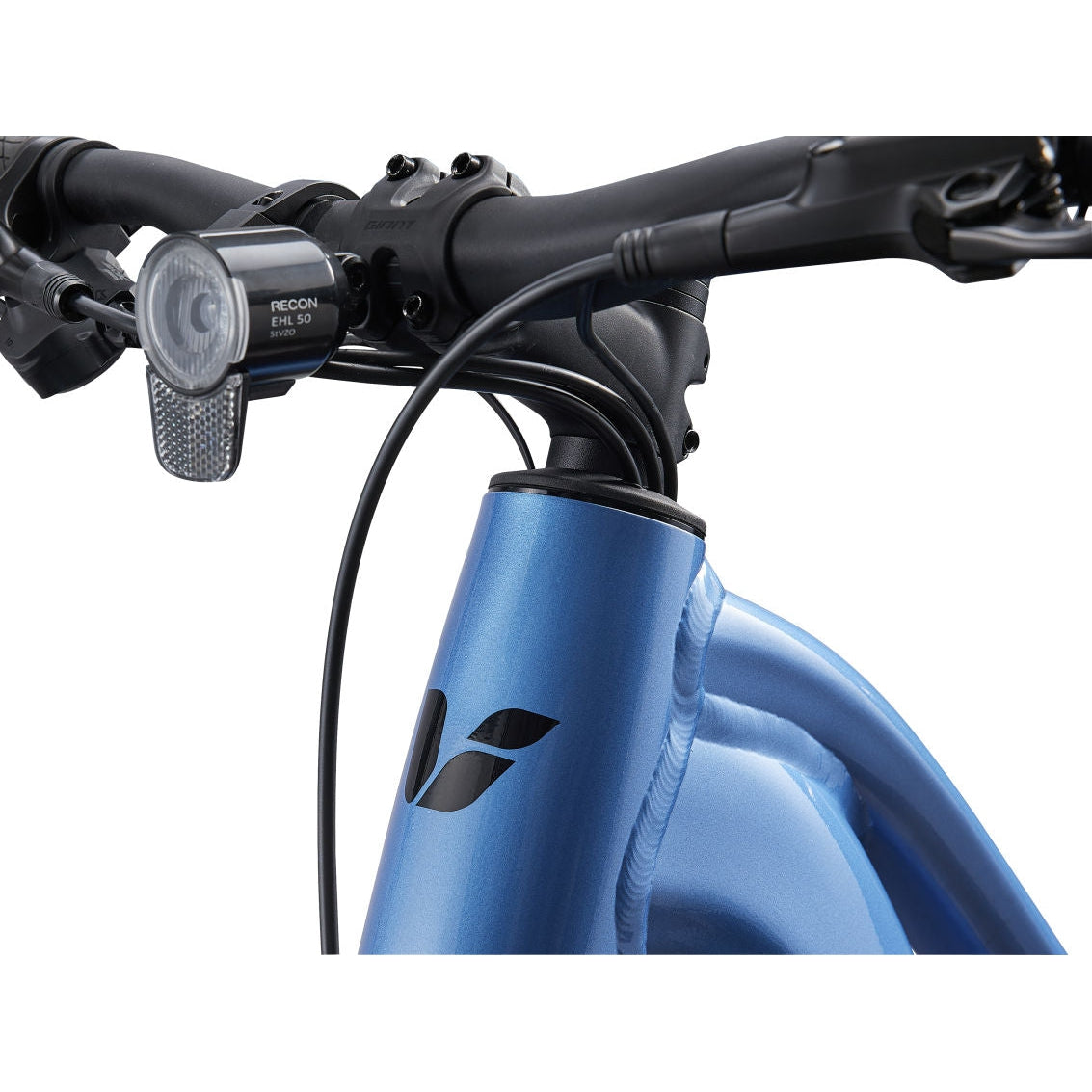

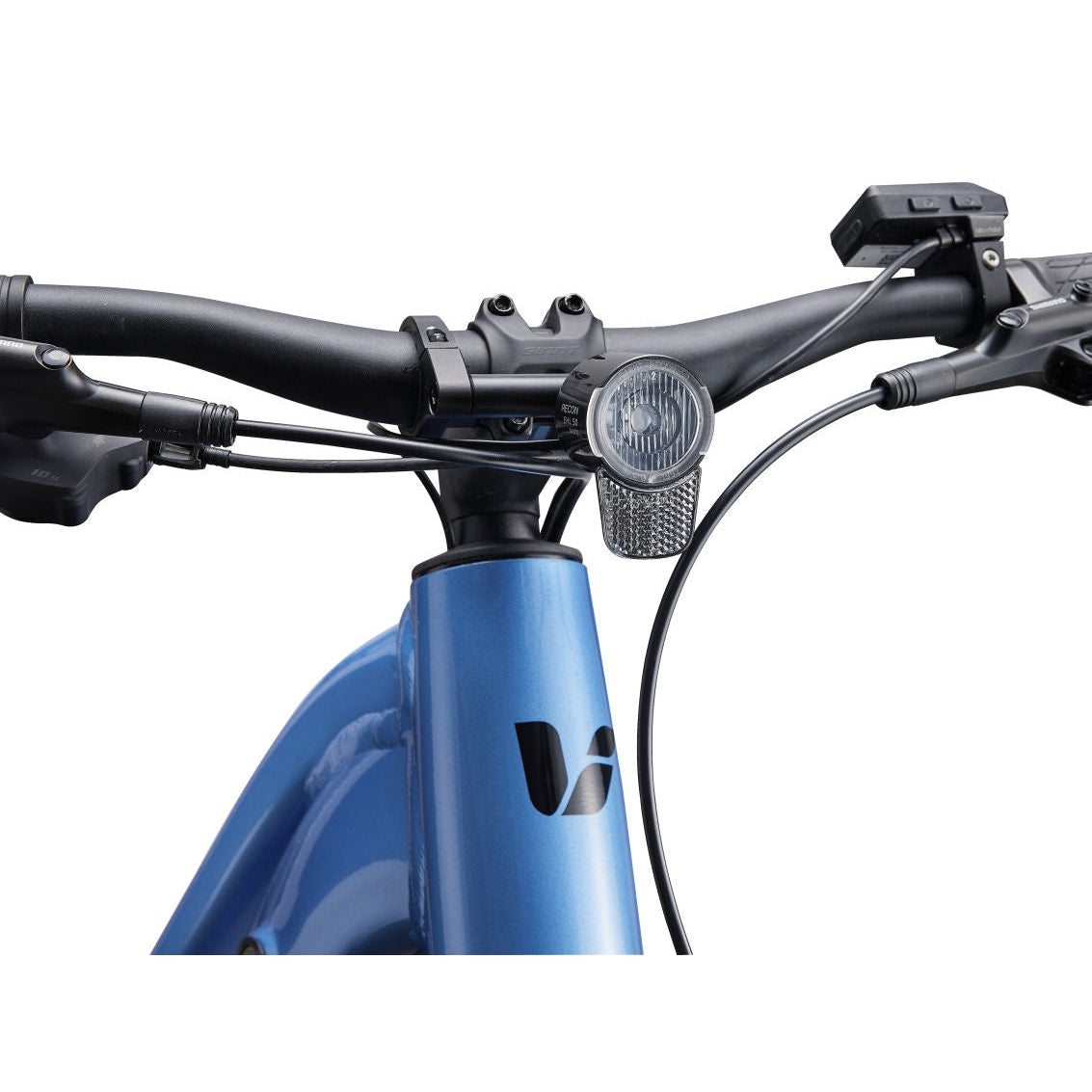

Lighting
|
Recon E HL50 StVZO [F]AXA NYX 6-12V E-bike tail light with brake sensor [R]
|
|
Lock
|
ABUS Xplus battery lock
|
|
Carrier
|
MIK rack. System bag & basket compatible
|
|
Weight
|
The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
|
Geometry
| |
|
XS |
S |
M |
L |
| A |
SEAT TUBE LENGTH (inch)
|
15 |
16.1 |
17.1 |
19.3 |
| B |
SEAT TUBE ANGLE |
75.0° |
74.5° |
73.5° |
73.0° |
| C |
TOP TUBE LENGTH (inch)
|
22.6 |
23 |
23.8 |
24.4 |
| D |
HEAD TUBE LENGTH (inch)
|
5.3 |
5.7 |
6.3 |
6.9 |
| E |
HEAD TUBE ANGLE |
69.0° |
69.5° |
69.5° |
69.5° |
| F |
FORK RAKE (inch)
|
2 |
2 |
2 |
2 |
| G |
TRAIL (inch)
|
3.4 |
3.3 |
3.3 |
3.3 |
| H |
WHEELBASE (inch)
|
45.2 |
45.2 |
45.6 |
45.9 |
| I |
CHAIN STAY LENGTH (inch)
|
18.5 |
18.5 |
18.5 |
18.5 |
| J |
BOTTOM BRACKET DROP (inch)
|
2.4 |
2.4 |
2.4 |
2.4 |
| K |
STACK (inch)
|
26 |
26.5 |
27 |
27.6 |
| L |
REACH (inch)
|
15.7 |
15.7 |
15.8 |
16 |
| N |
HANDLEBAR WIDTH (inch)
|
27.2 |
27.2 |
28.7 |
28.7 |
| O |
STEM LENGTH (inch)
|
3.1 |
3.1 |
3.1 |
3.9 |
| P |
CRANK LENGTH (inch)
|
6.5 |
6.5 |
6.7 |
6.8 |
| Q |
WHEEL SIZE
|
700C |
700C |
700C |
700C |
