Giant

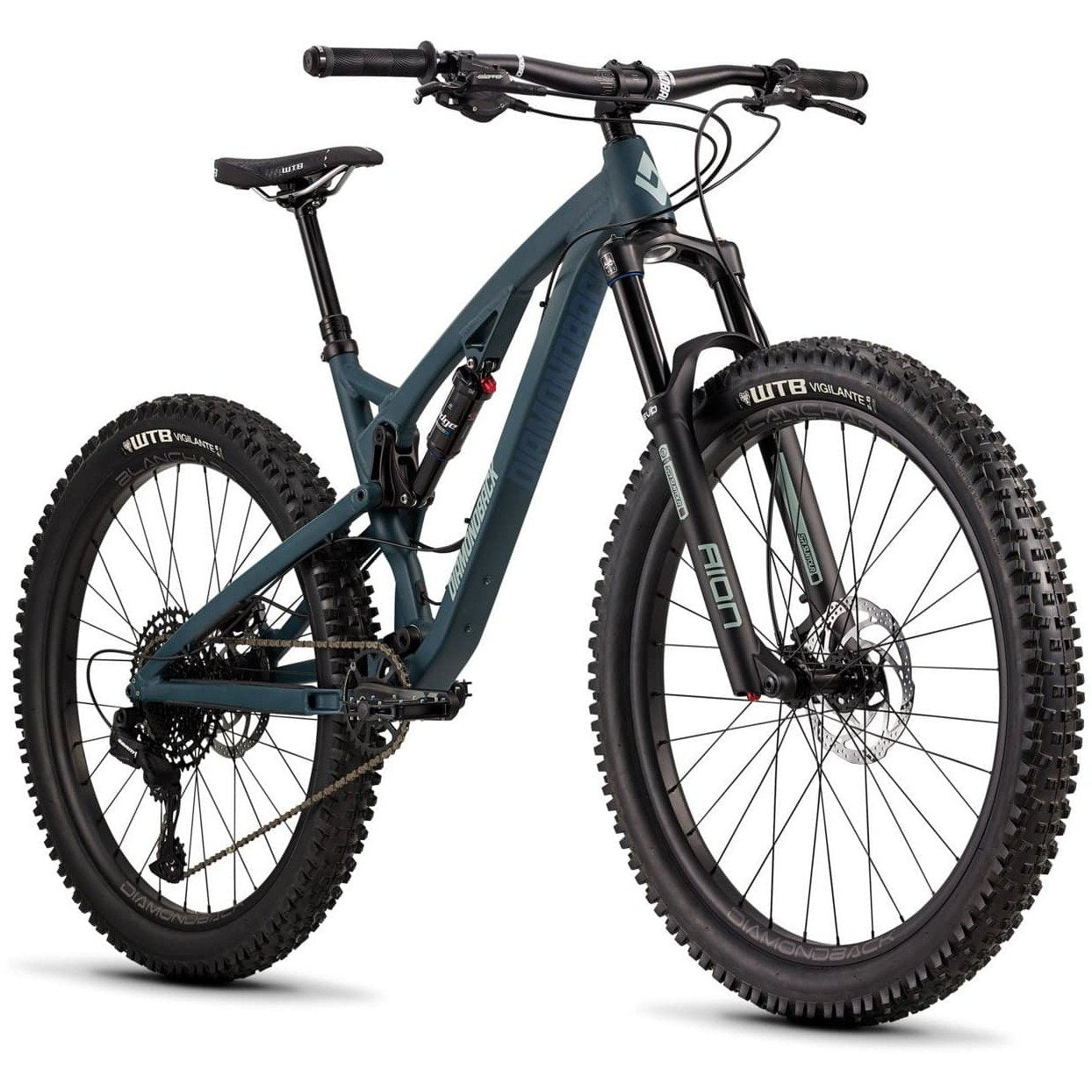

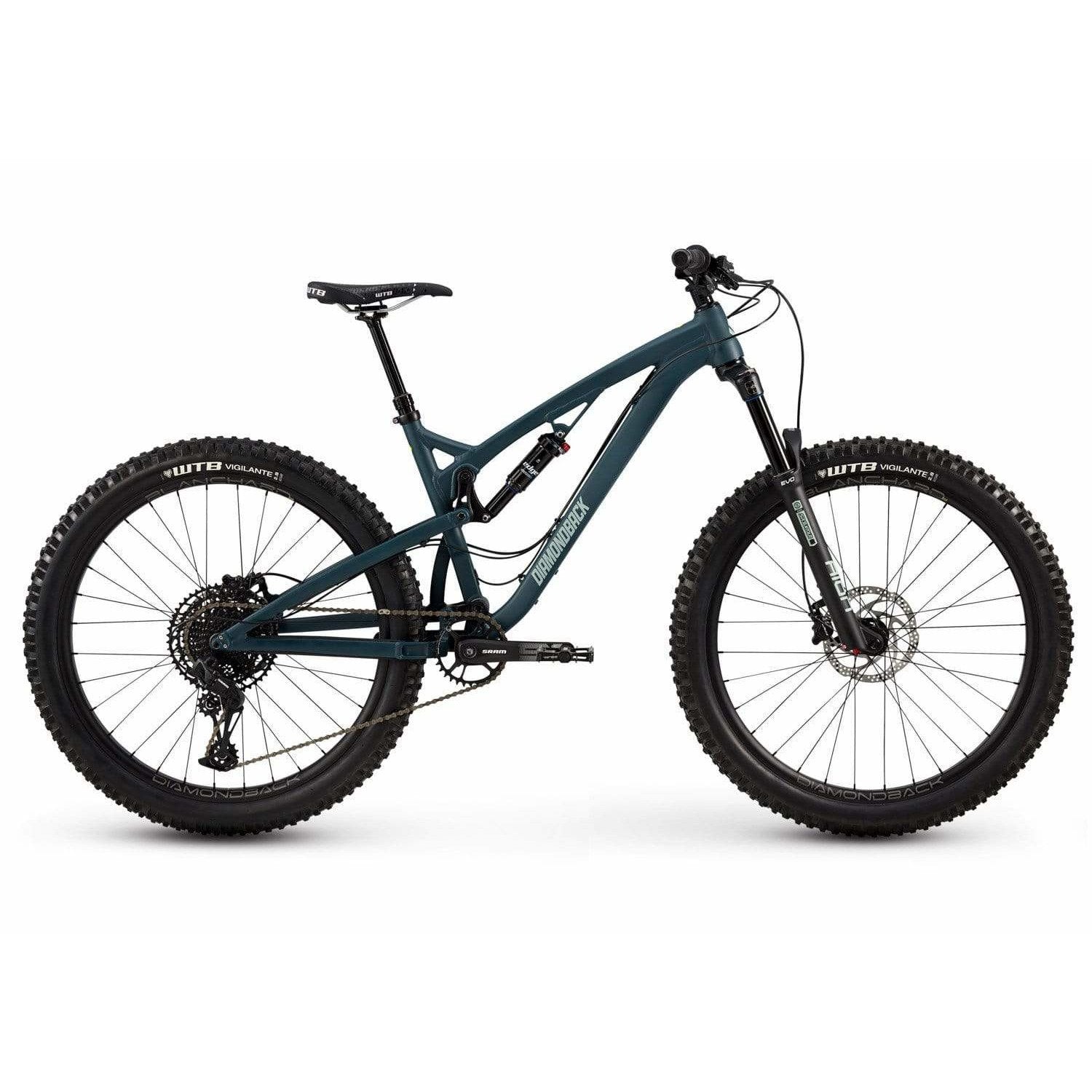

Catch 1 - 27.5"+ Mountain Bike

$999.99

“Adventure bikes” are often plodding beasts of burden that sacrifice thrills in the pursuit of extra stability. Well, where’s the adventure in that? We went on a different route entirely. By adding 2.8” wide, plus-size tires to our Level Link suspension, we’ve created a bike that absolutely rips on tight trails, but does so with the extra grip and control of a plus-size bike. Voila — adventure made awesomely. We gave the Catch a slack-but-not-too-slack front end. We wanted control on fast descents, but we weren’t willing to give up maneuverability on tight trails. A Sram SX Eagle 12 speed drivetrain gives you the gearing to tackle any terrain and TRP Slate X2 hydraulic disc brakes bring this machine to a tidy stop. If you’re looking to tackle rough terrain and want the ultimate in control, without sacrificing the thrill of riding, the DiamondBack Catch 1 Mountain Bike is your bike.

FEATURES

Specifications

FRAME Catch 27.5+, 130mm Travel, Level Link Suspension Platform, Hydroformed Tubing, ISCG-05 Tabs, Boost 148x12mm Maxle Drop Out, 1.5" Tapered Headtube
REAR SHOCK Suntour Edge R, 200x57mm, Rebound Adjust, 22.2mm Eyelet Width

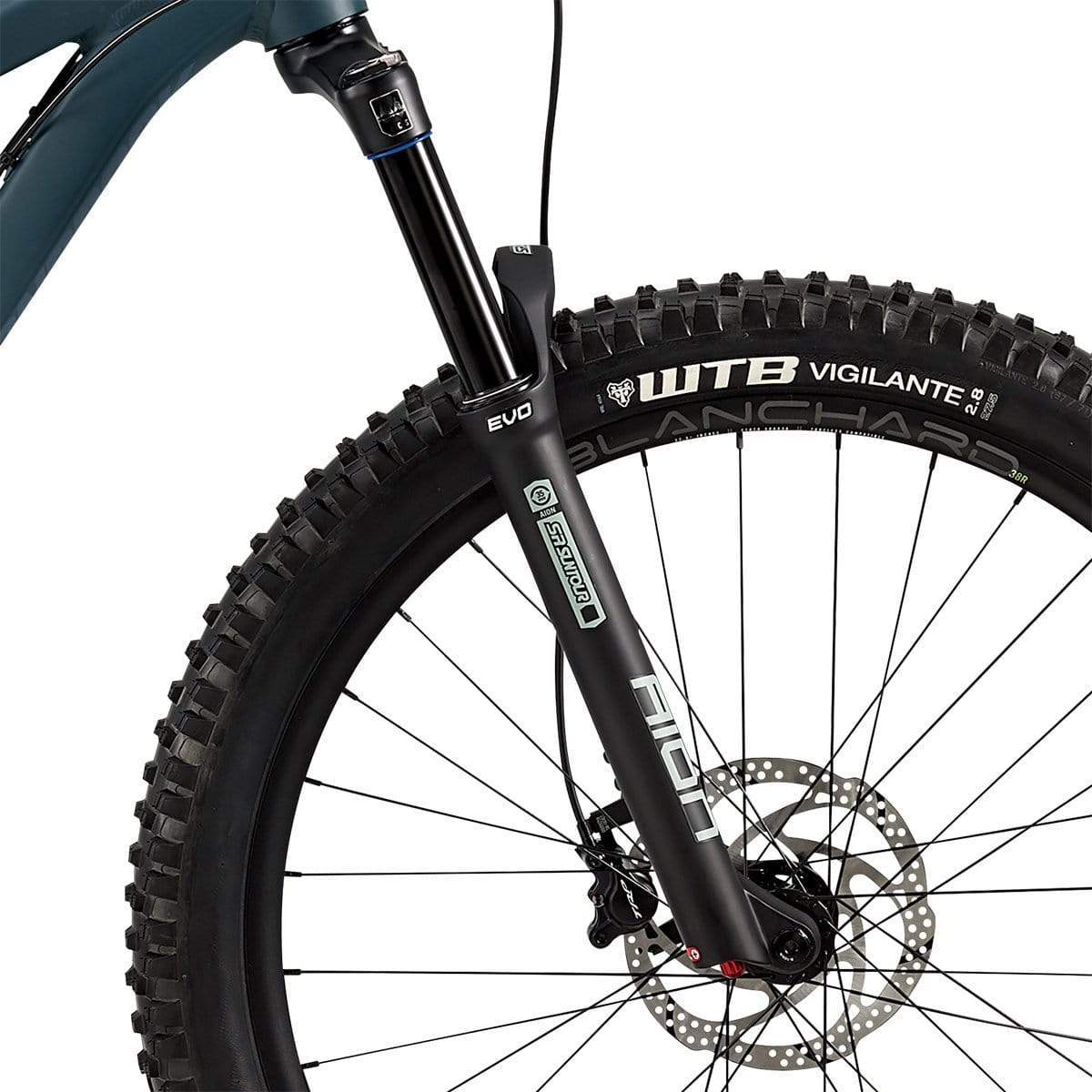

FORK SR Suntour Aion 27.5"+/29", 130mm Travel, Air Spring w/Rebound Adjust, 35mm Stanction, 1.5" Aluminum Taper Steerer, 110x15mm Thru-axle
HEADSET FSA No. 57, Sealed Cartridge

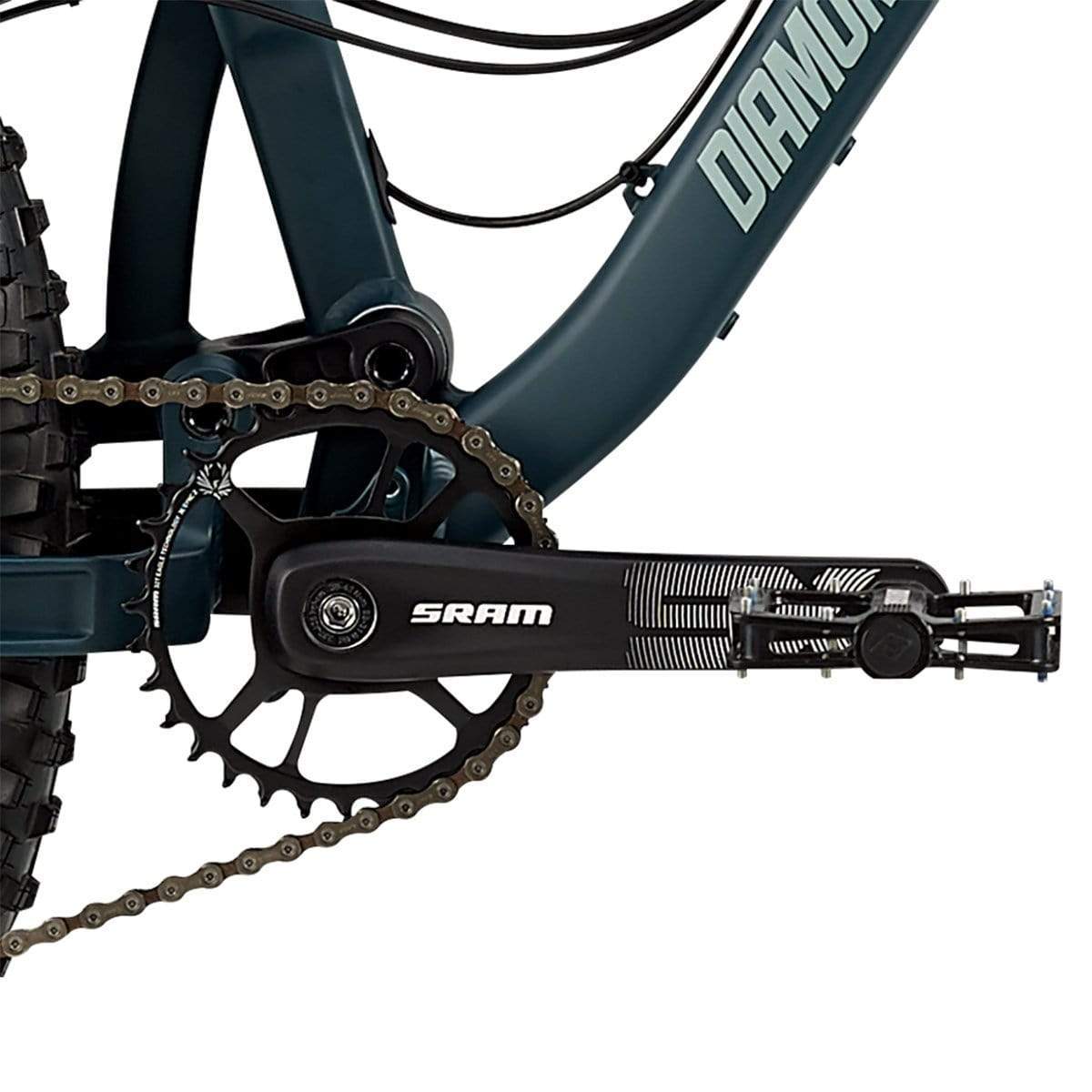

CRANKS SRAM SX w/Steel 32T Direct Mount
BOTTOM BRACKET SRAM Powerspline, 118/73

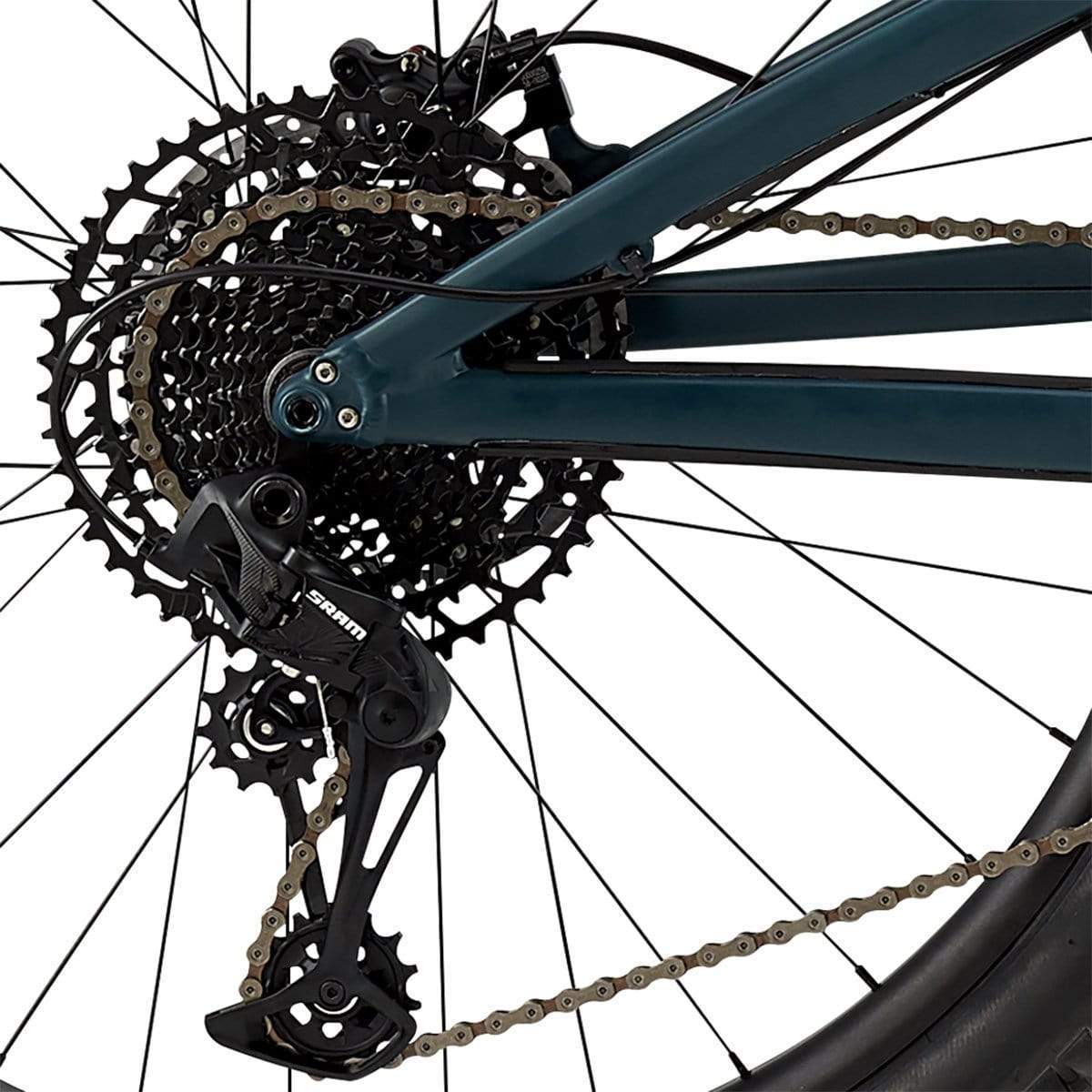

REAR DERAILLEUR SRAM SX Eagle, 12 Speed
SHIFTER SRAM SX Eagle, 12 Speed
COGSET SRAM PG1210, 12 Speed, 11-50T
CHAIN SRAM SX Eagle, 12 Speed
FRONT HUB 32h Aluminum Boost 110x15mm Thru-axle, Sealed Cartridge Bearing
REAR HUB 32h Aluminum Boost 148x12mm Thru-axle, 4 Sealed Cartridge Bearing, Cassette
SPOKES 14g Stainless Steel
RIMS Diamondback Blanchard 38R, Tubeless Compatible, 32h
TIRES WTB Vigilante 27.5x2.8", Wire Bead

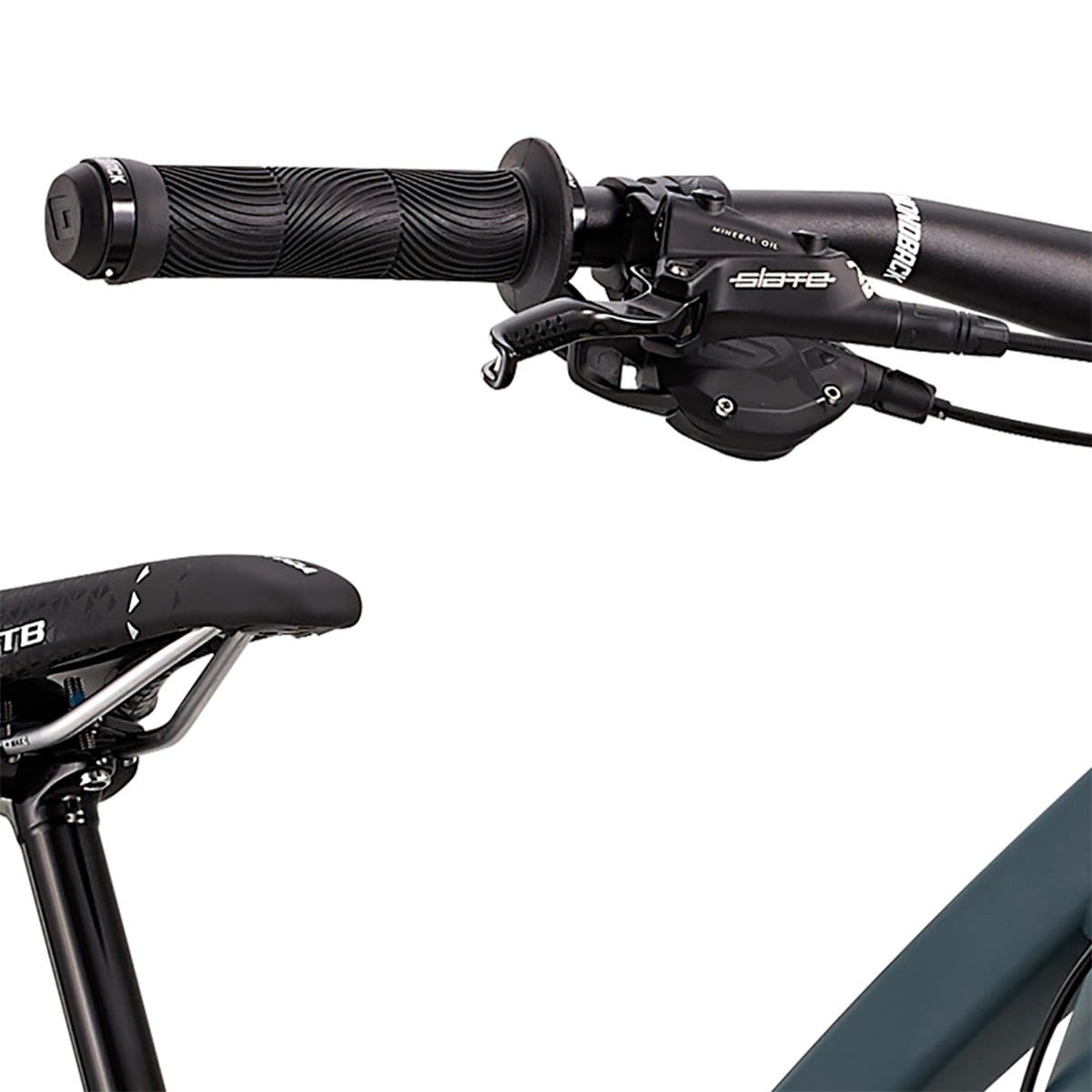

BRAKE LEVERS TRP Slate
PEDALS DB Aluminum Platform w/Replaceable Pins

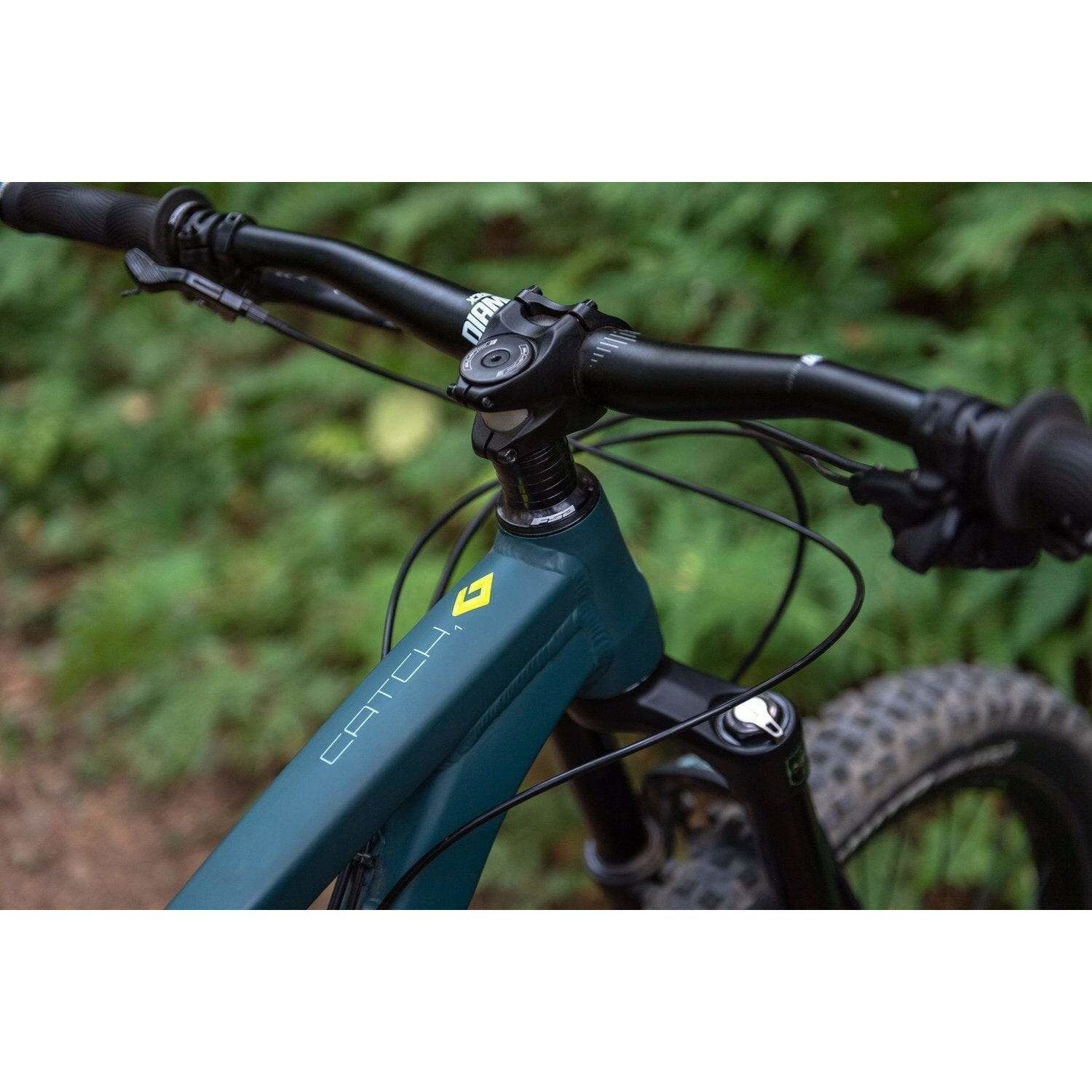

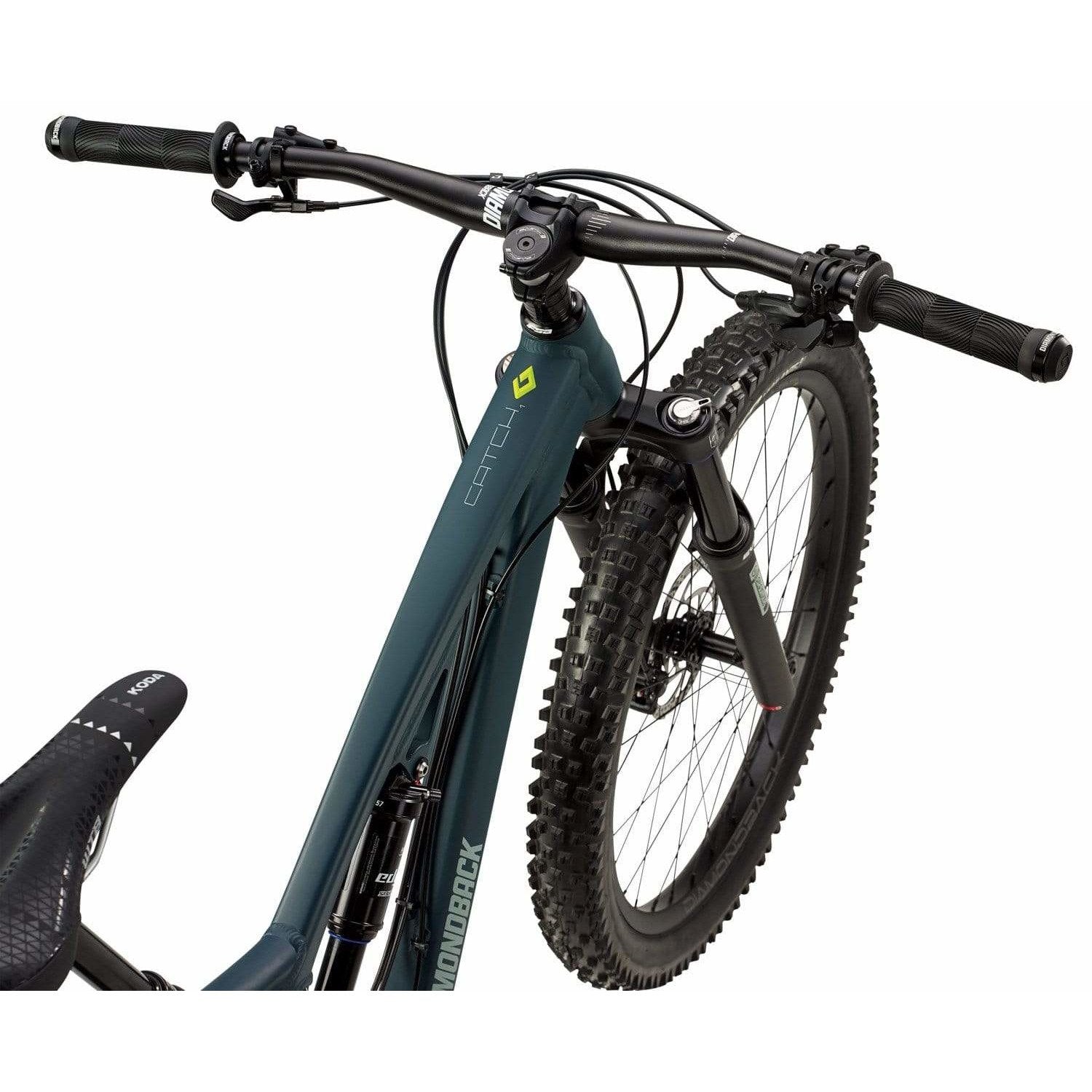

HANDLEBAR DB35 Aluminum 760mm Wide, 15mm Rise, 35mm Bar Bore
GRIPS DB Lock-On Grip
STEM DB35 Aluminum 35mm Reach, 35mm Bar Bore

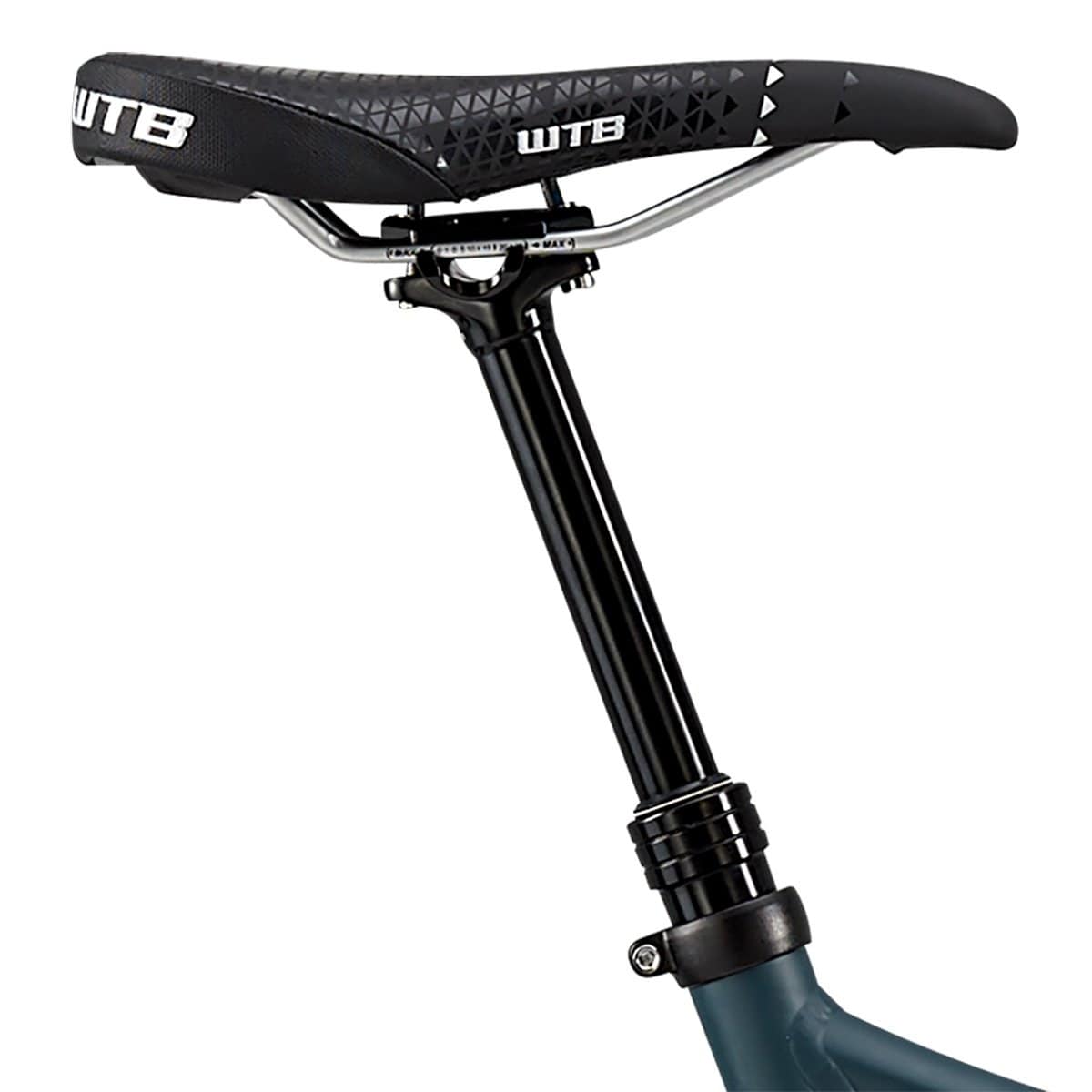

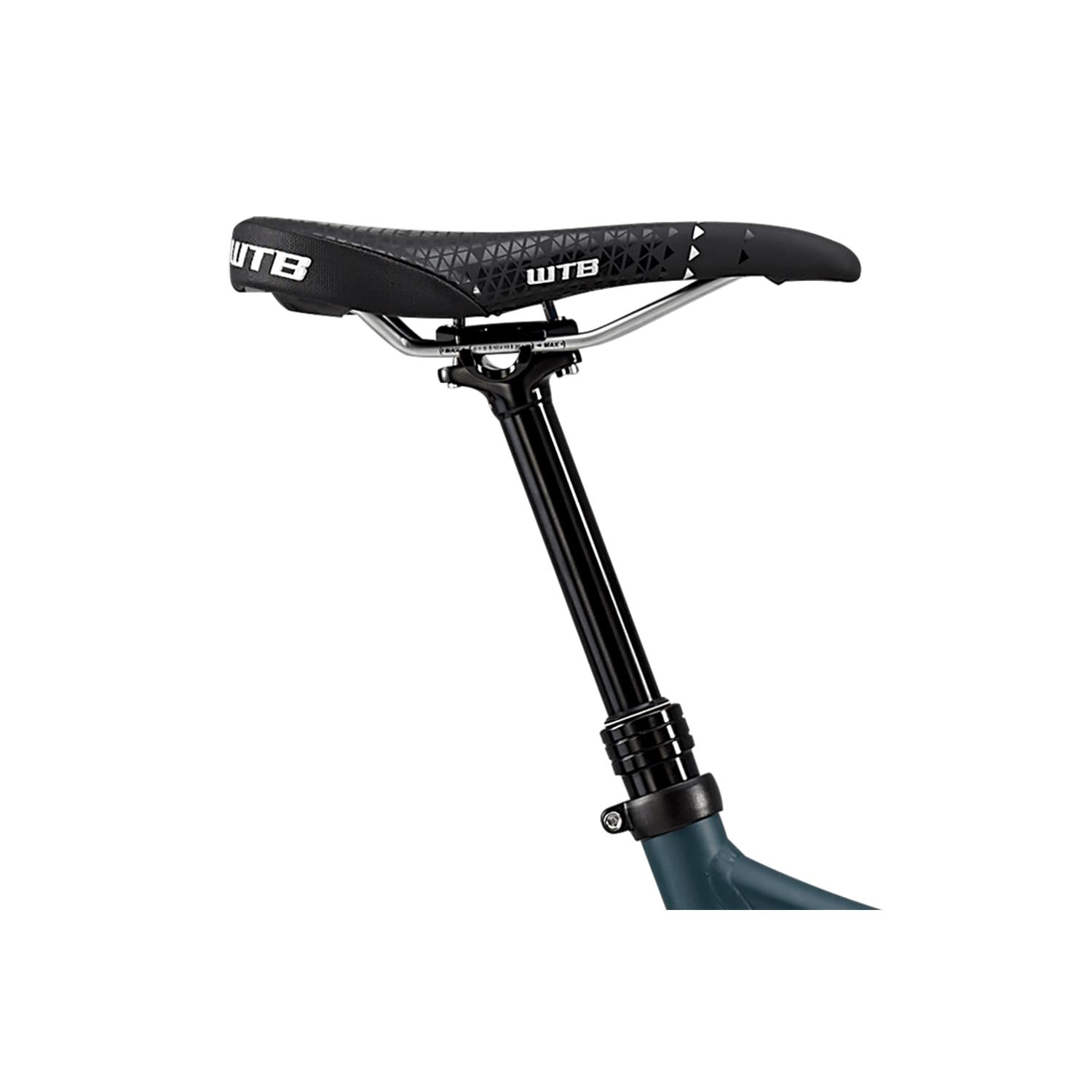

SEAT WTB Koda Comp
SEATPOST Kindshock EXA Form 900i, Internal Dropper, 31.6mm w/1x Remote
EXTRAS Tool Kit, DB Shock Pump, DB Mud Guard, Spare RD Hanger
BRAKES TRP Slate X2, w/ 180mm Front / 180mm Rear Rotors

Geometry

FRAME SIZE SM/15.5  MD/17  LG/19  XL/21
Rider Height 5'4"-5'7" 5'7"-5'10" 5'10"-6'1" 6'2"-6'6"
Bike Stand Over Height 746.0 mm 740.0 mm 746.0 mm 745.0 mm
Bike Seat Tube Length 394.0 mm 432.0 mm 483.0 mm 533.0 mm
Bike Top Tube Length 585.0 mm 610.0 mm 635.0 mm 660.0 mm
Bike Head Tube Length 100.0 mm 100.0 mm 110.0 mm 120.0 mm
Bike Head Angle 68.0 ° 68.0 ° 68.0 ° 68.0 °
Bike Seat Angle 73.0 ° 73.0 ° 73.0 ° 73.0 °
Bike Wheel Base 1134.0 mm 1159.0 mm 1185.0 mm 1211.0 mm
Bike Chain Stay Length 446.0 mm 446.0 mm 446.0 mm 446.0 mm
Bike Fork Offset 51.0 mm 51.0 mm 51.0 mm 51.0 mm
Bike Bb Height 346.0 mm 346.0 mm 346.0 mm 346.0 mm
Bike Bb Drop 25.0 mm 25.0 mm 25.0 mm 25.0 mm
Bike Stem Length 50.0 mm 50.0 mm 50.0 mm 50.0 mm
Bike Handlebar Width 760.0 mm 760.0 mm 760.0 mm 760.0 mm
Bike Crank Length 170.0 mm 175.0 mm 175.0 mm 175.0 mm
Bike Seat Post Length 435.0 mm 435.0 mm 485.0 mm 485.0 mm
Bike Stack 599.0 mm 599.0 mm 608.0 mm 617.0 mm
Bike Reach 402.0 mm 427.0 mm 449.0 mm 472.0 mm
Bike Fork Travel 130.0 mm 130.0 mm 130.0 mm 130.0 mm
