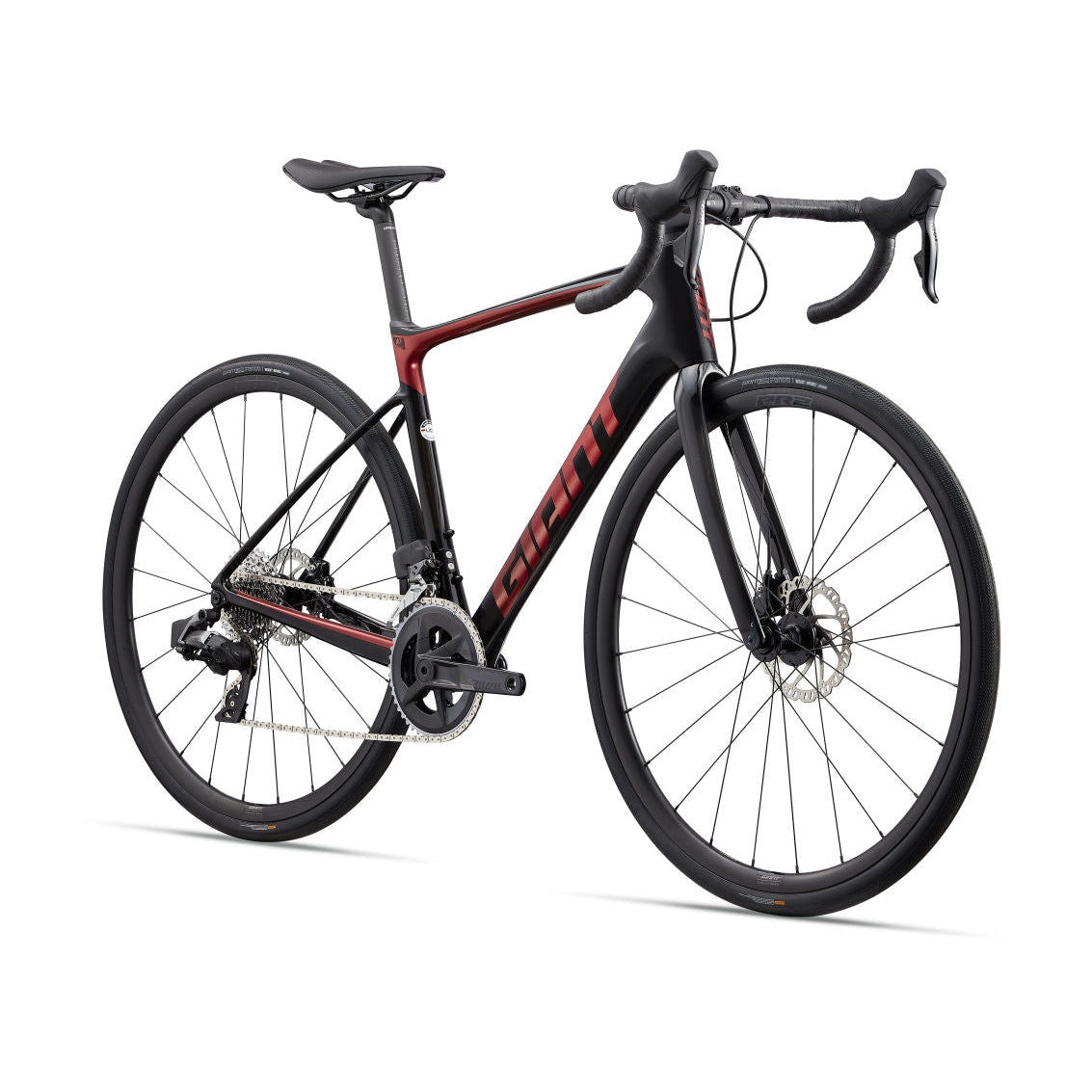

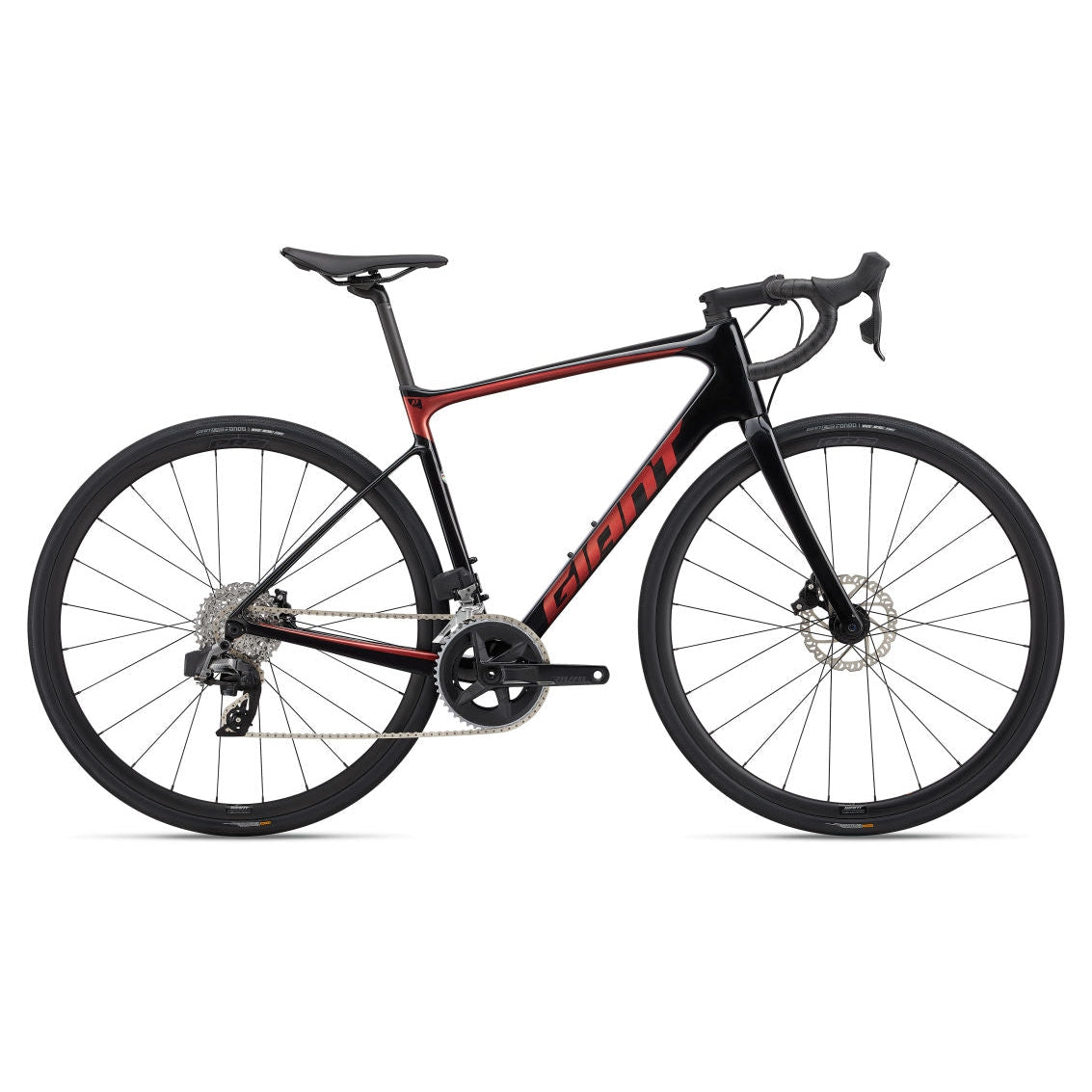

Ladies and Gentlemen, behold the magnificent Defy Advanced 0 Road Bike! Are you ready to conquer the most challenging routes and scale the highest peaks? If so, this is the smooth-riding endurance road bike that you've been dreaming of.
This bike is not for the faint of heart. It's for the riders who are ready to choose the longer route and take on whatever the road throws their way. With its endurance road geometry, added tire clearance of up to 35mm, and disc-brake integration, this bike is built to handle any condition, from silky smooth pavement to rugged mountain passes.
But wait, there's more! The Defy Advanced 0 Road Bike is not just a one-trick pony. It's a versatile beast that can handle a variety of terrains with ease. Whether you want to cruise down the highway or hit the dirt roads, this bike has got you covered.
So what are you waiting for? Get on the Defy Advanced 0 Road Bike and show the world what you're made of. Choose the longer route, climb higher mountains, and experience the thrill of the ride like never before.
Engineered compliance
Advanced Composite frame is specifically engineered for endurance road riding, giving you a smooth ride quality and less fatigue on long rides. The D-Fuse seatpost and handlebar absorb road shocks and vibrations.
Total control
Seamless disc brake integration, including flat mounts and 12mm front and rear thru-axles, produces more consistent braking power for better control, even in wet weather and rough roads.
Versatility
Endurance road geometry, added tire clearance (up to 35mm) and disc-brake integration allow you to tackle a variety of roads and conditions, from smooth pavement to rugged mountain passes.
Specifications
|
Sizes
|
XS, S, M, M/L, L, XL
|
|
Colors
|
Carbon / Terracotta
|
|

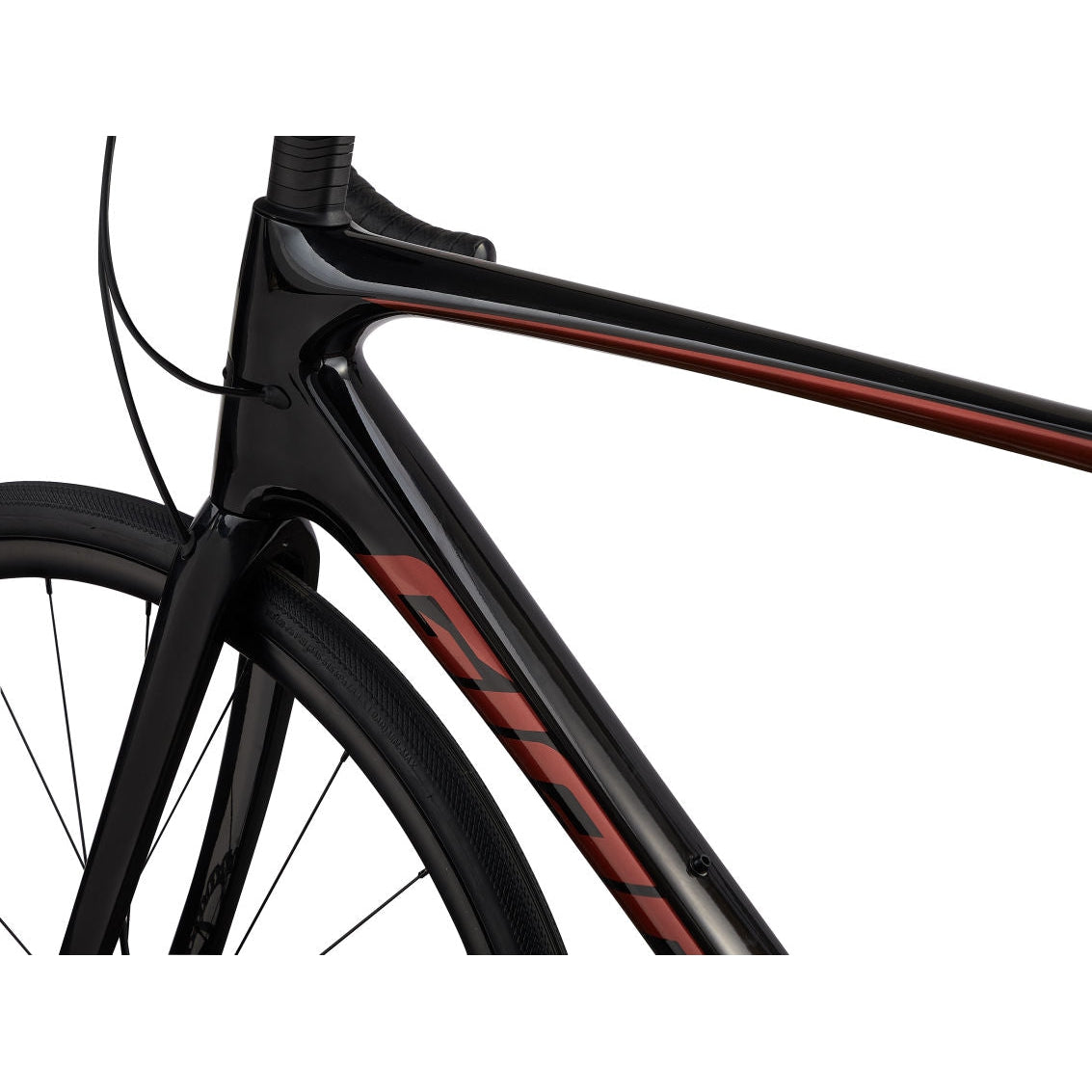

Frame
|
Advanced-Grade Composite, disc
|
|
Fork
|
Advanced-Grade Composite, full-composite OverDrive steerer, disc
|
|
Shock
|
N/A
|
|

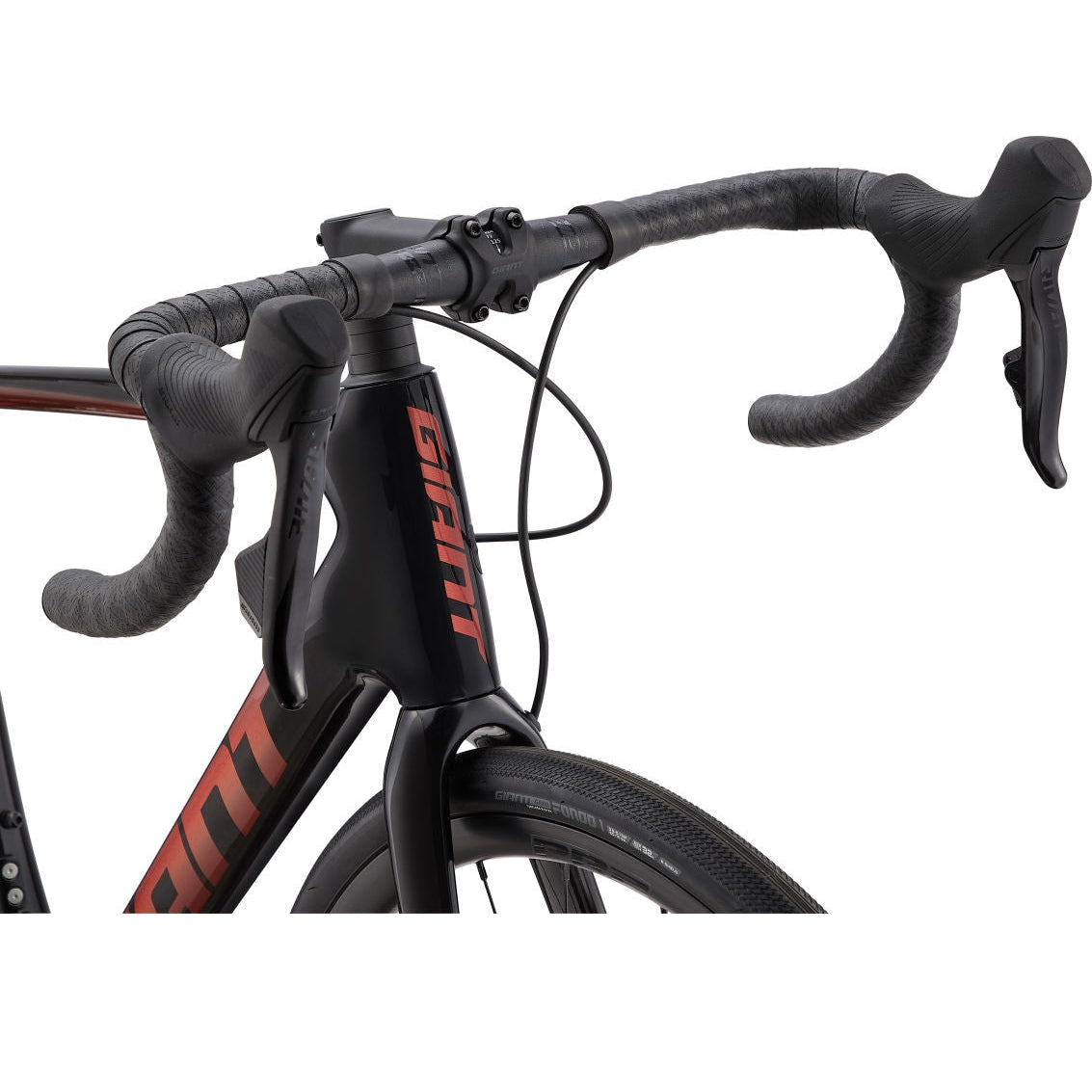

Handlebar
|
Giant Contact SL D-Fuse XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
|
|
Grips
|
Stratus Lite 3.0
|
|
Stem
|
Giant Contact XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:110mm
|
|
Seatpost
|
Giant D-Fuse, composite, 14mm offset
|
|
Saddle
|
Giant Approach
|
|
Pedals
|
Sold separately |
|
Shifters
|
SRAM Rival eTap AXS
|
|
Front Derailleur
|
SRAM Rival eTap AXS
|
|

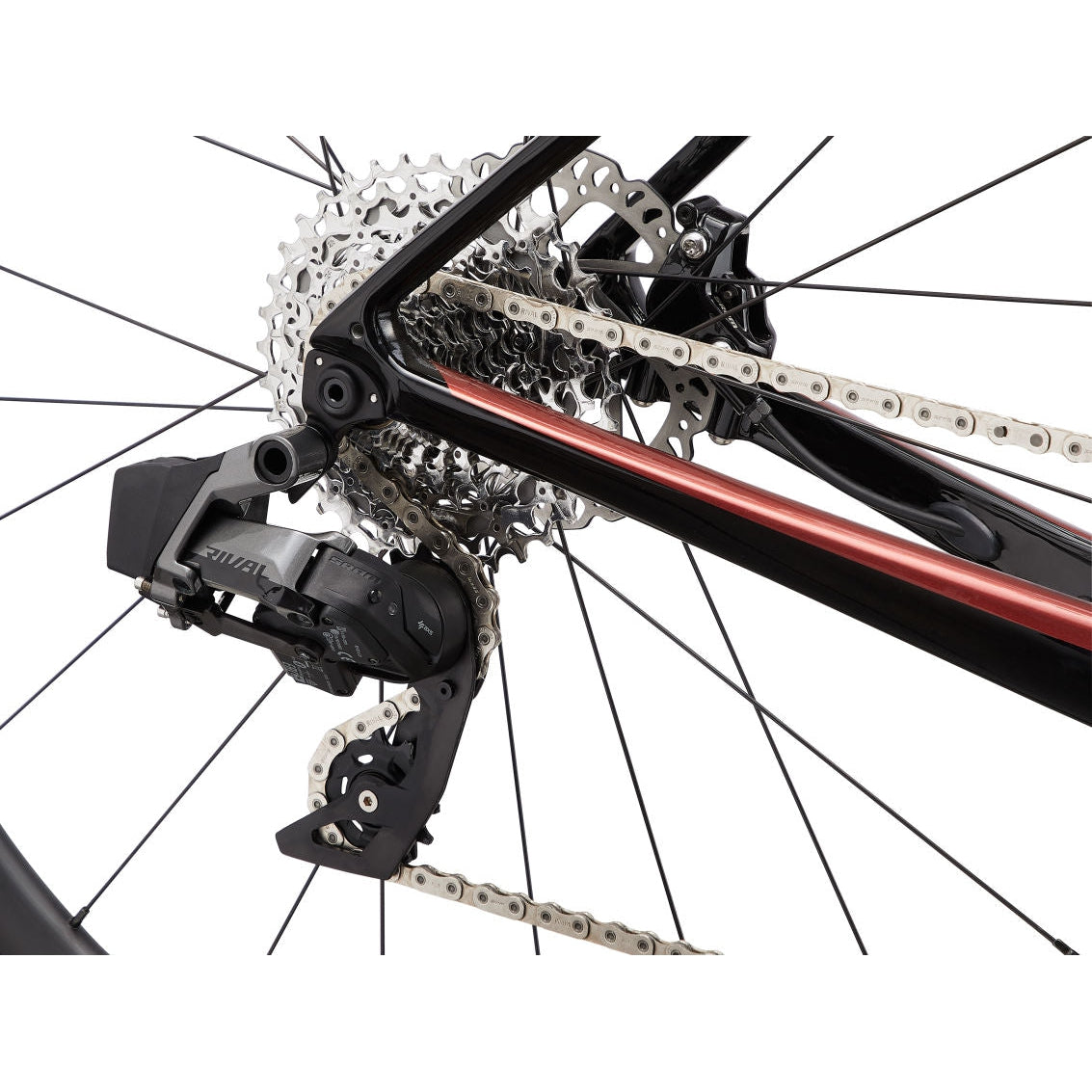

Rear Derailleur
|
SRAM Rival eTap AXS
|
|
Brakes
|
SRAM Rival eTap AXS hydraulic, Giant MPH rotors [F]160mm, [R]140mm
|
|
Brake Levers
|
SRAM Rival eTap AXS hydraulic
|
|
Cassette
|
SRAM Rival, 12-speed, 10x36
|
|
Chain
|
SRAM Rival D1
|
|
Crankset
|
SRAM Rival D1 DUB, 33/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
|
|
Bottom Bracket
|
SRAM DUB, press fit
|
|
Rims
|
Giant P-R2 Disc wheelset
|
|
Hubs
|
Giant P-R2 Disc wheelset, 12mm thru-axle
|
|
Spokes
|
Giant P-R2 Disc wheelset
|
|
Tires
|
Giant Gavia Fondo 1, tubeless, 700x32c (33.5mm), folding
|
|
Extras
|
tubeless prepared, 35mm max tire size
|
|
Weight
|
The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
|
Geometry
| |
|
S |
M |
ML |
L |
XL |
| A |
SEAT TUBE LENGTH (inch)
|
17.5 |
18.9 |
20.3 |
21.1 |
22.2 |
| B |
SEAT TUBE ANGLE |
74.0° |
73.5° |
73.0° |
73.0° |
72.5° |
| C |
TOP TUBE LENGTH (inch)
|
20.9 |
21.5 |
22 |
22.6 |
23.4 |
| D |
HEAD TUBE LENGTH (inch)
|
5.5 |
6.3 |
7.3 |
8.1 |
8.9 |
| E |
HEAD TUBE ANGLE |
71.8° |
72.5° |
72.5° |
72.5° |
72.5° |
| F |
FORK RAKE (inch)
|
2 |
2 |
2 |
2 |
2 |
| G |
TRAIL (inch)
|
2.5 |
2.3 |
2.3 |
2.3 |
2.3 |
| H |
WHEELBASE (inch)
|
39.2 |
39.3 |
39.8 |
40.4 |
40.9 |
| I |
CHAIN STAY LENGTH (inch)
|
16.5 |
16.5 |
16.5 |
16.5 |
16.5 |
| J |
BOTTOM BRACKET DROP (inch)
|
3 |
3 |
2.8 |
2.8 |
2.8 |
| K |
STACK (inch)
|
21.5 |
22.3 |
23.1 |
23.8 |
24.6 |
| L |
REACH (inch)
|
14.7 |
14.8 |
15 |
15.4 |
15.7 |
| M |
STAND OVER HEIGHT (inch)
|
29.9 |
30.9 |
32.1 |
32.9 |
33.7 |
| N |
HANDLEBAR WIDTH (inch)
|
15.7 |
16.5 |
16.5 |
17.3 |
17.3 |
| O |
STEM LENGTH (inch)
|
3.5 |
3.9 |
3.9 |
4.3 |
4.3 |
| P |
CRANK LENGTH (inch)
|
6.7 |
6.8 |
6.8 |
6.9 |
6.9 |
| Q |
WHEEL SIZE
|
700C |
700C |
700C |
700C |
700C |
