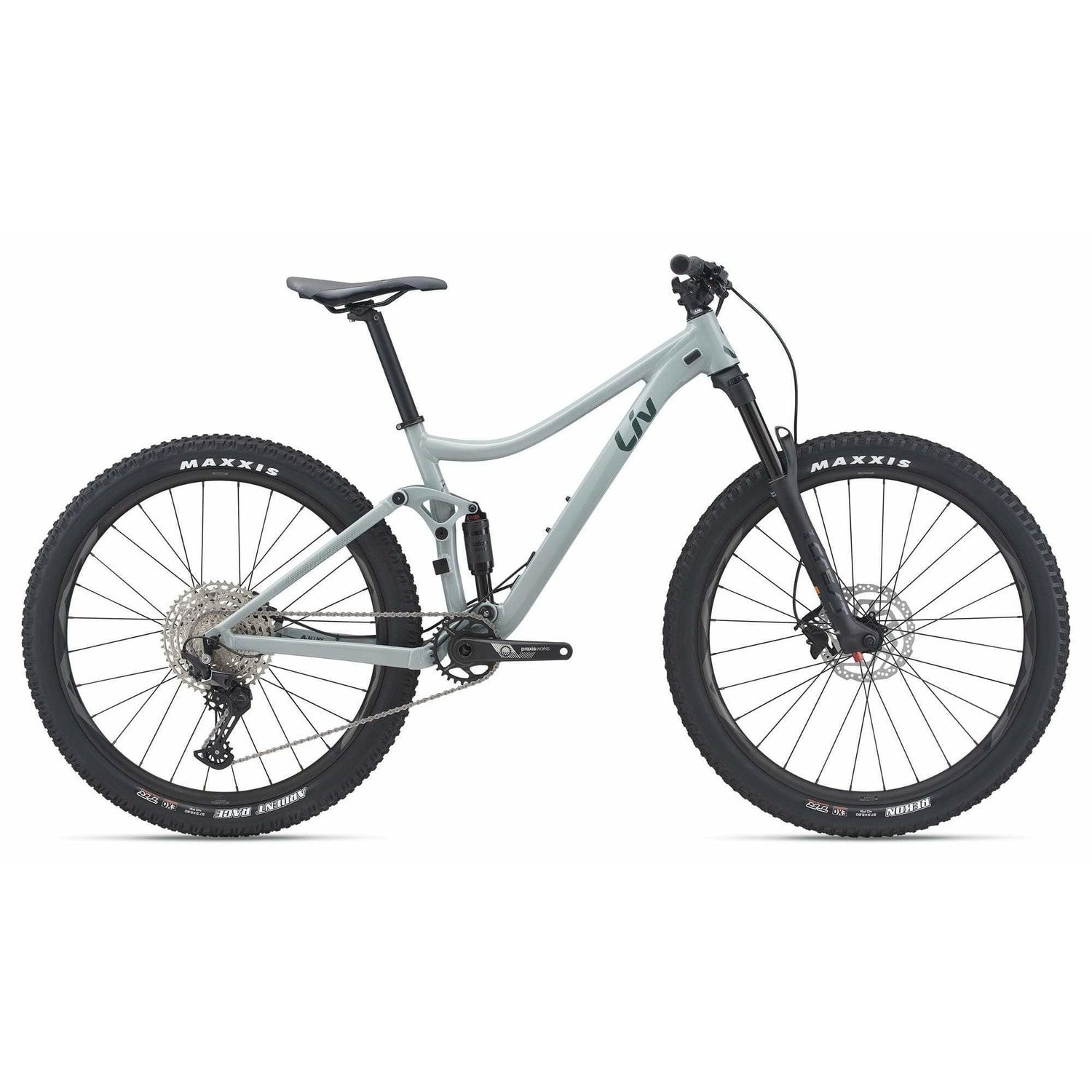

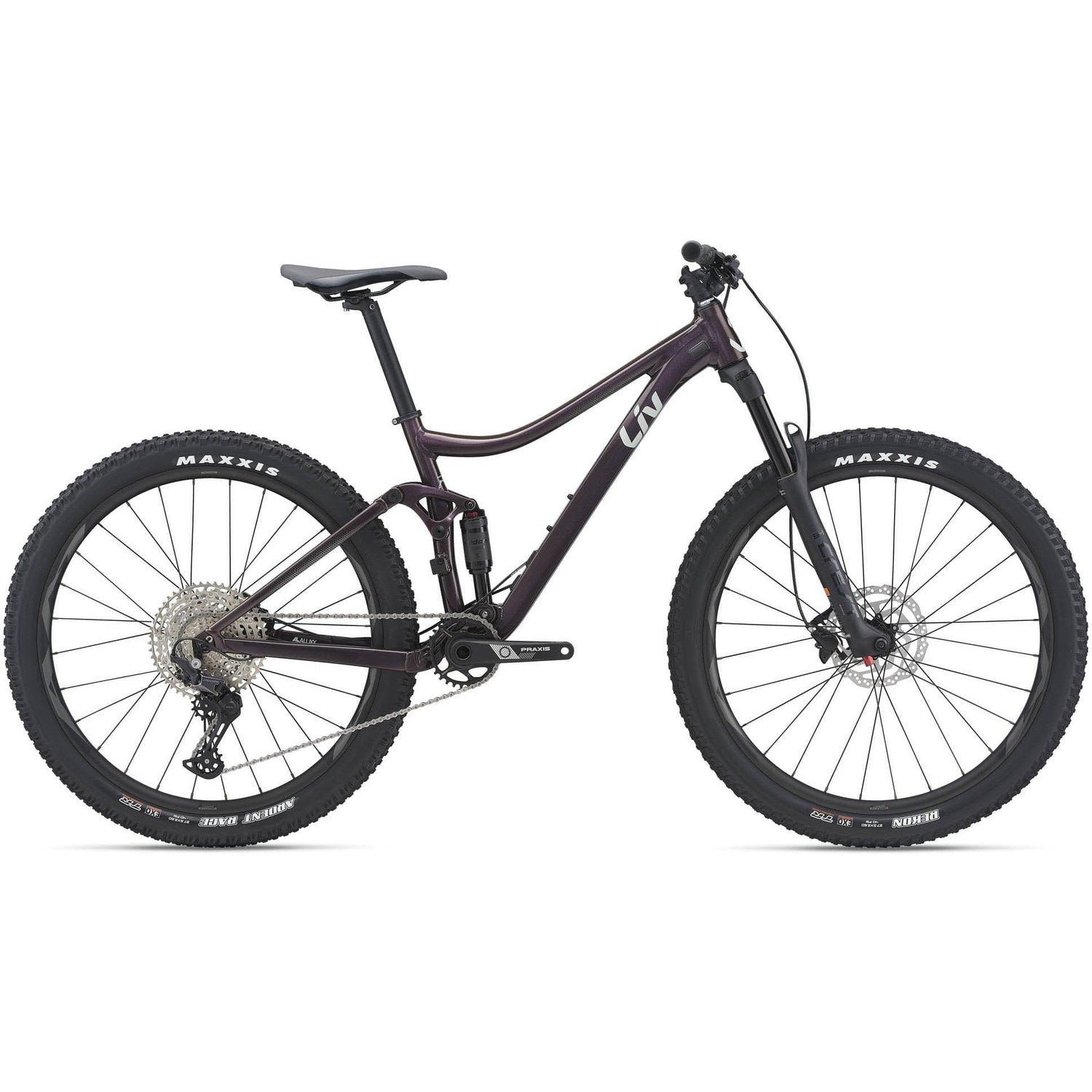

Discover a little mischief and unknown territory with the trail-ready Liv Embolden, the perfect bike to get you onto the trails and singletrack.
Embolden is designed with women’s-specific geometry and 130 mm front/120 mm rear suspension, on a single-pivot Flexpoint platform. This bike feels stable, fast and energetic even as the terrain gets technical, meeting the demands of trail riding. Using our 3F Design Philosophy, we developed a geometry that provides a low standover height, making dismounts and maneuvering your body around the frame effortless. The 27.5-inch wheel size ensures that bike handling is still nimble and playful, while carrying more speed in corners and through rocks, providing a stable, trustworthy feel.
Trail Confidence
130 mm front travel and 120 mm rear travel, plus confidence-inspiring geometry, and disc brakes.
Accessible Performance
Equipped with single-pivot Flexpoint suspension design, and tuned specifically for women, Embolden is a highly capable, trail-versed dual suspension bike.
Inspiring Comfort
LivRight Sizing and 3F Design Philosophy guarantee a design built truly for women and the perfect fit across all frame sizes.
Specifications
| Sizes |
XS, S, M, L |
| Colors |
Slate Gray / Trekking Green, Rosewood / Desert Sage |
| Frame |
ALUXX-Grade Aluminum, 120mm FlexPoint Suspension |
| Fork |
Giant Crest 34 RCL, 130mm, Boost 15x110, custom tuned for Giant |
| Shock |
Suntour Raidon R, 184/44, custom tuned for Giant |
| Handlebar |
Giant Connect Trail |
| Stem |
Giant Contact |
| Seatpost |
Giant Connect, 30.9 |
| Saddle |
Liv Sylvia |
| Pedals |
N/A |
| Shifters |
Shimano Deore |
| Front Derailleur |
N/A |
| Rear Derailleur |
Shimano Deore, Shadow+ |
| Brakes |
Shimano MT200 hydraulic (F:180mm, R:160mm) |
| Brake Levers |
Shimano BL-MT201 |
| Cassette |
Shimano Deore, 12-speed, 10x51 |
| Chain |
Shimano Deore |
| Crankset |
Praxis Cadet Boost, 30t |
| Bottom Bracket |
Praxis, press fit |
| Rims |
Giant AM 27.5 wheelset, alloy, 30mm inner |
| Hubs |
[F] Giant Performance Tracker, Boost 15x110, sealed bearing [R] Giant Sport Tracker, QR Boost 141, loose ball |
| Spokes |
Sapim |
| Tires |
[F] Maxxis Rekon 27.5x2.6 WT, EXO, TR, tubeless [R] Maxxis Ardent Race 27.5x2.6 WT, EXO, TR, tubeless |
| Extras |
Tubeless prepared |
Geometry
|
XS |
S |
M |
L |
| SEAT TUBE LENGTH (inch)
|
15 |
16 |
17.5 |
19.3 |
| SEAT TUBE ANGLE |
74.0° |
74.0° |
74.0° |
74.0° |
| TOP TUBE LENGTH (inch)
|
22.2 |
22.8 |
23.4 |
24 |
| HEAD TUBE LENGTH (inch)
|
3.7 |
3.9 |
4.3 |
4.7 |
| HEAD TUBE ANGLE |
67.5° |
67.5° |
67.5° |
67.5° |
| FORK RAKE (inch)
|
1.7 |
1.7 |
1.7 |
1.7 |
| TRAIL (inch)
|
4.1 |
4.1 |
4.1 |
4.1 |
| WHEELBASE (inch)
|
43.7 |
44.3 |
44.9 |
45.6 |
| CHAIN STAY LENGTH (inch)
|
17.1 |
17.1 |
17.1 |
17.1 |
| BOTTOM BRACKET DROP (inch)
|
0.8 |
0.8 |
0.8 |
0.8 |
| STACK (inch)
|
22 |
22.2 |
22.6 |
23 |
| REACH (inch)
|
15.9 |
16.5 |
16.9 |
17.4 |
| STAND OVER HEIGHT (inch)
|
27.2 |
27.8 |
28.9 |
29.9 |
| HANDLEBAR WIDTH (inch)
|
29.5 |
29.5 |
30.7 |
30.7 |
| STEM LENGTH (inch)
|
1.6 |
1.6 |
2 |
2 |
| CRANK LENGTH (inch)
|
6.5 |
6.7 |
6.7 |
6.9 |
| WHEEL SIZE
|
27.5" |
27.5" |
27.5" |
27.5" |
