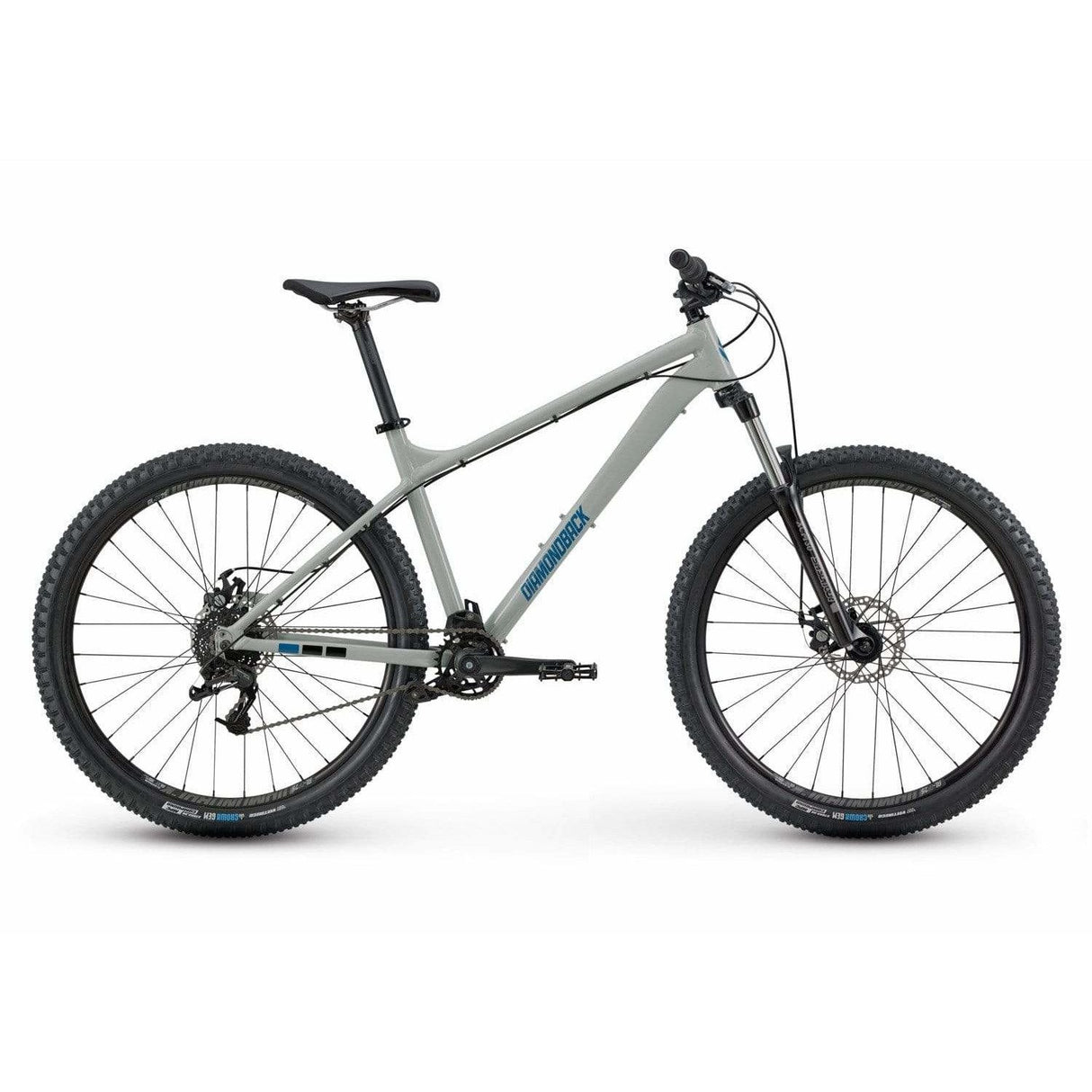

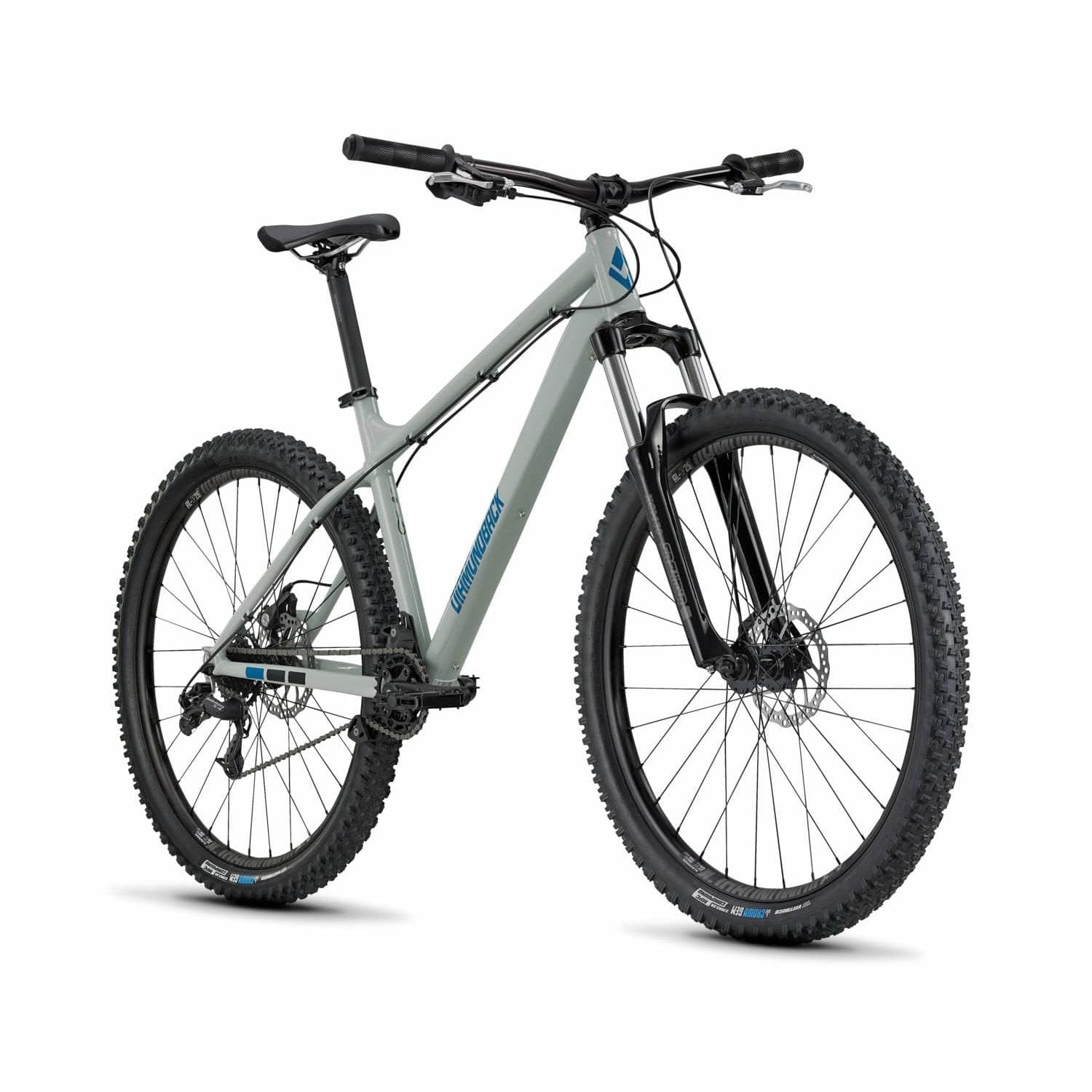

If you could only have one bike - just one - the Diamondback Hook hardtail mountain bike would be the perfect choice. For starters, it’s capable of, well, just about anything you have the nerve for. That includes quick rips on your local trails, all-day sufferfests that have you pedaling away into terra incognita, and everything in between.
Diamondback equipped the Hook with the same low-slung, modern frame as its well-heeled Line and Sync’r siblings. Long in the front, short in the back, low and maneuverable - the Hook is deft and precise on tight trails yet rock steady when you are going Mach Chicken down the steepest descents.
The most impressive thing about the Hook, however, might just be its price. Diamondback kept the price tag from burning a hole in your checking account by equipping the Hook with awesome yet affordable components, including a plush 120mm fork, simple and effective single-ring drivetrain, powerful disc brakes, and quick-rolling 27.5” wheels.
- Reliable, hand-built aluminum hardtail frame w/ progressive, low-slung geometry for trail riding performance
- SR Suntour XCM 120mm travel suspension fork tackles trail obstacles
- SRAM single ring 1x8 drivetrain gives you simplicity and smooth shifting
- Durable DB SL-7 Doublewall 27.5" wheels
- Powerful Tektro Aries mechanical disc brakes
- Frame is compatible with internally routed dropper posts
Specifications
| Frame |
6061-T6 Butted Alloy for 27.5", 1 1/8" Head Tube, Formed Top and Down Tube, w/ Integrated Disc Brake Tabs, Progressive Geometry, Internal Dropper Ready |
| Fork |

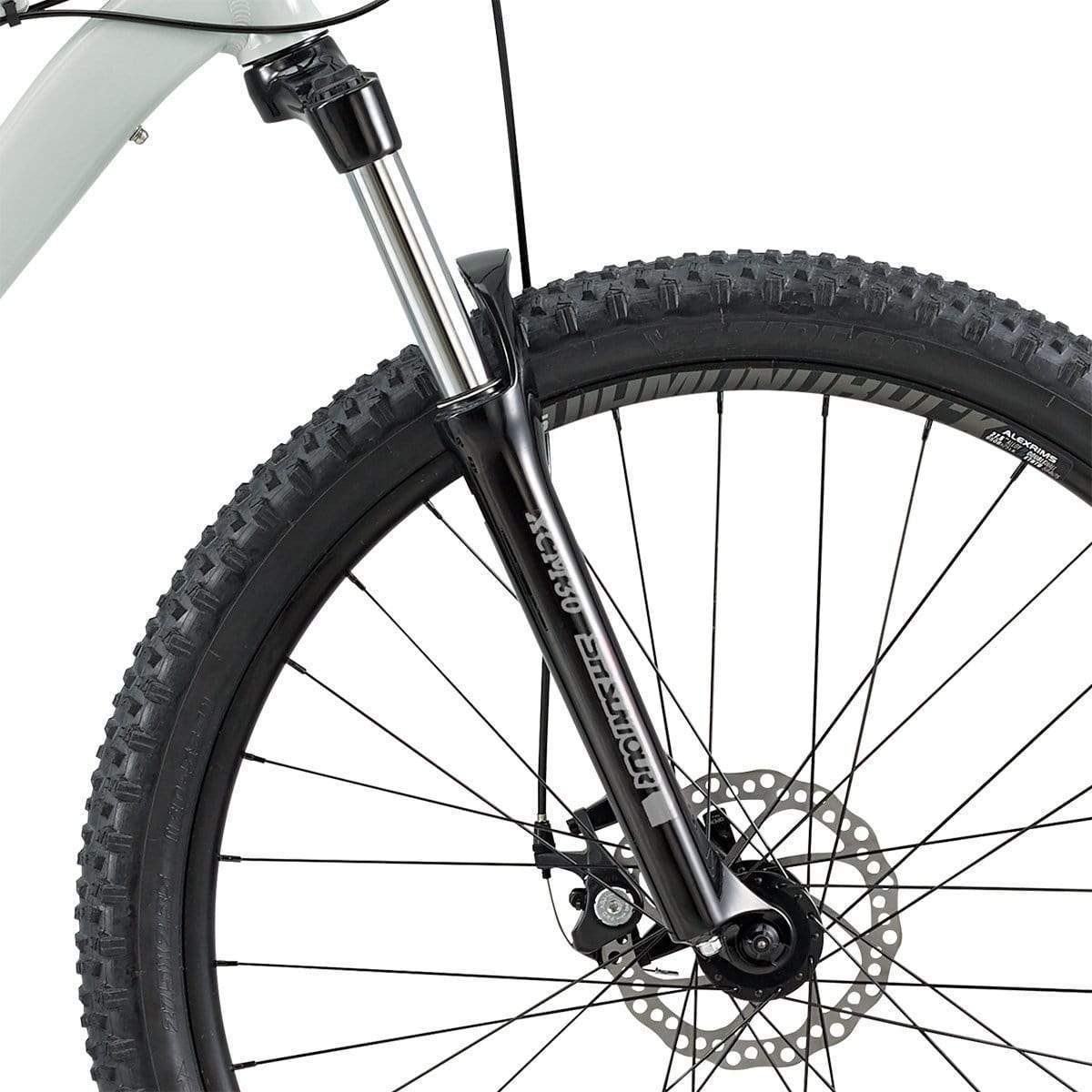

SR Suntour XCM 120mm Travel, 30mm Stanchions, Coil Spring w/ Preload Adjust |
| Headset |
FSA IS-3/NO.11 Integrated Style |
| Cranks |

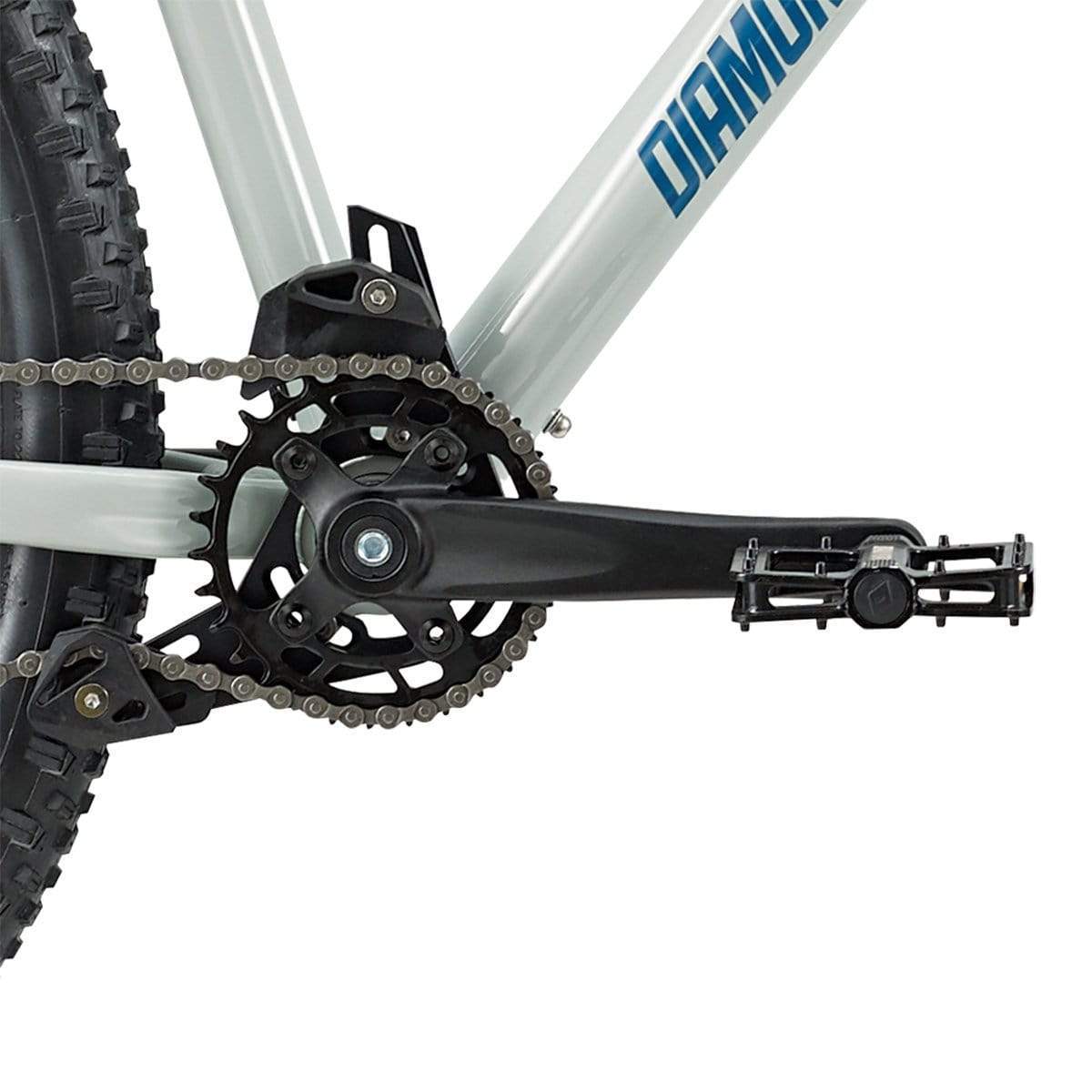

Alloy Arm w/ 30T Steel "Narrow Wide" Single Ring |
| Bottom Bracket |
Sealed Cartridge |
| Front Derailleur |
Full ISCG-05 Chain Guide w/ Roller |
| Rear Derailleur |

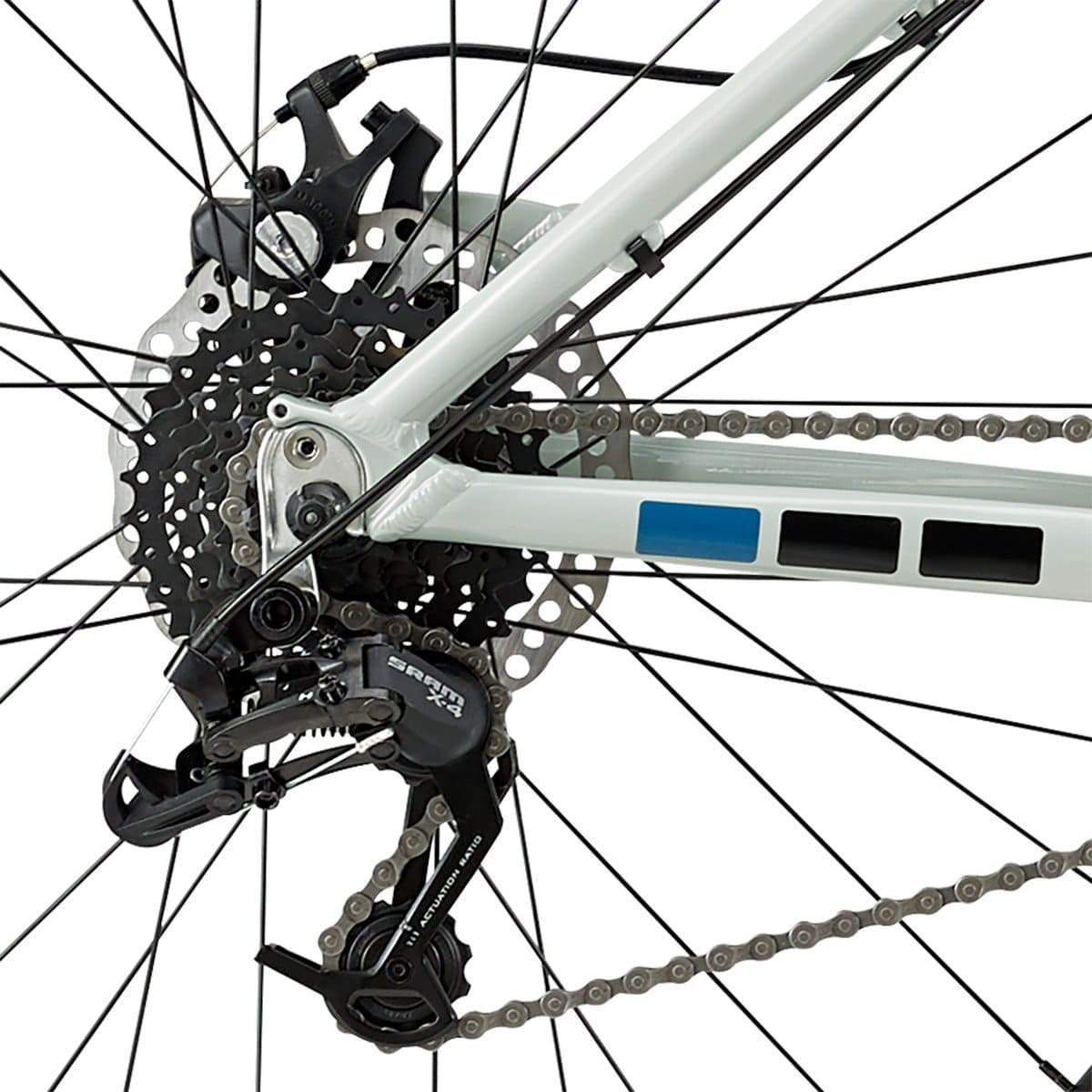

SRAM X3, 8 Speed |
| Shifter |
SRAM X4 8 Speed |
| Cogset |
SRAM PG820, 8 Speed, 11-32T |
| Chain |
KMC Z82, 8 Speed |
| Front Hub |
32h Alloy w/ CNC Disc Mount; 100mm |
| Rear Hub |
32h Alloy Cassette w/ CNC Disc mount; 135mm |
| Spokes |
14g Stainless Steel |
| Rims |
32h Diamondback DP25 Doublewall |
| Tires |
Vee Rubber Crown Gem 27.5x2.3" |
| Brakes |
Tektro Aries Mechanical Disc, w/ 160mm Rotors |
| Brake Levers |

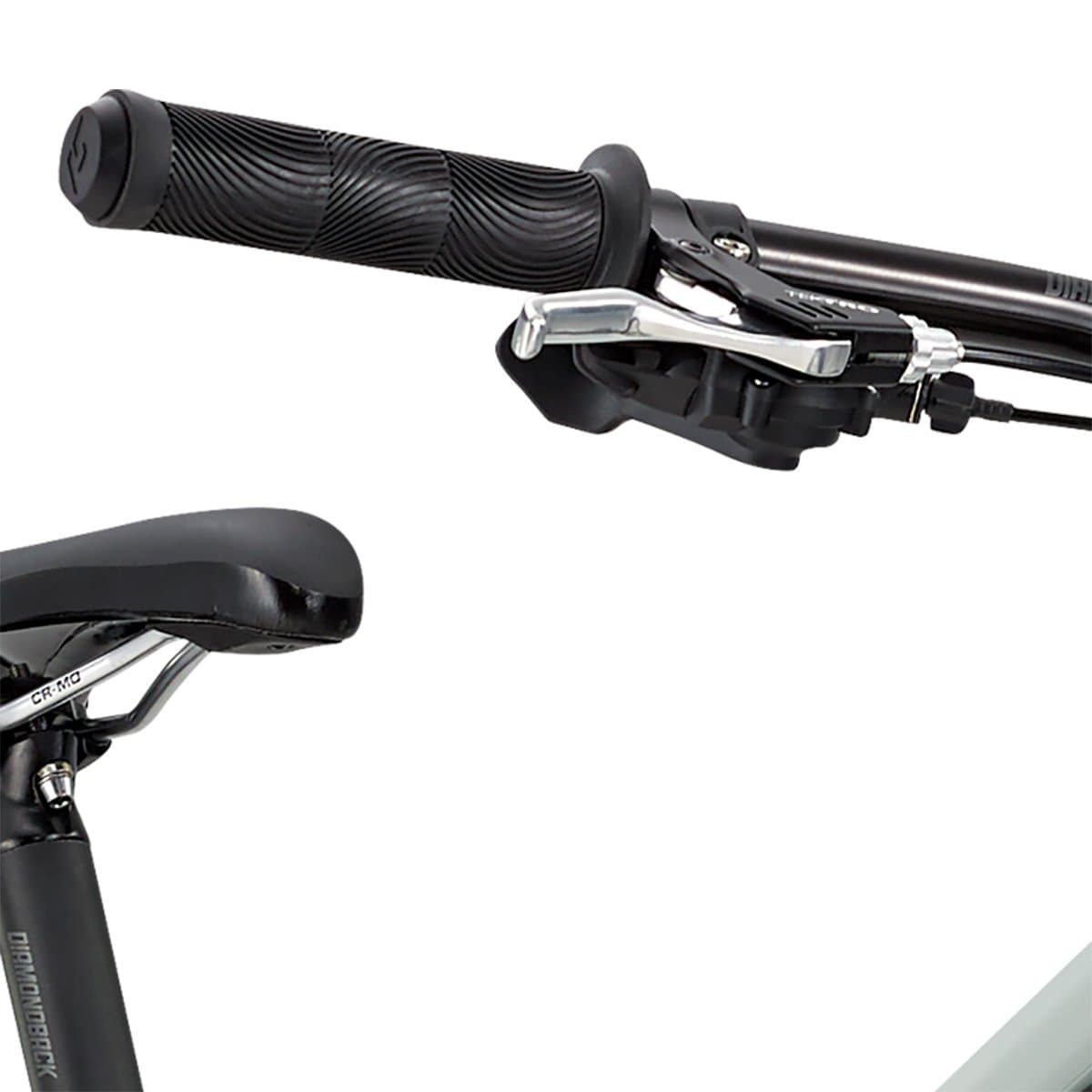

Tektro 2 Finger Alloy Linear w/ Reach Adjust |
| Pedals |
DB4L Alloy Platform |
| Handlebar |

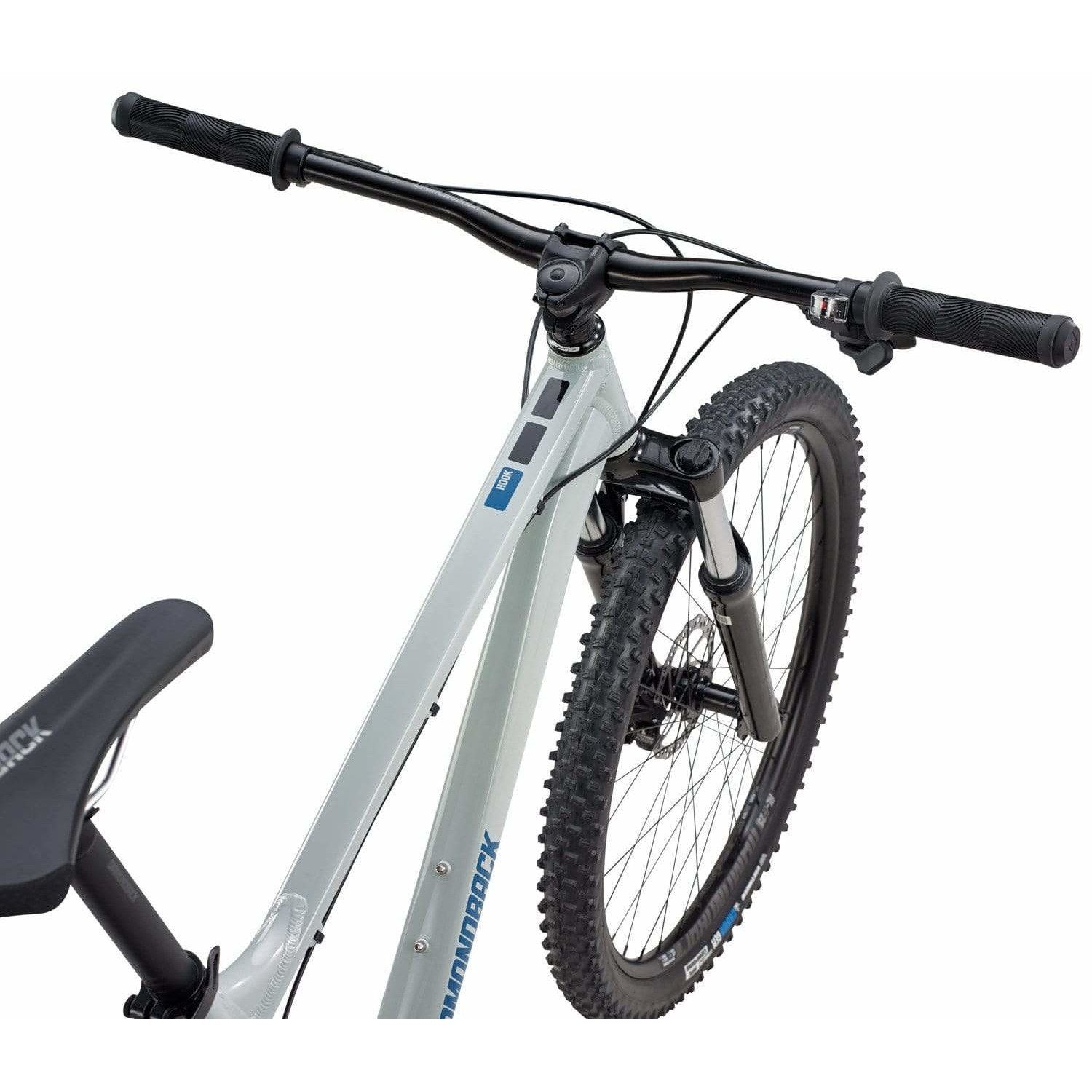

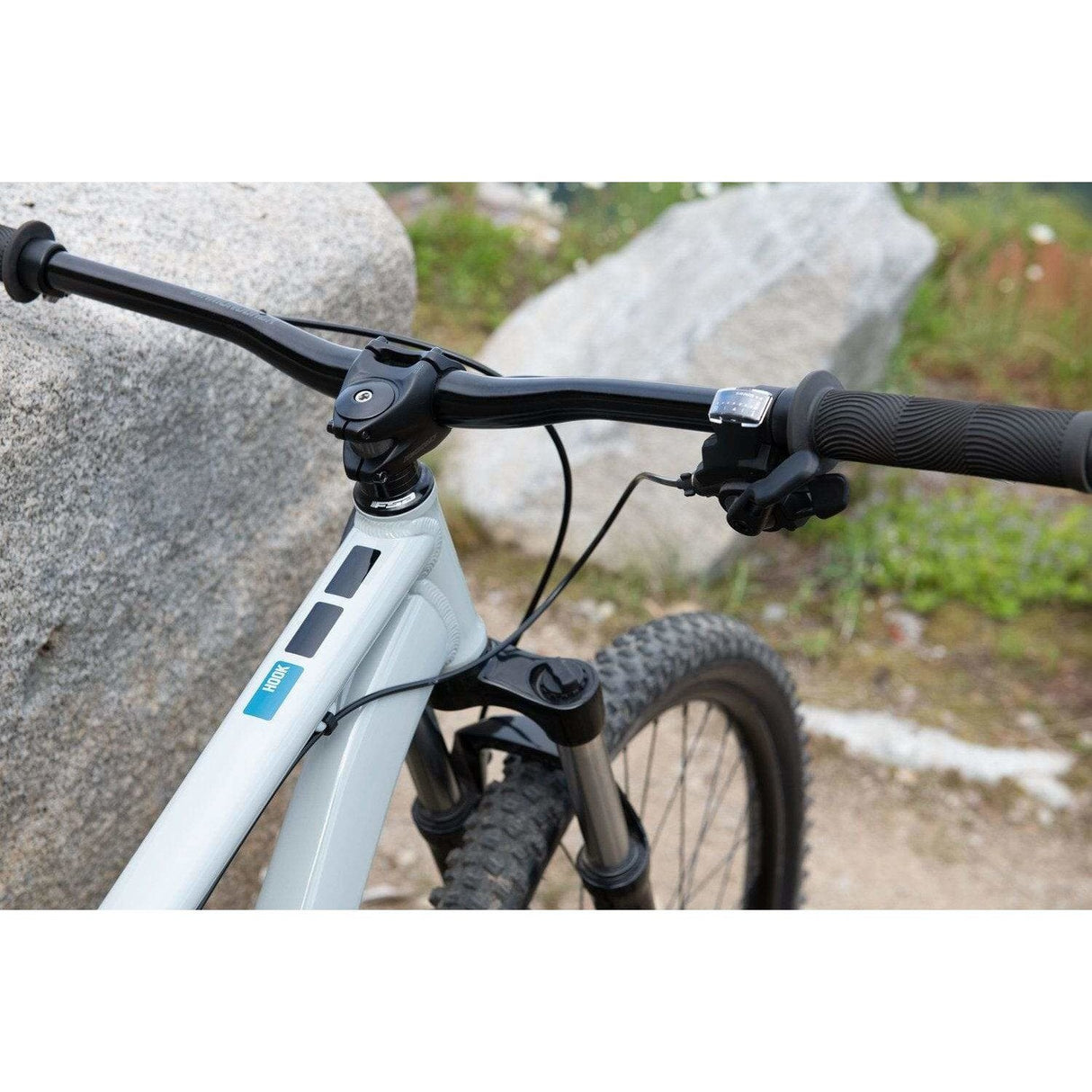

Diamondback, 750mm Wide, 15mm Rise, 31.8 Bar Bore |
| Grips |
New DB "Flanged" 135mm Silcone |
| Stem |
Diamondback "Shortie", 45mm Reach, 31.8 Bar Bore |
| Seat |

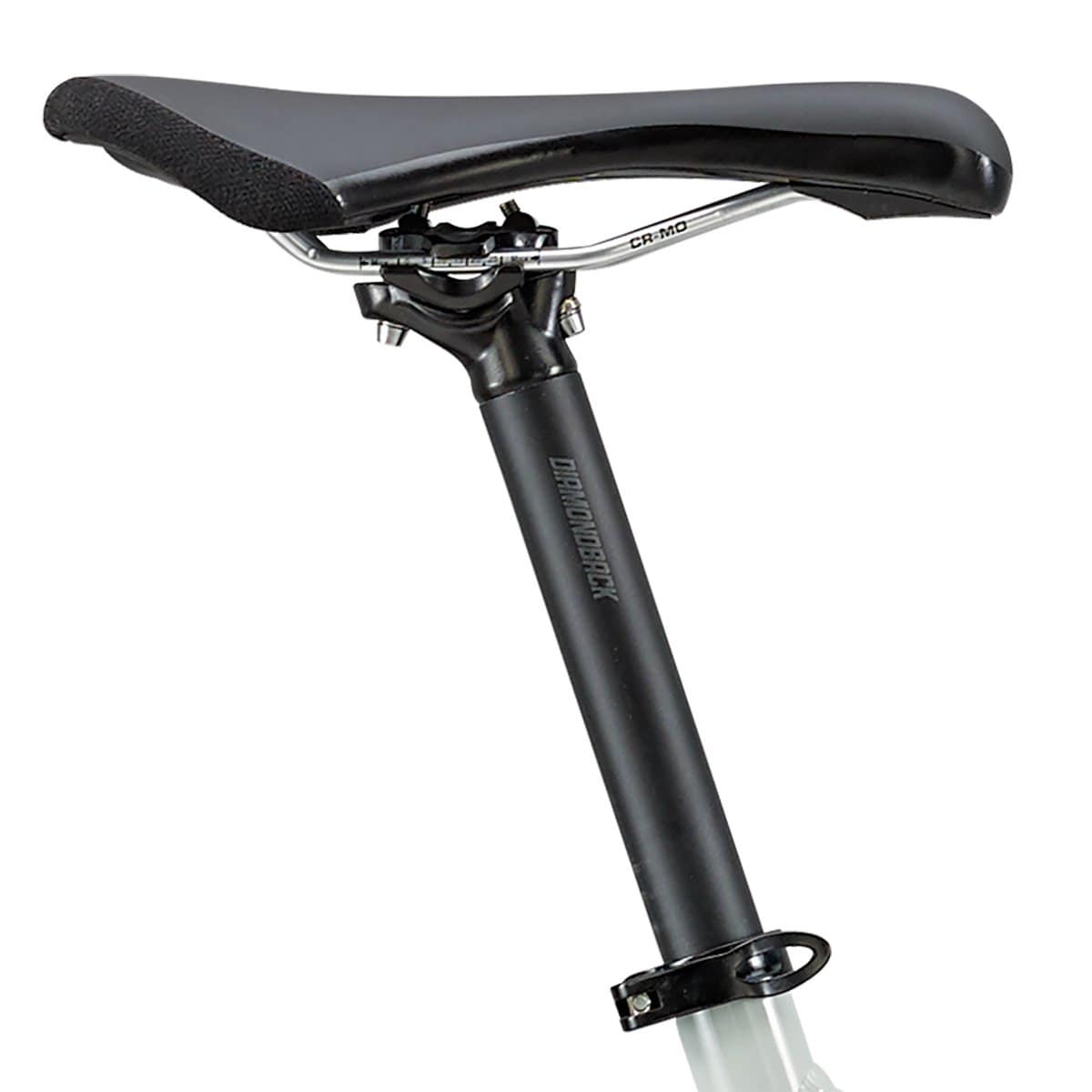

DB Sync'r Saddle |
| Seatpost |
Alloy Micro Adjust, 30.9mm |
| Extras |
Tool Kit |
Geometry
| FRAME SIZE |
SM/16 5'4"-5'7" |
MD/18 5'7"-5'10" |
LG/20 5'10"-6'1" |
XL/22 6'1"-6'4" |
| Rider Height |
- |
- |
- |
- |
| Bike Stand Over Height |
728.0 mm |
769.0 mm |
799.0 mm |
830.0 mm |
| Bike Seat Tube Length |
400.0 mm |
450.0 mm |
500.0 mm |
550.0 mm |
| Bike Top Tube Length |
575.0 mm |
600.0 mm |
620.0 mm |
640.0 mm |
| Bike Head Tube Length |
105.0 mm |
125.0 mm |
145.0 mm |
165.0 mm |
| Bike Head Angle |
68.0 ° |
68.0 ° |
68.0 ° |
68.0 ° |
| Bike Seat Angle |
73.0 ° |
73.0 ° |
73.0 ° |
73.0 ° |
| Bike Wheel Base |
1087.0 mm |
1113.0 mm |
1135.0 mm |
1157.0 mm |
| Bike Chain Stay Length |
430.0 mm |
430.0 mm |
430.0 mm |
430.0 mm |
| Bike Fork Offset |
44.0 mm |
44.0 mm |
44.0 mm |
44.0 mm |
| Bike Bb Height |
305.0 mm |
305.0 mm |
305.0 mm |
305.0 mm |
| Bike Bb Drop |
44.0 mm |
44.0 mm |
44.0 mm |
44.0 mm |
| Bike Stem Length |
45.0 mm |
45.0 mm |
45.0 mm |
45.0 mm |
| Bike Handlebar Width |
750.0 mm |
750.0 mm |
750.0 mm |
750.0 mm |
| Bike Crank Length |
170.0 mm |
175.0 mm |
175.0 mm |
175.0 mm |
| Bike Seat Post Length |
350.0 mm |
350.0 mm |
350.0 mm |
350.0 mm |
| Bike Stack |
577.0 mm |
595.0 mm |
614.0 mm |
633.0 mm |
| Bike Reach |
398.0 mm |
417.0 mm |
432.0 mm |
446.0 mm |
| Bike Fork Travel |
120.0 mm |
120.0 mm |
120.0 mm |
120.0 mm |
