Built for road riding, commuting, recreational riding, and gravel trails.
With a Step-thru frame for easy mounting and dismounting, and a 500W power system with both pedal assist and throttle mode, the Metro S e-bike can do it all.
THE BATTERY.
The heart of the Magnum Scout is the integrated, long-range 48V / 13Ah / 624Wh battery that powers up to 60 miles, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.
- 13Ah: 50 miles (80 Kilometers) Max Range
- 6.5 Hours Charge Time

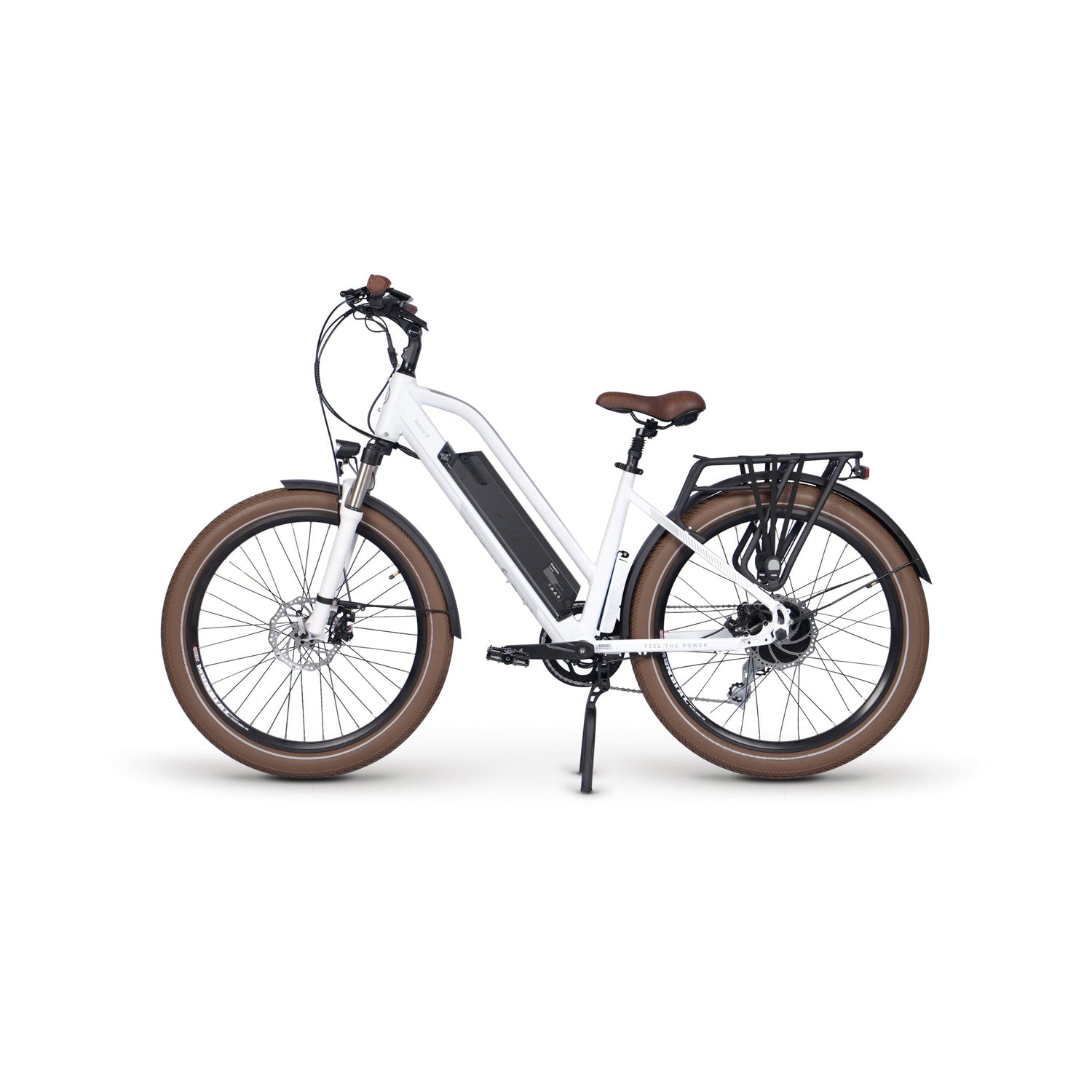

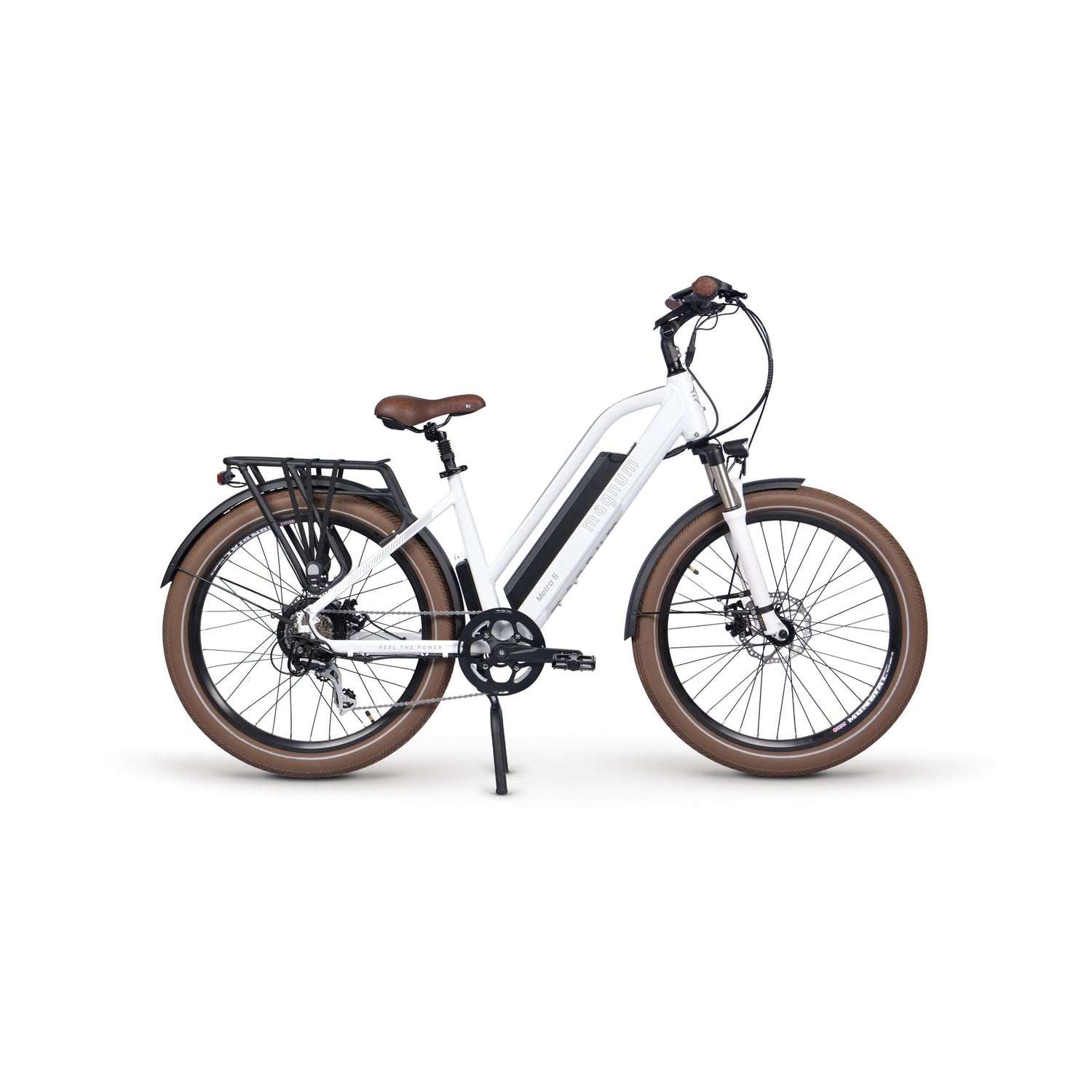

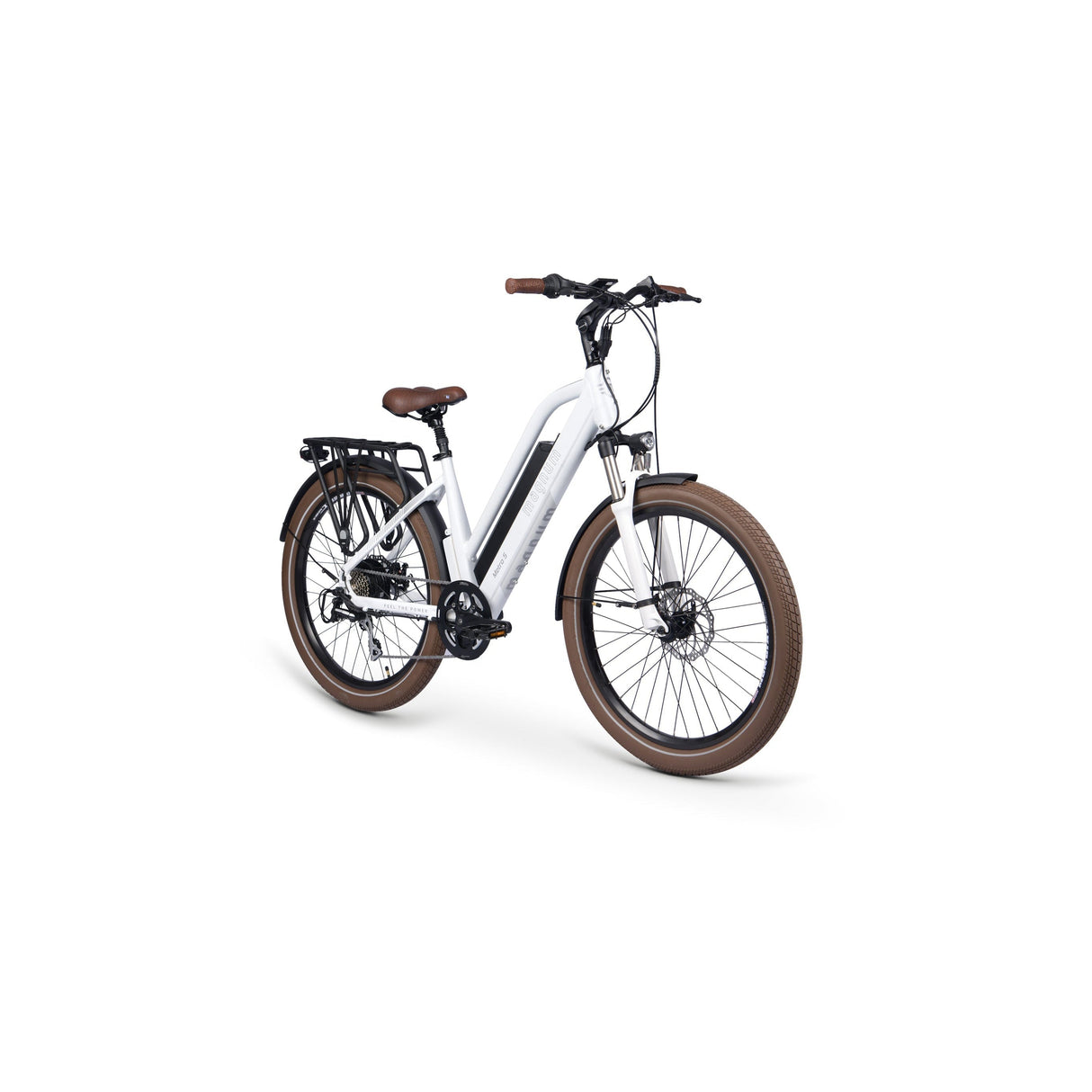

ALUMINUM STEP THROUGH FRAME
Easily mount and dismount.
The step-through frame is easy to mount and dismount, is made of strong and lightweight aluminum, and is ideal for riders with mobility or flexibility issues.
Specifications
Electric Details
|
Motor Brand
|
Bafang
|
|
Motor Type
|
Rear Hub-Drive
|
|
Motor Nominal Output
|
500 Watts
|
|
Motor Peak Output
|
750 Watts
|
|
Battery Brand
|
Samsung Cells
|
|
Battery Voltage
|
48 Volts
|
|
Battery Ah
|
13Ah
|
|
Battery Wh
|
624Wh
|
|
Battery Chemistry
|
Li-NMC
|
|
Battery Charge Time (from empty)
|
6.5 Hours
|
|
Minimum Range
|
25 Miles (40 Kilometers)
|
|
Maximum Range
|
50 miles (80 Kilometers)
|
|

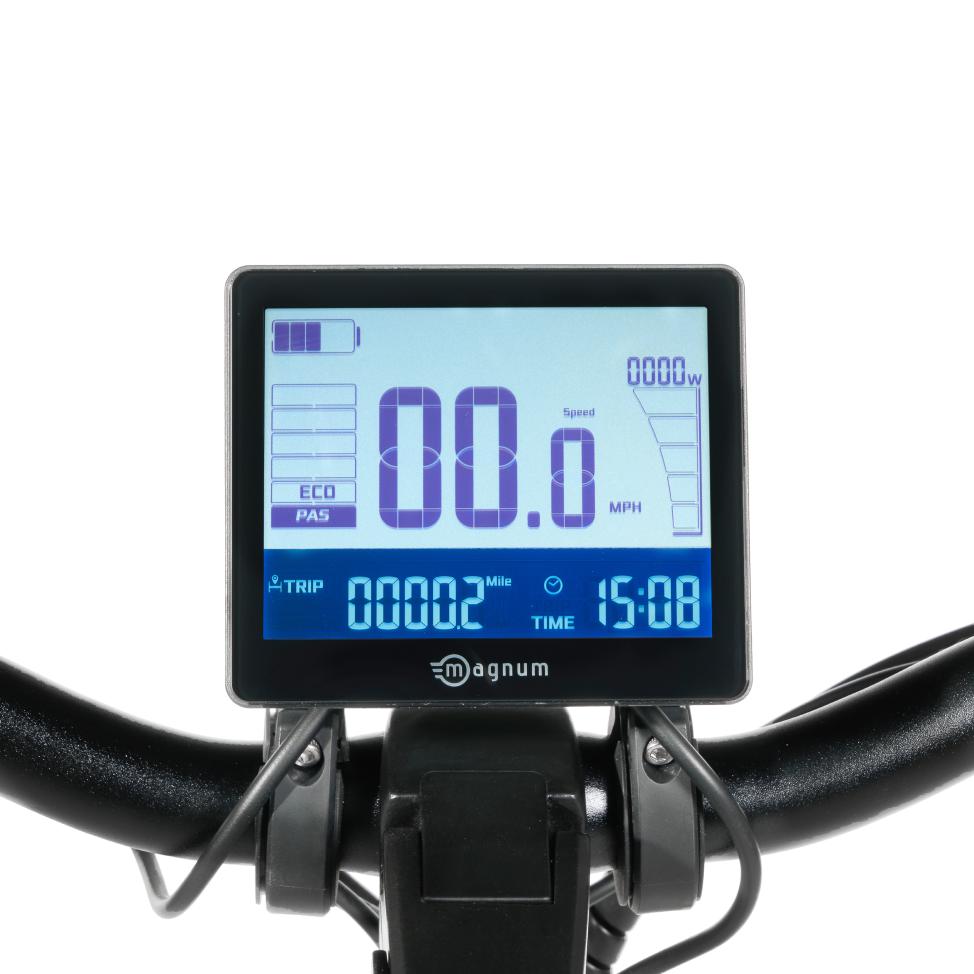

Display Type
|
Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD
|
|
Display Readouts
|
Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time
|
|
Drive Mode
|
Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode
|
|
Top Speed
|
25 mph with Pedal Assist, 20 mph with Throttle
|
|
Lights
|

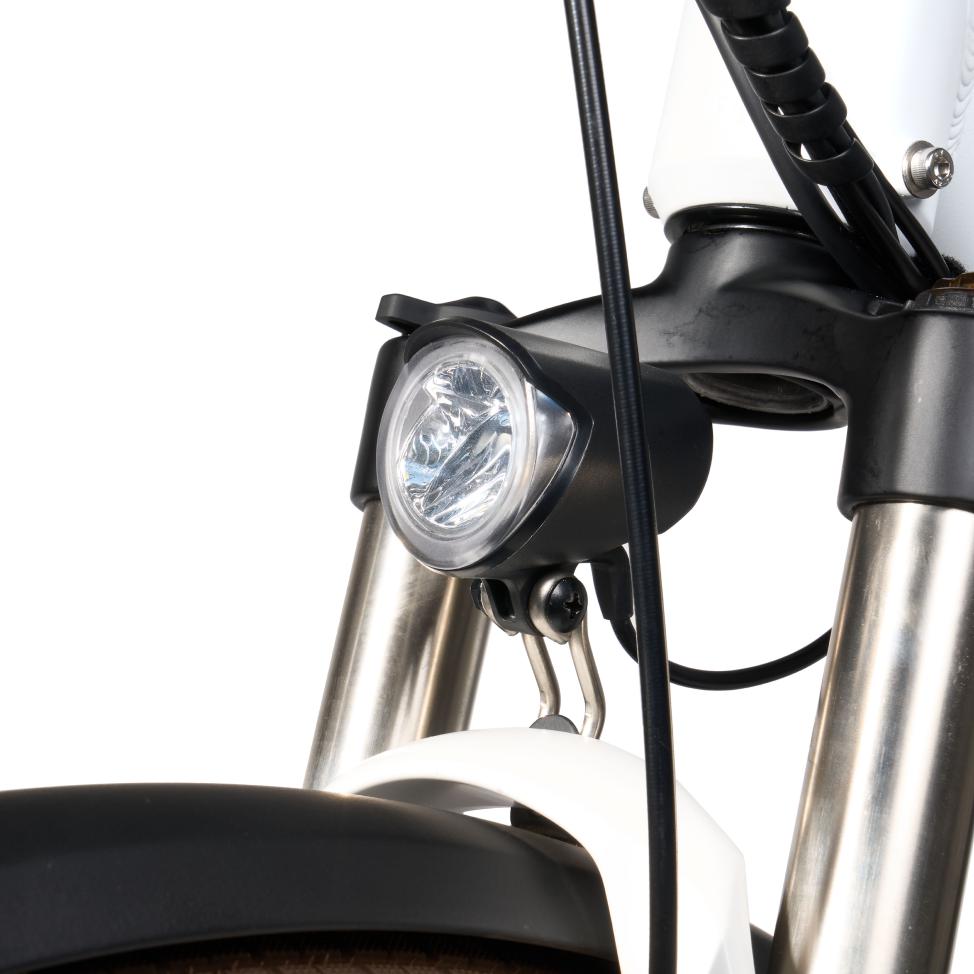

Integrated front and rear light controlled from the display
|
Mechanical Details
|
Frame material
|
Aluminum Alloy
|
|
Frame size
|
17.25â (44 cm)
|
|
Fork Details
|
Suspension Fork with Lockout and Preload Adjust
|
|
Gearing details
|
Shimano 7-Speed
|
|
Shifter Details
|
Shimano 7-Speed
|
|
Crank
|
Aluminum Alloy, 52T, 170mm
|
|
Pedals
|
Wellgo
|
|
Stem
|
Tool-Free Adjustable
|
|
Brakes
|

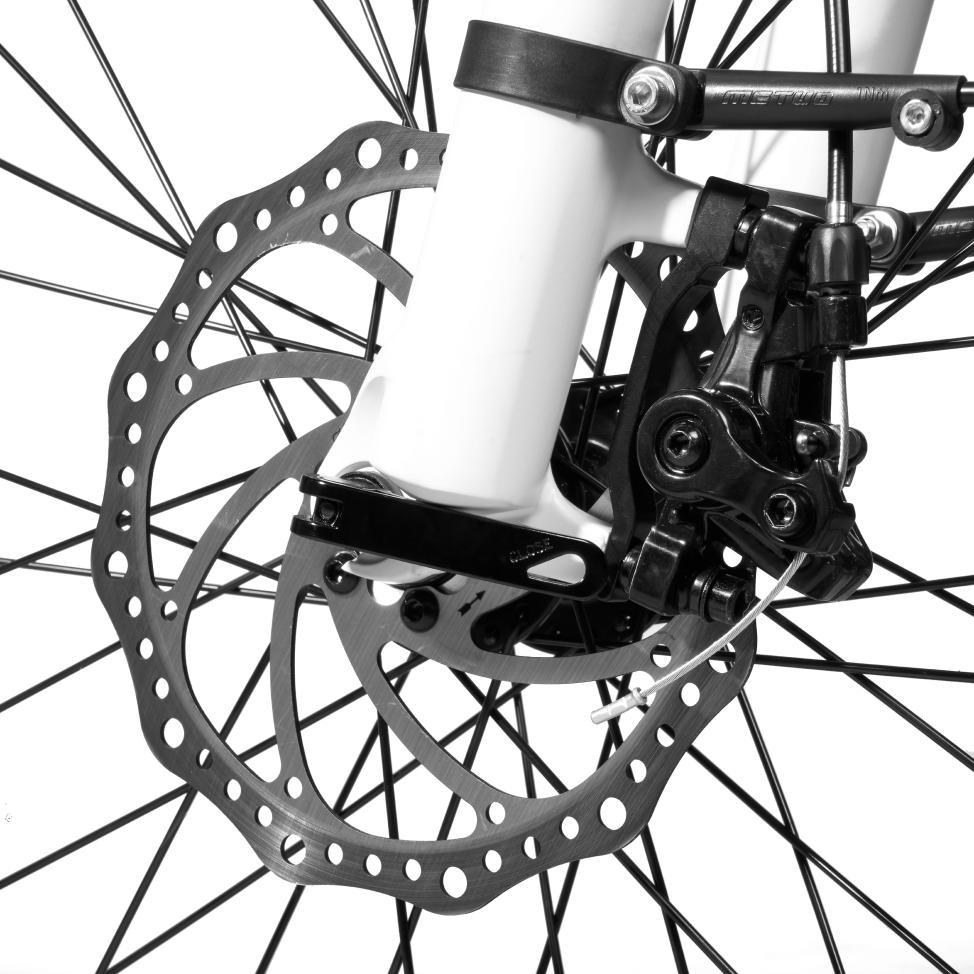

Mechanical Disc Brakes
|
|
Grips
|
Ergonomic Faux Leather
|
|
Saddle
|
Selle Royal Polygel
|
|
Tire Brand
|
Brown w/Reflective Strip 26 x 2.4
|
|
Wheel size
|
26â
|
|
Fenders
|
Front and Rear Included
|
|
Chain
|
KMC
|
Geometry
|
Seat Tube
|
17.25â (44 cm)
|
|
Reach
|
16.5â (42 cm)
|
|
Stand Over Height
|
26.75â (68 cm)
|
|
Virtual Top Tube Length
|
23.25â (59 cm)
|
|
Min Saddle Height
|
23.25â (59 cm)
|
|
Max Saddle Height
|
29â (74 cm)
|
|
Width
|
27.25â (69 cm)
|
|
Wheelbase
|
44â (112 cm)
|
|
Length
|
71â (180 cm)
|
|
Total Weight
|
62 lbs (28 kg)
|
|
Battery Weight
|
9 lbs (4.1 kg)
|
|
Rider minimum height
|
5â0â
|
