| Frame |
ALUXX Aluminium, Low Step
|
| Fork |
ALUXX Aluminium, Rigid Fork with Utility Feature
|
| Rims |
Alloy, 35mm inner width, e-bike optimized
|
| Hubs |

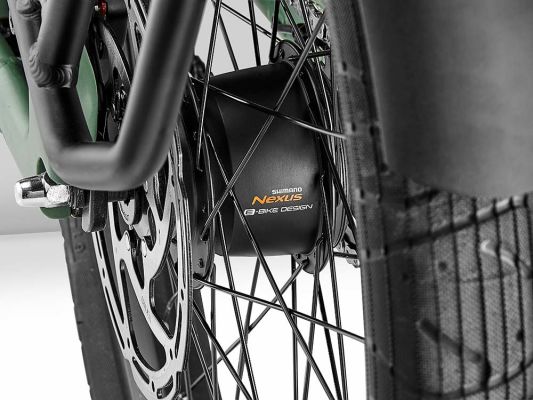

Rear: Shimano Nexus 5-Speed
|
| Spokes |
|
| Tires |
Maxxis Hook Worm, 24x2.5", Wire Bead, 60TPI
|
| Crankset |
Forged Alloy minimal Q-factor
|
| Chainrings |
46T |
| Shifters |
Shimano Nexus 5sp RevoShift
|
| Cassette/Freewheel |
24T |
| Chain |
|
| Brakes |
Tektro HD-E737, 4-piston, hydraulic disc for Cargo, 203mm [F&R]
|
| Brake Levers |
|

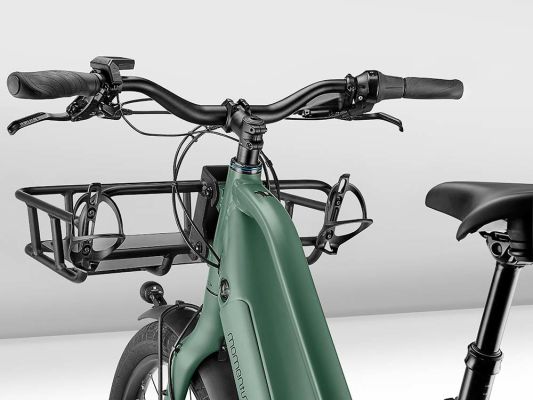

| Handlebars |
Aluminium 20D Sweep Back, Rise 50 mm, Width: 720mm, TR49A-00S1
|
| Tape/Grips |
|
| Stem |
Giant Contact |

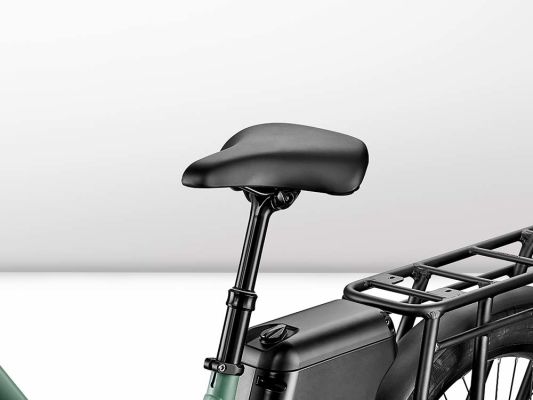

| Seatpost |
Suspension Dropper 30.9mm, Travel: 40mm, Height 70mm Adjustment
|
| Saddle |
Momentum Saddle w/ Rear Handle
|
| Pedals |
Anti-slip |

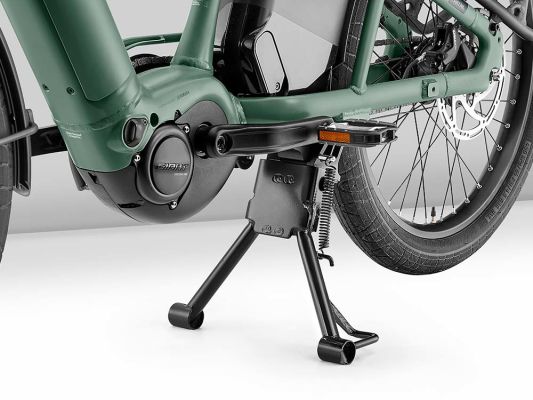

| Motor |
80Nm torque, 250W Mid Drive Motor, power by YAMAHA, SyncDrive Pro motor
|
| Battery |
500Wh capacity Integrated Panasonic cell, partner with Panasonic, EnergyPak Smart Compact 500Wh with optional Range Extender 500Wh compatible
|

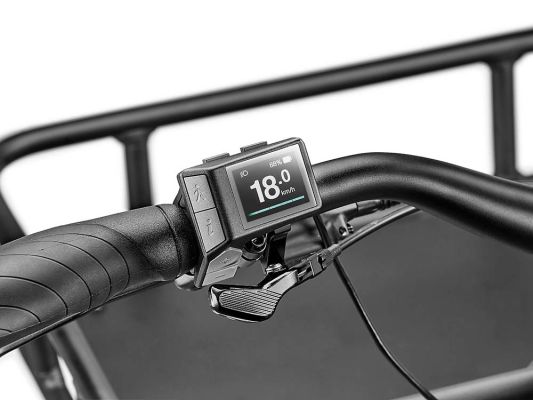

| Controller/Display |
RideControl Dash, full color LCD screen, 5 power level plus auto mode, RideControl Dash, full color LCD screen
|
| Max Assisted Speed |
|
| Accessories & Extras |

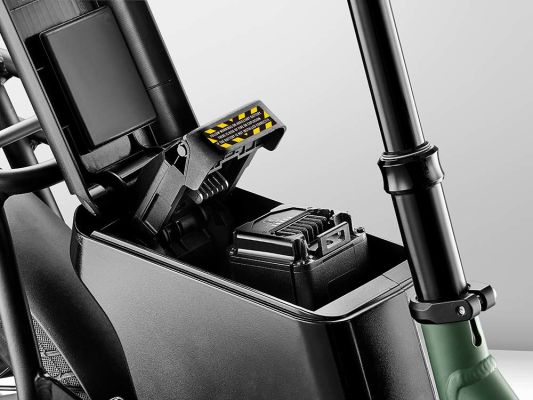

Lockable storage console, alloy fenders, chainguard, Supernova E2 Mini ProAxa BlueLine Steady E6 rear, Alloy Front/ Rear Carrier
|
