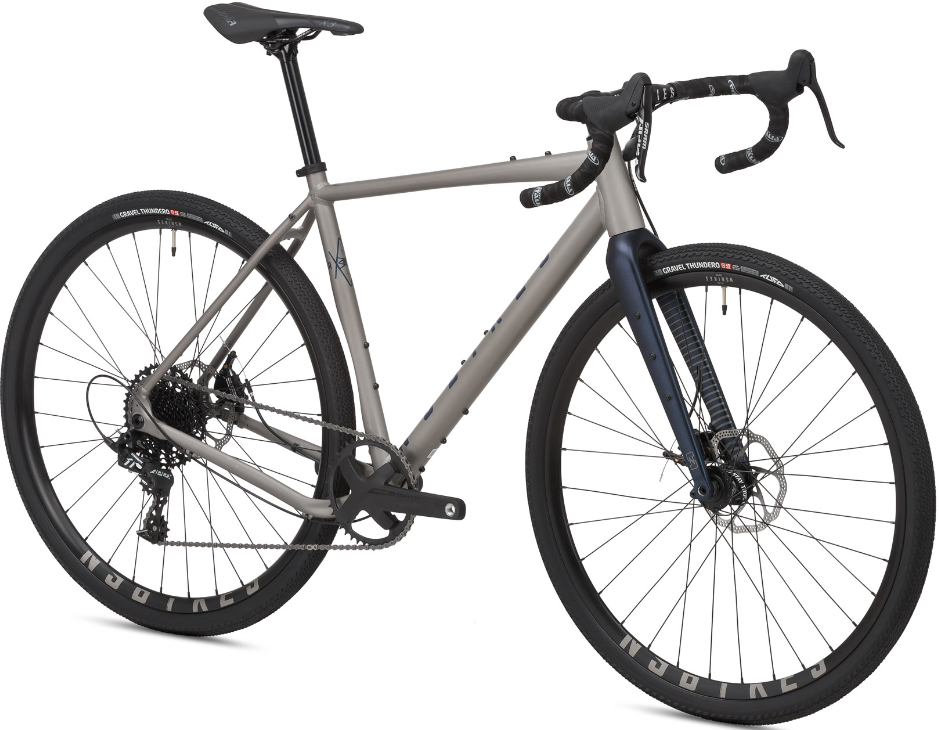

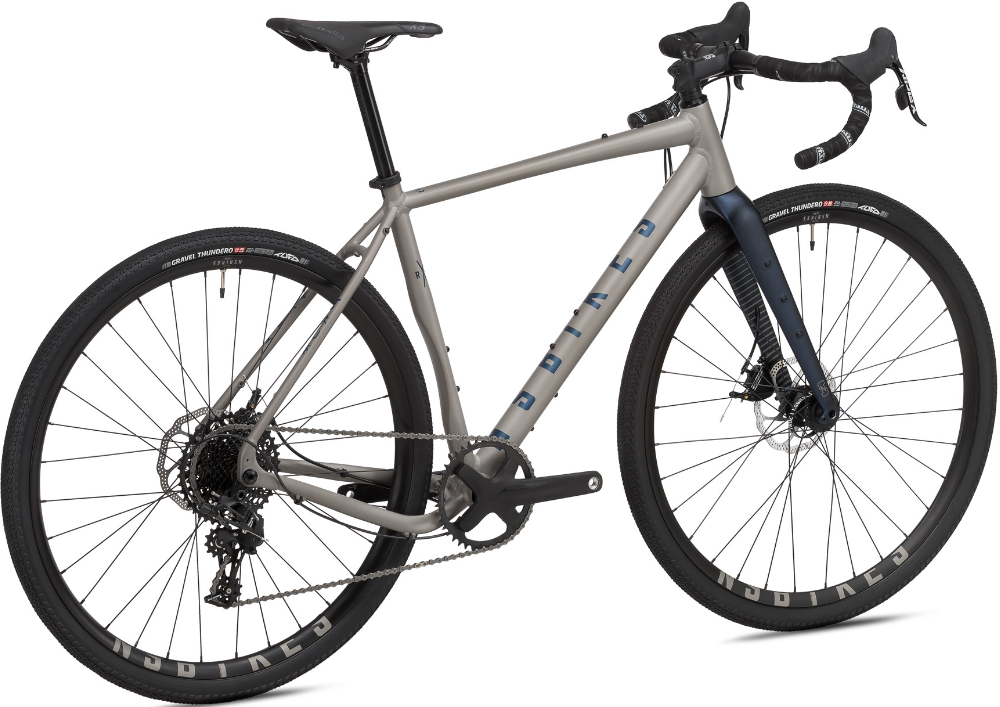

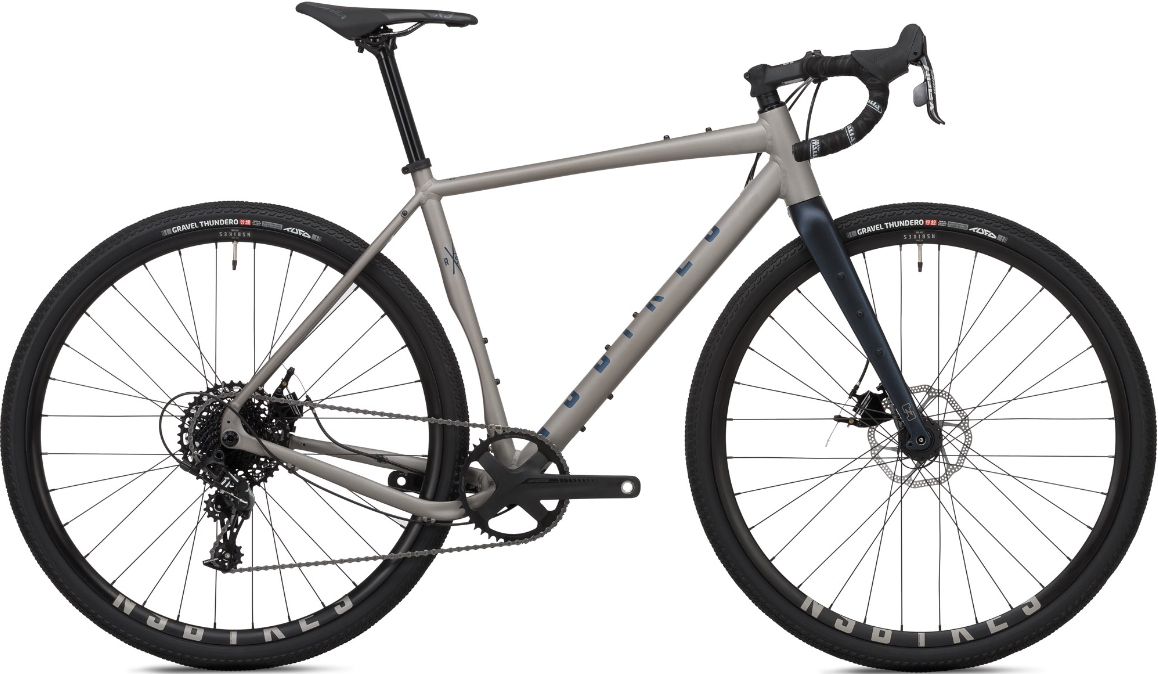

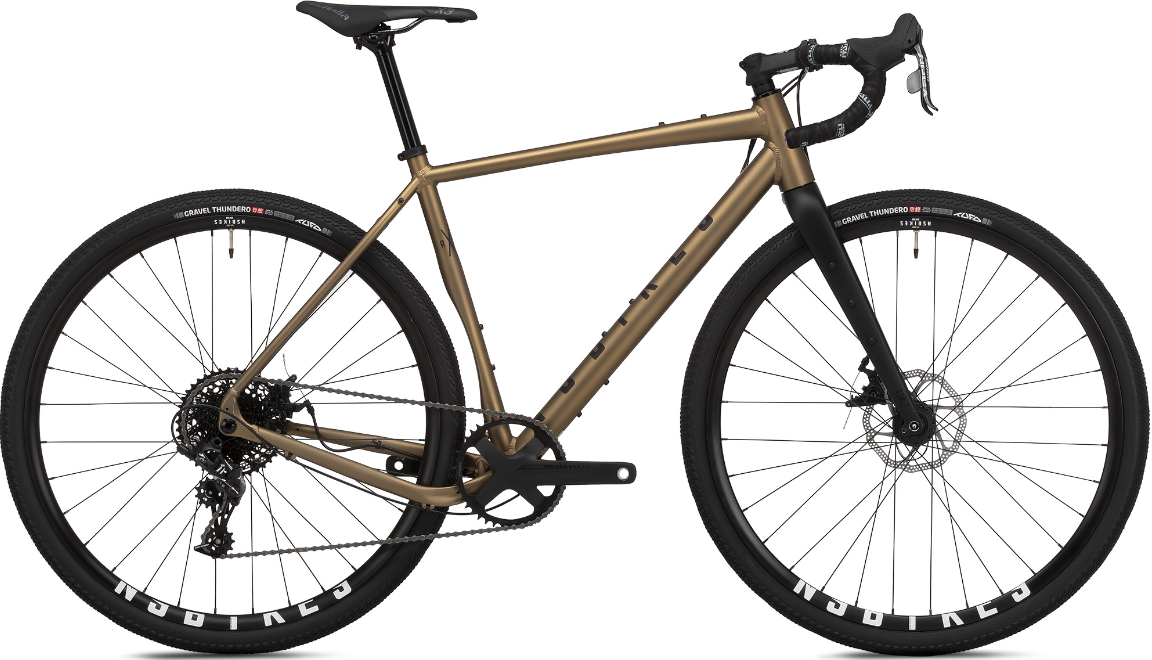

Gravel cycling has exploded recently and it's no wonder. These bikes are truly do everything machines, both for beginners and experienced cyclists. We were in the game from the beginning with a gravel bike that had dirt heritage in it's DNA. The RAG+ has become a favorite among our employees and friends, even those who would never even consider a drop bar bike before. The range of applications is endless - from commuting to amateur CX racing or simply to be used as a fitness bike. Multiple mounting points allow you to take anything you need along with you, so the RAG+ is also ready for your next big adventure. RAG is short for road & gravel and the "plus" is there because you can run it with standard 700c road tires, 7000 gravel tires up to 45c, or even 27.5" wheels with tires as big as 2.2"! It features the latest tech including a proper 1x drivetrain with a wide range cassette, disc brakes and thru-axles The elegant aluminum frame is complemented with a full carbon fork. The 2022 model has undergone geometry revisions that make this bike more stable and comfortable: The headtubes are taller, placing the rider in a more comfortable position. We didn't go too far though, we still want to retain the sporty character of the bike. The reach is longer and the head angle is slacker.
FEATURES:
-
Frame: Tough and light alloy frame
-
Technology: Thru-axles, 1x drivetrains, disc brakes, tubeless ready rims: everything that makes a true modern gravel bike rock!
-
Huge Tire Clearance: Clearance for 650b tires up to 2.2"
-
Unique Design: Unique graphic design, hardcore heritage is in the DNA of all NS Bikes - even if they have drop bars!
SPECS:
| Frame |
NS AL6061-T6 custom formed and butted tubes, tapered integrated headtube, 142x12mm dropouts |
| Fork |
NS Gravel+ full carbon fork, 15mm dropouts, 1.5 tapered steerer tube, NS thru axle |
| Rims/Wheels |
Alex Draw 2.1P asymmetrical, 29” 32h, tubeless ready |
| Hubs |
NS Bikes Loose Ball |
| Spokes |
Spokes w/14mm nipples |
| Tires |
Tufo Gravel Thundero 622-40 |
| Crankset |
FSA Omega |
| Chainrings |
42t |
| Bottom Bracket |
FSA PF 86.5 |
| Chain |
Sram, 11 spd |
| Front Derailleur |
N/A |

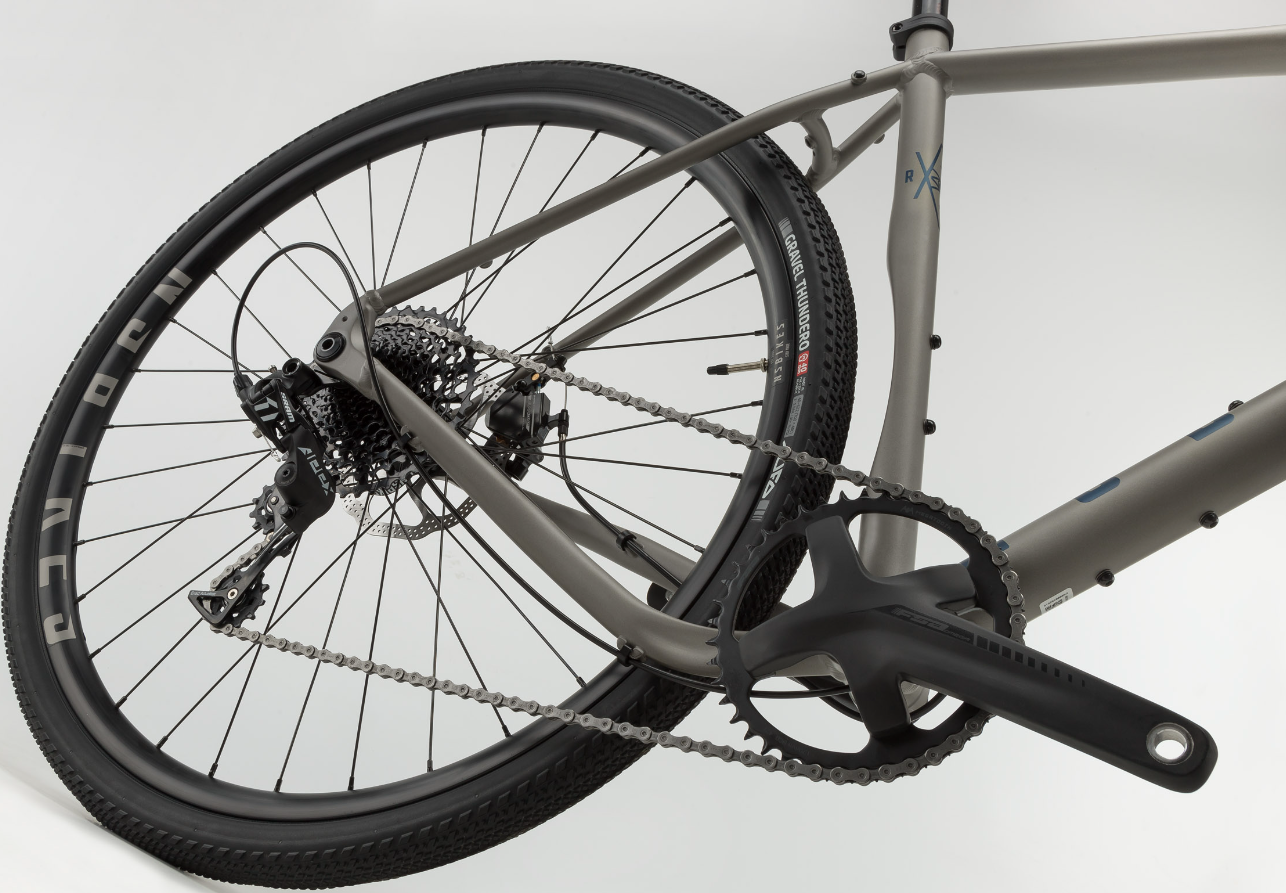

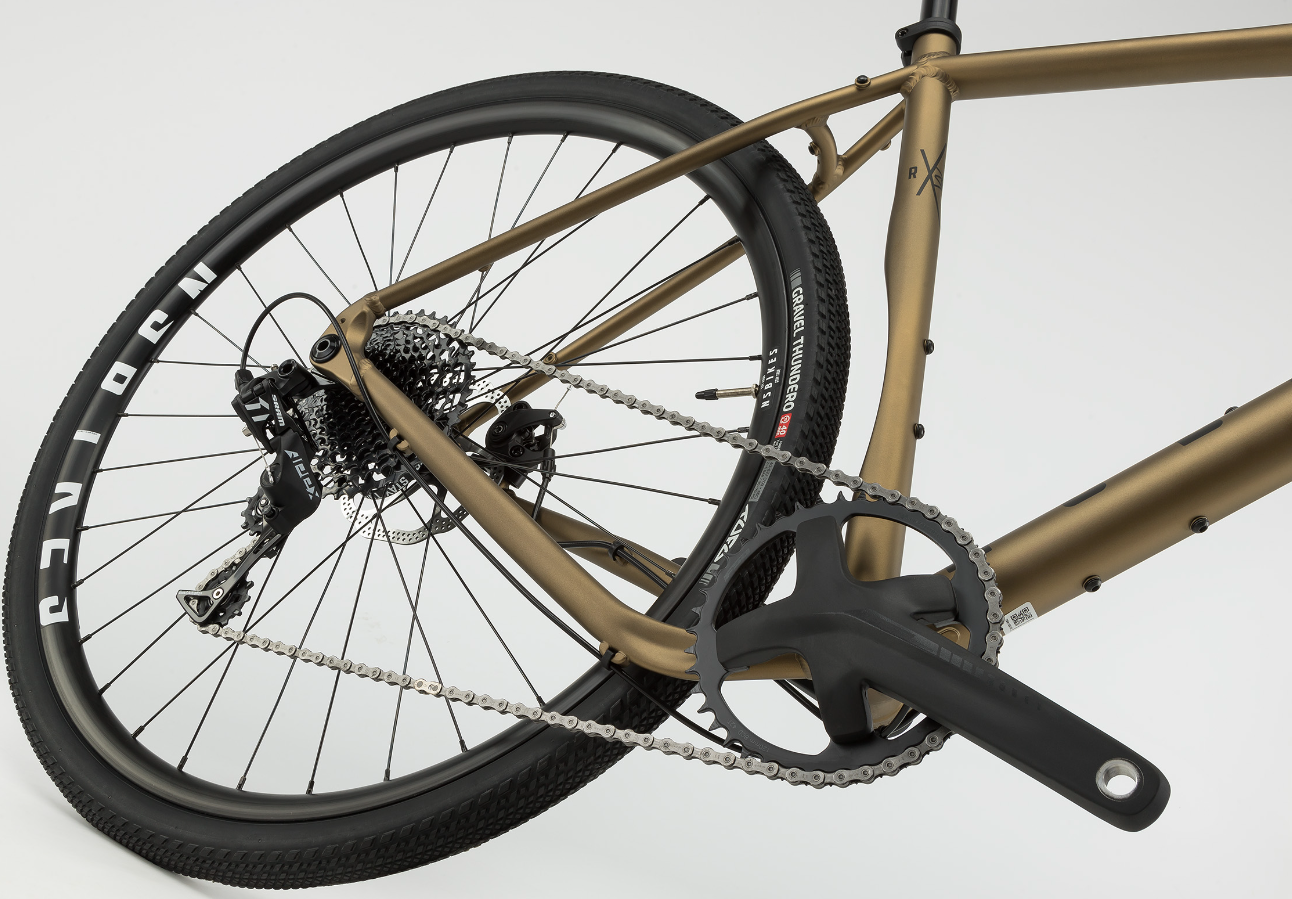

| Rear Derailleur |
Sram Apex Type 2.1, long cage, 11spd |
|
|
Microshift CS-G113 11-42t |
| Shifters |
Sram Apex, 11spd |

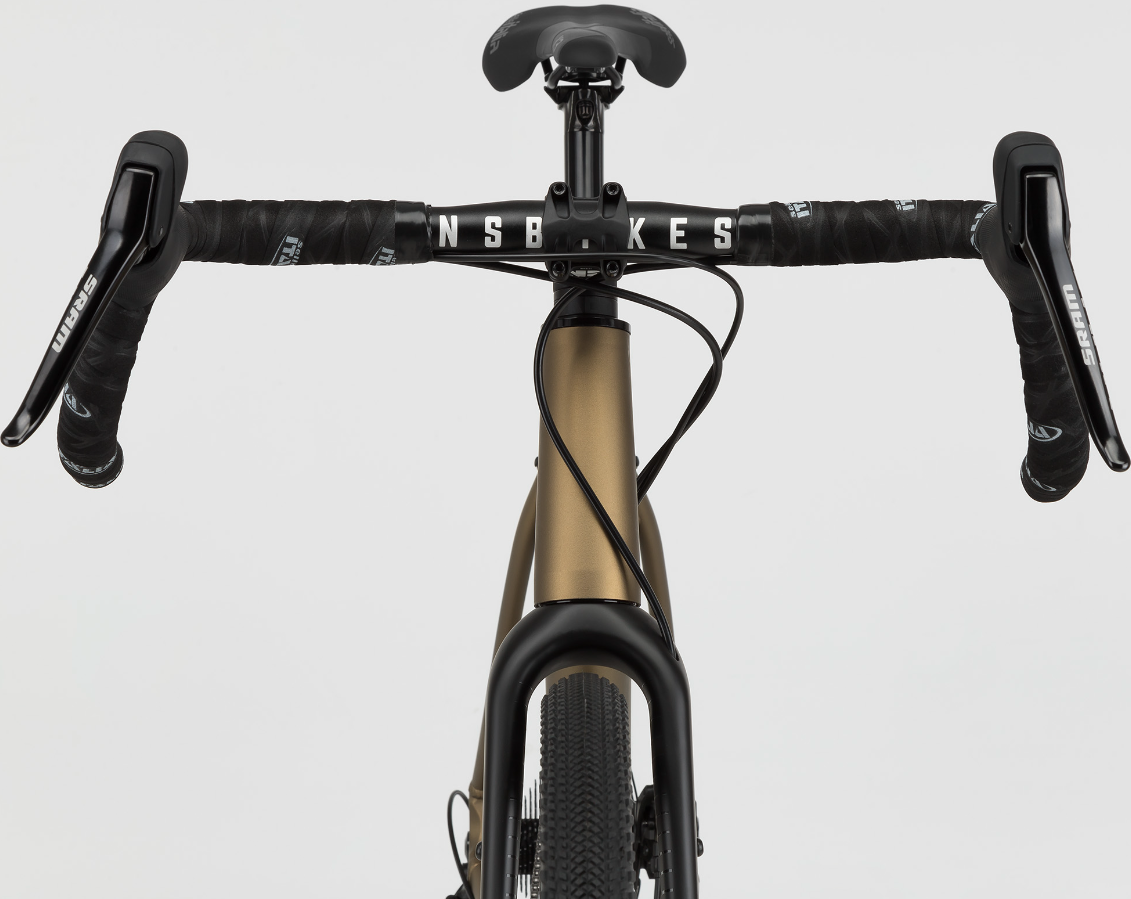

| Handlebars |
NS Flare 31.8 |
| Stem |
RAG+ Stem 31.8 |
| Brake Levers |
SRAM APEX |
| Brakes |
Rever MCX 160mm |

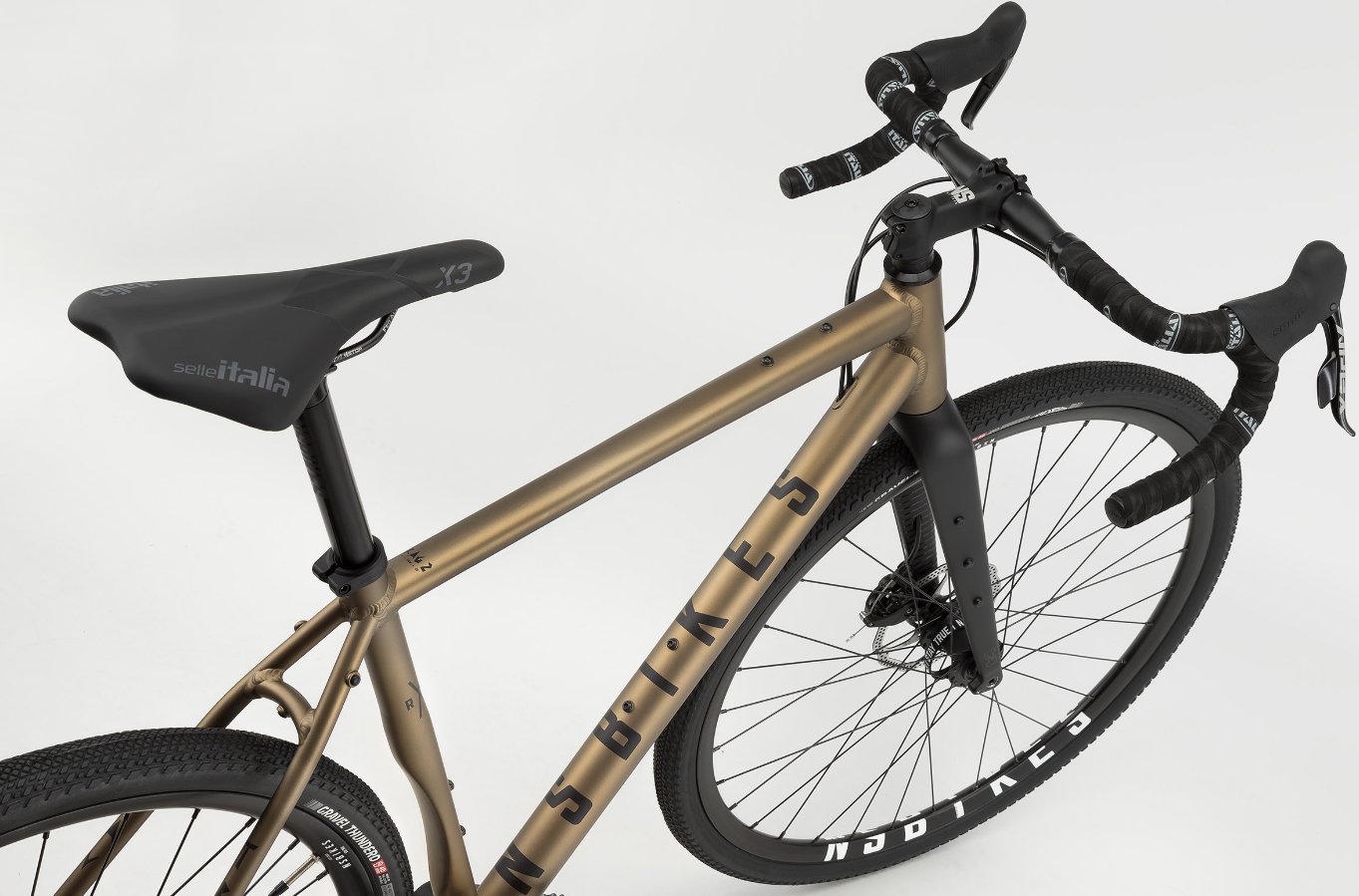

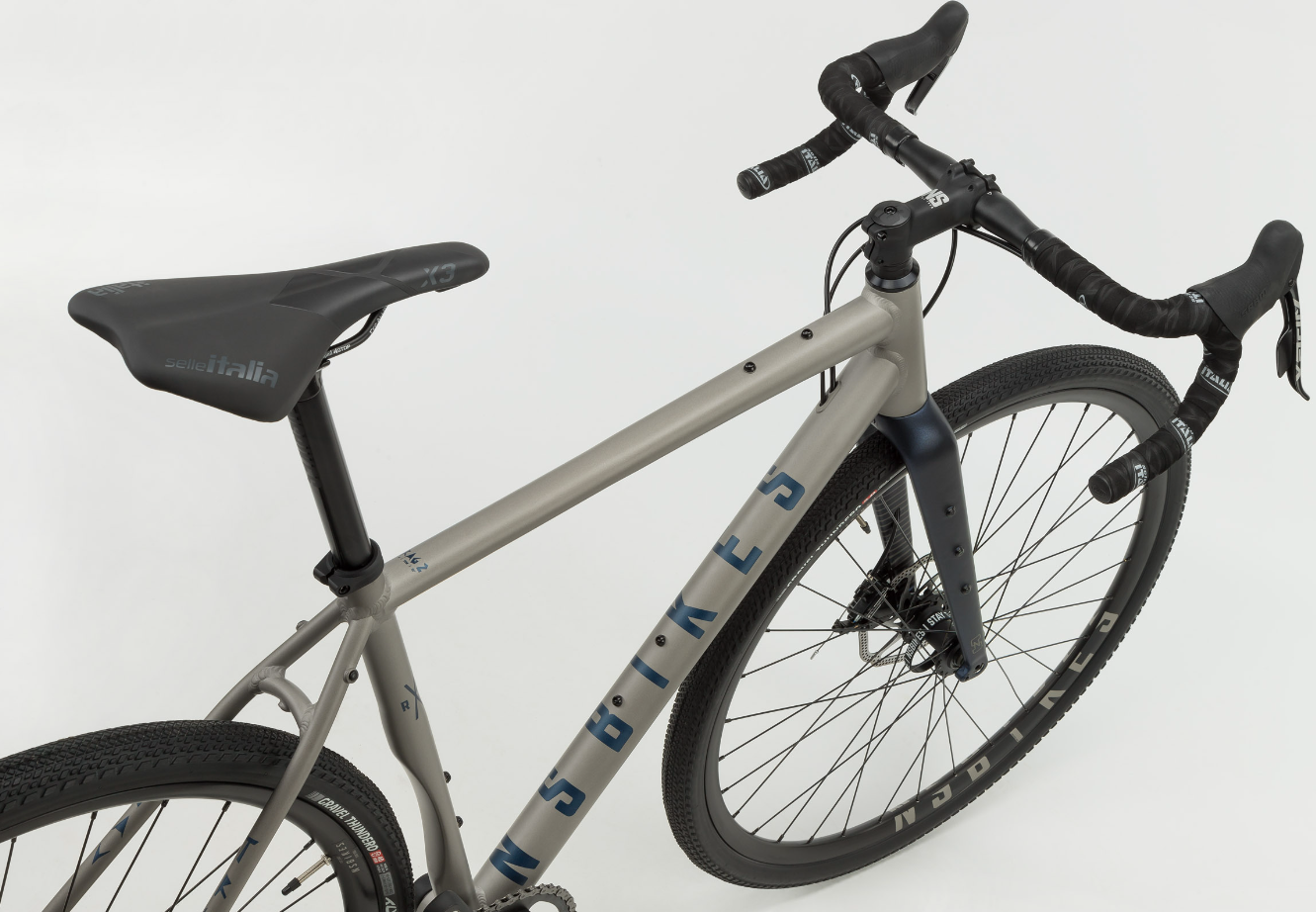

| Saddle |
Selle Italia X3 |
| Seat Post |
Kalloy 27.2mm |
| Extras |
N/A |
