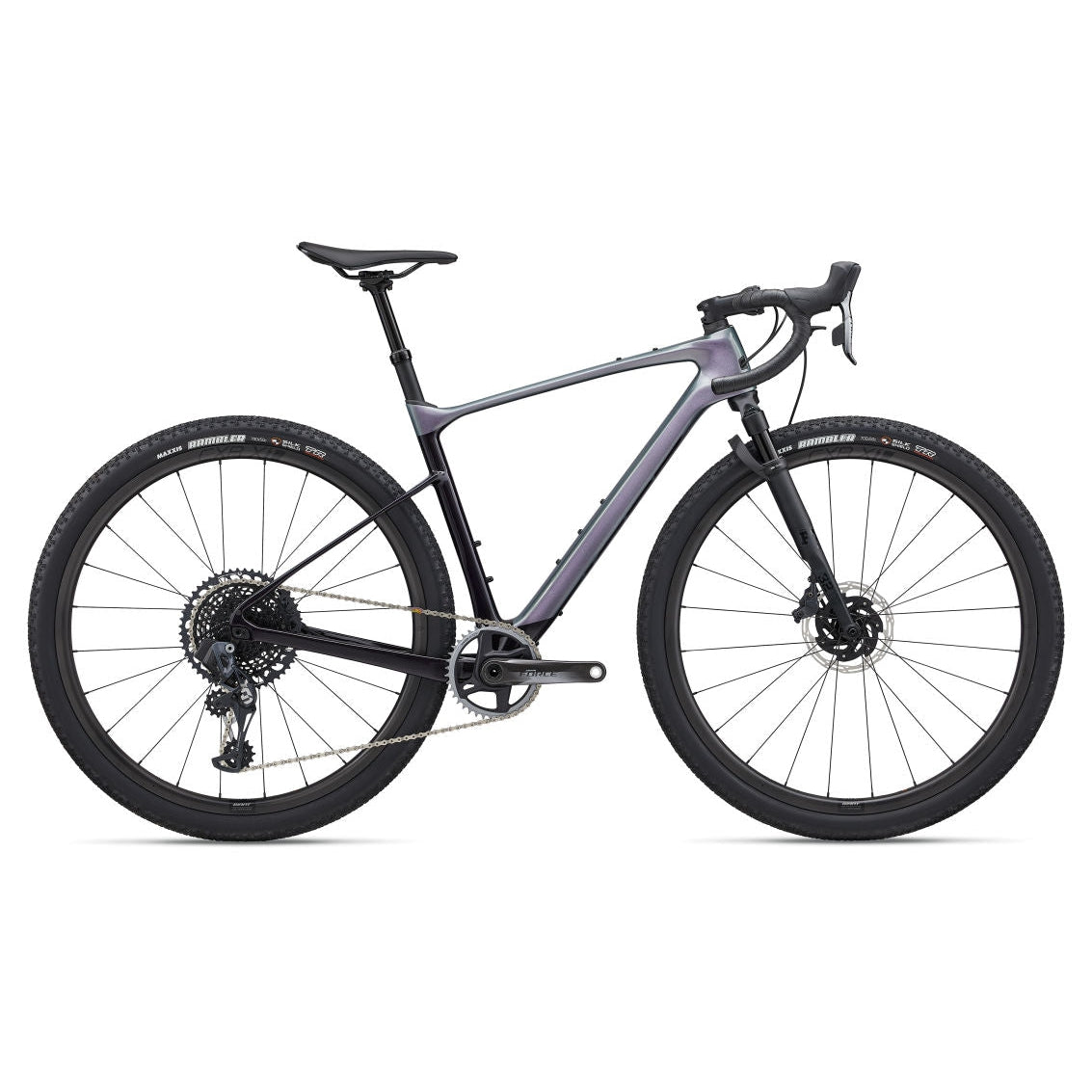

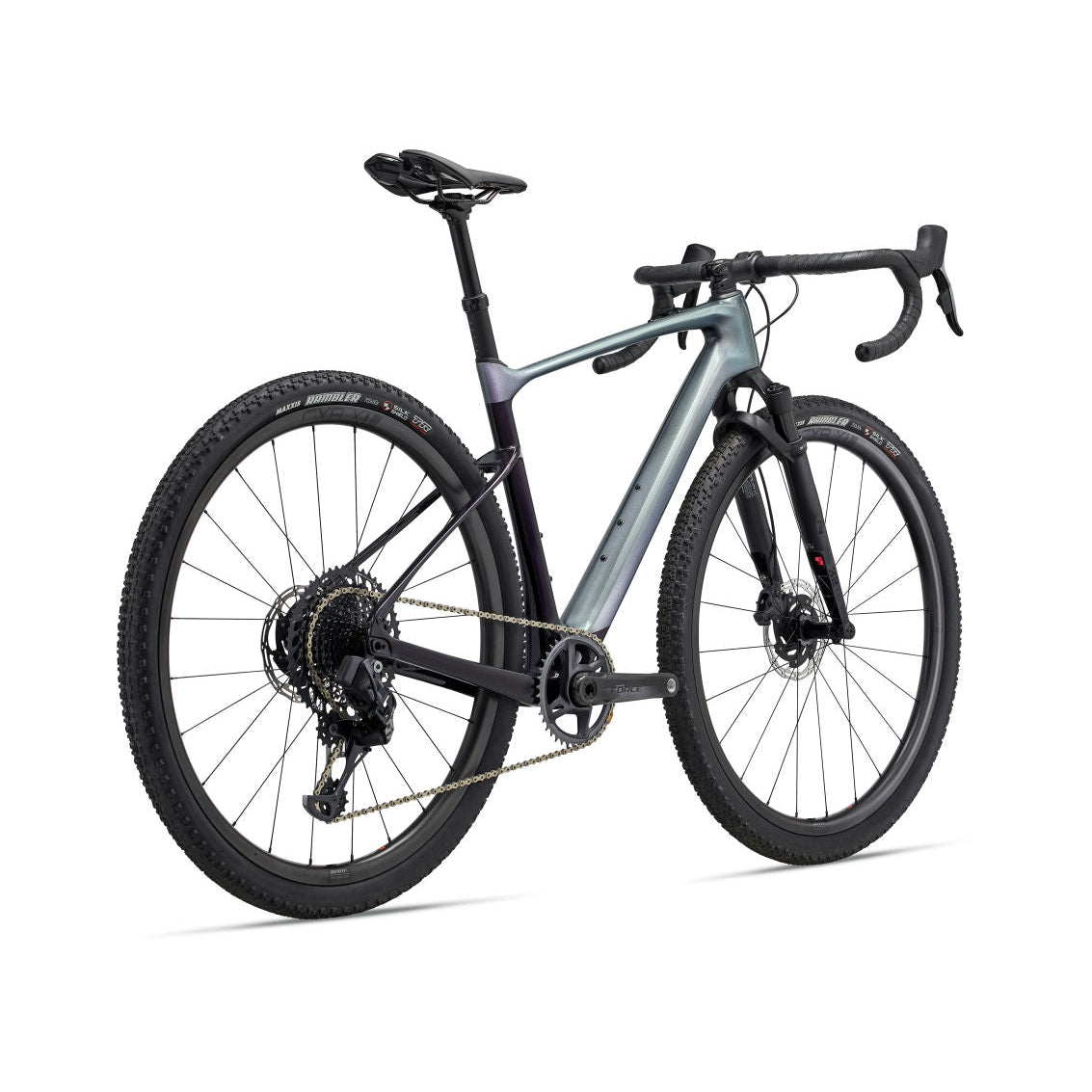

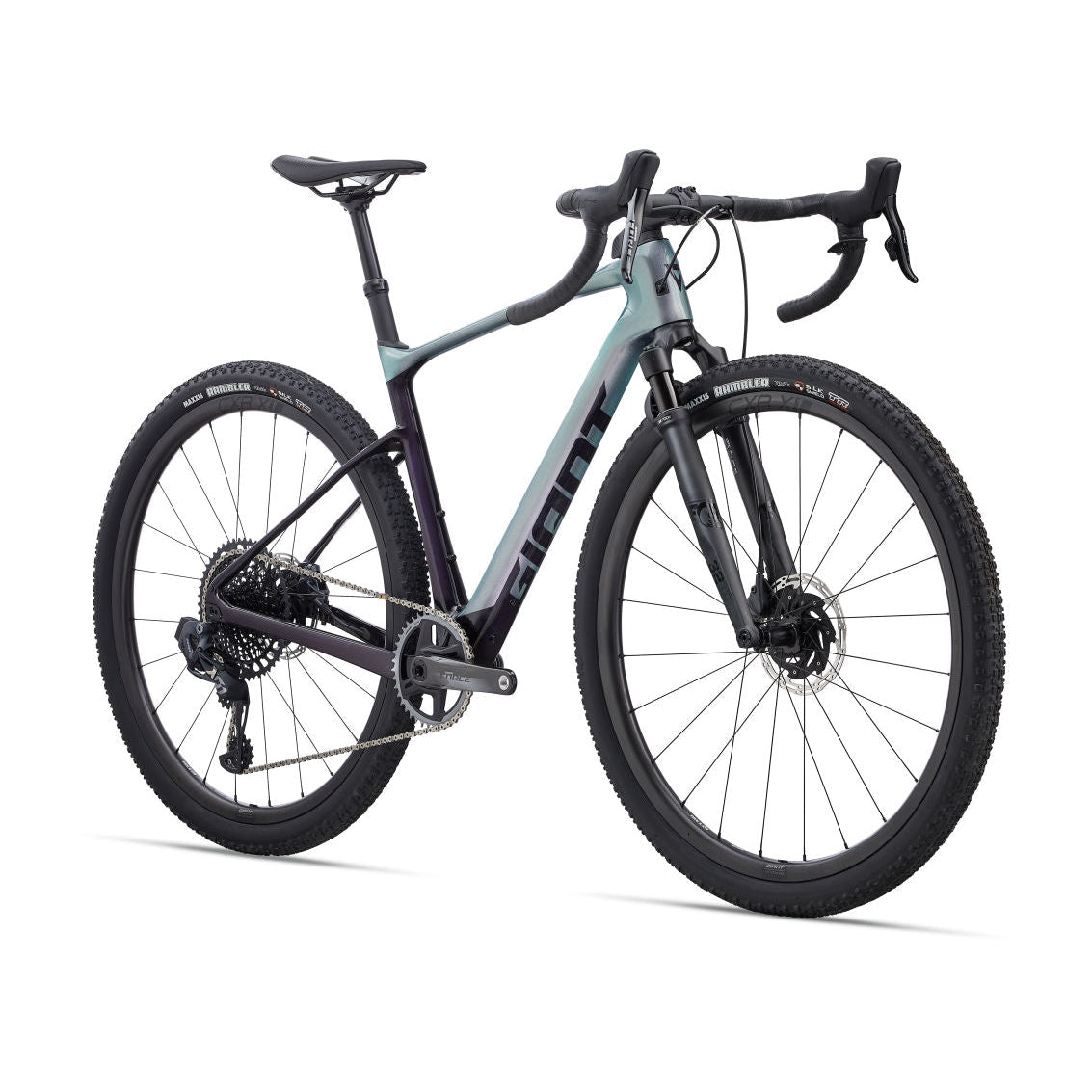

Introducing the Revolt X Advanced Pro 0 Gravel Bike - the ultimate thrill-seeker's dream machine! With unpredictable gravel rides that can throw anything from washboard descents to sketchy dirt, rocks of all shapes and sizes, you need a bike that can handle it all. And that's where the Revolt X comes in!
Equipped with a suspension fork and engineered compliance, this composite gravel machine will have you floating through all the bumps and obstacles with ease and control. The Advanced composite frameset is specifically designed for front suspension and paired with a 40mm travel fork, providing a smooth, controlled ride quality on rugged gravel and dirt.
But wait, there's more! With a flip chip on the rear dropout, you can adjust the wheelbase and increase tire clearance up to a whopping 53mm! Plus, the included dropper post gives you added capabilities, or you can switch to a proprietary Giant D-Fuse seatpost for even more compliance, or use a standard 30.9mm round seatpost.
And don't worry about fatigue, the Contact SL XR D-Fuse handlebar absorbs shocks and vibrations, so you can ride longer and harder. So get ready to take on any terrain with the Revolt X Advanced Pro 0 Gravel Bike - the ultimate adventure machine!
Smooth control
Composite frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs bumps and impacts so you can ride smoother and faster over rugged gravel and dirt.
Tuned compliance

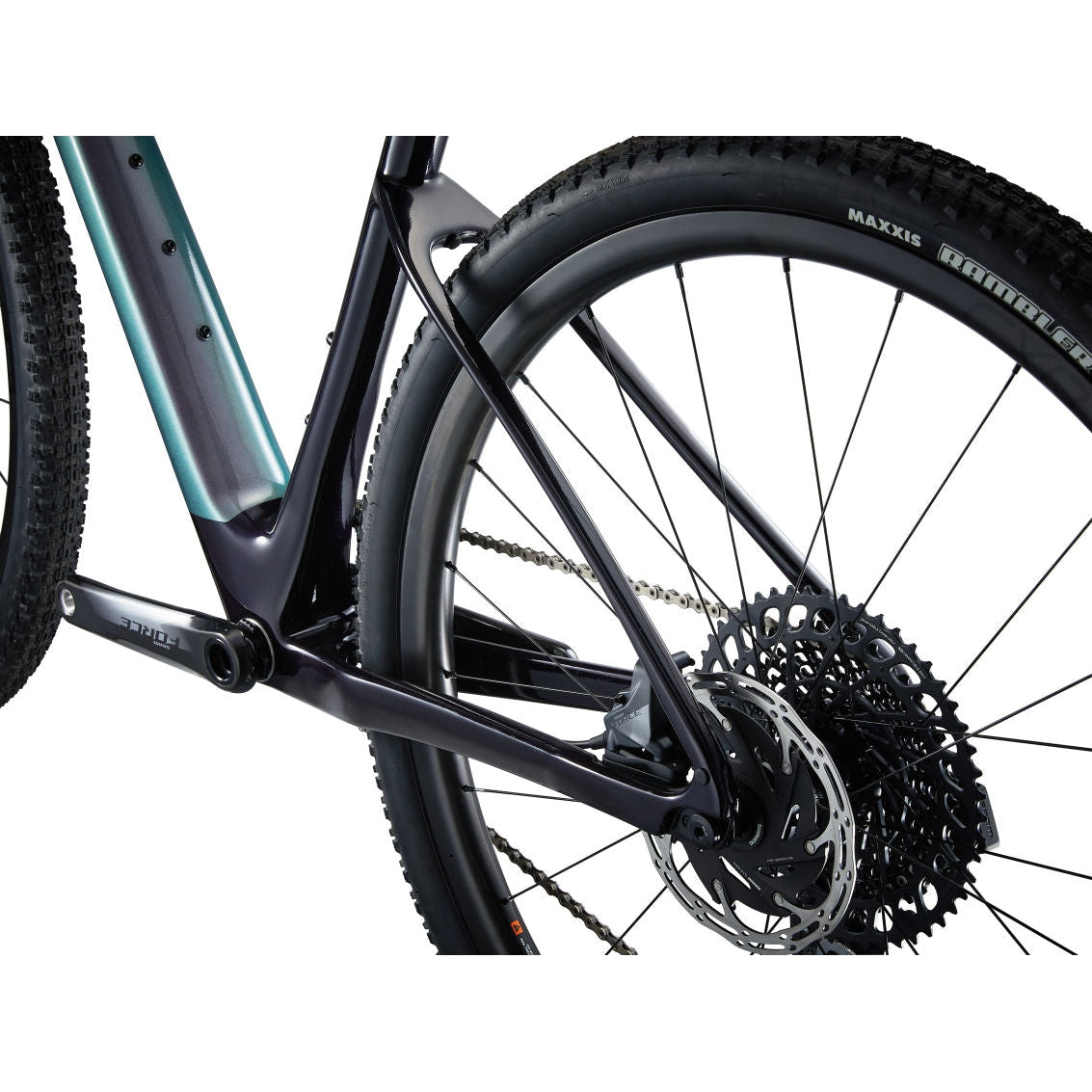

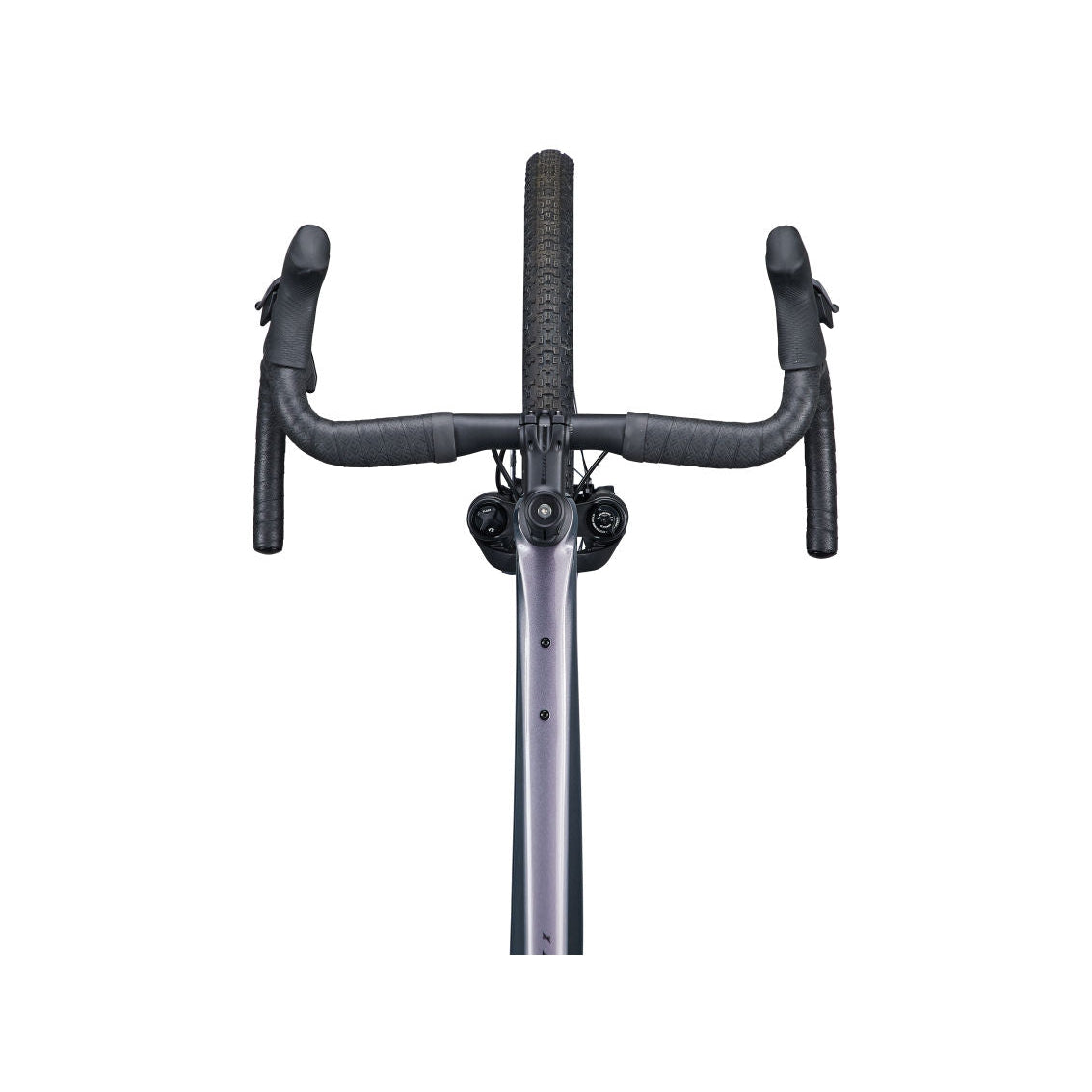

Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.
Adaptable to the terrain
A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tires up to 53mm. You can use the included dropper/suspension seatpost for added capabilities, or switch to a proprietary D-Fuse seatpost or traditional 30.9mm round seatpost.
Specifications
|
Sizes
|
XS, S, M, M/L, L, XL
|
|
Colors
|
Airglow/Black Currant
|
|
Frame
|

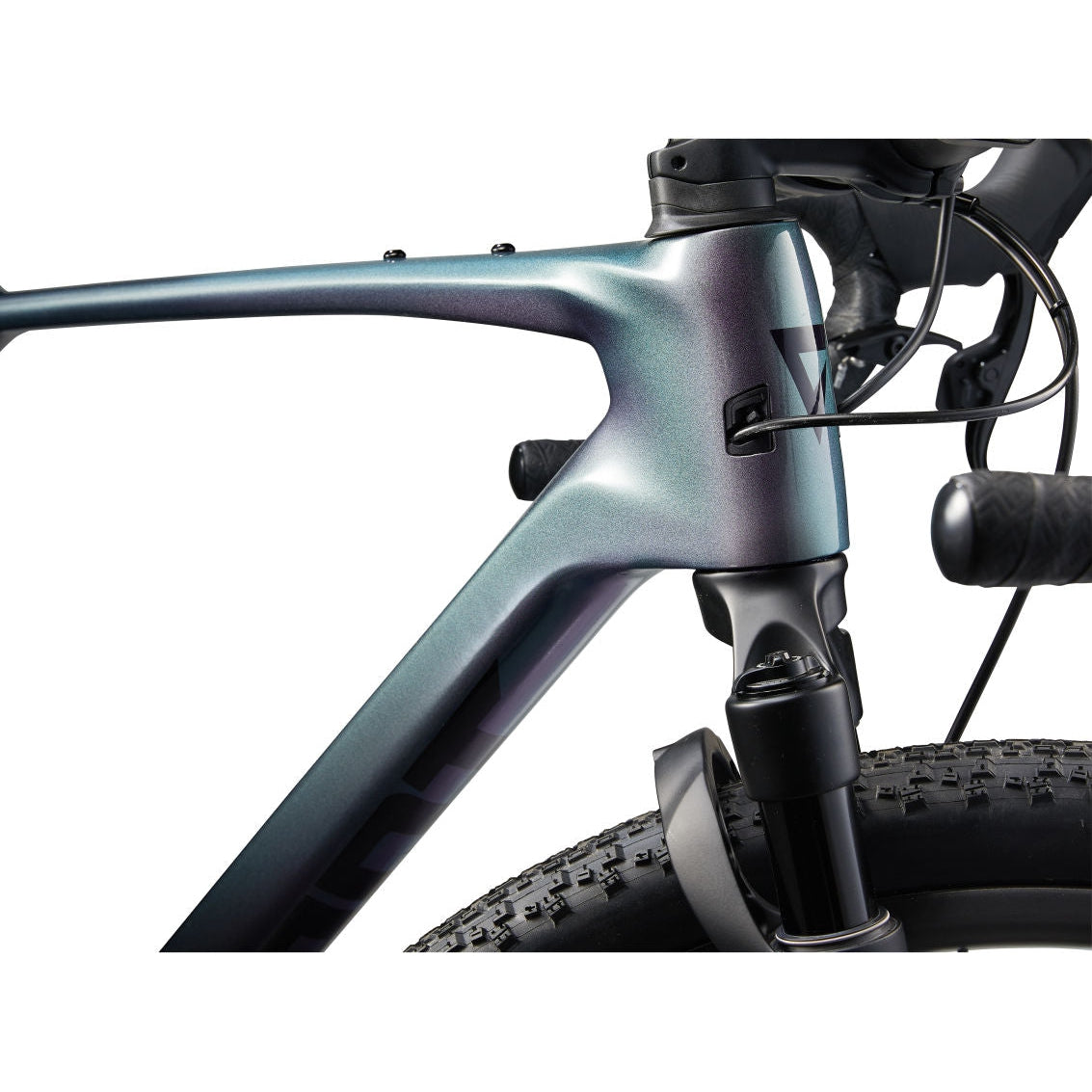

Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
|
|
Fork
|

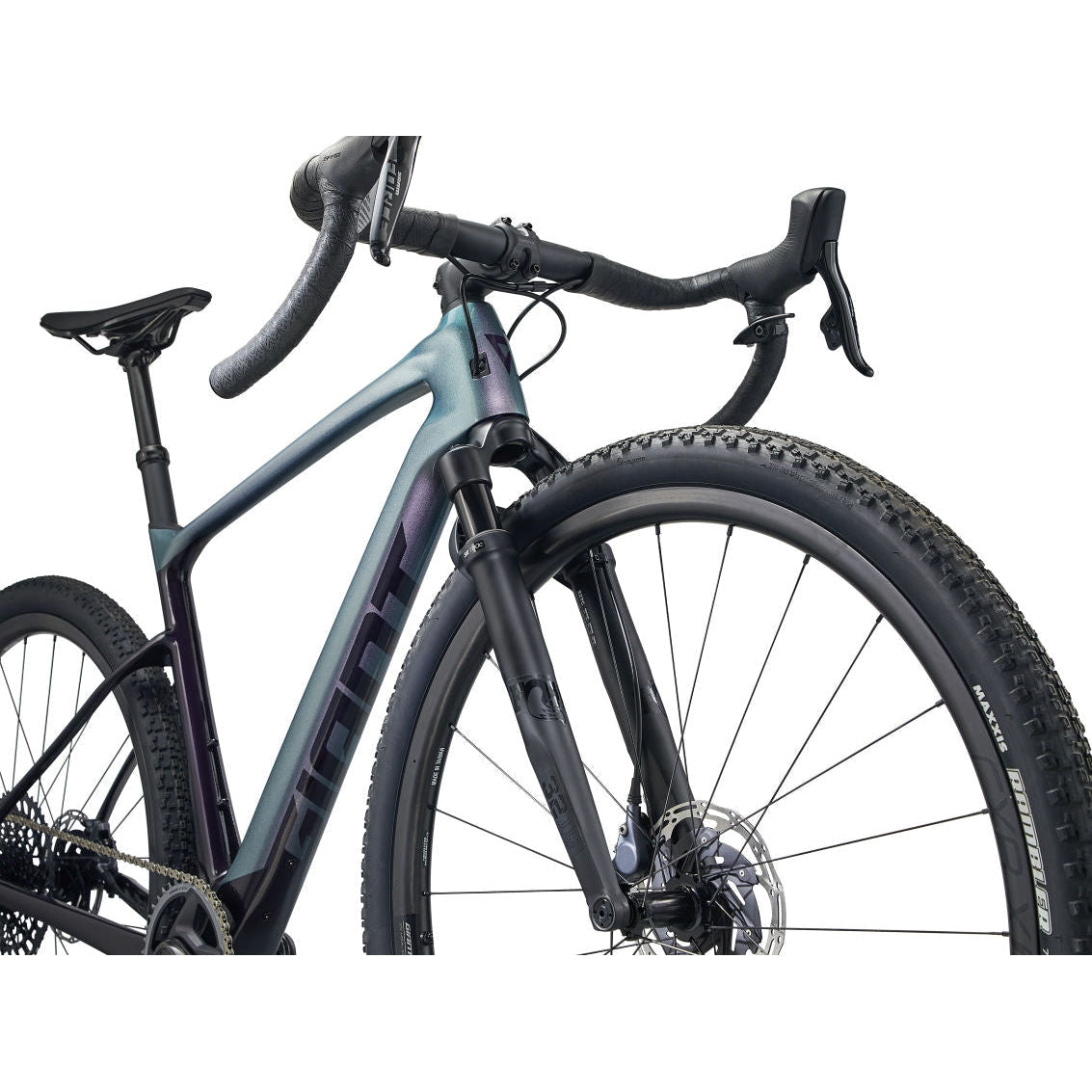

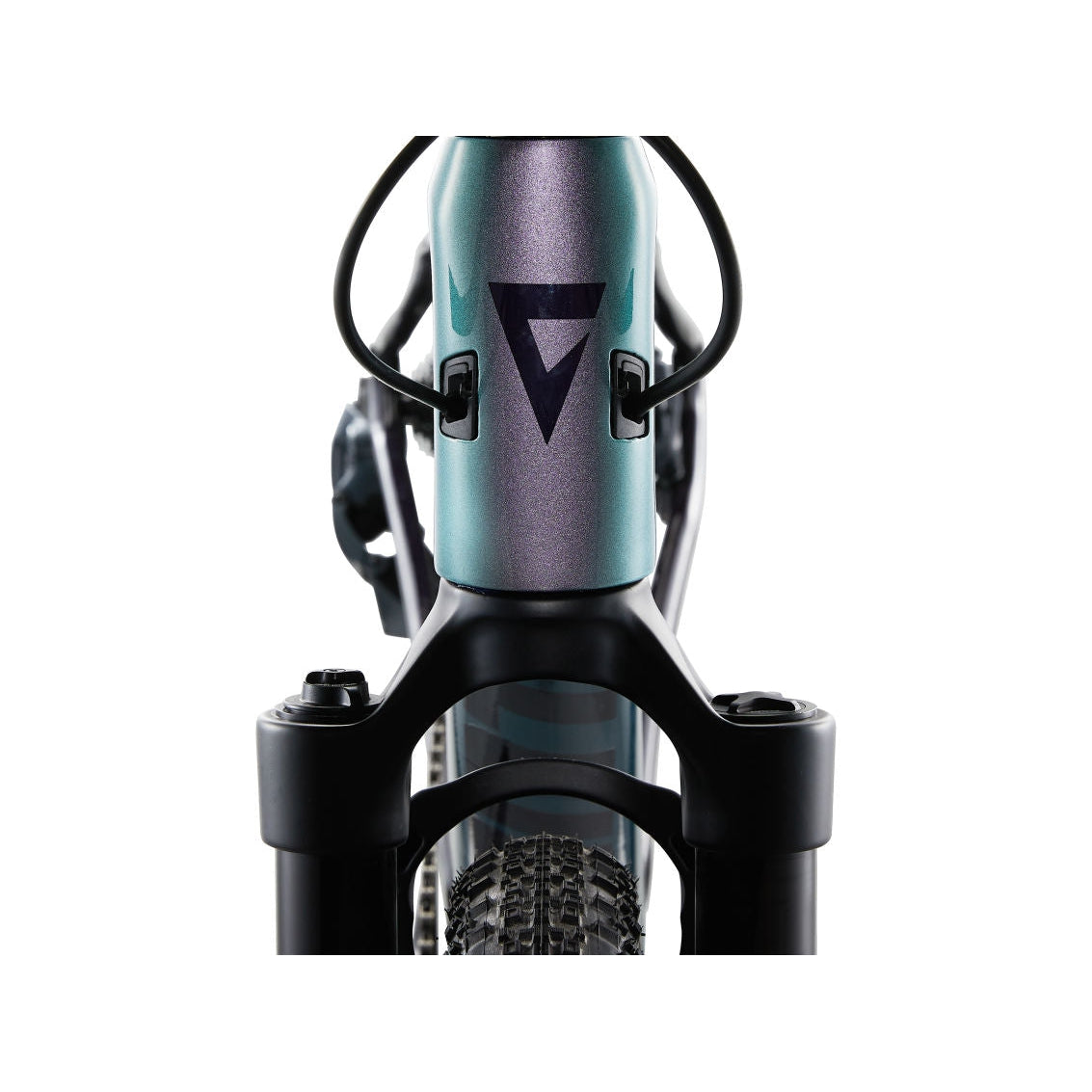

Fox 32 Float TC Performance Elite, 40mm, Fit 4 damper 12x100mm thru-axle
|
|
Shock
|
N/A
|
|
Handlebar
|
Giant Contact SL XR D-Fuse, 16-degree flare XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
|
|
Grips
|
Stratus Lite 3.0
|
|
Stem
|
Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL: 80mm
|
|
Seatpost
|

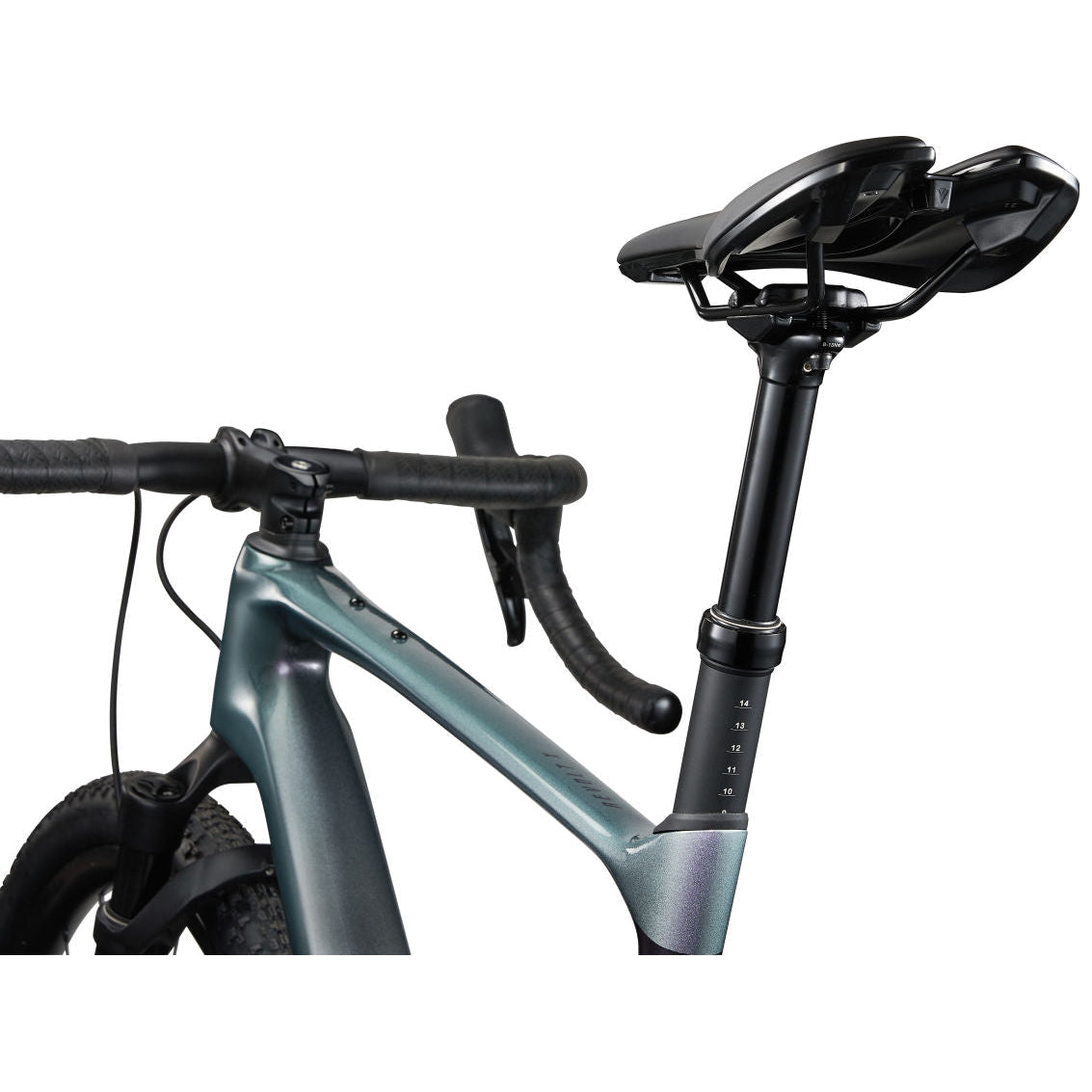

Postmodern, dropper, 30.9mm with 25mm of suspension XS:365mm / 75mm drop S:415mm / 100mm drop M:415mm / 100mm drop M/L: 415mm / 100mm drop L:415mm / 100mm drop XL: 415mm / 100mm drop
|
|
Saddle
|
Giant Approach SL
|
|
Pedals
|
Sold separately |
|
|
Shifters
|
SRAM Force eTap AXS, 1x12
|
|
Front Derailleur
|
N/A
|
|
Rear Derailleur
|

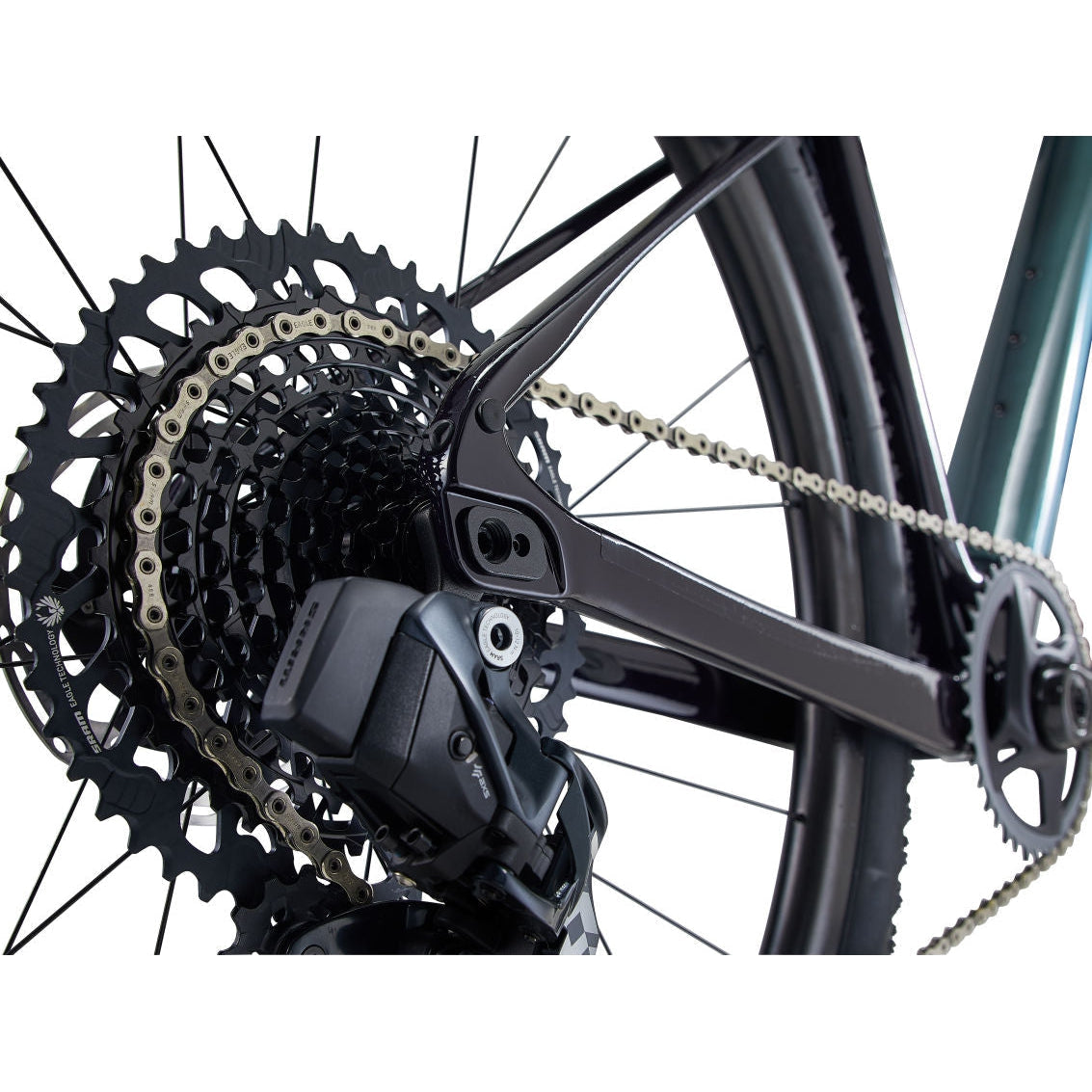

SRAM X01 Eagle AXS
|
|
Brakes
|
SRAM Force eTap AXS hydraulic, SRAM CenterLine rotors[F]160mm, [R]160mm
|
|
Brake Levers
|
SRAM Force eTap AXS hydraulic
|
|
Cassette
|
SRAM XG-1295, 12-speed, 10x52
|
|
Chain
|
SRAM X01 Eagle
|
|
Crankset
|

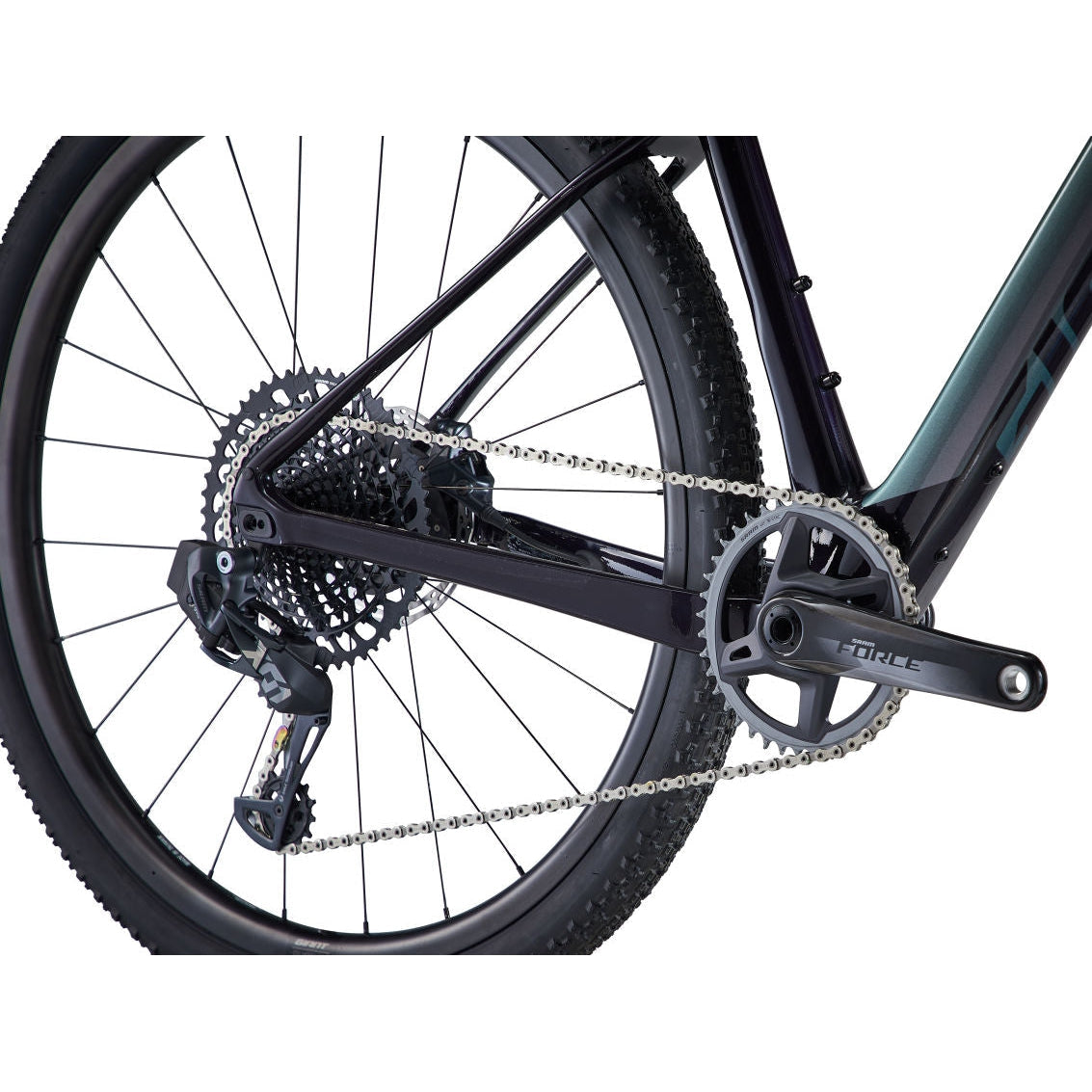

SRAM Force D1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
|
|
Bottom Bracket
|
SRAM DUB, press fit
|
|
Rims
|
Giant CXR X1 Carbon Disc WheelSystem, [F] 25.8mm, [R] 25.8mm
|
|
Hubs
|
[F] Giant AR alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, DT350 36t ratchet system, CenterLock, 12mm thru-axle
|
|
Spokes
|
Sapim CX-Ray
|
|
Tires
|
Maxxis Rambler, 700x50c, tubeless
|
|
Extras
|
tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
|
|
Weight
|
The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
|
Geometry
| |
|
XS |
S |
M |
ML |
L |
XL |
| |
|
SHORT | LONG
|
SHORT | LONG
|
SHORT | LONG
|
SHORT | LONG
|
SHORT | LONG
|
SHORT | LONG
|
| A |
SEAT TUBE LENGTH (inch)
|
16.9 |
17.7 |
18.5 |
19.3 |
20.1 |
20.9 |
| B |
SEAT TUBE ANGLE |
74.0° | 73.9°
|
73.5° | 73.4°
|
73.5° | 73.4°
|
73.0° | 72.9°
|
73.0° | 72.9°
|
73.0° | 72.9°
|
| C |
TOP TUBE LENGTH (inch)
|
21.4 |
21.8 |
22 |
22.6 |
23 |
23.6 |
| D |
HEAD TUBE LENGTH (inch)
|
3.5 |
3.9 |
4.5 |
5.1 |
5.7 |
6.3 |
| E |
HEAD TUBE ANGLE |
70.5° | 70.4°
|
71.0° | 70.9°
|
71.5° | 71.4°
|
72.0° | 71.9°
|
72.0° | 71.9°
|
72.0° | 71.9°
|
| F |
FORK RAKE (inch)
|
1.8 |
1.8 |
1.8 |
1.8 |
1.8 |
1.8 |
| G |
TRAIL (inch)
|
3.1 | 3.3
|
3 | 3.1
|
2.9 | 3
|
2.8 | 2.9
|
2.8 | 2.9
|
2.8 | 2.9
|
| H |
WHEELBASE (inch)
|
40.3 | 40.7
|
40.3 | 40.7
|
40.4 | 40.8
|
40.6 | 41
|
41 | 41.4
|
41.6 | 42
|
| I |
CHAIN STAY LENGTH (inch)
|
16.7 | 17.1
|
16.7 | 17.1
|
16.7 | 17.1
|
16.7 | 17.1
|
16.7 | 17.1
|
16.7 | 17.1
|
| J |
BOTTOM BRACKET DROP (inch)
|
2.7 | 2.7
|
2.7 | 2.7
|
2.7 | 2.7
|
2.7 | 2.7
|
2.7 | 2.7
|
2.7 | 2.7
|
| K |
STACK (inch)
|
21.6 |
22 |
22.7 |
23.3 |
23.9 |
24.4 |
| L |
REACH (inch)
|
15.2 |
15.2 |
15.3 |
15.5 |
15.7 |
16.1 |
| M |
STAND OVER HEIGHT (inch)
|
28.3 | 28.6
|
29 | 29.3
|
29.7 | 30
|
30.4 | 30.6
|
31.1 | 31.3
|
31.8 | 32
|
| N |
HANDLEBAR WIDTH (inch)
|
17.3 |
17.3 |
18.1 |
18.1 |
18.9 |
18.9 |
| O |
STEM LENGTH (inch)
|
2 |
2.4 |
2.8 |
3.1 |
3.1 |
3.1 |
| P |
CRANK LENGTH (inch)
|
6.7 |
6.7 |
6.8 |
6.8 |
6.9 |
6.9 |
| Q |
WHEEL SIZE
|
700c |
700c |
700c |
700c |
700c |
700c |
