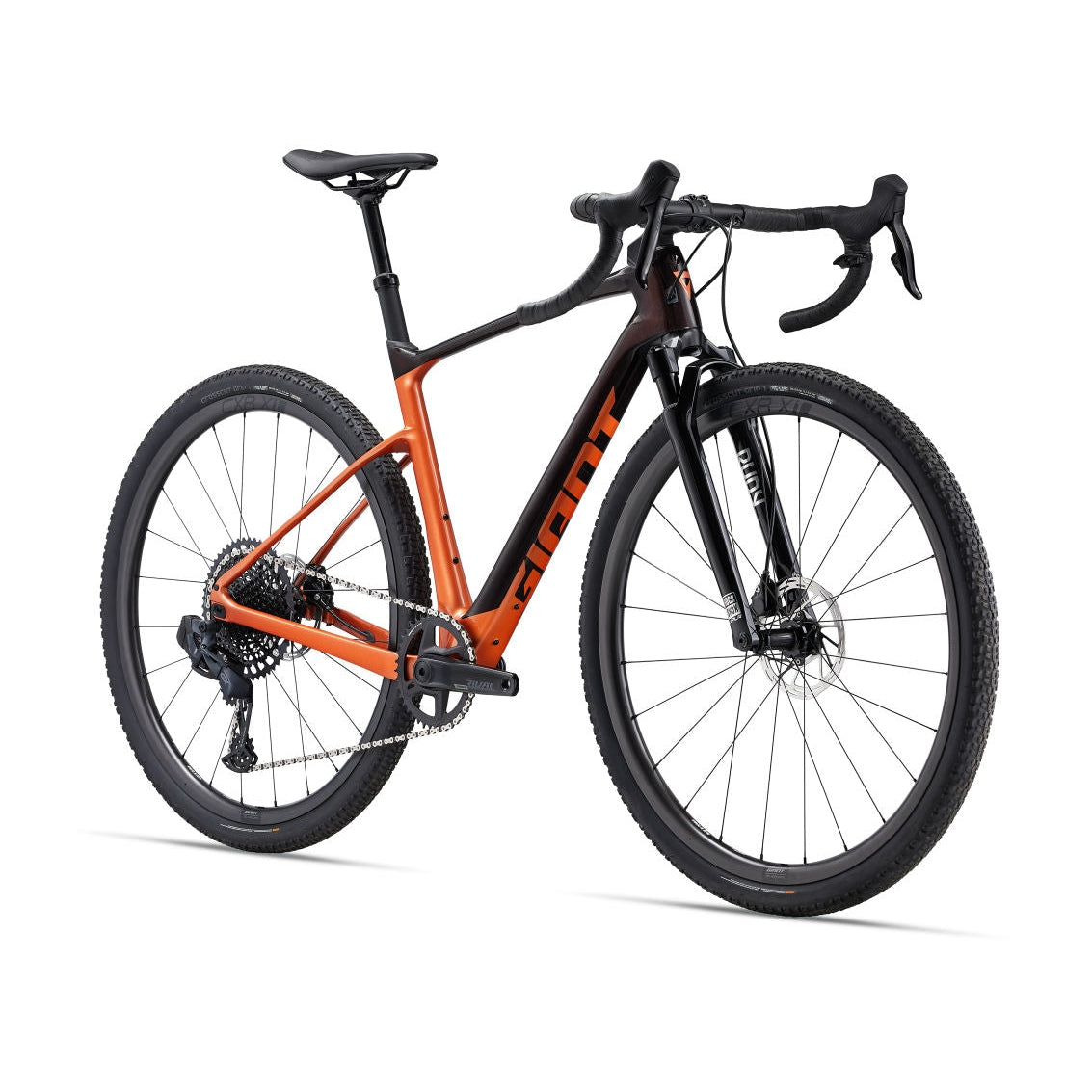

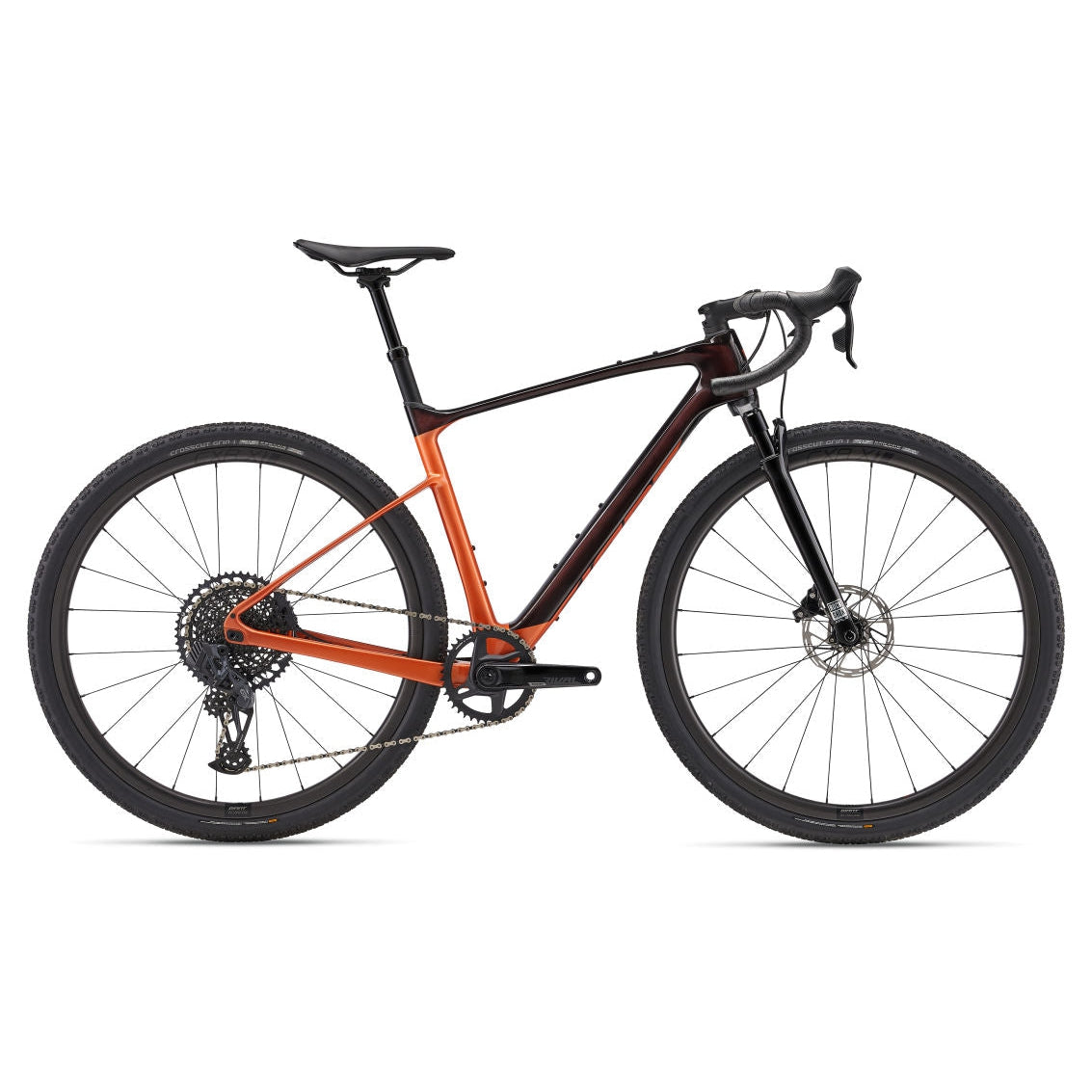

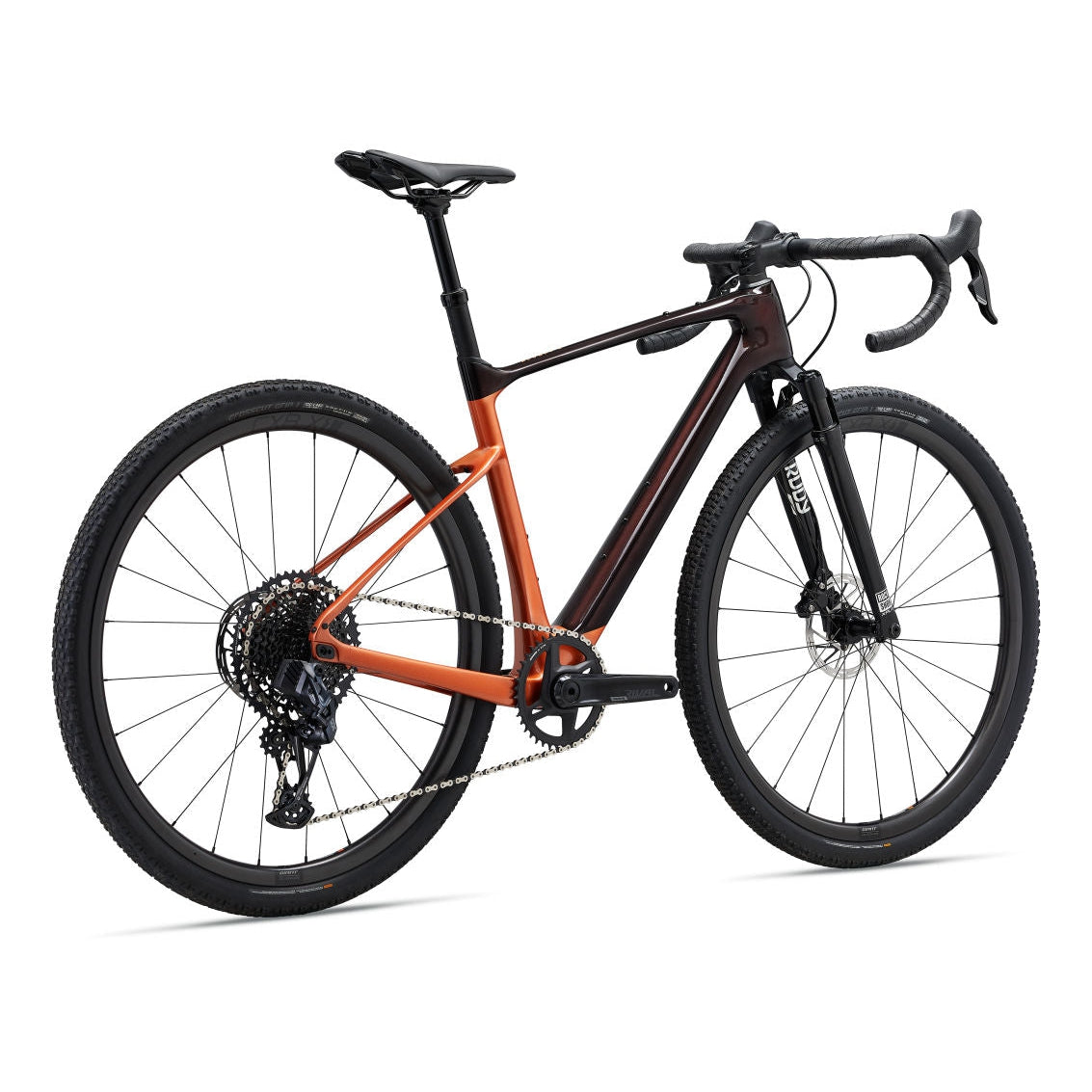

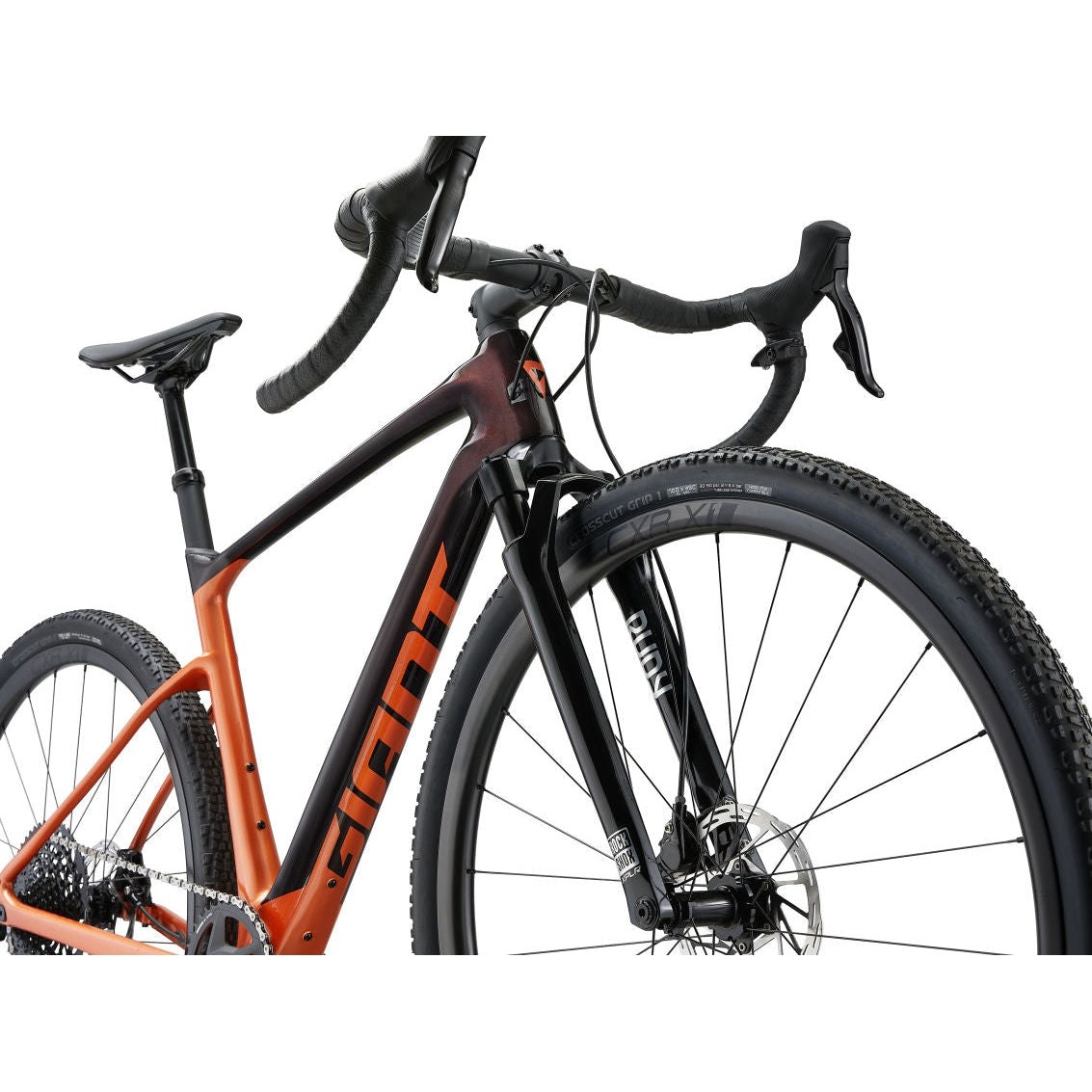

Ready to take your gravel rides to the next level of excitement? Meet the Revolt X Advanced Pro 1 Gravel Road Bike! This ultimate machine is built to conquer any unpredictable terrain that comes your way, whether it's washboard descents, sketchy dirt, gravel, or rocks of all shapes and sizes. With its suspension fork and engineered compliance, you'll float through all of it with incredible speed and control.
The Advanced composite frameset is specifically designed with suspension-optimized geometry, and paired with a 40mm travel fork, making it the perfect bike for rugged gravel and dirt trails. And if you're looking for even more versatility, a flip chip on the rear dropout lets you adjust the wheelbase and increase tire clearance up to 53mm, so you can adapt to any terrain.
But it's not just about performance - the Revolt X Advanced Pro 1 also offers unbeatable comfort. The lowered seatstays with smaller diameter tubes absorb road shocks and vibrations, and the Contact SL XR D-Fuse handlebar minimizes fatigue by absorbing shocks and vibrations, without sacrificing stiffness needed for cornering, sprinting or climbing.
Whether you're a seasoned gravel rider or just starting out, the Revolt X Advanced Pro 1 Gravel Road Bike is the ultimate machine for taking on any adventure that comes your way. So what are you waiting for? Get ready to experience the thrill of the ride like never before!
Smooth control

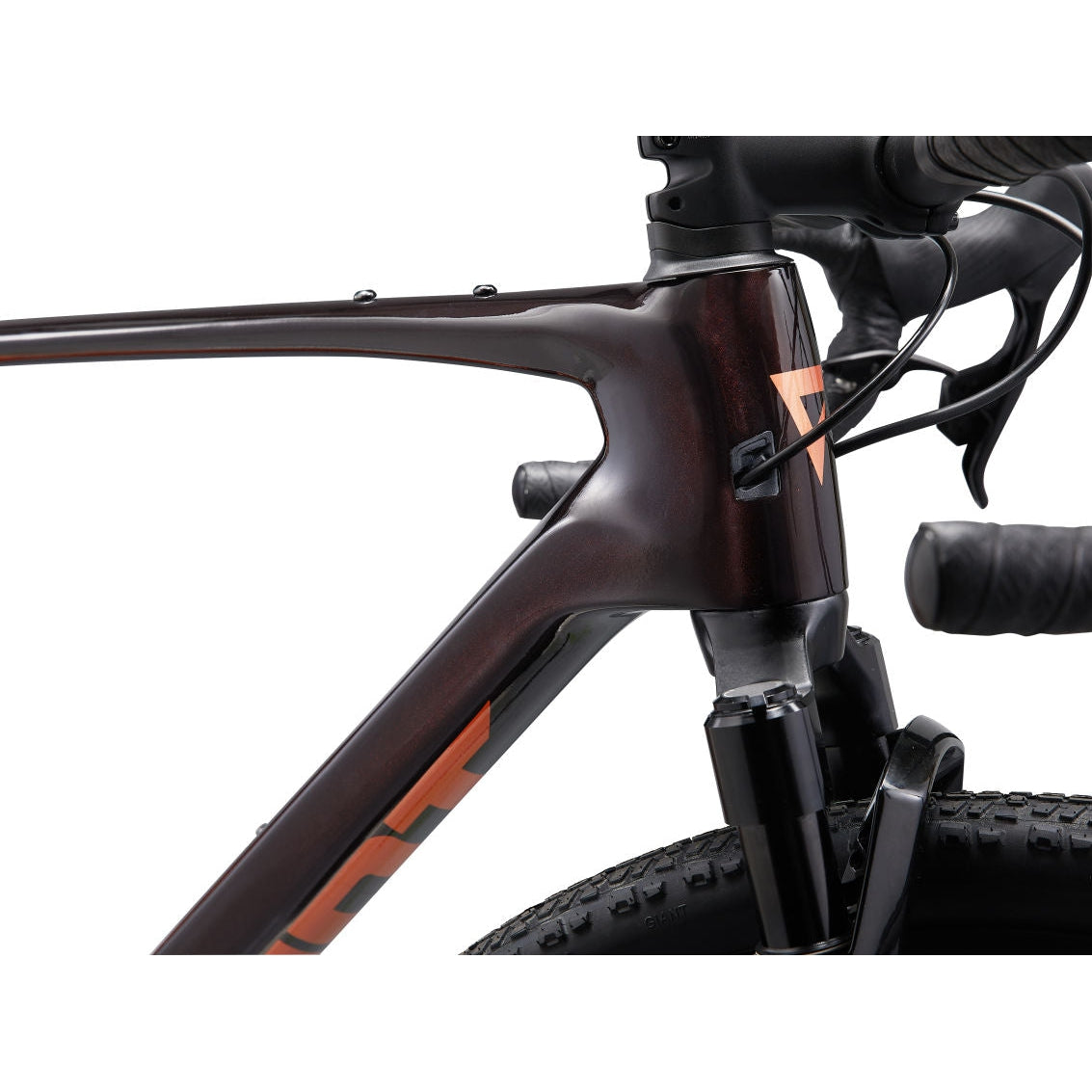

Composite frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs bumps and impacts so you can ride smoother and faster over rugged gravel and dirt.
Tuned compliance

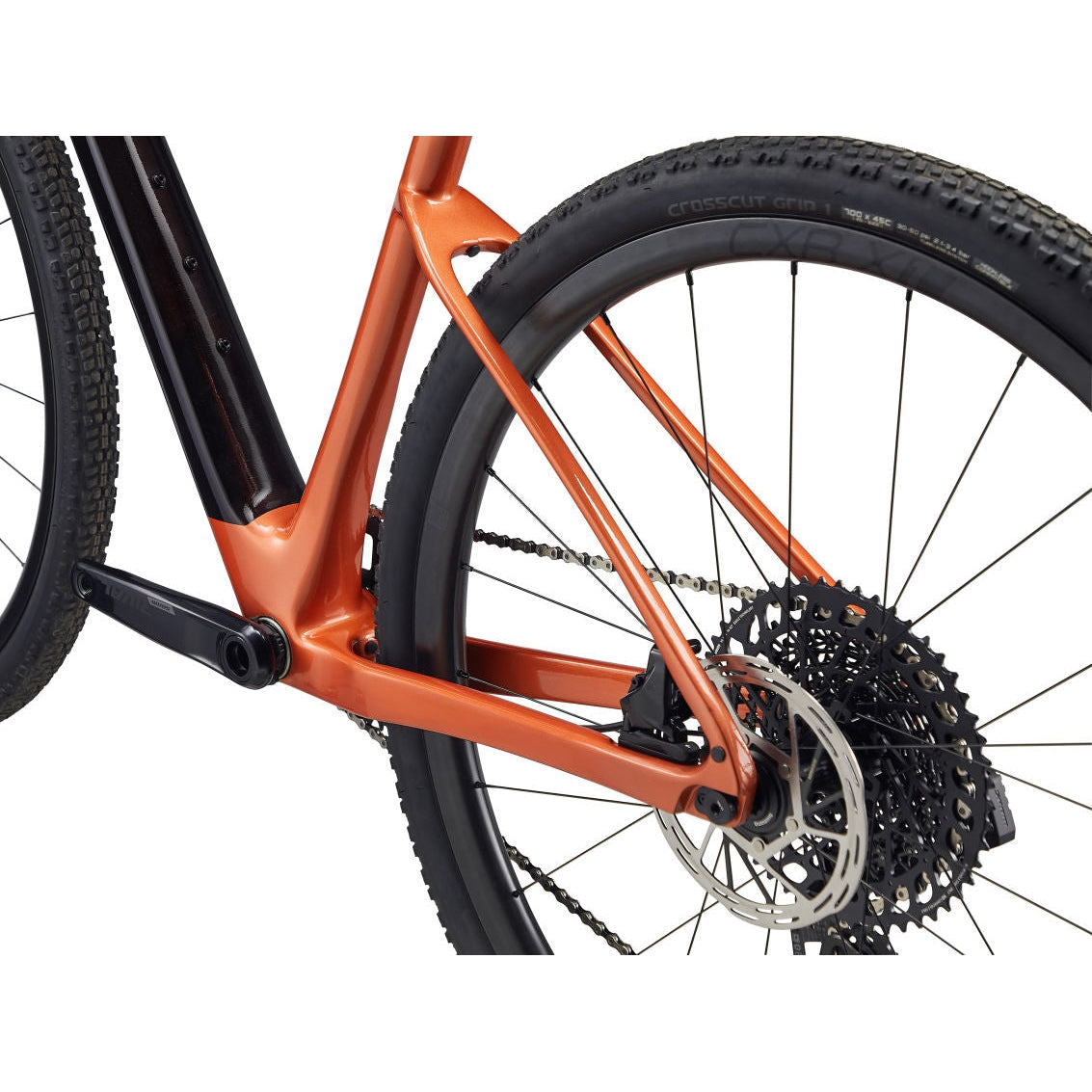

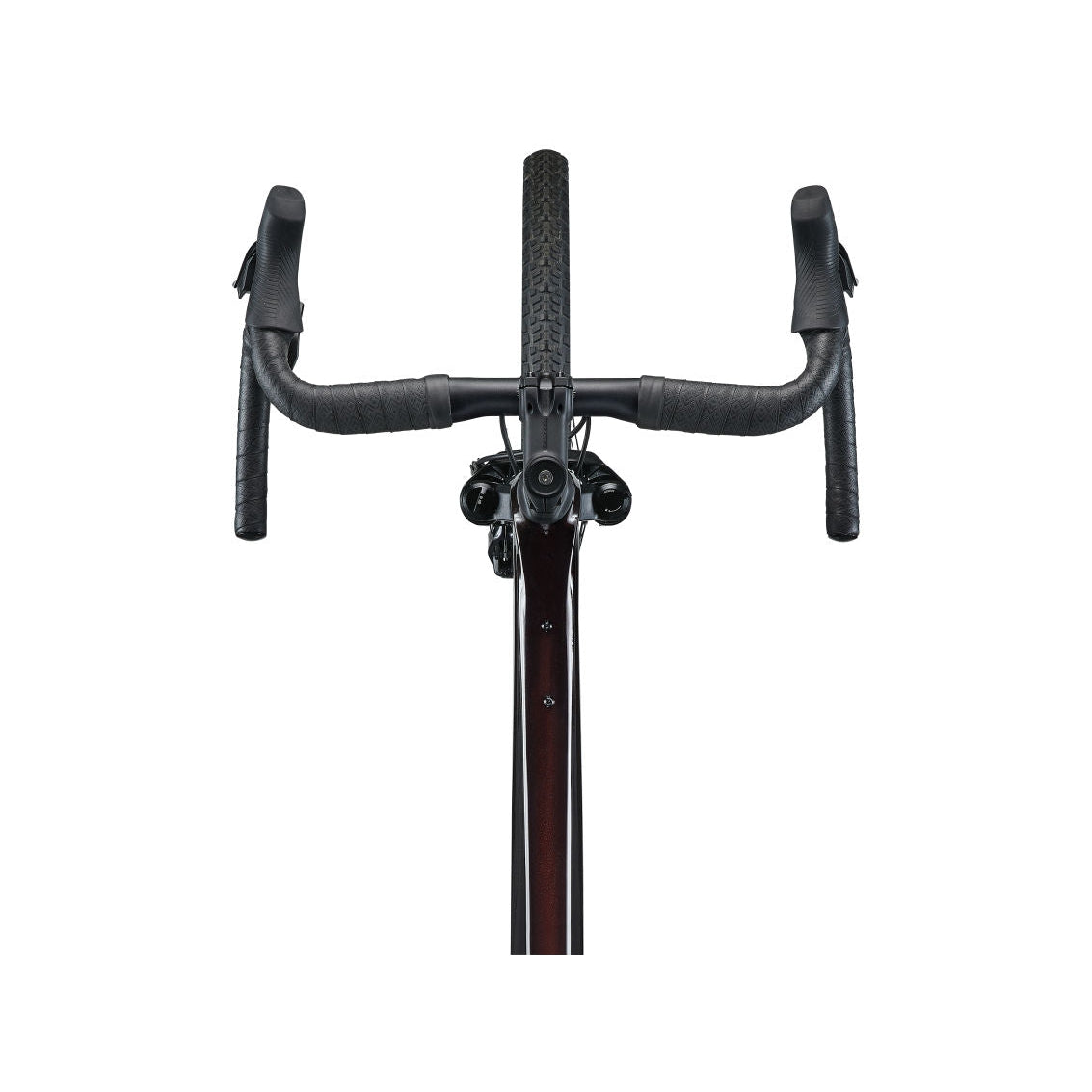

Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.
Adaptable to the terrain

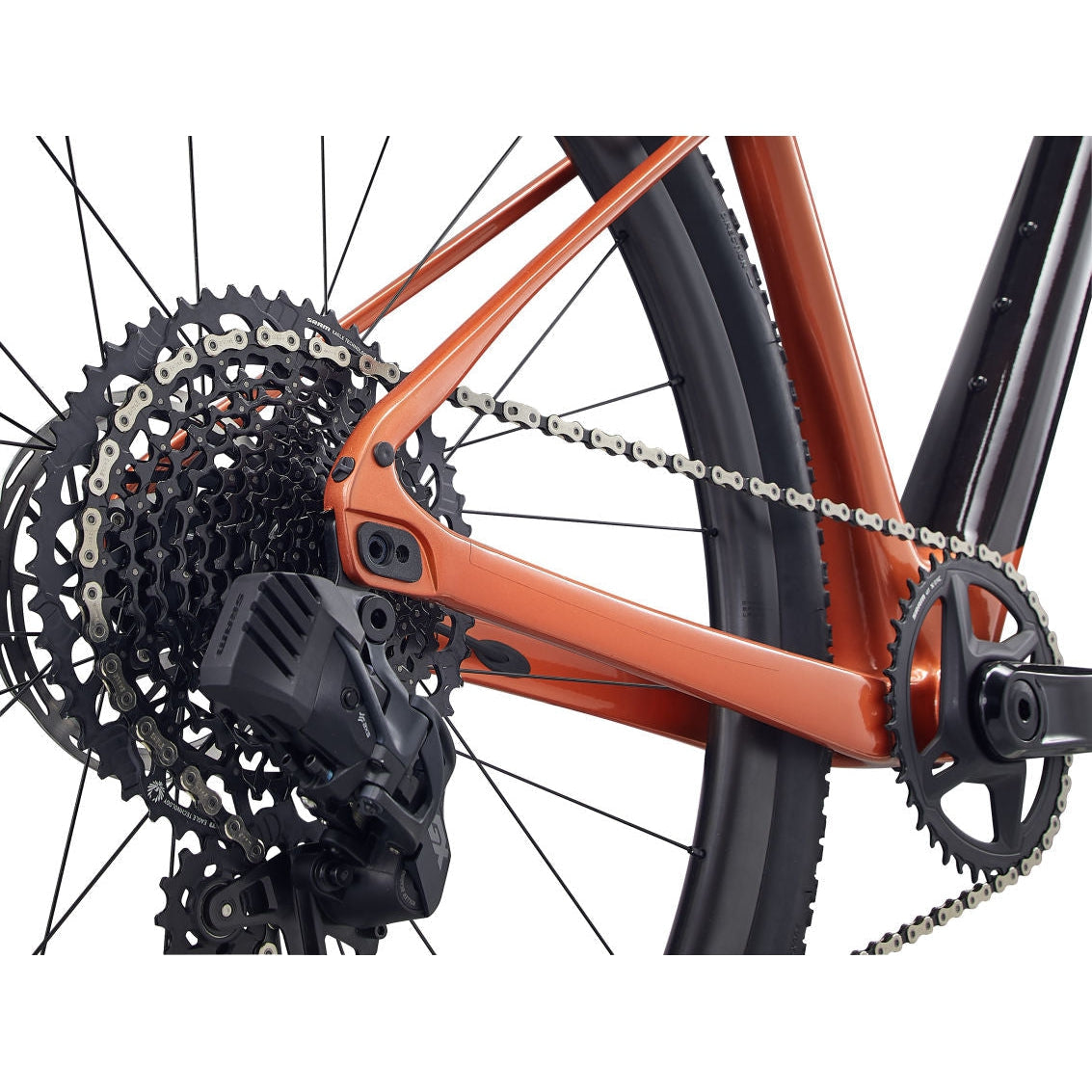

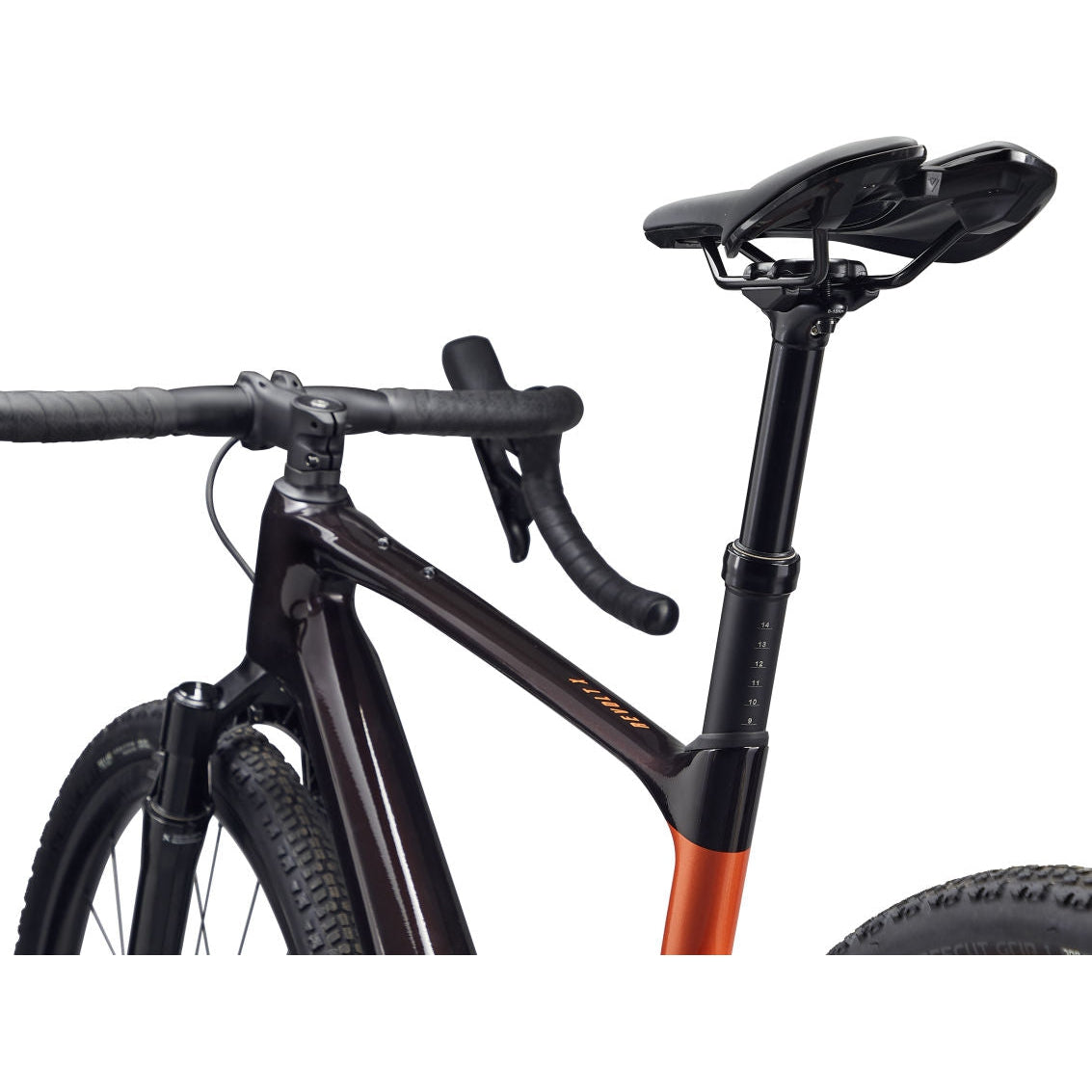

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tires up to 53mm. You can use the included dropper/suspension seatpost for added capabilities, or switch to a proprietary D-Fuse seatpost or traditional 30.9mm round seatpost.
Specifications
|
Sizes
|
XS, S, M, M/L, L, XL
|
|
Colors
|
Cordovan/Copper Coin
|
|
Frame
|
Advanced-Grade Composite, 12x142mm thru-axle, disc, flip chip dropout
|
|
Fork
|
RockShox Rudy Ultimate XPLR, 40mm, Charger Race Day damper 12x100mm thru-axle
|
|
Shock
|
N/A
|
|
Handlebar
|
Giant Contact SL XR D-Fuse, 16-degree flare XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
|
|
Grips
|
Stratus Lite 3.0
|
|
Stem
|
Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL: 80mm
|
|
Seatpost
|
Postmodern, dropper, 30.9mm with 25mm of suspension XS:365mm / 75mm drop S:415mm / 100mm drop M:415mm / 100mm drop M/L: 415mm / 100mm drop L:415mm / 100mm drop XL: 415mm / 100mm drop
|
|
Saddle
|
Giant Approach SL
|
|
Pedals
|
Sold separately |
|
|
Shifters
|
SRAM Rival eTap AXS, 1x12
|
|
Front Derailleur
|
N/A
|
|
Rear Derailleur
|
SRAM GX Eagle AXS
|
|
Brakes
|
SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
|
|
Brake Levers
|
SRAM Rival eTap AXS hydraulic
|
|
Cassette
|
SRAM XG-1275, 12-speed, 10x52
|
|
Chain
|
SRAM GX Eagle
|
|
Crankset
|
SRAM Rival D1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
|
|
Bottom Bracket
|
SRAM DUB, press fit
|
|
Rims
|
Giant CXR X1 Carbon Disc WheelSystem, [F] 25.8mm, [R] 25.8mm
|
|
Hubs
|
[F] Giant AR alloy, CenterLock, 12mm thru-axle [R] Giant AR alloy, DT350 36t ratchet system, CenterLock, 12mm thru-axle
|
|
Spokes
|
Sapim CX-Ray
|
|
Tires
|
Giant CrossCut Grip 1, 700x45c, tubeless
|
|
Extras
|
tubeless prepared, 53mm max tire size in "long" flip chip position, 45mm max tire size in "short" flip chip position
|
|
Weight
|
The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
|
Geometry
| |
|
XS |
S |
M |
ML |
L |
XL |
| |
|
SHORT | LONG
|
SHORT | LONG
|
SHORT | LONG
|
SHORT | LONG
|
SHORT | LONG
|
SHORT | LONG
|
| A |
SEAT TUBE LENGTH (inch)
|
16.9 |
17.7 |
18.5 |
19.3 |
20.1 |
20.9 |
| B |
SEAT TUBE ANGLE |
74.0° | 73.9°
|
73.5° | 73.4°
|
73.5° | 73.4°
|
73.0° | 72.9°
|
73.0° | 72.9°
|
73.0° | 72.9°
|
| C |
TOP TUBE LENGTH (inch)
|
21.4 |
21.8 |
22 |
22.6 |
23 |
23.6 |
| D |
HEAD TUBE LENGTH (inch)
|
3.5 |
3.9 |
4.5 |
5.1 |
5.7 |
6.3 |
| E |
HEAD TUBE ANGLE |
70.5° | 70.4°
|
71.0° | 70.9°
|
71.5° | 71.4°
|
72.0° | 71.9°
|
72.0° | 71.9°
|
72.0° | 71.9°
|
| F |
FORK RAKE (inch)
|
1.8 |
1.8 |
1.8 |
1.8 |
1.8 |
1.8 |
| G |
TRAIL (inch)
|
3.1 | 3.3
|
3 | 3.1
|
2.9 | 3
|
2.8 | 2.9
|
2.8 | 2.9
|
2.8 | 2.9
|
| H |
WHEELBASE (inch)
|
40.3 | 40.7
|
40.3 | 40.7
|
40.4 | 40.8
|
40.6 | 41
|
41 | 41.4
|
41.6 | 42
|
| I |
CHAIN STAY LENGTH (inch)
|
16.7 | 17.1
|
16.7 | 17.1
|
16.7 | 17.1
|
16.7 | 17.1
|
16.7 | 17.1
|
16.7 | 17.1
|
| J |
BOTTOM BRACKET DROP (inch)
|
2.7 | 2.7
|
2.7 | 2.7
|
2.7 | 2.7
|
2.7 | 2.7
|
2.7 | 2.7
|
2.7 | 2.7
|
| K |
STACK (inch)
|
21.6 |
22 |
22.7 |
23.3 |
23.9 |
24.4 |
| L |
REACH (inch)
|
15.2 |
15.2 |
15.3 |
15.5 |
15.7 |
16.1 |
| M |
STAND OVER HEIGHT (inch)
|
28.3 | 28.6
|
29 | 29.3
|
29.7 | 30
|
30.4 | 30.6
|
31.1 | 31.3
|
31.8 | 32
|
| N |
HANDLEBAR WIDTH (inch)
|
17.3 |
17.3 |
18.1 |
18.1 |
18.9 |
18.9 |
| O |
STEM LENGTH (inch)
|
2 |
2.4 |
2.8 |
3.1 |
3.1 |
3.1 |
| P |
CRANK LENGTH (inch)
|
6.7 |
6.7 |
6.8 |
6.8 |
6.9 |
6.9 |
| Q |
WHEEL SIZE
|
700c |
700c |
700c |
700c |
700c |
700c |
