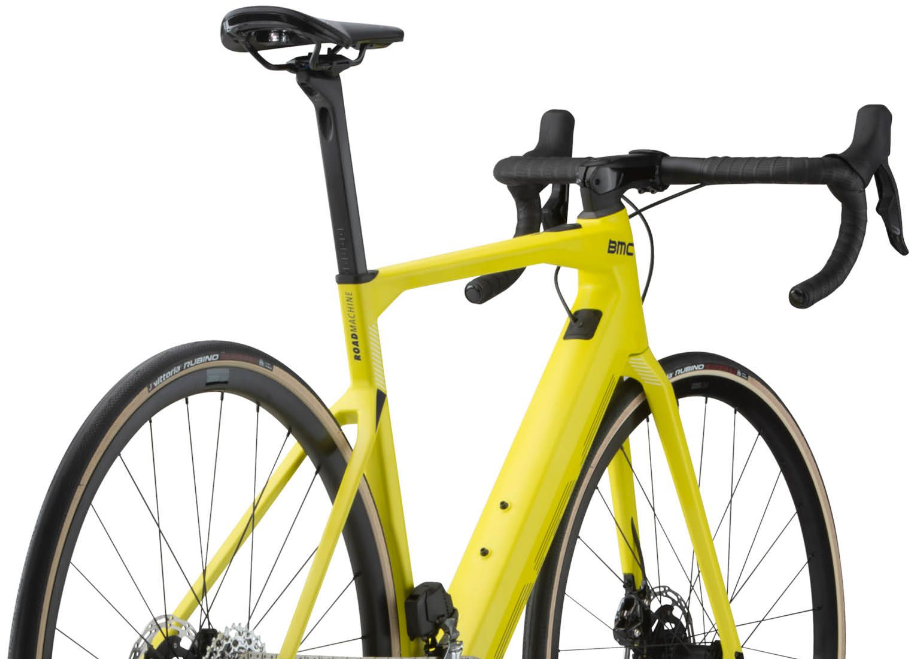

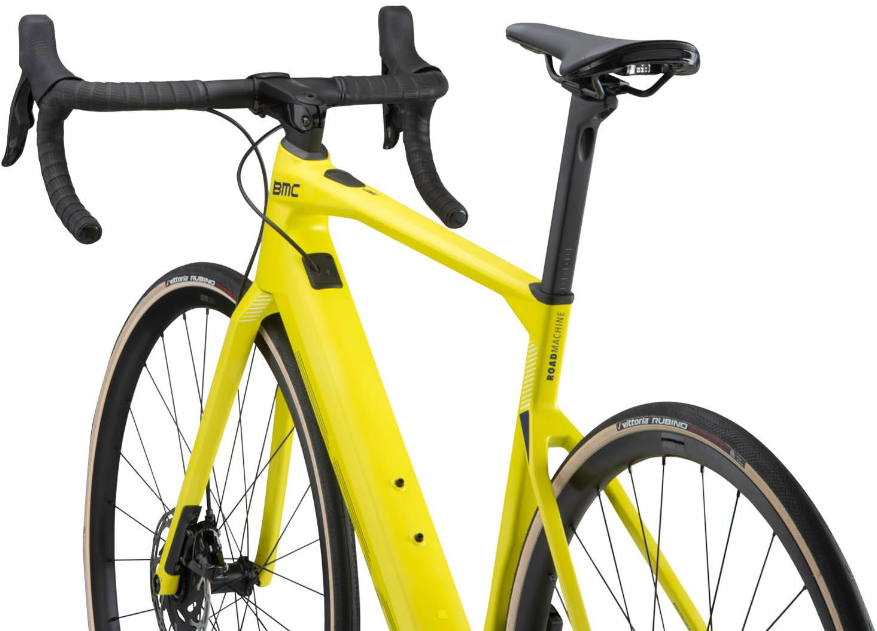

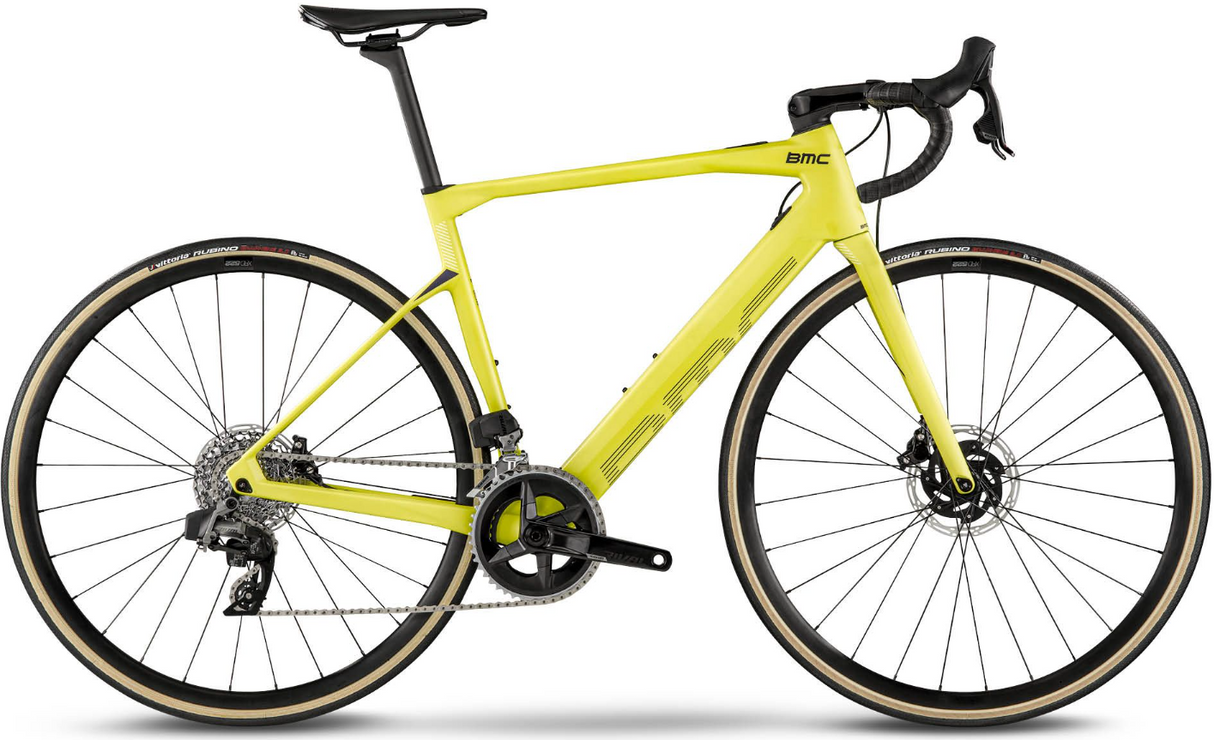

The Roadmachine AMP has hidden power thanks to Mahle's benchmark, ultra-compact hub drive unit, which has a leading power-to-weight ratio. While it looks, handles and performs like a Roadmachine, it assists you through the tough parts so you can achieve more. The drive unit’s internal battery can be removed from the TCC Endurance Premium Carbon frameset, and there’s a Premium Carbon D-Shape seatpost and ICS1 stem. SRAM’s Rival eTap AXS 12-speed wireless groupset, plus 25mm XRD-522 wheels with 30mm tires ensure uncluttered, practical performance.
FEATURES:
-
Tuned Compliance Concept (TCC) Endurance: The most capable version of our TCC Technology,: take the edge off the roughest roads to push harder and ride further. The ultimate balance between comfort and performance for a ride that is both forgiving and fast.
-
Integrated Pedal Assist: The seamlessly integrated Mahle X20 drive unit provides 25nm of sensor-tuned assistance for a natural ride feel, and its smart battery optimizes power delivery, giving you a range of up to 140 KM with 3000 meters of elevation.
-
Iconic Silhouette: Featuring Roadmachine's renowned geometry to deliver incredibly poised handling, with clean lines and integrated cable routing, maintaining that iconic Roadmachine silhouette.
-
Tire Versatility: Supplied with 28mm wide tires, the Roadmachine AMP has frame clearance for tires with a measured width of 33mm when installed allowing riders to venture into mixed-terrain riding.
- D-Shape Seatpost: The D-Shape compliance post's carbon layup was designed using TCC Endurance technology for tailored comfort.
-
Integrated Seat Clamp: The seamless and functional integrated seatpost clamp is hidden within the frame.
SPECS:
| Frame |
Roadmachine AMP Premium Carbon with Tuned Compliance Concept Endurance
Integrated Removable Battery
Internal Cable Routing
PF86 Bottom Bracket
Flat Mount Disc
12x142mm Thru-Axle
|
| Fork |
Roadmachine AMP Premium Carbon with Tuned Compliance Concept Endurance
Internal Cable Routing
Flat Mount Disc
12x100mm Thru-Axle |
| Rear Shock |
N/A |
| Rims/Wheels |
XRD-522 Tubeless Ready 25 mm
|
| Hubs |
XRD-522 Ebikemotion
|
| Spokes |
N/A |
| Tires |
Vittoria Rubino Pro 30mm
|
| Crankset |
SRAM FORCE AXS 46-33T
|
| Chain |
SRAM RIVAL 12 Speed
|
| Front Derailleur |
N/A |
| Rear Derailleur |
SRAM RIVAL eTap AXS
|
|
|
SRAM RIVAL XG-1250 10-36T
|
| Shifters |
SRAM RIVAL eTap AXS HRD
|
| Handlebars |
BMC RAB 02 Ergo Top Shape Compact Bend
|
| Stem |
BMC ICS1
|
| Brake Levers |
SRAM Rival eTap AXS HRD |
| Brakes |
SRAM Rival eTap AXS HRD Centerline X Rotors (160/160)
|
| Pedals |
Not Included |
| Saddle |
Fizik Taiga
|
| Seat Post |
Roadmachine AMP Premium Carbon D-Shaped Seatpost
15mm Offset
|
| Motor |
Mahle X20, 55nm of Torque
|
| Battery |
Mahle iX350 - 350 Wh (Optional 172 Wh Range Extender Available Separately)
|
|
|
Mahle Head Unit
|
|
|
20 mph (Class 1)
|
| Charger |
Mahle X20 Active Charger
|
|
|
N/A - Garmin & GoPro mount NOT included |
