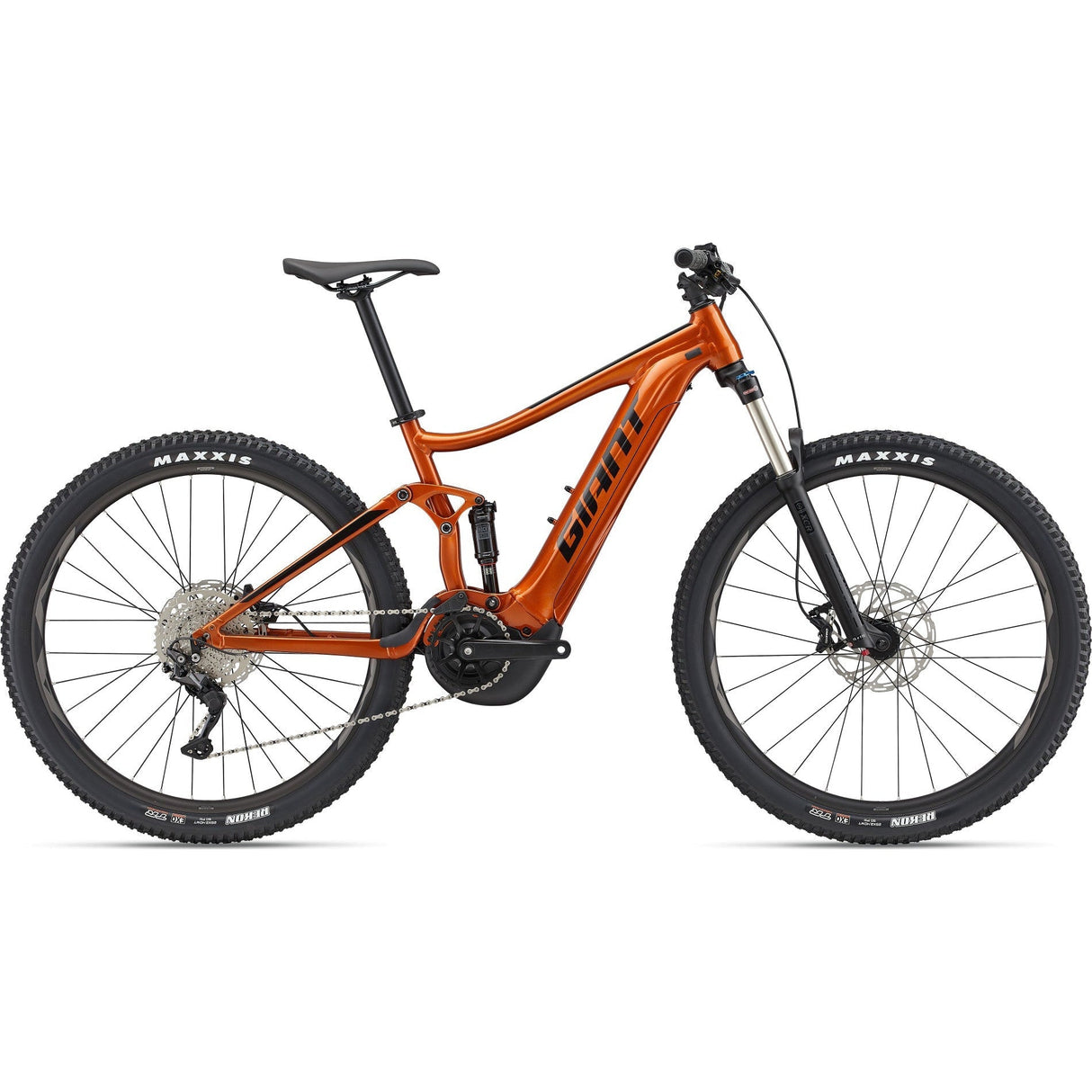

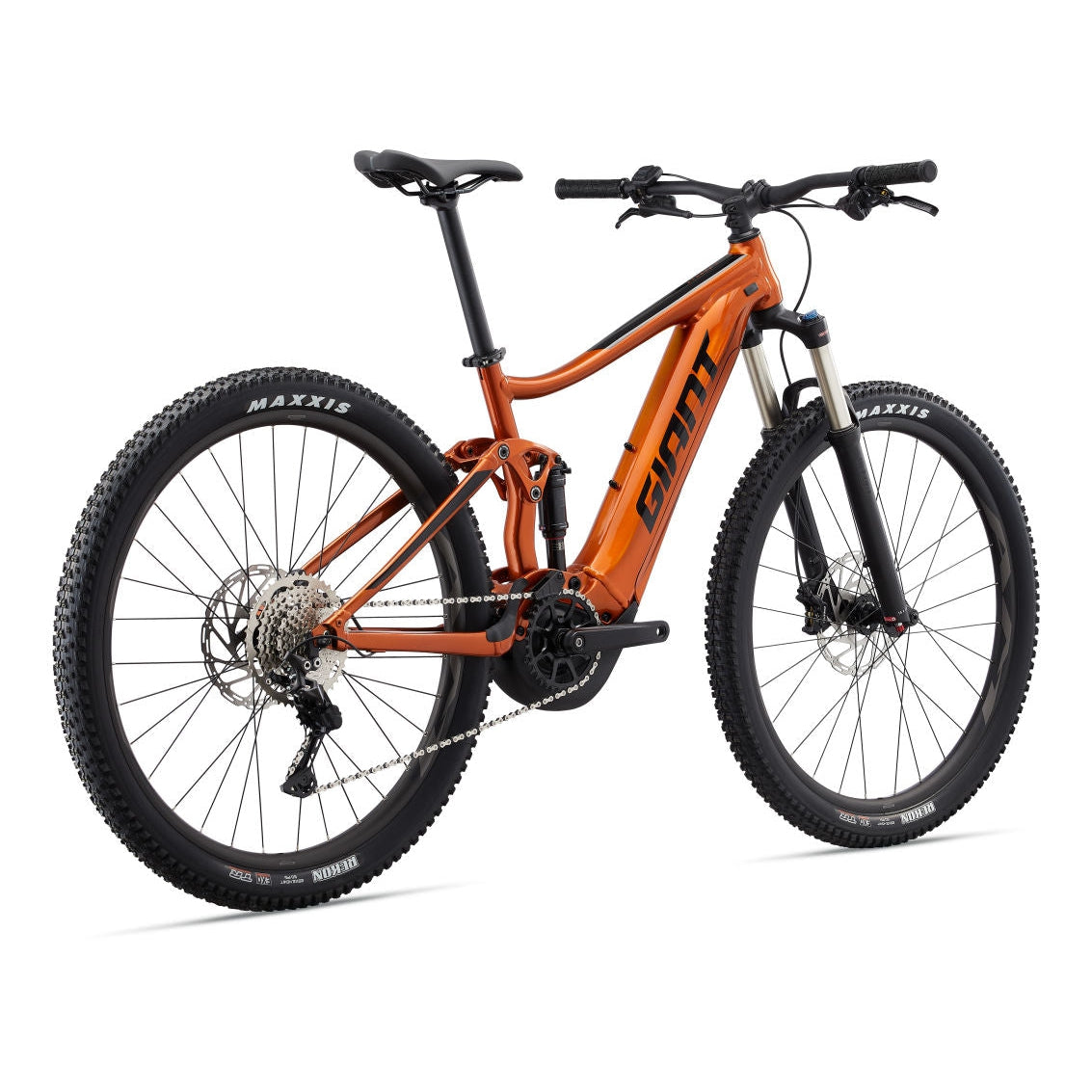

Get ready to experience a whole new level of trail-ripping excitement with the Stance E+ 2 29er Electric Mountain Bike. This bad boy is built to tackle steep climbs, technical descents, and longer days on the trail like a pro.
Thanks to its smooth suspension setup and seamless boost of pedaling support, this e-bike will have you feeling like an unstoppable trail monster. Say goodbye to feeling winded on those grueling climbs, and hello to cruising through those tough sections like a breeze.
With the power and technology of the Stance E+ 2, you can finally ride the trails you've always dreamed about. So, buckle up, hit the trails, and get ready to unleash your inner mountain biking superstar
With a smooth suspension setup and a seamless boost of peddling support, this e-bike gives you the power and technology to ride the trails you dream about
Strong motor support
The SyncDrive Sport motor with 70Nm of torque and 360 percent tunable support helps you climb steep, rugged trails with ease.
Total control
ALUXX SL aluminum frame with 120mm FlexPoint suspension and 29-inch wheels produces a smooth, confident ride on technical trails. The Giant E-bike App gives you navigation, health and fitness functions.
Efficient
500Wh EnergyPak offers long riding range. This integrated battery is easy to charge up to 80 percent in 2.5 hours with new 6A Fast Charger.
Range
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
The graph below gives an approximate range. Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
- Extreme: 40 miles
- Good: 80 miles
- Ideal: 133 miles
Specifications
| Motor SyncDrive Sport, 70Nm, powered by Yamaha |
| Controller Giant RideControl One ANT+ |
| Display ANT+ Wireless display compatible |
| Battery EnergyPak Smart 500Wh |
| Sizes S, M, L, XL |
| Colors Amber Glow |
| Frame ALUXX Aluminum, 120mm FlexPoint suspension system, 141mm Boost QR, Integrated KS18 Kickstand Mount |
| Fork SR Suntour XCR 34 Air LO-R, 130mm travel, tapered steerer, Lockout, 110x15 thru-axle |
| Shock SR Suntour Edge RC |
| Handlebar Giant Connect TR Riser 31.8x780mm |
| Grips Giant Tactal single lock-on |
| Stem Giant Contact |
| Seatpost Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
| Saddle Giant Sport |
| Pedals Aluminum Platform |
| Shifters Shimano Deore, 10-speed |
| Rear Derailleur Shimano Deore, 10-speed, Shadow+ |
| Brakes Tektro HD-M745 Orion, 4-piston, hydraulic disc, 203mm |
| Brake Levers Tektro HD-M745 Orion |
| Cassette Shimano CS-M4100-10, 11-46T, 10-speed |
| Chain KMC e.10 Sport, e-bike optimized |
| Crankset Forged Alloy minimal Q-factor, 36T Steel Direct Mount ring (S:160, M/L:165, XL:170) |
| Bottom Bracket N/A |
| Rims Giant AM 29", Tubeless ready, 30mm inner width |
| Hubs Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR |
| Spokes Stainless Steel |
| Tires Maxxis Rekon 29x2.4" foldable, 60tpi, EXO, Tubeless Ready |
| WeightThe most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
| |
S |
M |
L |
XL |
| SEAT TUBE LENGTH (inch)
|
16 |
17 |
19 |
20 |
| SEAT TUBE ANGLE |
73.5° |
73.5° |
73.5° |
73.5° |
| TOP TUBE LENGTH (inch)
|
22.8 |
23.6 |
24.6 |
25.6 |
| HEAD TUBE LENGTH (inch)
|
3.9 |
4.3 |
4.7 |
5.3 |
| HEAD TUBE ANGLE |
67.0° |
67.0° |
67.0° |
67.0° |
| FORK RAKE (inch)
|
1.6 |
1.6 |
1.6 |
1.6 |
| TRAIL (inch)
|
4.4 |
4.4 |
4.4 |
4.4 |
| WHEELBASE (inch)
|
45.9 |
46.7 |
47.8 |
48.8 |
| CHAIN STAY LENGTH (inch)
|
18.7 |
18.7 |
18.7 |
18.7 |
| BOTTOM BRACKET DROP (inch)
|
0.8 |
0.8 |
0.8 |
0.8 |
| STACK (inch)
|
23.3 |
23.7 |
24.1 |
24.6 |
| REACH (inch)
|
15.9 |
16.6 |
17.5 |
18.3 |
| STAND OVER HEIGHT (inch)
|
29.2 |
29.8 |
31 |
31.2 |
| HANDLEBAR WIDTH (inch)
|
30.7 |
30.7 |
30.7 |
30.7 |
| STEM LENGTH (inch)
|
2 |
2 |
2 |
2.4 |
| CRANK LENGTH (inch)
|
6.3 |
6.5 |
6.5 |
6.7 |
| WHEEL SIZE
|
29" |
29" |
29" |
29" |
