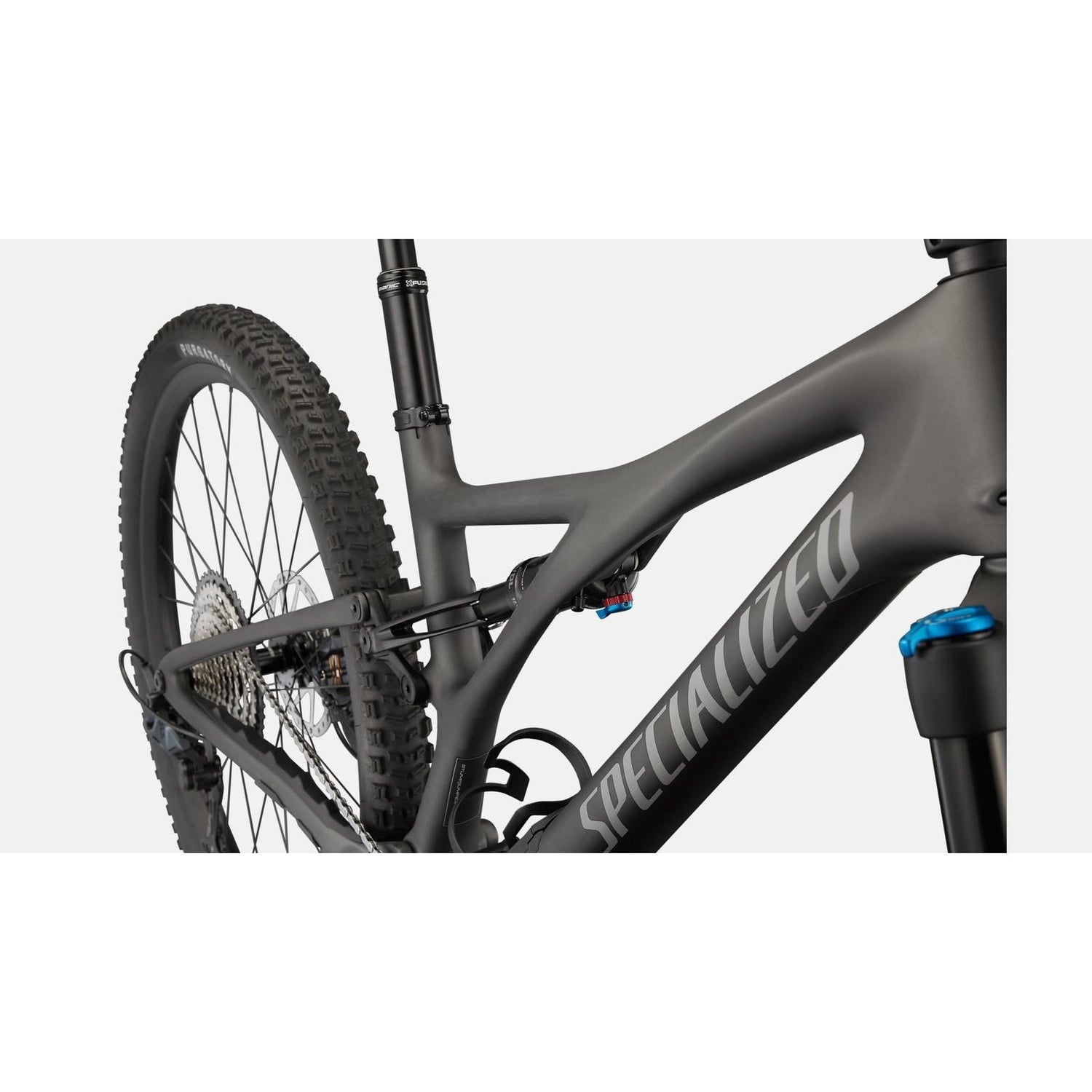

Frame
|
FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel |
|
Seat Binder
|
Alloy, 38.6mm |
|

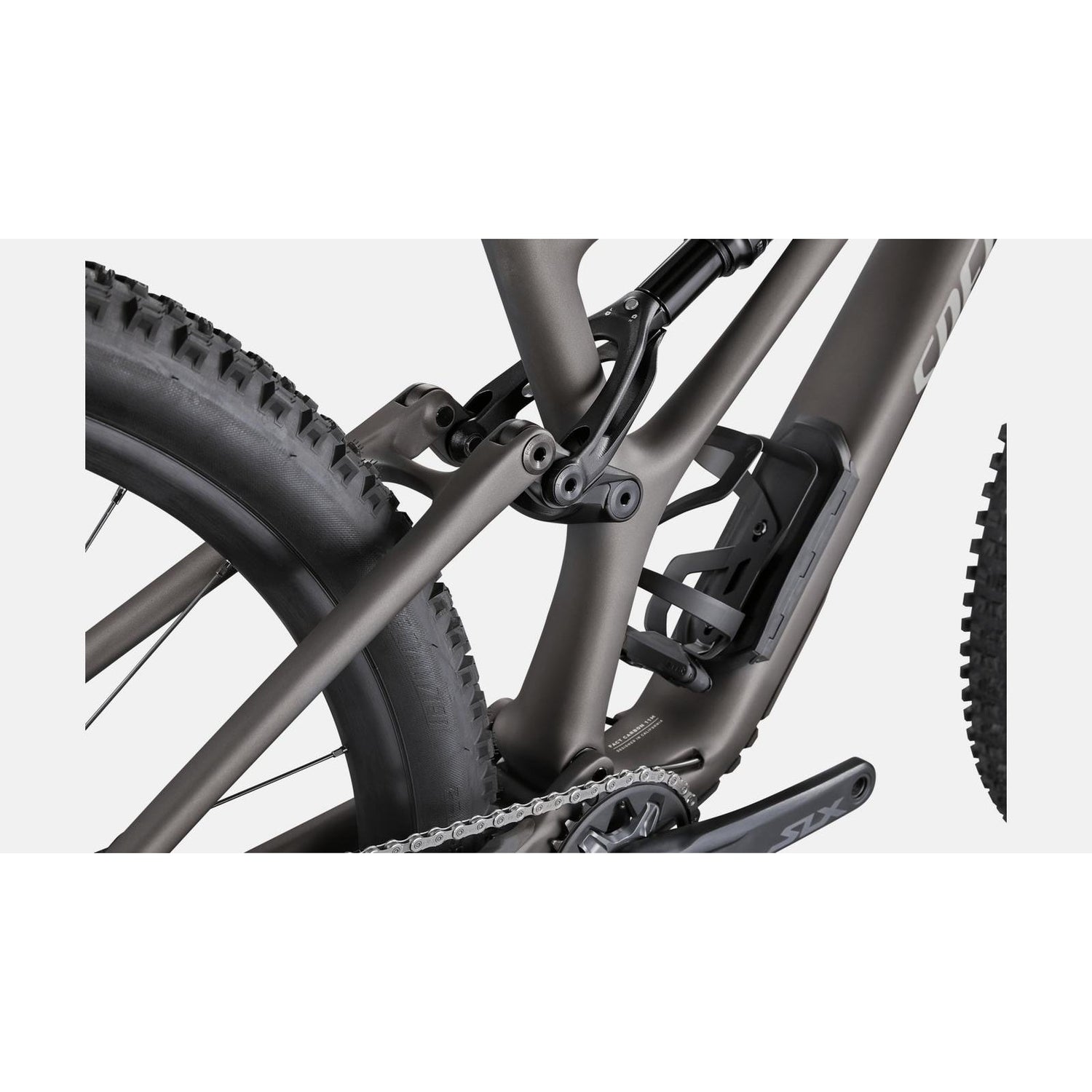

Rear Shock
|
FOX FLOAT DPS Performance, Rx Trail Tune, rebound and 3-position compression adjust, 190x45mm |
|
Fork
|
FOX FLOAT 34 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm axle, 44mm offset, 140mm of travel |
|
Stem
|
Alloy Trail Stem, 35mm bar bore |
|

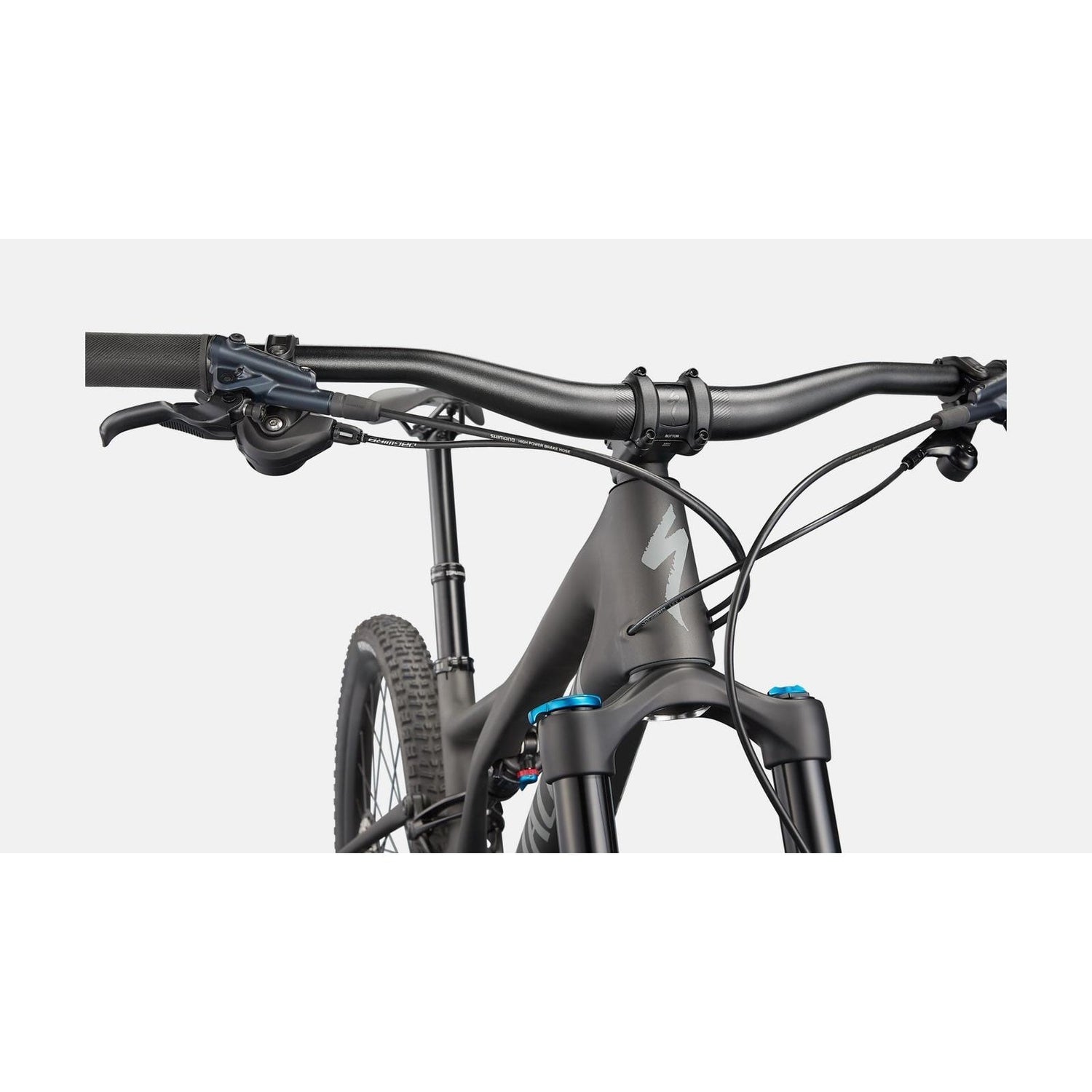

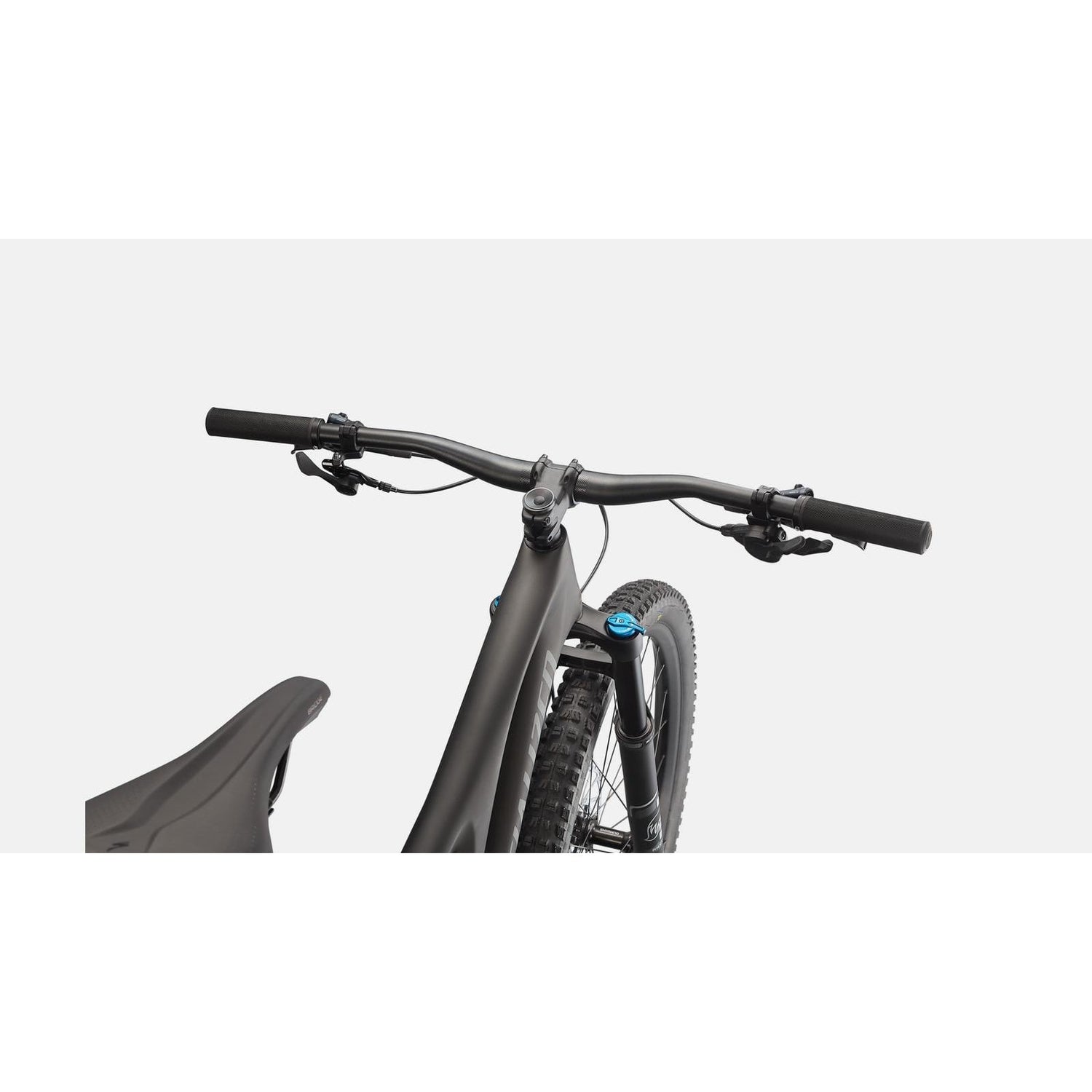

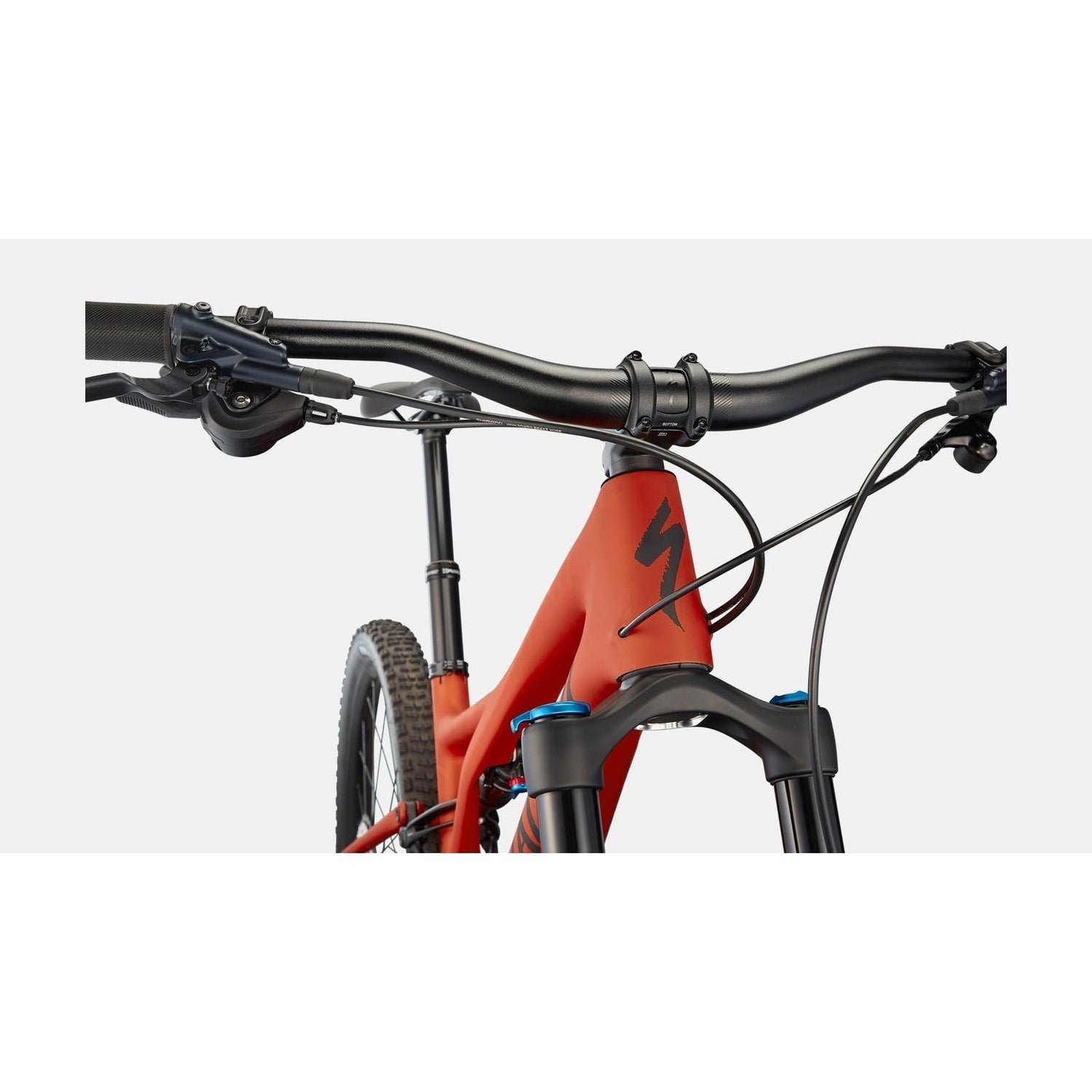

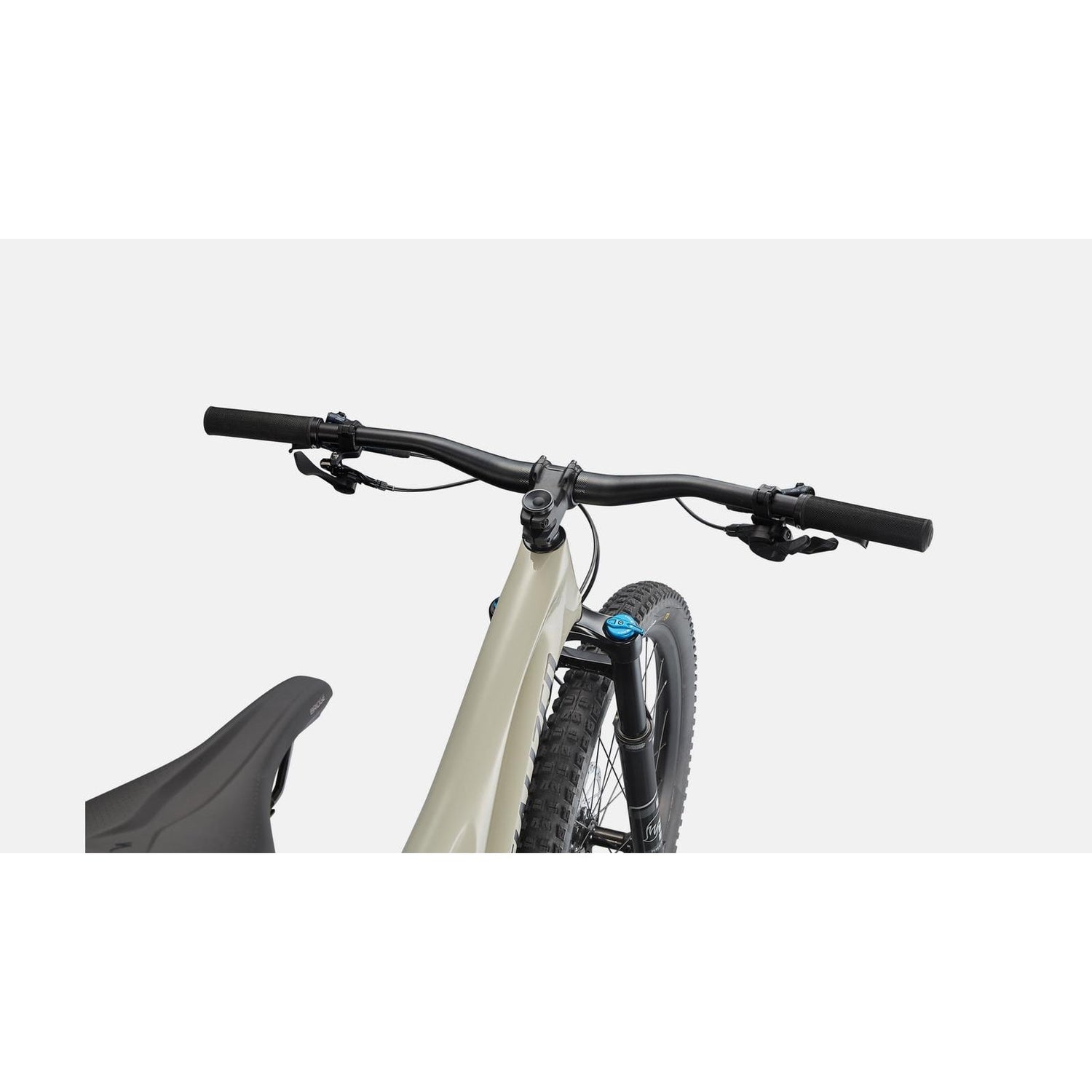

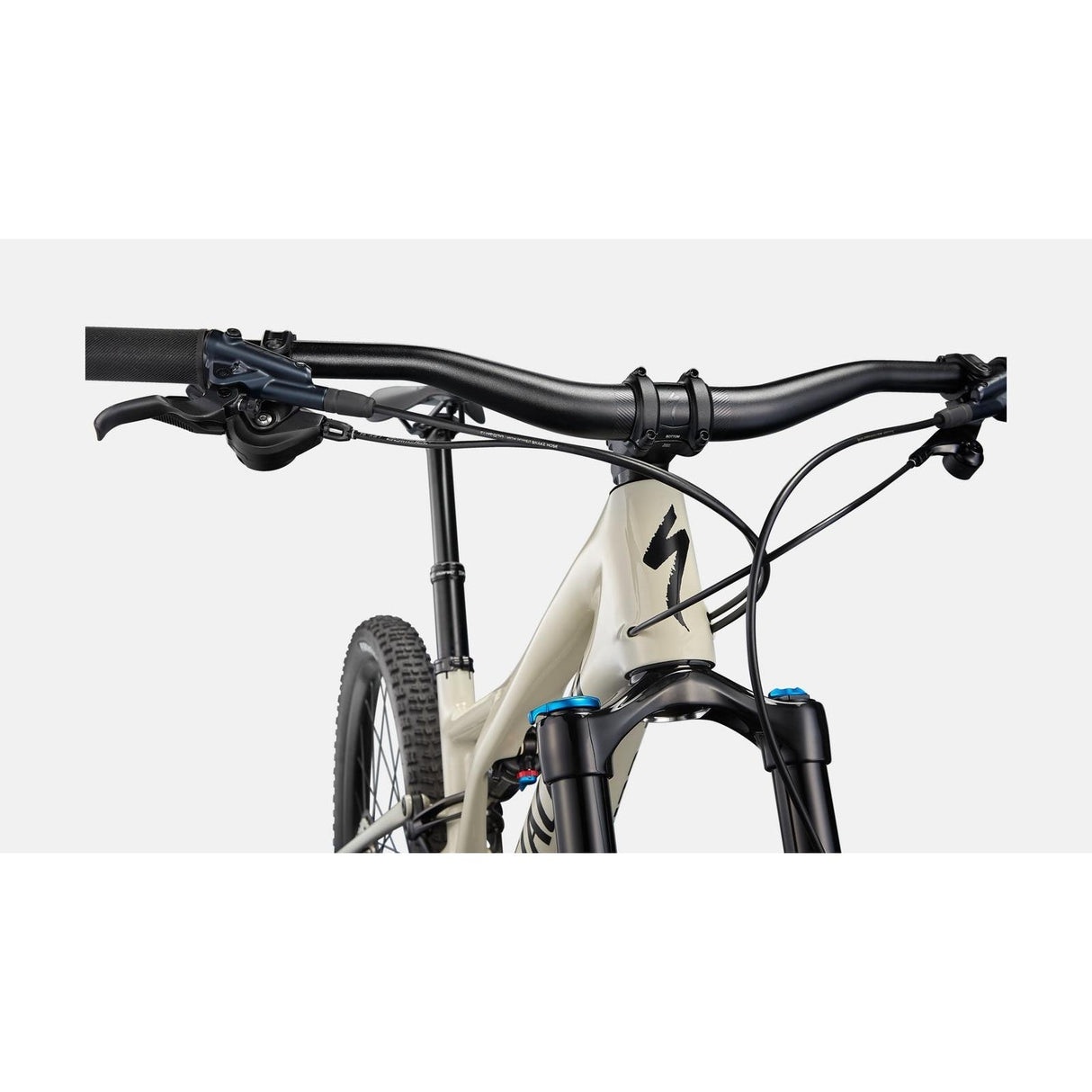

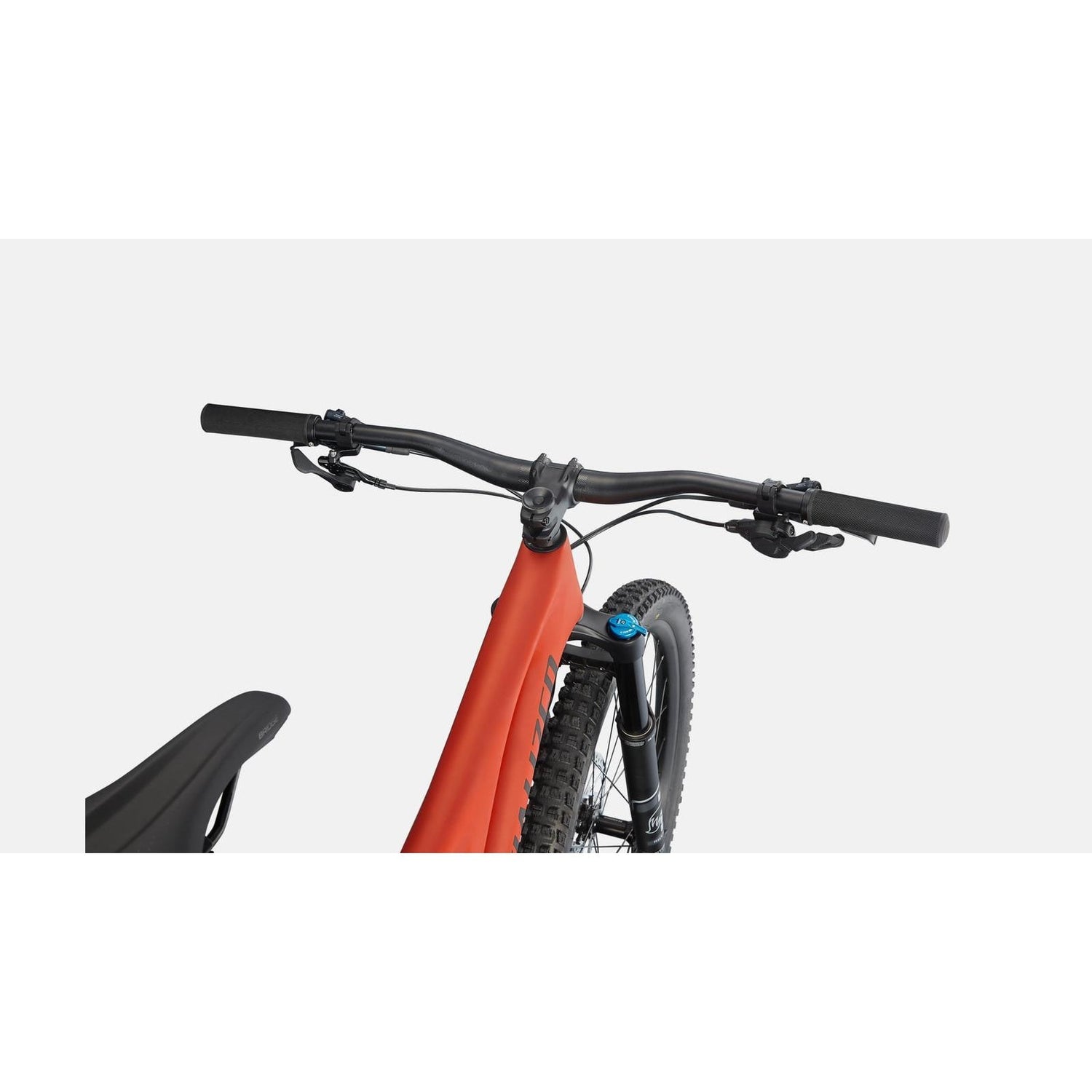

Handlebars
|
Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, 30mm rise, 780mm width |
|
Tape
|
Specialized Trail Grips |
|
Saddle
|
Bridge Comp, Hollow Cr-mo rails, 155/143mm |
|
SeatPost
|
X-Fusion Manic, infinite adjustable, two-bolt head, bottom mount cable routing, remote SLR LE lever, 34.9, S1: 100mm, S2: 125mm, S3: 150mm, S4/S5: 175mm, S6: 190mm |
|
Front Brake
|
Shimano SLX M7120, 4-piston caliper, hydraulic disc, 200mm |
|
Rear Brake
|
Shimano SLX M7120, 4-piston caliper, hydraulic disc, 180mm |
|
Rear Derailleur
|
Shimano SLX M7100, SGS, 12-speed |
|
Shift Levers
|
Shimano SLX, M7100, 12spd |
|
Cassette
|
Shimano SLX, CS-M7100, 12-speed, 10-51t |
|
Chain
|
Shimano SLX, M7100, 12-speed |
|
Crankset
|
Shimano SLX, S1:165mm, S2-S5: 170mm, S6: 175mm |
|
Chainrings
|
30T |
|
Bottom Bracket
|
Shimano, BB-MT800, Threaded |
|
Rims
|
Specialized 29, hookless alloy, 30mm inner width, tubeless ready |
|
Front Hub
|
Shimano MT400-B, Centerlock 28h, 15x110 Boost |
|
Rear Hub
|
Shimano MT510-B, Centerlock 28h, 12x148 Boost, Microspline |
|
Spokes
|
DT Swiss Industry |
|
Front Tire
|
Butcher, GRID casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3" |
|
Rear Tire
|
Purgatory, GRID casing, GRIPTON® T7 compound, 29x2.3" |
|
Inner Tubes
|
Standard, Presta Valve |
