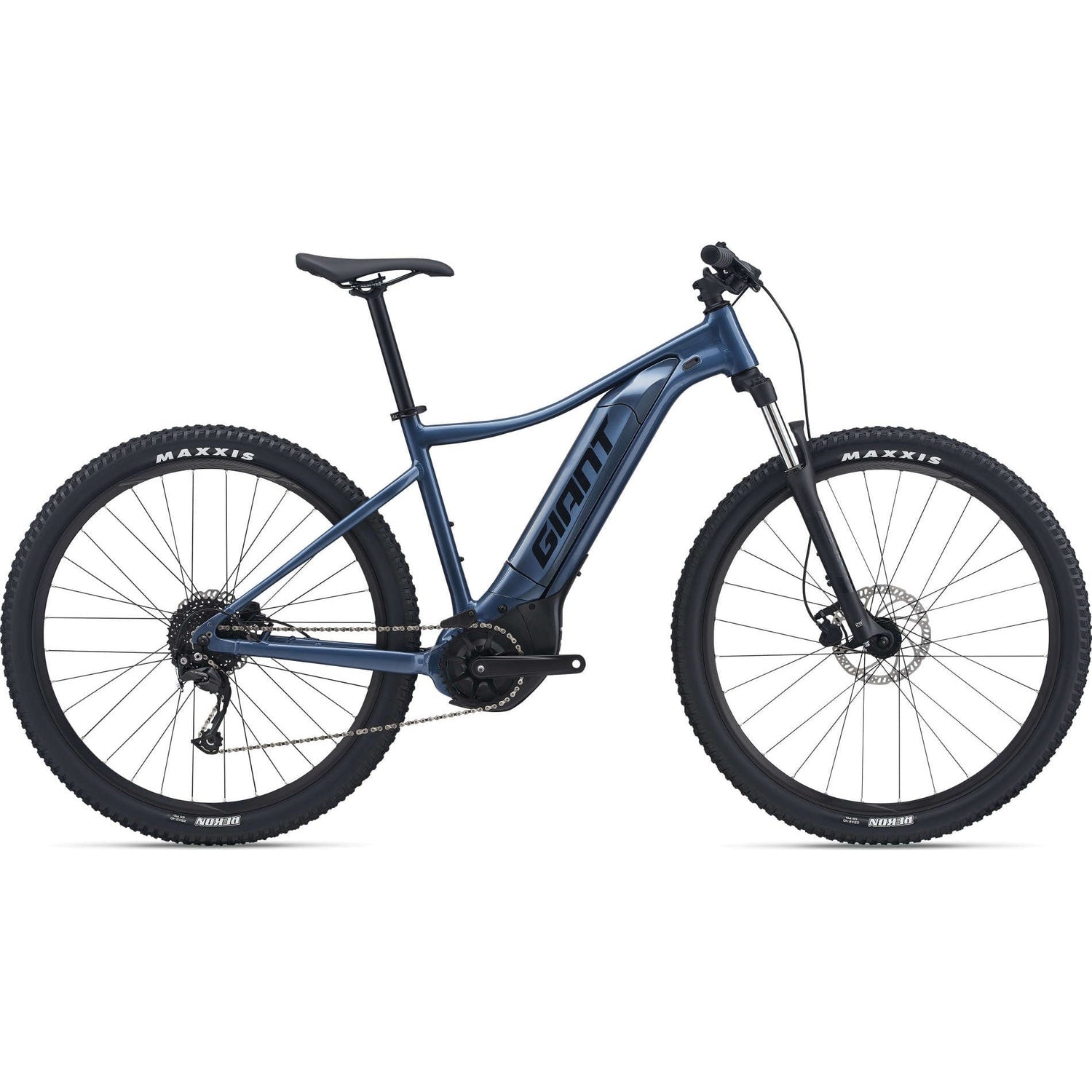

Looking for a wild ride that can take you to new heights? Look no further than the Talon E3+ 29" Electric Mountain Bike! This bad boy is the perfect answer to the call of the trail, giving you the power and control you need to conquer any off-road challenge.
With a balanced and smooth ride, the Talon E3+ 29" e-bike is like having your own personal rocket booster, propelling you over hills and through rough terrain with ease. And with total control at your fingertips, you'll be able to take on even the gnarliest trails with confidence and skill.
So if you're ready to expand your off-road riding capabilities and have a blast while you're at it, hop on the Talon E3+ 29" Electric Mountain Bike and let the fun begin!
Smooth power delivery
The SyncDrive Core motor technology delivers smooth, instantaneous power to conquer all kinds of terrain and have more fun.
Balanced, confident handling
Lightweight aluminum frame with trail-friendly geometry, 100mm of front suspension travel, and stable 29-inch wheels with tubeless tires puts you in control on off-road terrain.
Long-lasting battery
Side Release EnergyPak with 400Wh of capacity is easy to charge with our 3A smart charger.
How far can I expect to ride on a single battery charge?
The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tire pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.
Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.
| ENERGYPAK 400 / SYNCDRIVE CORE |
| Extreme: 34 miles |
Good: 65 miles |
Ideal: 93 miles |
Specifications
| Motor: SyncDrive Core, 50Nm, Powered by Yamaha |
Shifters: Shimano Altus |
| Controller: RideControl Dash, full color LCD screen |
Front Derailleur: N/A |
| Display: RideControl Dash, full color LCD screen |
Rear Derailleur: Shimano Alivio, 9-speed |
| Battery: EnergyPak 400Wh |
Brakes: Tektro HD-M275, hydraulic disc, 160/180mm |
| Sizes: S, M, L, XL, XXL |
Brake Levers: Tektro HD-M275 |
| Colors: Blue Ashes |
Cassette: Shimano CS-HG200, 11-36T, 9-speed |
| Frame: ALUXX Aluminum, Overdrive 1½ - 1⅛" head tube, integrated KS18 kickstand mount |
Chain: KMC e.9 Sport, e-bike optimized |
| Fork: SR Suntour XCM ATB Coil 29" 100mm travel, Tapered 1½ - 1⅛" steerer |
Crankset: FSA Comet E-Bike crank arm set FSA MegaTooth Direct-mount 1X steel 36T |
| Shock: N/A |
Bottom Bracket: N/A |
| Handlebar: Giant Connect TR Riser 31.8x690~750mm |
Rims: Giant GX03V |
| Grips: Giant Sole-O Grip |
Hubs: Giant eTracker Sport, [F] 9mm QR [R] 135mm QR |
| Stem: Giant Contact |
Spokes: Stainless steel |
| Seatpost: Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium |
Tires: Maxxis Rekon 29x2.4" Wire Bead 60TPI |
| Saddle: Giant Sport |
Pedals: Aluminum Platform |
| Weight: The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality. |
Geometry
| |
S |
M |
L |
XL |
| SEAT TUBE LENGTH (inch)
|
15.9 |
18.4 |
19.9 |
21.1 |
| SEAT TUBE ANGLE |
73.0° |
73.0° |
73.0° |
73.0° |
| TOP TUBE LENGTH (inch)
|
22.6 |
23.6 |
24.6 |
25.6 |
| HEAD TUBE LENGTH (inch)
|
4.3 |
4.5 |
5.1 |
5.5 |
| HEAD TUBE ANGLE |
68.0° |
68.0° |
68.0° |
68.0° |
| FORK RAKE (inch)
|
1.8 |
1.8 |
1.8 |
1.8 |
| TRAIL (inch)
|
3.9 |
3.9 |
3.9 |
3.9 |
| WHEELBASE (inch)
|
45.3 |
46.3 |
47.3 |
48.3 |
| CHAIN STAY LENGTH (inch)
|
19.1 |
19.1 |
19.1 |
19.1 |
| BOTTOM BRACKET DROP (inch)
|
1.8 |
1.8 |
1.8 |
1.8 |
| STACK (inch)
|
24.3 |
24.5 |
25 |
25.4 |
| REACH (inch)
|
15.2 |
16.1 |
16.9 |
17.8 |
| STAND OVER HEIGHT (inch)
|
28 |
29.4 |
30.1 |
30 |
| HANDLEBAR WIDTH (inch)
|
27.2 |
28.3 |
28.3 |
29.5 |
| STEM LENGTH (inch)
|
2 |
2.4 |
2.4 |
2.8 |
| CRANK LENGTH (inch)
|
6.5 |
6.5 |
6.7 |
6.7 |
| WHEEL SIZE
|
29" |
29" |
29" |
29" |
