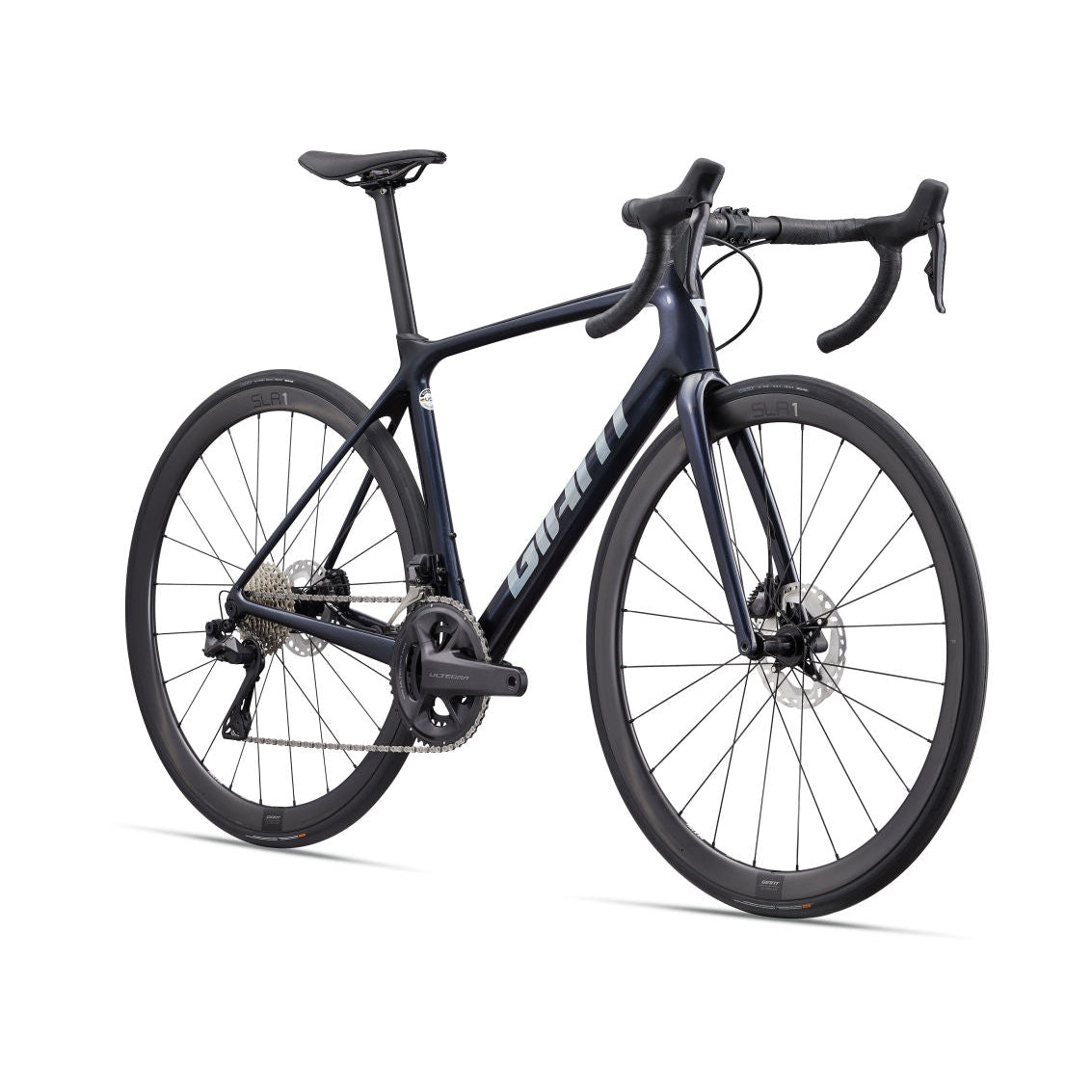

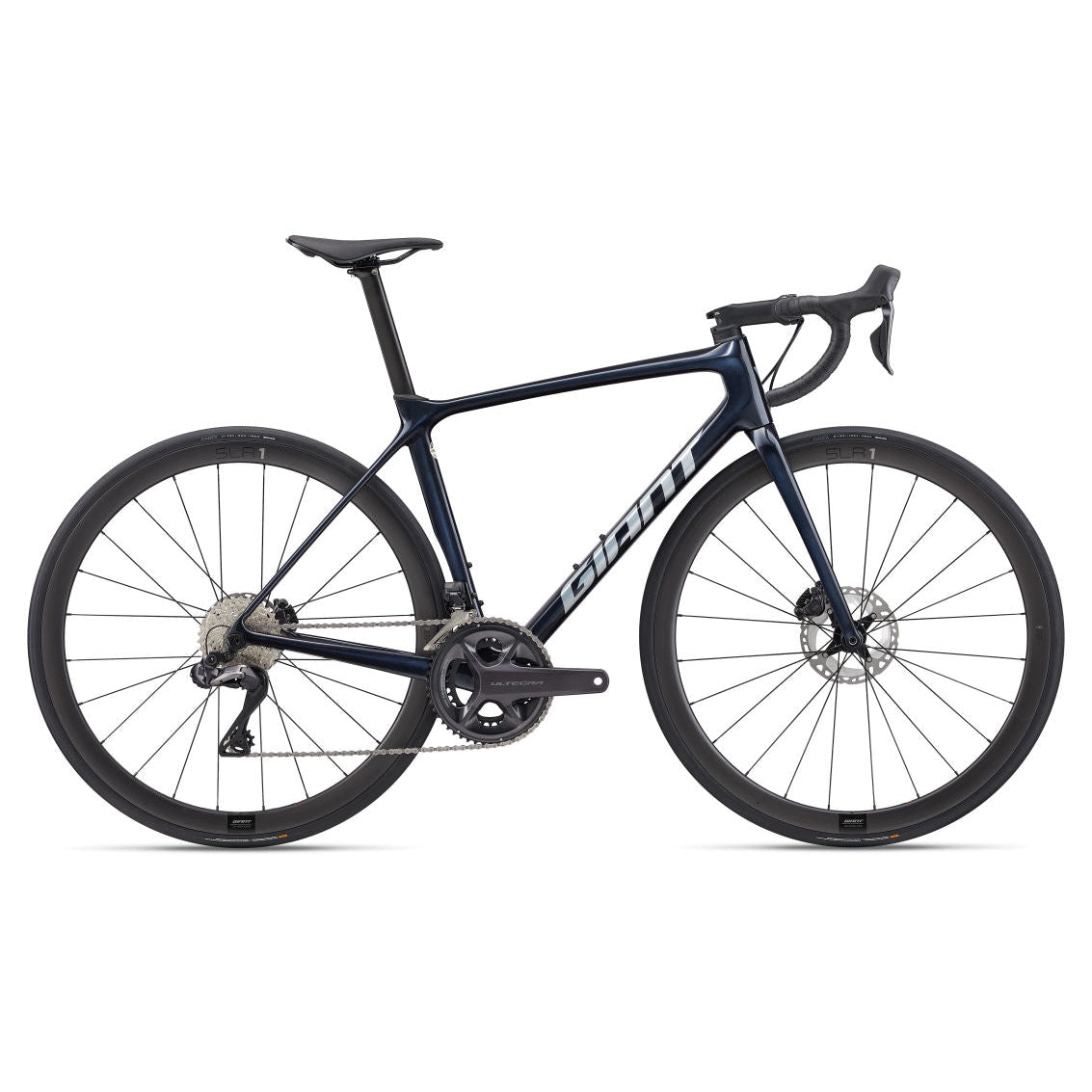

Introducing the TCR Advanced Pro Disc 0 Di2 Road Bike – the ultimate speed machine that will take your riding game to the next level!
This lightweight composite road racer is designed to climb, corner and descend with lightning-fast speed and efficiency, no matter what type of terrain you're tackling. Whether you're charging up steep mountain passes or cruising across flat roads, the TCR Advanced Pro Disc 0 Di2 Road Bike will help you go faster than ever before!
With class-leading efficiency and best-in-class stiffness-to-weight ratio, this bike is built for explosive acceleration, unyielding pedaling stiffness, and race-winning performance. Its advanced aerodynamics are a game-changer, delivering significantly lower drag at a wider range of yaw angles compared to previous generation models.
But that's not all – the TCR Advanced Pro Disc 0 Di2 Road Bike also offers total control, thanks to its integrated disc brakes that deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. The flat mounts and thru-axles boost stiffness and improve overall handling, while the added frame and fork clearance allows for larger diameter tires up to 32mm.
So, whether you're a pro racer looking to dominate the competition or a recreational rider seeking the ultimate thrill, the TCR Advanced Pro Disc 0 Di2 Road Bike is the perfect choice for you. Get ready to ride with lightning-fast speed, precision handling, and unbeatable control – all in one amazing package!
Class-leading efficiency
Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedaling stiffness for race-winning performance.
Advanced aerodynamics
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Total control
Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up to 32mm.
Specifications
|
Sizes
|
XS, S, M, M/L, L, XL
|
|
Colors
|
Cold Night/Chrome
|
|
Frame
|
Advanced-Grade Composite, disc
|
|
Fork
|
Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc
|
|
Shock
|
N/A
|
|
Handlebar
|
Giant Contact SLR XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
|
|
Grips
|
Stratus Lite 2.0
|
|
Stem
|
Giant Contact SL XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
|
|
Seatpost
|
Giant Variant, composite, -5/+15mm offset
|
|
Saddle
|
Giant Fleet SL
|
|
Pedals
|
Sold separately |
|
|
Shifters
|
Shimano Ultegra Di2 ST-R8170
|
|
Front Derailleur
|
Shimano Ultegra Di2 FD-R8150
|
|
Rear Derailleur
|
Shimano Ultegra Di2 RD-R8150
|
|
Brakes
|
Shimano Ultegra Di2 hydraulic, Shimano RT-MT800 rotors [F]160mm, [R]140mm
|
|
Brake Levers
|
Shimano Ultegra Di2 hydraulic
|
|
Cassette
|
Shimano Ultegra, 12-speed, 11x34
|
|
Chain
|
Shimano Ultegra
|
|
Crankset
|
Shimano Ultegra, 36/52 with Giant Power Pro power meter XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175m
|
|
Bottom Bracket
|
Shimano, press fit
|
|
Rims
|
Giant SLR 1 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm
|
|
Hubs
|
[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
|
|
Spokes
|
Sapim CX-Ray
|
|
Tires
|
CADEX Race, tubeless, 700x25c (26.5mm), folding
|
|
Extras
|
computer mount, tubeless prepared, 32mm max tire size
|
|
Weight
|
The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
|
Geometry
| |
|
XS |
S |
M |
ML |
L |
XL |
| A |
SEAT TUBE LENGTH (inch)
|
16.7 |
17.5 |
18.5 |
19.7 |
20.9 |
22 |
| B |
SEAT TUBE ANGLE |
74.5° |
74.0° |
73.5° |
73.0° |
73.0° |
72.5° |
| C |
TOP TUBE LENGTH (inch)
|
20.5 |
21.1 |
21.7 |
22.2 |
22.8 |
23.6 |
| D |
HEAD TUBE LENGTH (inch)
|
4.7 |
5.1 |
5.7 |
6.5 |
7.3 |
7.9 |
| E |
HEAD TUBE ANGLE |
71.0° |
72.3° |
73.0° |
73.0° |
73.0° |
73.0° |
| F |
FORK RAKE (inch)
|
1.8 |
1.8 |
1.8 |
1.8 |
1.8 |
1.8 |
| G |
TRAIL (inch)
|
2.8 |
2.5 |
2.3 |
2.3 |
2.3 |
2.3 |
| H |
WHEELBASE (inch)
|
38.4 |
38.5 |
38.6 |
39 |
39.6 |
40.2 |
| I |
CHAIN STAY LENGTH (inch)
|
15.9 |
15.9 |
15.9 |
15.9 |
15.9 |
15.9 |
| J |
BOTTOM BRACKET DROP (inch)
|
2.8 |
2.8 |
2.8 |
2.6 |
2.6 |
2.6 |
| K |
STACK (inch)
|
20.4 |
20.8 |
21.5 |
22.1 |
22.9 |
23.5 |
| L |
REACH (inch)
|
14.8 |
15.1 |
15.3 |
15.5 |
15.8 |
16.2 |
| M |
STAND OVER HEIGHT (inch)
|
27.8 |
28.5 |
29.4 |
30.4 |
31.5 |
32.1 |
| N |
HANDLEBAR WIDTH (inch)
|
15.7 |
15.7 |
16.5 |
16.5 |
17.3 |
17.3 |
| O |
STEM LENGTH (inch)
|
3.1 |
3.5 |
3.9 |
4.3 |
4.3 |
4.7 |
| P |
CRANK LENGTH (inch)
|
6.7 |
6.7 |
6.8 |
6.8 |
6.9 |
6.9 |
| Q |
WHEEL SIZE
|
700C |
700C |
700C |
700C |
700C |
700C |
