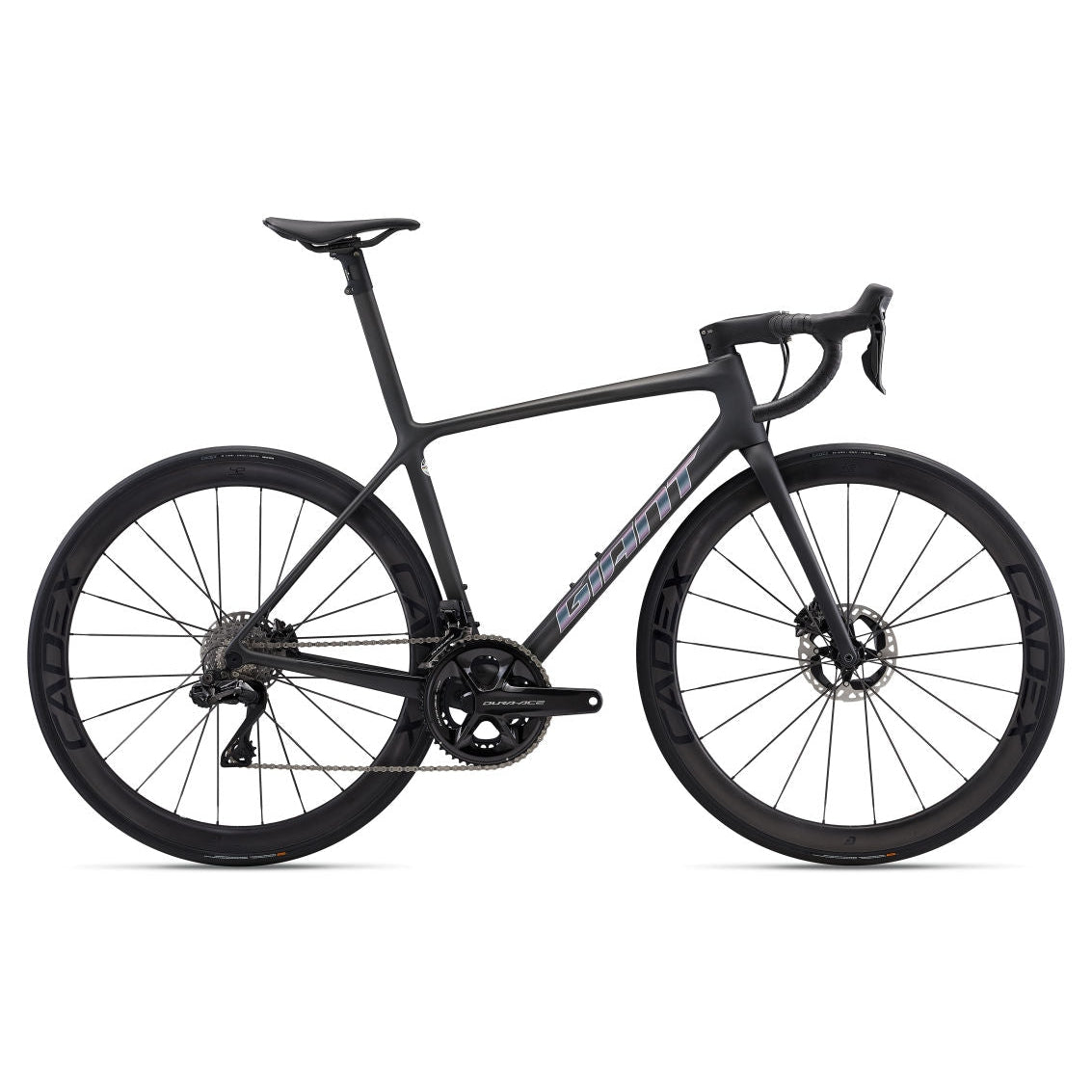

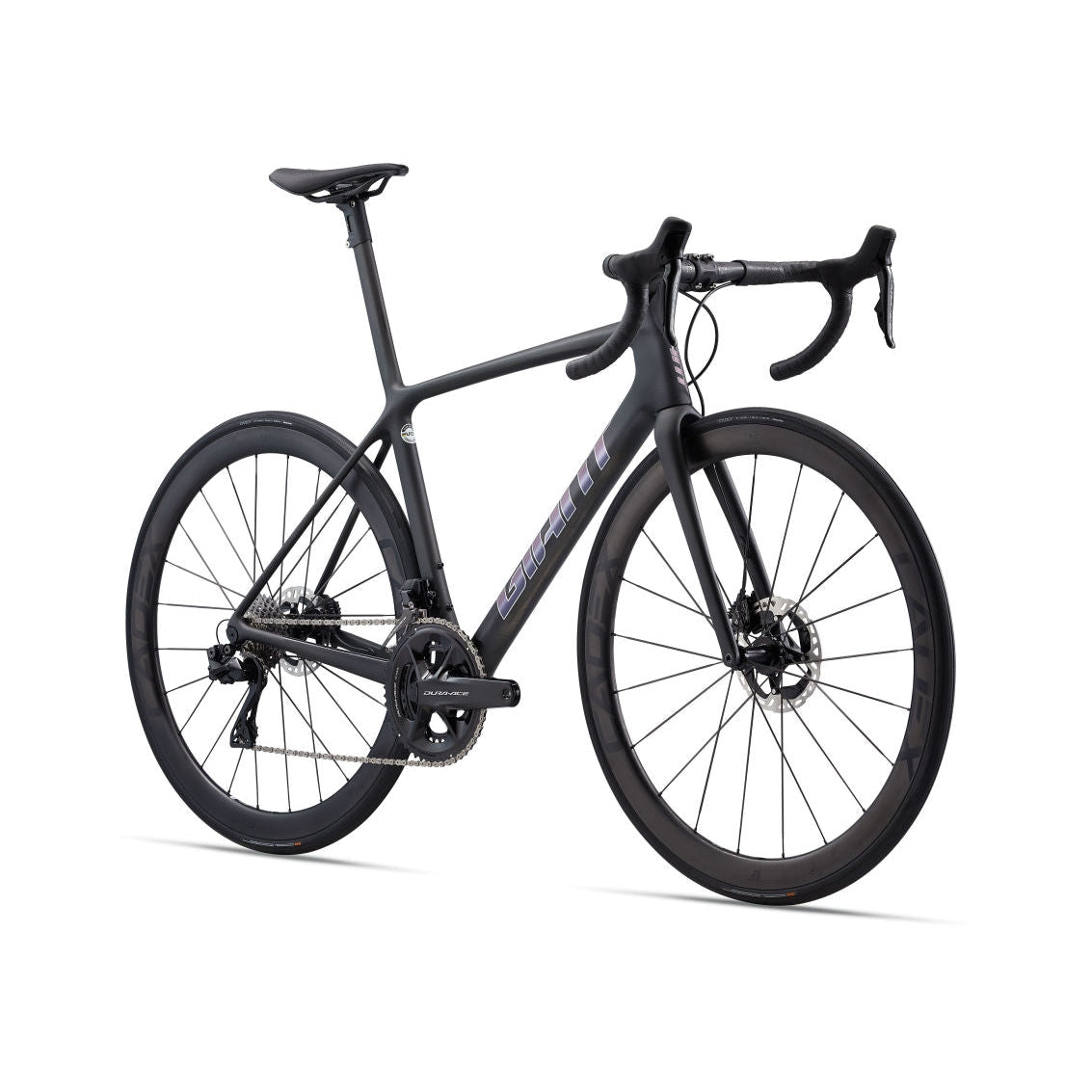

Introducing the TCR Advanced SL 0 Disc Dura-Ace Road Bike, the ultimate machine for those who demand top-notch performance. This bike is the latest iteration of our flagship racing series that has been dominating the biggest races worldwide for over three decades.
You want efficiency? This bike is class-leading in pedaling stiffness-to-weight ratio and has aero tube shaping for superior climbing and sprint stiffness. Want to go fast? Advanced aerodynamics ensure this bike has significantly lower drag at a wider range of angles, giving you a quantifiable advantage over previous models.
But that's not all. You want control? The TCR's integrated disc brakes give you smooth and powerful stopping power, even in variable weather and road conditions. The flat mounts and new thru-axles also improve overall handling and stiffness, while allowing for larger tires up to 32mm.
In short, this bike is the ultimate all-rounder for the performance-obsessed. So, get ready to dominate the race course and turn some heads while you're at it.
Class-leading efficiency
With the highest pedaling stiffness-to-weight ratio of any bike in its class and aero tube shaping, this frameset is engineered to give road racers superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.
Advanced aerodynamics
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Total control
Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up to 32mm.
Specifications
|
Sizes
|
XS, S, M, M/L, L, XL
|
|
Colors
|
Raw Carbon / Iris / Reflective Silver
|
|
Frame
|
Advanced SL-Grade Composite, integrated seatpost, disc
|
|
Fork
|
Advanced SL-Grade Composite, full-composite OverDrive 2 steerer, disc
|
|
Shock
|
N/A
|
|
Handlebar
|
Giant Contact SLR XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
|
|
Grips
|
Stratus Lite 2.0
|
|
Stem
|
Giant Contact SLR XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
|
|
Seatpost
|
Advanced SL-Grade composite, integrated design, -5/+15mm offset
|
|
Saddle
|
Giant Fleet SLR
|
|
Pedals
|
Sold separately |
|
Shifters
|
Shimano Dura-Ace Di2 ST-R9270
|
|
Front Derailleur
|
Shimano Dura-Ace Di2 ST-R9250
|
|
Rear Derailleur
|
Shimano Dura-Ace Di2 ST-R9250
|
|
Brakes
|
Shimano Dura-Ace Di2 hydraulic, Shimano RT-MT900 rotors [F]160mm, [R]140mm
|
|
Brake Levers
|
Shimano Dura-Ace Di2
|
|
Cassette
|
Shimano Dura-Ace, 12-speed, 11x34
|
|
Chain
|
Shimano Dura-Ace M9100
|
|
Crankset
|
Shimano Dura-Ace, 36/52 with FC-9200P power meter XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
|
|
Bottom Bracket
|
Shimano, press fit
|
|
Rims
|
CADEX 42 Disc WheelSystem
|
|
Hubs
|
CADEX 42 Disc WheelSystem, 12mm thru-axle
|
|
Spokes
|
CADEX 42 Disc WheelSystem
|
|
Tires
|
CADEX Race, tubeless, 700x25c (26.5mm), folding
|
|
Extras
|
computer mount, tubeless prepared, 32mm max tire size
|
|
Weight
|
The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
|
Geometry
| |
|
XS |
S |
M |
ML |
L |
XL |
| A |
SEAT TUBE LENGTH (inch)
|
26.8 |
28 |
29.1 |
30.3 |
31.5 |
32.7 |
| B |
SEAT TUBE ANGLE |
74.5° |
74.0° |
73.5° |
73.0° |
73.0° |
72.5° |
| C |
TOP TUBE LENGTH (inch)
|
20.5 |
21.1 |
21.7 |
22.2 |
22.8 |
23.6 |
| D |
HEAD TUBE LENGTH (inch)
|
4.7 |
5.1 |
5.7 |
6.5 |
7.3 |
7.9 |
| E |
HEAD TUBE ANGLE |
71.0° |
72.3° |
73.0° |
73.0° |
73.0° |
73.0° |
| F |
FORK RAKE (inch)
|
1.8 |
1.8 |
1.8 |
1.8 |
1.8 |
1.8 |
| G |
TRAIL (inch)
|
2.8 |
2.5 |
2.3 |
2.3 |
2.3 |
2.3 |
| H |
WHEELBASE (inch)
|
38.4 |
38.5 |
38.6 |
39 |
39.6 |
40.2 |
| I |
CHAIN STAY LENGTH (inch)
|
15.9 |
15.9 |
15.9 |
15.9 |
15.9 |
15.9 |
| J |
BOTTOM BRACKET DROP (inch)
|
2.8 |
2.8 |
2.8 |
2.6 |
2.6 |
2.6 |
| K |
STACK (inch)
|
20.4 |
20.8 |
21.5 |
22.1 |
22.9 |
23.5 |
| L |
REACH (inch)
|
14.8 |
15.1 |
15.3 |
15.5 |
15.8 |
16.2 |
| M |
STAND OVER HEIGHT (inch)
|
27.8 |
28.5 |
29.4 |
30.4 |
31.5 |
32.1 |
| N |
HANDLEBAR WIDTH (inch)
|
15.7 |
15.7 |
16.5 |
16.5 |
17.3 |
17.3 |
| O |
STEM LENGTH (inch)
|
3.1 |
3.5 |
3.9 |
4.3 |
4.3 |
4.7 |
| P |
CRANK LENGTH (inch)
|
6.7 |
6.7 |
6.8 |
6.8 |
6.9 |
6.9 |
| Q |
WHEEL SIZE
|
700C |
700C |
700C |
700C |
700C |
700C |
