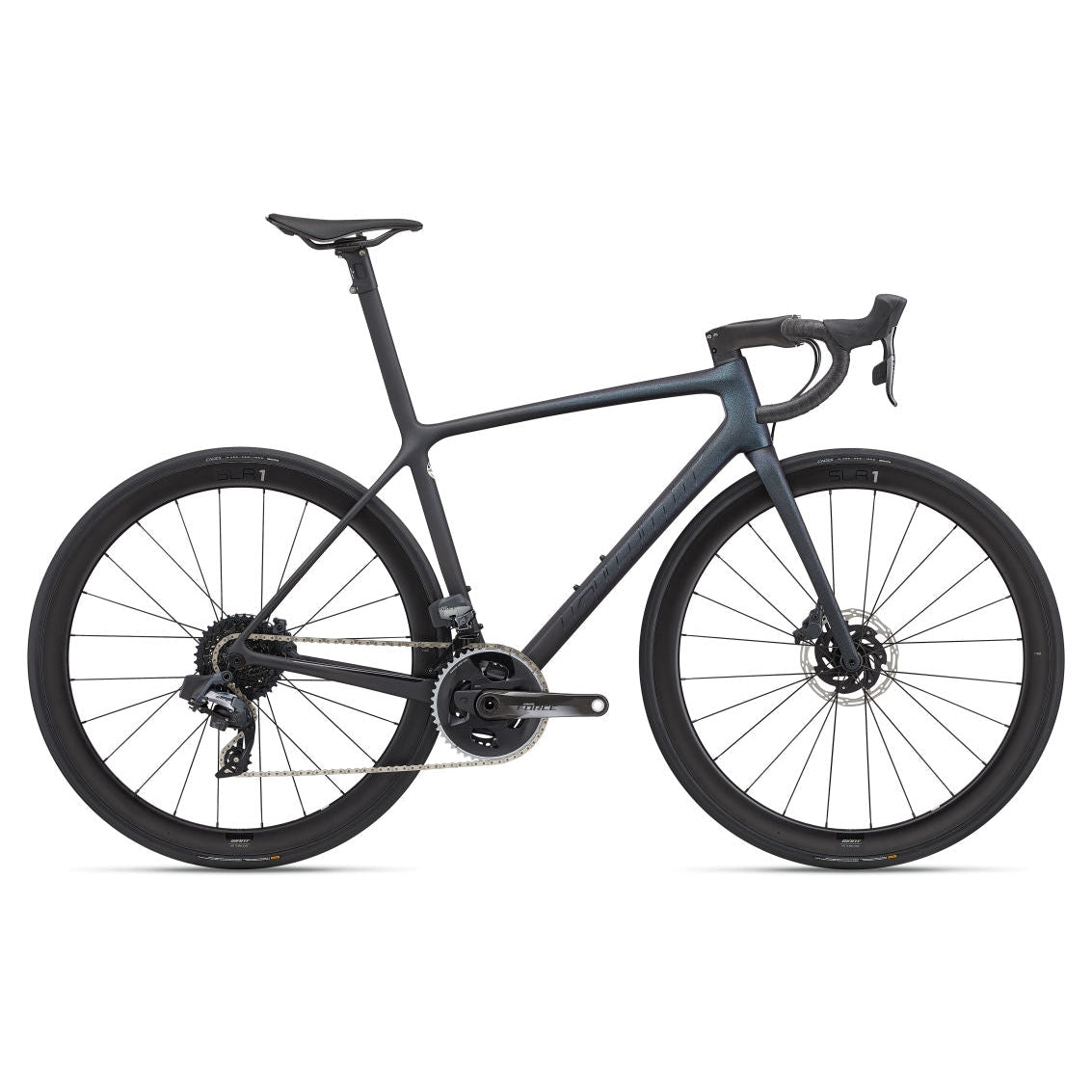

Introducing the TCR Advanced SL 1 Disc Road Bike - the performance-obsessed rider's ultimate all-rounder!
With over three decades of winning the biggest races in the world, this latest generation of our flagship road racing series boasts class-leading efficiency, advanced aerodynamics, and total control. It's engineered for superior climbing capabilities, aerodynamic efficiency, and sprint stiffness for race-winning performance. You'll experience smooth, powerful stopping power and modulation with its integrated disc brakes, and added control in variable weather and road conditions. Plus, with added frame and fork clearance, you can fit high-volume tires up to 32mm for a smoother ride. So, get ready to leave your competitors in the dust and conquer the road with the TCR Advanced SL 1 Disc Road Bike!
Class-leading efficiency
With the highest pedaling stiffness-to-weight ratio of any bike in its class and aero tube shaping, this frameset is engineered to give road racers superior climbing capabilities, aerodynamic efficiency and sprint stiffness for race-winning performance.
Advanced aerodynamics
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Total control
Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up to 32mm.
Specifications
|
Sizes
|
XS, S, M, M/L, L, XL
|
|
Colors
|
Matte Starry Night / Gloss Black Diamond
|
|
Frame
|
Advanced SL-Grade Composite, integrated seatpost, disc
|
|
Fork
|
Advanced SL-Grade Composite, full-composite OverDrive 2 steerer, disc
|
|
Shock
|
N/A
|
|
Handlebar
|
Giant Contact SLR XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
|
|
Grips
|
Stratus Lite 2.0
|
|
Stem
|
Giant Contact SLR XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
|
|
Seatpost
|
Advanced SL-Grade composite, integrated design, -5/+15mm offset
|
|
Saddle
|
Giant Fleet SLR
|
|
Pedals
|
Sold separately |
|
Shifters
|
SRAM Force eTap AXS
|
|
Front Derailleur
|
SRAM Force eTap AXS
|
|
Rear Derailleur
|
SRAM Force eTap AXS
|
|
Brakes
|
SRAM Force eTap AXS hydraulic, SRAM CenterLine XR rotors [F]160mm, [R]140mm
|
|
Brake Levers
|
SRAM Force eTap AXS hydraulic
|
|
Cassette
|
SRAM Force, 12-speed, 10x33
|
|
Chain
|
SRAM Force D1
|
|
Crankset
|
SRAM Force D1 DUB, 35/48with Quarq DZero power meter XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
|
|
Bottom Bracket
|
SRAM DUB, press fit
|
|
Rims
|
Giant SLR 1 42 Carbon Disc WheelSystem
|
|
Hubs
|
Giant SLR 1 42 Carbon Disc WheelSystem, 12mm thru-axle
|
|
Spokes
|
Giant SLR 1 42 Carbon Disc WheelSystem
|
|
Tires
|
CADEX Race, tubeless, 700x25c (26.5mm), folding
|
|
Extras
|
computer mount, tubeless prepared, 32mm max tire size
|
|
Weight
|
The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
|
Geometry
| |
|
XS |
S |
M |
ML |
L |
XL |
| A |
SEAT TUBE LENGTH (inch)
|
26.8 |
28 |
29.1 |
30.3 |
31.5 |
32.7 |
| B |
SEAT TUBE ANGLE |
74.5° |
74.0° |
73.5° |
73.0° |
73.0° |
72.5° |
| C |
TOP TUBE LENGTH (inch)
|
20.5 |
21.1 |
21.7 |
22.2 |
22.8 |
23.6 |
| D |
HEAD TUBE LENGTH (inch)
|
4.7 |
5.1 |
5.7 |
6.5 |
7.3 |
7.9 |
| E |
HEAD TUBE ANGLE |
71.0° |
72.3° |
73.0° |
73.0° |
73.0° |
73.0° |
| F |
FORK RAKE (inch)
|
1.8 |
1.8 |
1.8 |
1.8 |
1.8 |
1.8 |
| G |
TRAIL (inch)
|
2.8 |
2.5 |
2.3 |
2.3 |
2.3 |
2.3 |
| H |
WHEELBASE (inch)
|
38.4 |
38.5 |
38.6 |
39 |
39.6 |
40.2 |
| I |
CHAIN STAY LENGTH (inch)
|
15.9 |
15.9 |
15.9 |
15.9 |
15.9 |
15.9 |
| J |
BOTTOM BRACKET DROP (inch)
|
2.8 |
2.8 |
2.8 |
2.6 |
2.6 |
2.6 |
| K |
STACK (inch)
|
20.4 |
20.8 |
21.5 |
22.1 |
22.9 |
23.5 |
| L |
REACH (inch)
|
14.8 |
15.1 |
15.3 |
15.5 |
15.8 |
16.2 |
| M |
STAND OVER HEIGHT (inch)
|
27.8 |
28.5 |
29.4 |
30.4 |
31.5 |
32.1 |
| N |
HANDLEBAR WIDTH (inch)
|
15.7 |
15.7 |
16.5 |
16.5 |
17.3 |
17.3 |
| O |
STEM LENGTH (inch)
|
3.1 |
3.5 |
3.9 |
4.3 |
4.3 |
4.7 |
| P |
CRANK LENGTH (inch)
|
6.7 |
6.7 |
6.8 |
6.8 |
6.9 |
6.9 |
| Q |
WHEEL SIZE
|
700C |
700C |
700C |
700C |
700C |
700C |
