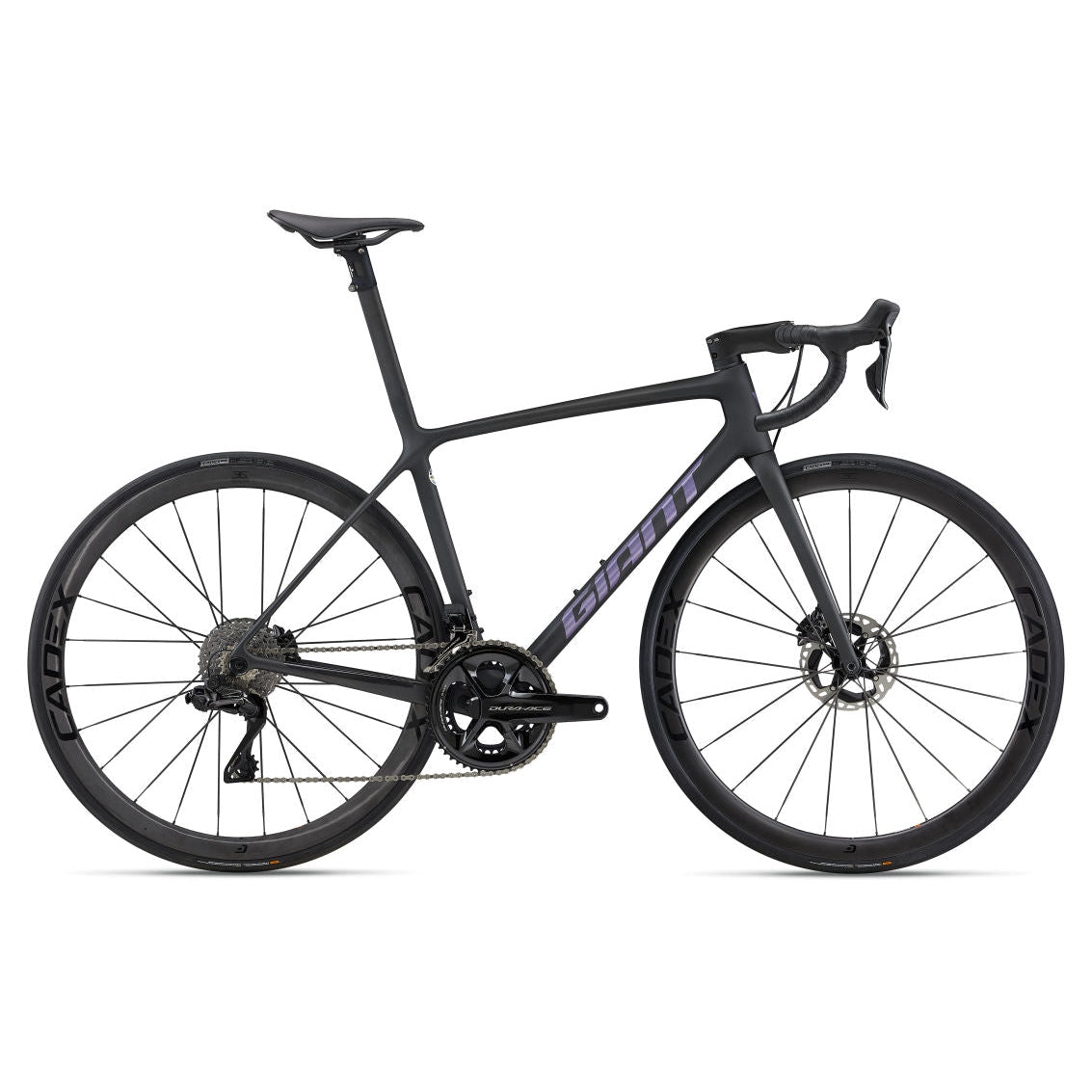

Get ready to leave your competition in the dust with the TCR Advanced SL Disc 0 Road Bike! This legendary winner has conquered the Tour de France and is now ready to dominate your local KOM. WorldTour pros like Simon Yates have already chosen this bike, making it the ultimate all-rounder for those performance-obsessed cyclists.
The TCR Advanced SL Disc 0 is designed for class-leading efficiency, combining top-of-the-line stiffness-to-weight ratio with expertly placed aero tube shaping. This means faster climbing, explosive acceleration, and unbeatable pedaling stiffness for ultimate race-winning performance.
With advanced aerodynamics, this bike takes the TCR to a whole new level of speed. Every tube shape was analyzed, engineered, and tested to create an overall structure with significantly lower drag at a wider range of yaw angles. And that means you'll be flying past your competition at every turn.
But speed isn't everything - this bike also gives you total control. Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up to 32mm.
So, whether you're a seasoned pro or just starting out, the TCR Advanced SL Disc 0 Road Bike is the perfect choice for anyone looking to dominate the road. Get ready to have some serious FUN!
Class-leading efficiency
Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedaling stiffness for race-winning performance.
Advanced aerodynamics
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Total control
Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up to 32mm.
Specifications
|
Sizes
|
XS, S, M, M/L, L, XL
|
|
Colors
|
Matte Raw Carbon/Gloss Rainbow Lightning
|
|
Frame
|
Advanced SL-Grade Composite, integrated seatpost, disc
|
|
Fork
|
Advanced SL-Grade Composite, full-composite OverDrive 2 steerer, disc
|
|
Shock
|
N/A
|
|
Handlebar
|
Giant Contact SLR XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
|
|
Grips
|
Stratus Lite 2.0
|
|
Stem
|
Giant Contact SLR XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
|
|
Seatpost
|
Advanced SL-Grade composite, integrated design, -5/+15mm offset
|
|
Saddle
|
Giant Fleet SLR
|
|
Pedals
|
Sold separately |
|
|
Shifters
|
Shimano Dura-Ace Di2 ST-R9270
|
|
Front Derailleur
|
Shimano Dura-Ace Di2 ST-R9250
|
|
Rear Derailleur
|
Shimano Dura-Ace Di2 ST-R9250
|
|
Brakes
|
Shimano Dura-Ace Di2 hydraulic, Shimano RT-MT900 rotors [F]160mm, [R]140mm
|
|
Brake Levers
|
Shimano Dura-Ace Di2 hydraulic
|
|
Cassette
|
Shimano Dura-Ace, 12-speed, 11x34
|
|
Chain
|
Shimano Dura-Ace M9100
|
|
Crankset
|
Shimano Dura-Ace, 36/52 with FC-9200P power meter XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
|
|
Bottom Bracket
|
Shimano, press fit
|
|
Rims
|
CADEX 36 Disc WheelSystem, [F] 36mm, [R] 36mm
|
|
Hubs
|
[F] CADEX Low Friction Hub, CenterLock, 12mm thru-axle, [R] CADEX R1-C30 Hub, CenterLock, 12mm thru-axle
|
|
Spokes
|
CADEX Aero Carbon
|
|
Tires
|
CADEX Race, tubeless, 700x25c (26.5mm), folding
|
|
Extras
|
computer mount, tubeless prepared, 32mm max tire size
|
|
Weight
|
The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
|
Geometry
| |
|
XS |
S |
M |
ML |
L |
XL |
| A |
SEAT TUBE LENGTH (inch)
|
26.8 |
28 |
29.1 |
30.3 |
31.5 |
32.7 |
| B |
SEAT TUBE ANGLE |
74.5° |
74.0° |
73.5° |
73.0° |
73.0° |
72.5° |
| C |
TOP TUBE LENGTH (inch)
|
20.5 |
21.1 |
21.7 |
22.2 |
22.8 |
23.6 |
| D |
HEAD TUBE LENGTH (inch)
|
4.7 |
5.1 |
5.7 |
6.5 |
7.3 |
7.9 |
| E |
HEAD TUBE ANGLE |
71.0° |
72.3° |
73.0° |
73.0° |
73.0° |
73.0° |
| F |
FORK RAKE (inch)
|
1.8 |
1.8 |
1.8 |
1.8 |
1.8 |
1.8 |
| G |
TRAIL (inch)
|
2.8 |
2.5 |
2.3 |
2.3 |
2.3 |
2.3 |
| H |
WHEELBASE (inch)
|
38.4 |
38.5 |
38.6 |
39 |
39.6 |
40.2 |
| I |
CHAIN STAY LENGTH (inch)
|
15.9 |
15.9 |
15.9 |
15.9 |
15.9 |
15.9 |
| J |
BOTTOM BRACKET DROP (inch)
|
2.8 |
2.8 |
2.8 |
2.6 |
2.6 |
2.6 |
| K |
STACK (inch)
|
20.4 |
20.8 |
21.5 |
22.1 |
22.9 |
23.5 |
| L |
REACH (inch)
|
14.8 |
15.1 |
15.3 |
15.5 |
15.8 |
16.2 |
| M |
STAND OVER HEIGHT (inch)
|
27.8 |
28.5 |
29.4 |
30.4 |
31.5 |
32.1 |
| N |
HANDLEBAR WIDTH (inch)
|
15.7 |
15.7 |
16.5 |
16.5 |
17.3 |
17.3 |
| O |
STEM LENGTH (inch)
|
3.1 |
3.5 |
3.9 |
4.3 |
4.3 |
4.7 |
| P |
CRANK LENGTH (inch)
|
6.7 |
6.7 |
6.8 |
6.8 |
6.9 |
6.9 |
| Q |
WHEEL SIZE
|
700C |
700C |
700C |
700C |
700C |
700C |
