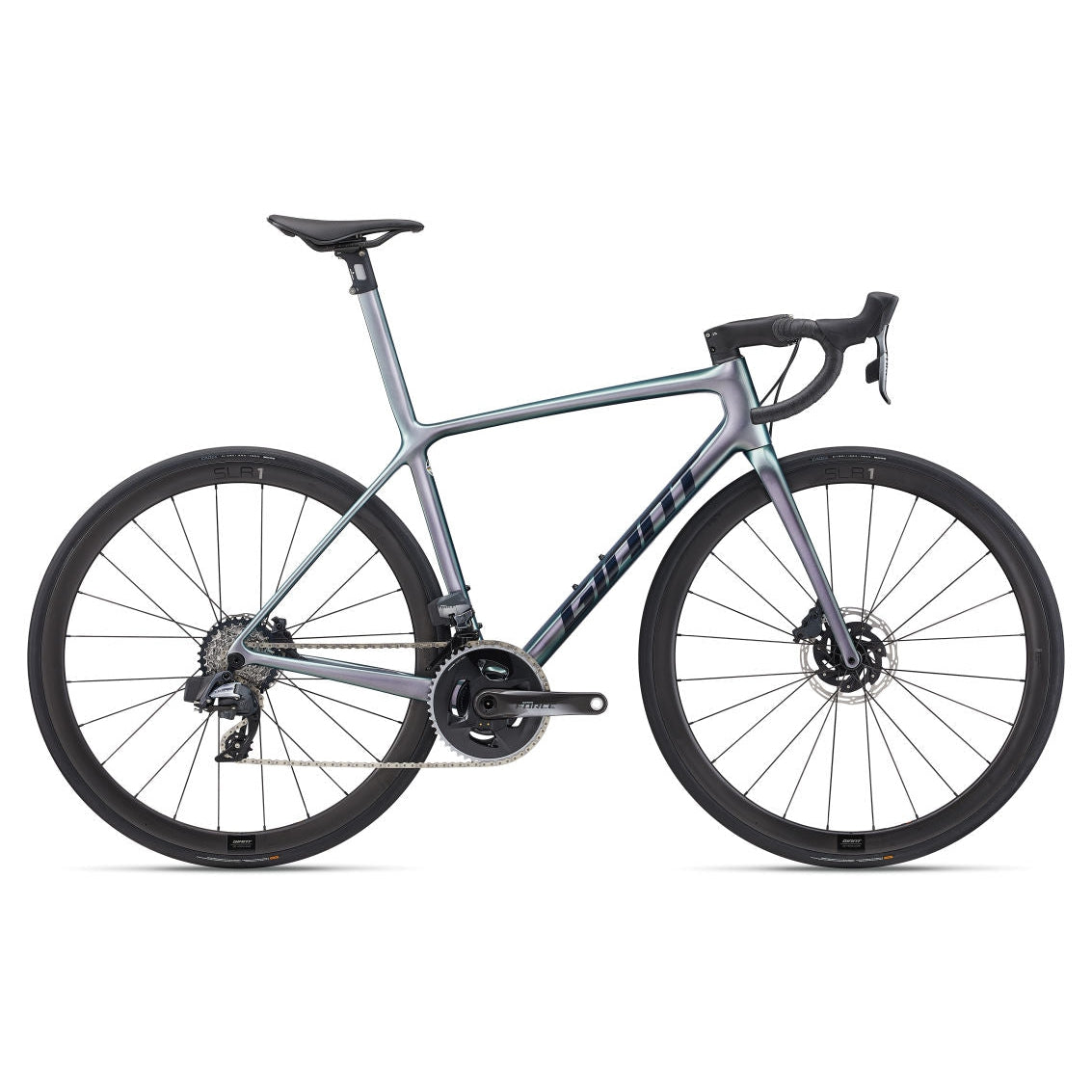

Looking for a bike that can take you from local races to the Tour de France? Look no further than the TCR Advanced SL Disc 1 AXS Road Bike! This bad boy is the ultimate all-rounder, chosen by world-class riders like Simon Yates for its unbeatable performance.
And let's talk performance: the TCR Advanced SL Disc 1 AXS Road Bike is in a league of its own. With best-in-class stiffness-to-weight ratio and aero tube shaping, you'll be climbing faster, accelerating more explosively, and pedaling with unyielding stiffness that screams "race winner."
But that's not all. This bike's advanced aerodynamics make it the ultimate speed machine, with every tube shape engineered for lower drag at a wider range of yaw angles. And with integrated disc brakes, you'll have smooth, powerful stopping power in any weather or road condition.
Don't settle for less than the best. With flat mounts, new thru-axles, and added frame and fork clearance for larger tires, the TCR Advanced SL Disc 1 AXS Road Bike gives you total control and handling like you've never experienced before. So why wait? Get out there and start dominating those KOMs!
Class-leading efficiency
Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedaling stiffness for race-winning performance.
Advanced aerodynamics
This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.
Total control
Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions. Flat mounts and new thru-axles boost stiffness and improve overall handling, while added frame and fork clearance allows for larger diameter tires up to 32mm.
Specifications
|
Sizes
|
XS, S, M, M/L, L, XL
|
|
Colors
|
Airglow
|
|
Frame
|
Advanced SL-Grade Composite, integrated seatpost, disc
|
|
Fork
|
Advanced SL-Grade Composite, full-composite OverDrive 2 steerer, disc
|
|
Shock
|
N/A
|
|
Handlebar
|
Giant Contact SLR XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
|
|
Grips
|
Stratus Lite 2.0
|
|
Stem
|
Giant Contact SLR XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
|
|
Seatpost
|
Advanced SL-Grade composite, integrated design, -5/+15mm offset
|
|
Saddle
|
Giant Fleet SLR
|
|
Pedals
|
Sold separately |
|
|
Shifters
|
SRAM Force eTap AXS
|
|
Front Derailleur
|
SRAM Force eTap AXS
|
|
Rear Derailleur
|
SRAM Force eTap AXS
|
|
Brakes
|
SRAM Force eTap AXS hydraulic, SRAM CenterLine XR rotors [F]160mm, [R]140mm
|
|
Brake Levers
|
SRAM Force eTap AXS hydraulic
|
|
Cassette
|
SRAM Force, 12-speed, 10x33
|
|
Chain
|
SRAM Force D1
|
|
Crankset
|
SRAM Force D1 DUB, 35/48with Giant Power Halo power meter XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
|
|
Bottom Bracket
|
SRAM DUB, press fit
|
|
Rims
|
Giant SLR 1 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm
|
|
Hubs
|
[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle, [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle
|
|
Spokes
|
Sapim CX-Ray
|
|
Tires
|
CADEX Race, tubeless, 700x25c (26.5mm), folding
|
|
Extras
|
computer mount, tubeless prepared, 32mm max tire size
|
|
Weight
|
The most accurate way to determine any bike’s weight is to have your local Bicycle Warehouse weigh it for you. Many brands strive to list the lowest possible weight, but in reality weight can vary based on size, finish, hardware and accessories. All our bikes are designed for best-in-class weight and ride quality.
|
Geometry
| |
|
XS |
S |
M |
ML |
L |
XL |
| A |
SEAT TUBE LENGTH (inch)
|
26.8 |
28 |
29.1 |
30.3 |
31.5 |
32.7 |
| B |
SEAT TUBE ANGLE |
74.5° |
74.0° |
73.5° |
73.0° |
73.0° |
72.5° |
| C |
TOP TUBE LENGTH (inch)
|
20.5 |
21.1 |
21.7 |
22.2 |
22.8 |
23.6 |
| D |
HEAD TUBE LENGTH (inch)
|
4.7 |
5.1 |
5.7 |
6.5 |
7.3 |
7.9 |
| E |
HEAD TUBE ANGLE |
71.0° |
72.3° |
73.0° |
73.0° |
73.0° |
73.0° |
| F |
FORK RAKE (inch)
|
1.8 |
1.8 |
1.8 |
1.8 |
1.8 |
1.8 |
| G |
TRAIL (inch)
|
2.8 |
2.5 |
2.3 |
2.3 |
2.3 |
2.3 |
| H |
WHEELBASE (inch)
|
38.4 |
38.5 |
38.6 |
39 |
39.6 |
40.2 |
| I |
CHAIN STAY LENGTH (inch)
|
15.9 |
15.9 |
15.9 |
15.9 |
15.9 |
15.9 |
| J |
BOTTOM BRACKET DROP (inch)
|
2.8 |
2.8 |
2.8 |
2.6 |
2.6 |
2.6 |
| K |
STACK (inch)
|
20.4 |
20.8 |
21.5 |
22.1 |
22.9 |
23.5 |
| L |
REACH (inch)
|
14.8 |
15.1 |
15.3 |
15.5 |
15.8 |
16.2 |
| M |
STAND OVER HEIGHT (inch)
|
27.8 |
28.5 |
29.4 |
30.4 |
31.5 |
32.1 |
| N |
HANDLEBAR WIDTH (inch)
|
15.7 |
15.7 |
16.5 |
16.5 |
17.3 |
17.3 |
| O |
STEM LENGTH (inch)
|
3.1 |
3.5 |
3.9 |
4.3 |
4.3 |
4.7 |
| P |
CRANK LENGTH (inch)
|
6.7 |
6.7 |
6.8 |
6.8 |
6.9 |
6.9 |
| Q |
WHEEL SIZE
|
700C |
700C |
700C |
700C |
700C |
700C |
